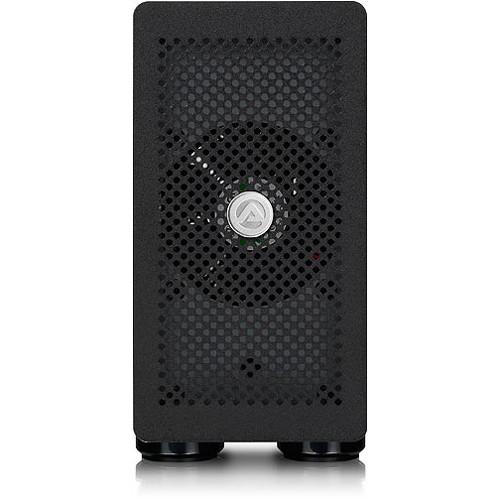

User Manual for Akitio Thunder2 PCIe Expansion Box Click to enlarge the picture
Contents of the user manual for the Akitio Thunder2 PCIe Expansion Box
- Product category: Expansion Chassis Akitio
- Brand: Akitio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Akitio Expansion Chassis
 |
User manual for the Akitio Thunder2 PCIe Expansion Box contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Akitio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Akitio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Akitio product will considerably shorten its lifespan!
|

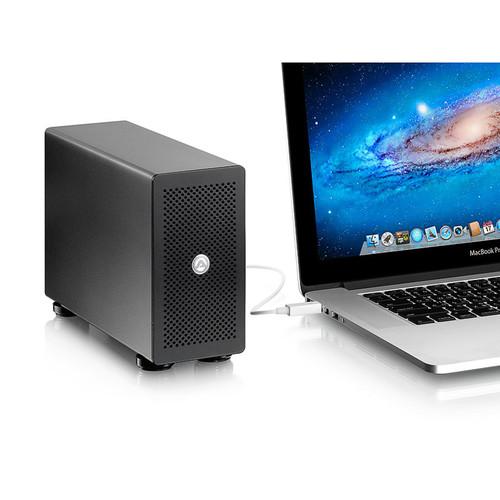

Product description Add an additional PCIe card to your system with the Thunder2 PCIe Expansion Box from AkiTio. This Thunderbolt Expansion Box features a single internal PCIe x16 slot with a 4 lane PCI Express 2.0 interface. On the outside of the box you will find dual Thunderbolt 2 ports capable of supporting data transfer rates of up to 20 Gbps. In addition to enhanced data transfer rates, these dual Thunderbolt ports also allow for daisy-chaining of up to 6 Thunderbolt devices. Setup is simple and requires to tools while the durable aluminum casing ensures your PCIe card is safe in the box. - 4K Workflow with Thunderbolt 2 Technology
- Thunderbolt 2 technology incorporates DisplayPort 1.2 support, which allows for video streaming to a single 4K video monitor. If you are a video editor, you can now use a single port to connect your external Thunderbolt devices and a 4K display.
- 4 Lane PCI Express 2.0 Compliant Interface

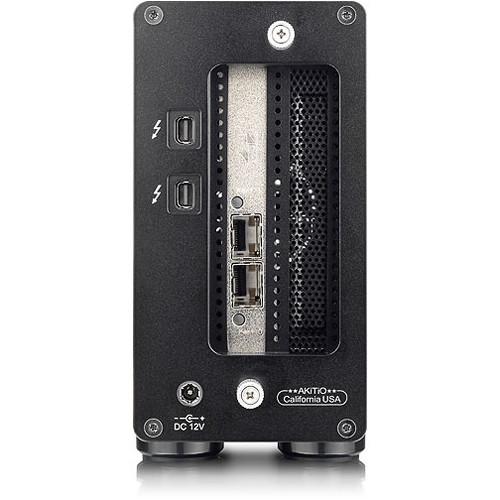

- The PCIe (x16) slot accepts half-length, full-height, double-width cards and provides a maximum of 25W. Replacing the card can be done without tools, simply by removing two hand tightening screws for the chassis and one for the card.
- Provides Two Thunderbolt 2 Ports for Daisy-Chain
- The second Thunderbolt 2 port lets you daisy-chain up to five Thunderbolt devices together. For example, you can attach additional external drives and even a display, all connected to the computer through a single cable.
UPC: 888038001653 In the Box Akitio Thunder2 PCIe Expansion Box Thunderbolt Cable Power Adapter Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Akitio Thunder2 PCIe Expansion Box in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAkitio AK-T2PC-TIA-AKT1U Specs | | | Expansion Slots | 1 x PCIe 2.0 x16
1 x PCIe | | Ports | 2 x Mini DisplayPort Thunderbolt 2 | | Data Transfer Rates | Thunderbolt 2: 20 Gb/s | | Operating System Support | macOS/OS X | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 12 VDC at 5 A | | | | Operating Temperature | 41 to 95°F / 5 to 35°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Operating Humidity | 5 to 95% | | | | Construction Material | Aluminum | | Certifications | BSMI, CE, FCC, TUV, UL, VCCI, cUL, as per Manufacturer | | Dimensions | 9.2 x 5.9 x 3.0" / 23.3 x 14.9 x 7.6 cm | | | | Package Weight | 6.45 lb | | Box Dimensions (LxWxH) | 13.1 x 10.2 x 4.4" |
