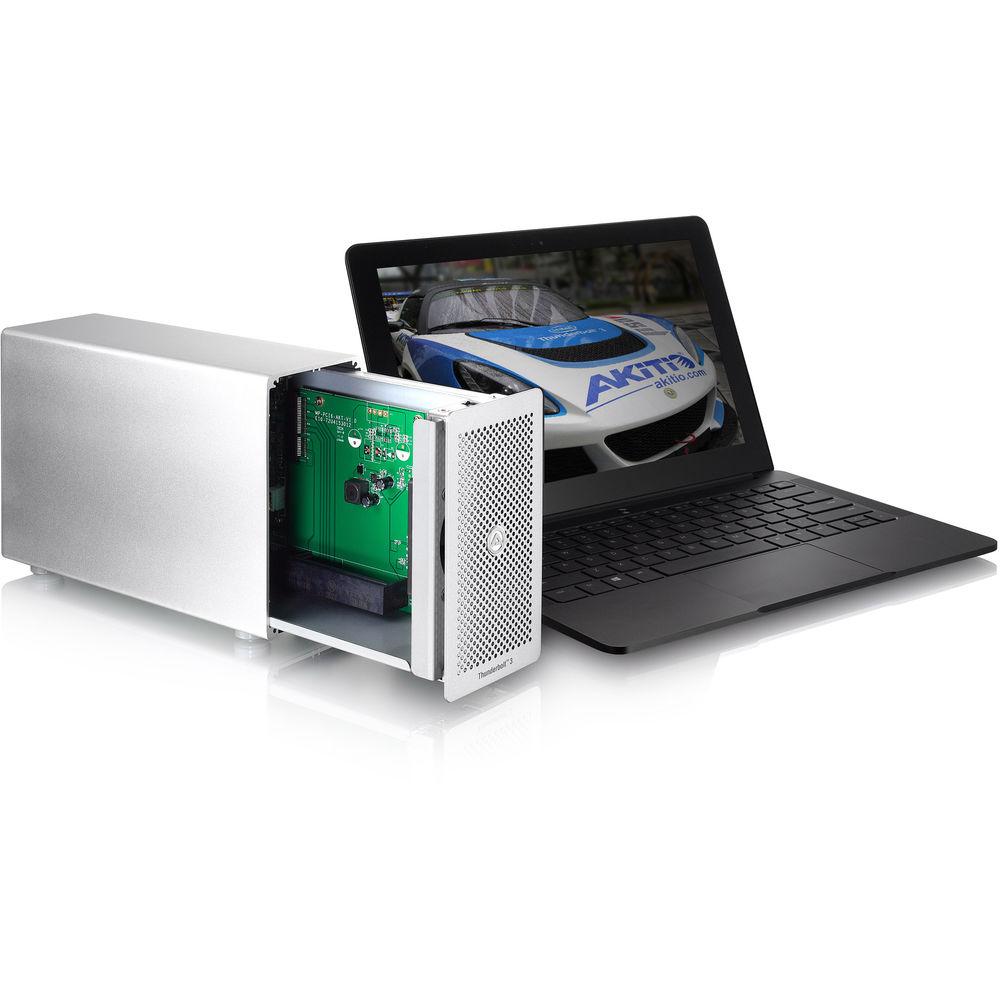

Product description With the Thunder3 PCIe Expansion Box from Akitio you can easily add an additional PCIe card to your Thunderbolt enabled Windows computer. This expansion box features a single internal PCIe (x16) slot with 4 lane PCI Express 3.0 interface supporting a wide variety of PCIe compliant cards. External ports include dual Thunderbolt 3 (USB Type-C) ports for a fast PC connection while the DisplayPort 1.1a port makes it easy to attach a display directly to the box. This PCIe expansion box also supports double-width cards as it comes with a removable back panel. - Thunderbolt 3 for lighting fast transfer speeds up to 40 Gbps
- Dedicated DisplayPort for additional monitor to expand the workspace
- 2nd Thunderbolt port supports Thunderbolt 3, USB 3.1, and DisplayPort devices
- 1 PCIe (x16) slot supporting half-length, full-height, double-width cards
- 4 lane PCI Express 3.0 compliant interface
- Removable back panel for double-width cards
- Daisy-chain up to 6 Thunderbolt devices
- Durable and rugged aluminum casing
- No tools required for installation
In the Box Akitio Thunder3 PCIe Expansion Box Thunderbolt 3 USB-C Cable Power Adapter Limited 2-Year Manufacturer Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Akitio Thunder3 PCIe Expansion Box in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAkitio AK-T3PB-T3DIS-AKTU Specs | Certifications | CE, FCC, VCCI, Thunderbolt technology | | Case Material | High quality aluminum with metal chassis | | Application | 1 x PCIe card (see compatibility chart)
Supports half-length, full-height and double-width cards
PCIe (x16) slot provides a maximum of 25 W

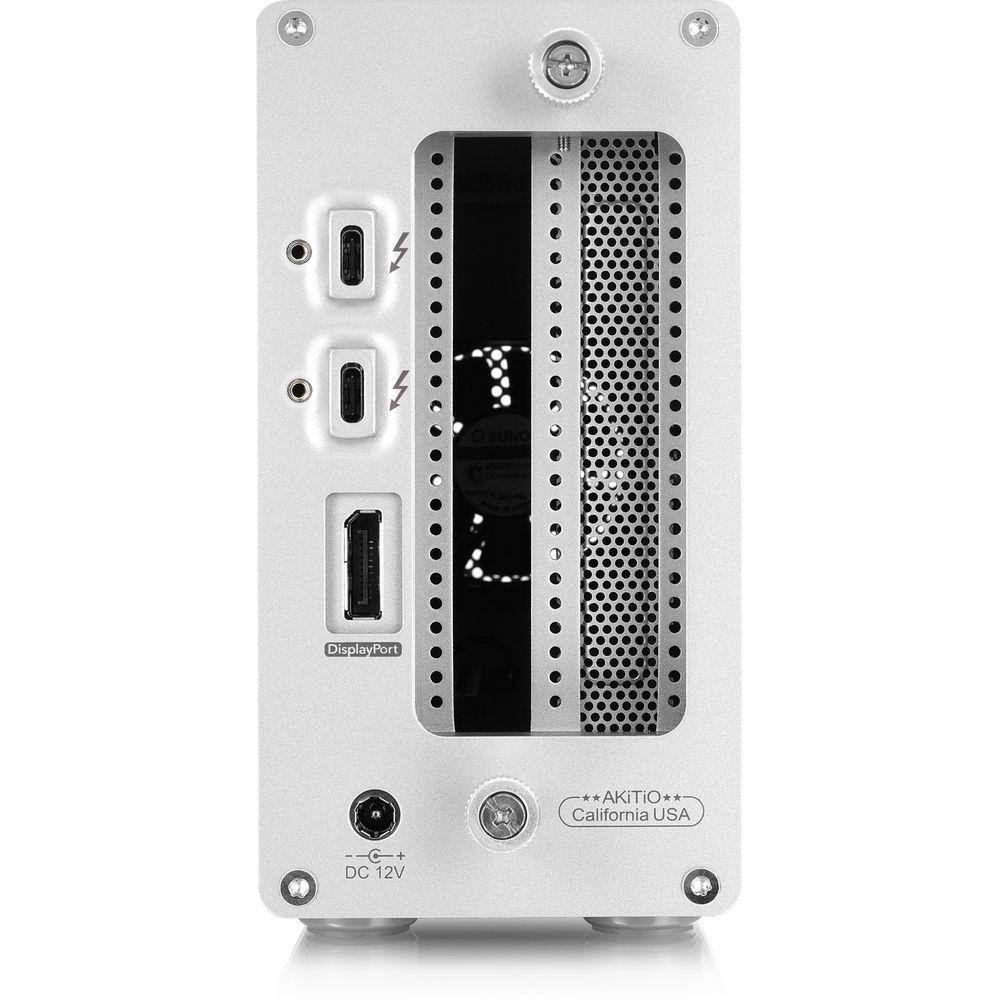

Not designed for graphics cards | | RAID Mode Supported | N/A | | Interface/Ports | 2 x Thunderbolt 3 (USB-C) ports
1 x DisplayPort 1.1
1 x Internal PCIe (x16) slot with 4 lane PCI Express 3.0 interface | | Data Transfer | Thunderbolt 3 up to 40 Gbps
DisplayPort 1.1a (4K at 60 Hz) | | System Requirements (PC) | Windows 7 and later Computer with Thunderbolt 3 port | | System Requirements (Mac) | Not supported | | Temperature & Humidity | Operating Temperature: 5 to 35°C
Storage Temperature: -20 to 60°C
Relative Humidity: 5 to 95% non-condensing | | Power | External power adapter (UL, cUL, CE, FCC, BSMI, TUV approved)
Input: 100-240 VAC, 50 Hz-60 Hz
Output: DC +12 V/6 A | | Fan Noise Level | 23 dB(A) | | Dimensions | 9.17 x 5.87 x 2.99" / 23.3 x 14.9 x 7.6 cm | | Weight | Not specified by manufacturer | | | | Package Weight | 6.35 lb | | Box Dimensions (LxWxH) | 13.1 x 10.1 x 4.7" |
