User Manual for Akitio Thunder3 Quad Mini 4-Bay RAID Array Click to enlarge the picture
Contents of the user manual for the Akitio Thunder3 Quad Mini 4-Bay RAID
- Product category: Hard Drive Enclosures & Docks Akitio
- Brand: Akitio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Akitio Hard Drive Enclosures & Docks
 |
User manual for the Akitio Thunder3 Quad Mini 4-Bay RAID contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Akitio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Akitio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Akitio product will considerably shorten its lifespan!
|

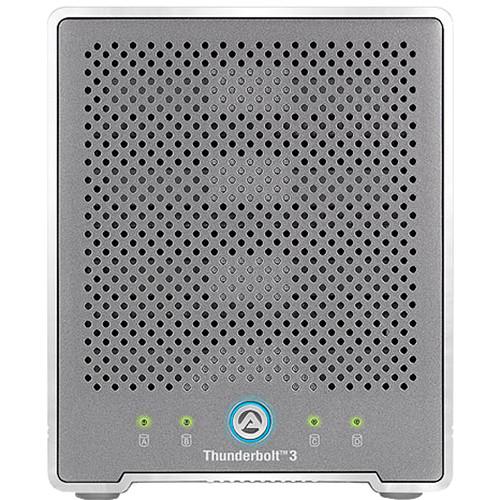

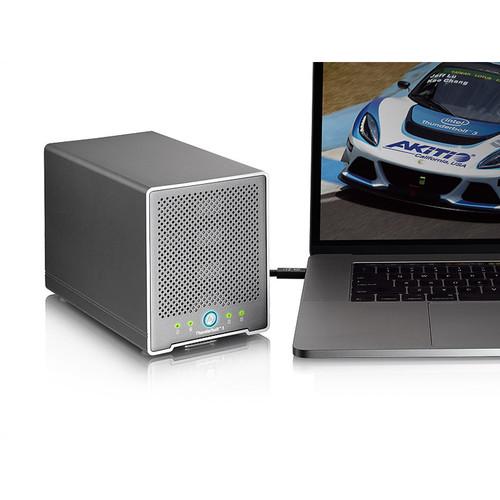

Product description The gray Thunder3 Quad Mini 4-Bay RAID Array provides four 2.5" drive bays for systems that sport Thunderbolt 3 connectivity. The bays are compatible with user-supplied 2.5" hard drives and SSDs sporting a SATA interface. Installing the drives can be easily and quickly accomplished with the included removable drive trays. When SSDs are installed and configured in a RAID 0 array, via software RAID, the Thunder3 Quad Mini delivers up to 1375 MB/s transfer speeds. To cool your drives, a fan is on board.

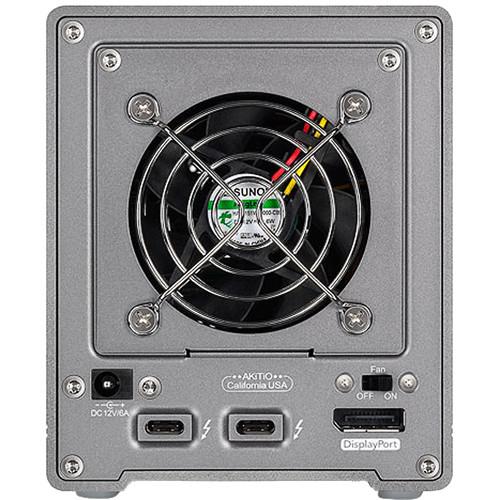

The Thunder3 Quad Mini is armed with two Thunderbolt 3 ports that transmit data at rates of up to 40 Gb/s and feature a reversible USB Type-C interface. The additional Thunderbolt 3 port allows you to daisy chain up to five Thunderbolt 3 devices, while the onboard DisplayPort output lets you connect a monitor directly without needing an adapter. Moreover, the Thunder3 Quad Mini supports a power delivery of up to 15W for recharging a device's internal battery. - Thunder3 Quad Mini Features
-
- Thunderbolt 3 interface for fast transfer speeds of up to 40 Gb/s
- Second Thunderbolt 3 port supports Thunderbolt 3, USB 3.1 (10 Gb/s), and DisplayPort devices
- Daisy chain up to 5 devices
- Power delivery provides up to 15W (5V/3A) of power to compatible laptops
- Dedicated DisplayPort for additional monitor to expand the workspace
- Holds up to four 2.5" drives with SATA 6 Gb/s interface
- Removable trays for easy SSD and HDD installation
- Large fan for active cooling with power switch
UPC: 888038001707 In the Box Akitio Thunder3 Quad Mini 4-Bay RAID Array (Charcoal Gray) Thunderbolt 3 Cable Power Adapter Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Akitio Thunder3 Quad Mini 4-Bay RAID Array in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAkitio Thunder3 Quad Mini Specs | Number of Bays | 4 x 2.5" | | Connections | 2 x USB Type-C (Thunderbolt 3 (40 Gb/s)) | | Compatible Drive Interface | SATA, SATA II, SATA III | | Form Factor | Desktop | | | | Power Source | AC Adapter | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 12 VDC at 6000 mA | | | | Encryption | None | | Security Features | None | | | | Operating Temperature | 41 to 95°F / 5 to 35°C | | Operating Humidity | 5 to 95% | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Certifications | UL, as per Manufacturer | | | | Material of Construction | Aluminum | | Cooling | 1 x Fan | | Noise Level | 23 dBA | | RAID Controller | None | | Status Monitoring | LED Indicator | | Dimensions (W x H x D) | 3.8 x 4.5 x 7.5" / 96.5 x 114.3 x 190.5 mm | | | | Package Weight | 4.9 lb | | Box Dimensions (LxWxH) | 11.0 x 9.0 x 5.3" |
