User Manual for Akitio Thunder3 Quad X 4-Bay Thunderbolt 3 Enclosure Click to enlarge the picture
Contents of the user manual for the Akitio Thunder3 Quad X 4-Bay Thunderbolt
- Product category: Hard Drive Enclosures & Docks Akitio
- Brand: Akitio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Akitio Hard Drive Enclosures & Docks
 |
User manual for the Akitio Thunder3 Quad X 4-Bay Thunderbolt contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Akitio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Akitio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Akitio product will considerably shorten its lifespan!
|

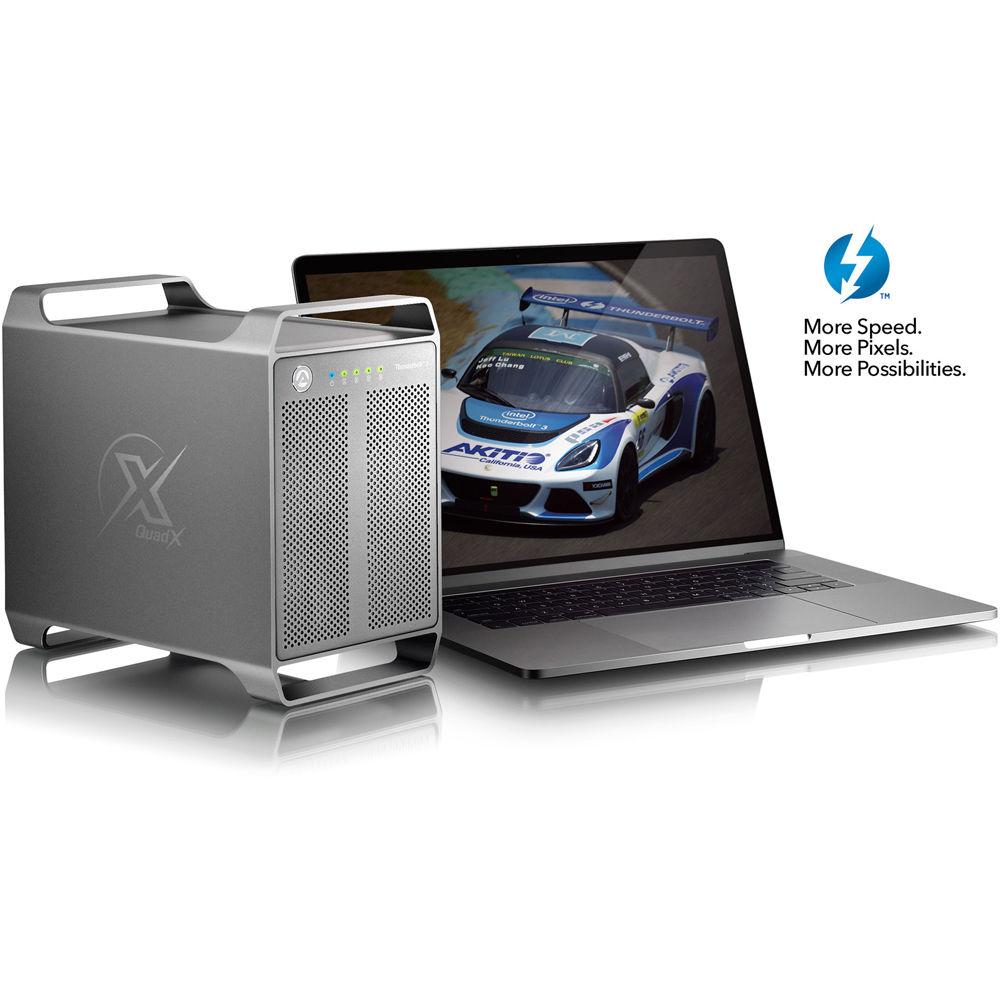

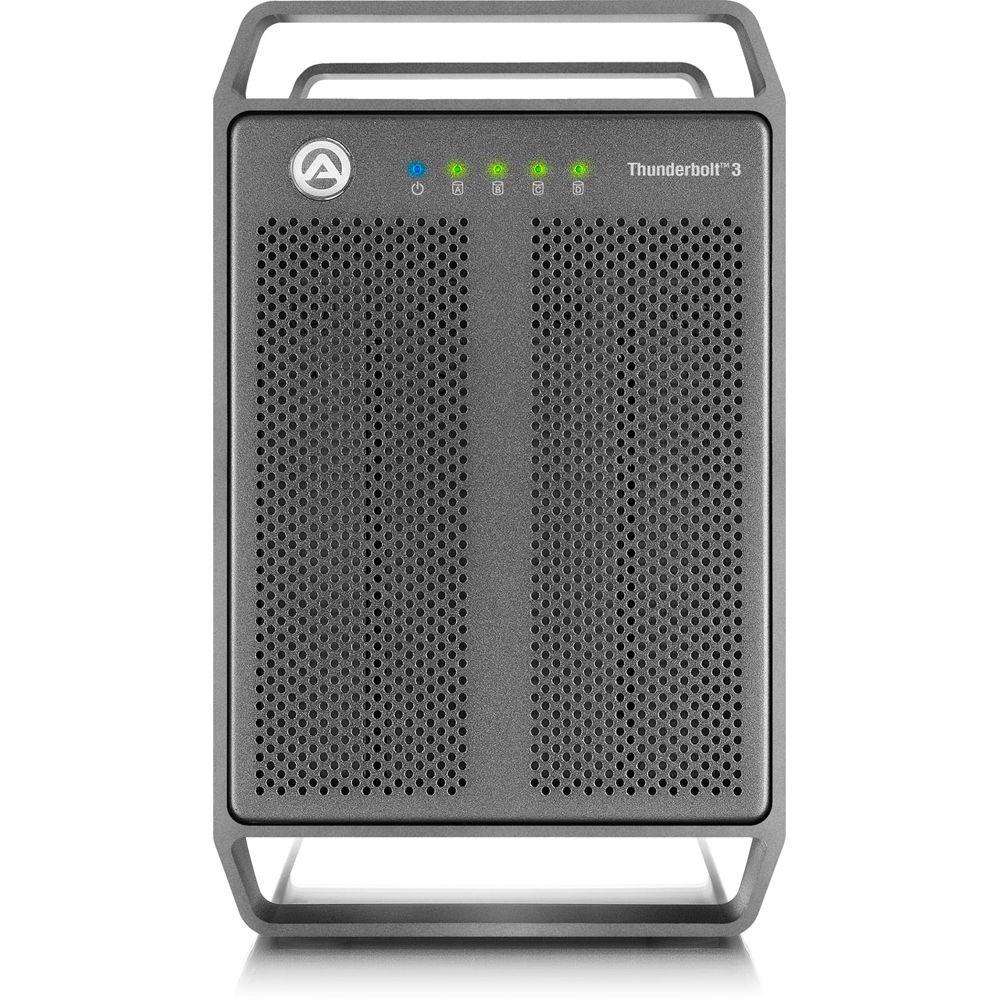

Product description The AkiTio Thunder3 Quad X 4-Bay Thunderbolt 3 RAID Array Enclosure connects to systems that sport Thunderbolt 3 connectivity to provide RAID capability with up to four user-supplied storage drives. The enclosure's four drive bays can accommodate 2.5 and 3.5" drive sizes and are compatible with hard drives and SSDs sporting a SATA interface. Installing the drives can be easily and quickly accomplished with the included removable drive trays. When SSDs are installed and configured in a RAID 0 array via software, the Thunder3 Quad X delivers up to 1480 MB/s transfer speeds. There's also a fan on board to cool your drives.

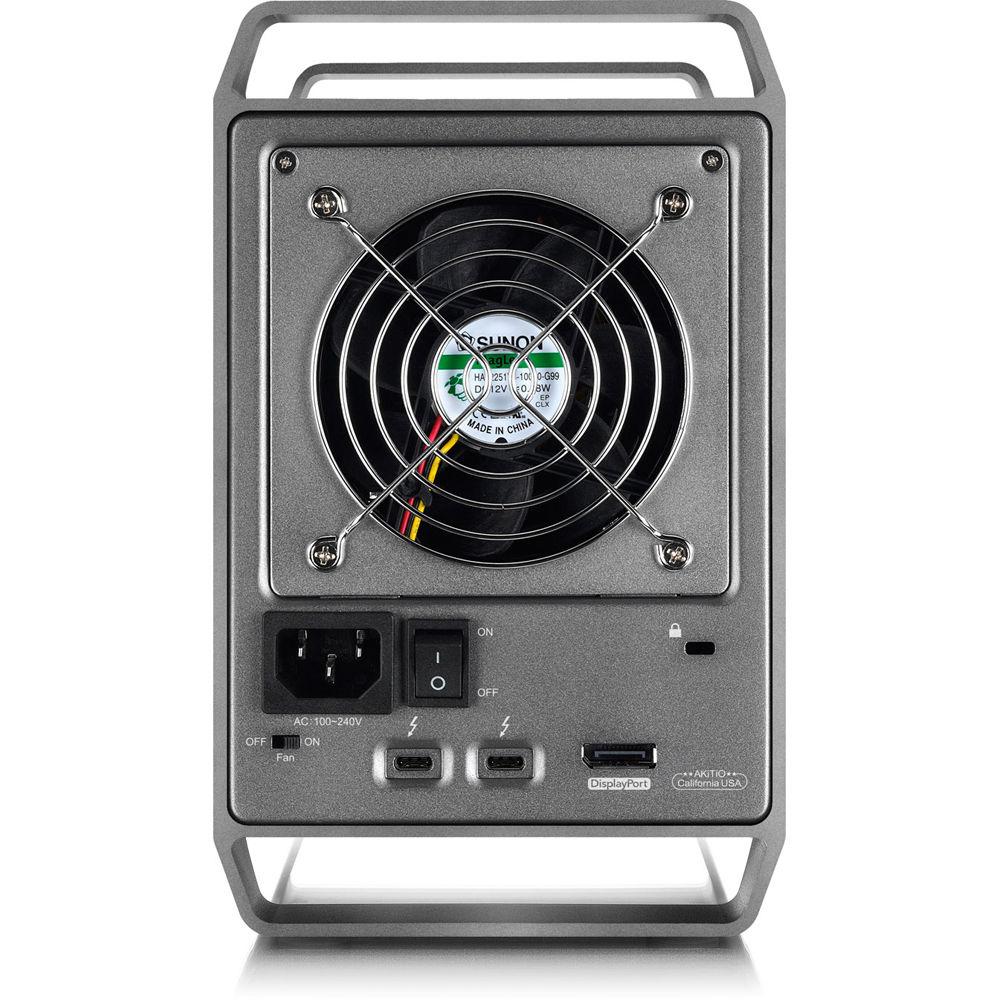

The Thunder3 Quad X is armed with two Thunderbolt 3 ports that transmit data at rates of up to 40 Gb/s and feature a reversible USB Type-C interface. The additional Thunderbolt 3 port allows you to daisy chain up to five Thunderbolt 3 devices, while a built-in DisplayPort output lets you connect a monitor directly without needing an adapter. Moreover, the Thunder3 Quad X supports a power delivery of up to 27W for recharging a device's internal battery. - Thunder3 Quad X Features
-
- Thunderbolt 3 interface for fast transfer speeds of up to 40 Gb/s
- Second Thunderbolt 3 port supports Thunderbolt 3, USB 3.1 (10 Gb/s), and DisplayPort devices
- Power delivery provides up to 27W of power to compatible laptops
- Dedicated DisplayPort for additional monitor to expand the workspace
- Holds up to four 2.5 or 3.5" drives with SATA 6 Gb/s interface
- Removable trays for easy SSD and HDD installation
- Two large handles make it easy to carry the enclosure
- Large fan for active cooling with power switch
- Kensington security slot
UPC: 888038002735 In the Box Akitio Thunder3 Quad X 4-Bay Thunderbolt 3 Enclosure Thunderbolt 3 Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Akitio Thunder3 Quad X 4-Bay Thunderbolt 3 Enclosure in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAkitio Thunder 3 Quad X Specs | | | Number of Bays | 4 x 2.5"/3.5" | | Connections | 2 x USB Type-C (Thunderbolt 3 (40 Gb/s))
1 x DisplayPort (DisplayPort 1.2) | | Compatible Drive Interface | SATA, SATA II, SATA III | | Form Factor | Desktop | | Hot-Swap Support | None | | Operating System Support | Windows, macOS/OS X | | | | Power Source | Internal Power Supply | | PSU Wattage | 1 x 200 W | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 12 VDC at 16 A | | | | Encryption | None | | Security Features | Kensington Security Slot | | | | Operating Temperature | 41 to 95°F / 5 to 35°C | | Operating Humidity | 5 to 95% | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Certifications | BSMI, CE, FCC, RCM, VCCI, as per Manufacturer | | | | Material of Construction | Aluminum | | Cooling | 1 x Fan | | Noise Level | 17.7 dBA | | RAID Controller | None | | Status Monitoring | LED Indicator | | Dimensions (W x H x D) | 9.5 x 5.3 x 8.8" / 24.1 x 13.5 x 22.4 cm | | | | Package Weight | 13.0 lb | | Box Dimensions (LxWxH) | 13.0 x 11.0 x 9.0" |
Rating86% users recommend this product to others. And what about you?
This product has already been rated by 96 owners. Add your rating and experience with the product.
