Aladdin Bi-Flex 1-Panel Kit with Case

User Manual for Aladdin Bi-Flex 1-Panel Kit with Case and V-Mount Battery Plate

• Product category: LED Lights Aladdin
• Brand: Aladdin
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Aladdin LED Lights

Product description

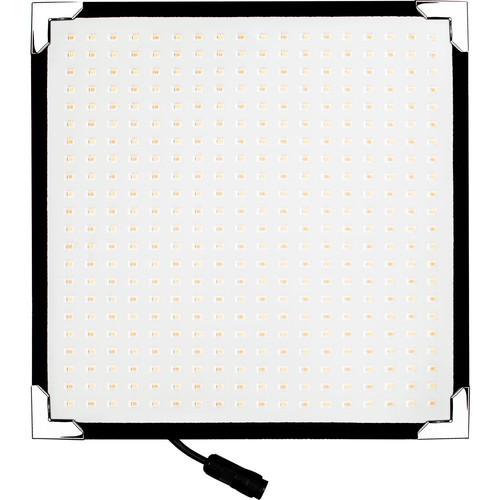

• Bi-Flex1 Bi-Color LED Panel Only (1 x 1') For a flexible, professional light source for your television, film, or still photography production, take advantage of this 1 x 1' Bi-Flex1 Bi-Color LED Panel Only from Aladdin. This moldable LED panel requires separate purchase of a dimmer and power supply for use. The panel features bi-color 2900-6400K color temperature with a CRI over 97 and 5-100% dimming. This small, lightweight, and portable light source offers flicker-free output suitable for tight office-spaces, elevators, cars, or even inside objects for product shots. The Bi-Flex1 panel is equipped with both male touch-fastening corners and mounting rings to easily and firmly mount to a variety of surfaces using female touch-fasteners, screws, nails, or suction cups.
  Photometrics
  • At 6000K: 1600 lux at 3'
    At 4200K: 1700 lux at 3'
    At 3000K: 1200 lux at 3'
• Bi-Flex1 Case The Bi-Flex1 Case from Aladdin measures 14 x 14 x 4" and is made of ripstop nylon, lined with precision-cut foam designed to protect your Bi-Flex1 and accessories. The bag has zippered closure, a zippered exterior sleeve, and a removable shoulder strap.
• Ball Head Stand Mount This Aladdin Ball Head Stand Mount allows for multiple mounting options and a variety of angles for your lights. Ideal for securing the A-Light, this can also mount other units with 1/4"-20 threads.
• Diffuser1 for Bi-Flex1 Panel/Flexlite1 This Diffuser1 from Aladdin is designed for use with either the Bi-Flex1 or Flexlite1 LED panel. It provides front diffusion to soften your light output.
• Extension Cable for Bi-Flex1 (16') This Extension Cable for Bi-Flex1 from Aladdin adds 16' to the standard cable that comes with the LED panel kit. It is ideal for placing the panel at a distance or for hanging from a boom or an extra-high light stand. The connections are watertight, allowing you to shoot in the elements.
• 15V AC/DC Adapter for Bi-Flex1/Flexlite1 This Aladdin 15V AC/DC Adapter is designed for use with the Bi-Flex1 or Flexlite1 LED panel. The adapter runs on 100-240 VAC power, allowing for worldwide use. While a US cable is included, optional cables are available for different countries.
• V-Mount Adapter Plate This Aladdin V-Mount Adapter Plate mounts to the Bi-Flex Dimmer. Power from a 12-15V V-Mount battery to the Bi-Flex light panel is channeled through recessed wiring. A D-Tap port and holes for an optional belt clip are also featured on the plate.

• X-Bend Panel Holder for Bi-Flex1 and Flex-Lite1

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• US Cable

• Limited 1-Year Warranty

• Limited 1-Year Warranty

Also Includes

• Pouch

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Bi-Flex1 Bi-Color LED Panel Only (1 x 1')

  Light Source	50W LED Array
  Beam Angle	140°
  Color Temperature	2900K-6400K
  CRI	Over 97
  Dimming	5-100% (with separately purchased dimmer)
  Lamp Life	Not specified by manufacturer
  Operating Voltage	100-240 VAC, 50/60 Hz (with separately purchased power supply) 12-15 VDC
  DMX	Not specified by manufacturer
  Certification	CE | TÜV | GS | UL
  Dimensions	11.8 x 11.8 x 0.2" (30.0 x 30.0 x 0.5 cm)
  Weight	0.9 lb (0.4 kg)

• Bi-Flex1 Case

  Closure Type	Zipper
  Carry and Transport Options	Shoulder Strap
  Material of Construction	Ripstop Nylon
  Exterior Dimensions (W x H x D)	14 x 14 x 4" / 35.6 x 35.6 x 10.2 cm

  Box Dimensions (LxWxH)	15.15 x 15.0 x 4.2"

• X-Bend Panel Holder for Bi-Flex1 and Flex-Lite1

  Box Dimensions (LxWxH)	17.4 x 2.2 x 1.6"

• Ball Head Stand Mount

  Thread Diameter	1/4"-20
  Dimensions	Not specified by manufacturer
  Weight	Not specified by manufacturer

  Box Dimensions (LxWxH)	3.9 x 3.4 x 1.2"

• Diffuser1 for Bi-Flex1 Panel/Flexlite1

  For Use with

  Aladdin Bi-Flex1 & Flexlite1 Panels

  Box Dimensions (LxWxH)	7.0 x 4.5 x 0.3"

• Extension Cable for Bi-Flex1 (16')

  Compatibility	Aladdin Bi-Flex1 LED panel
  Length	16' (4.9 m)

  Box Dimensions (LxWxH)	6.1 x 5.6 x 1.1"

• 15V AC/DC Adapter for Bi-Flex1/Flexlite1

  AC Input Power	100 to 240 VAC, 50 / 60 Hz
  Output Voltage	15 VDC

  Box Dimensions (LxWxH)	6.2 x 3.6 x 1.8"

• V-Mount Adapter Plate

  Mount	V-Mount

  Box Dimensions (LxWxH)	6.1 x 4.55 x 1.2"
