Product description Have everything you need to professionally light your television, film, or still photography production with this Bi-Flex2 Bi-Color V-Mount Kit from Aladdin. This kit includes a moldable LED panel with an integrated V-mount. The LED panel features bi-color 3000-6000K color temperature with a CRI of 98ra for daylight and 97ra for tungsten with a 100-10% dimming. Integrated DMX controls allow for further control of your lights. This lightweight and portable light source offers flicker-free output suitable for a variety of locations, sets, or even inside objects for product shots. The back of each panel is lined with male touch-fasteners allowing you to mount the panel to any surface using female touch-fasteners.
The Bi-Flex2 panel is fully submersible with an IP rating of 67. This kit includes a professional-grade dimmer with an integrated V-mount battery plate and DMX controls. A 1-stop diffuser, an X-Bend holder for mounting to stands or booms, a ball head stand mount, and a 16' extension cable are also included. - Photometrics
- At 3000K
5500 lux at 2'
2200 lux at 3'
640 lux at 6'
320 lux at 9'
At 4200K
7000 lux at 2'
3200 lux at 3'
900 lux at 6'
420 lux at 9'
At 6000K
8300 lux at 2'
4000 lux at 3'
1290 lux at 6'

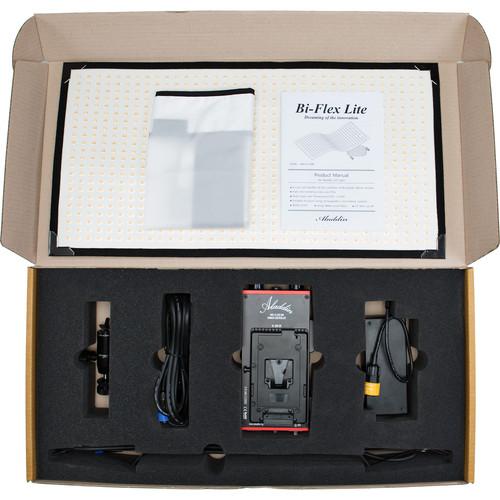

450 lux at 9' In the Box Aladdin Bi-Flex2 Bi-Color V-Mount Kit Bi-Flex 1x2 Panel Dimmer with Integrated Battery Plate & DMX Controls X-Bend AC Adapter Extension Cable Ball Head Adapter Diffusion Panel 5 x Velcro Cable Ties Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Aladdin Bi-Flex2 Bi-Color V-Mount Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAladdin Bi-Flex2 Specs | | | Beam Angle | 140° | | Color Temperature | 2900 to 6400K | | Color Accuracy Standard | CRI 97 | | Cooling System | None | | Dimming | Yes, 10 to 100% (Stepped) | | Display | None | | Fixture Dimensions | 24.0 x 12.0 x 0.2" / 60.0 x 30.0 x 0.5 cm | | Fixture Weight | 1.0 lb / 0.45 kg | | | | Battery Plate | 1 x V-Mount | | DMX Connector | 5-Pin XLR | | | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | DC Input Power | 12 to 18 VDC | | Power Source | AC Adapter, External Battery | | | | Package Weight | 7.45 lb | | Box Dimensions (LxWxH) | 26.5 x 12.5 x 3.2" |
