User Manual for Aladdin Bi-Flex4 Bi-Color LED Panel Kit with Soft Bag Click to enlarge the picture
Contents of the user manual for the Aladdin Bi-Flex4 Bi-Color LED Panel Kit
- Product category: LED Lights Aladdin
- Brand: Aladdin
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Aladdin LED Lights
|
User manual for the Aladdin Bi-Flex4 Bi-Color LED Panel Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Aladdin product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Aladdin user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Aladdin product will considerably shorten its lifespan!
|

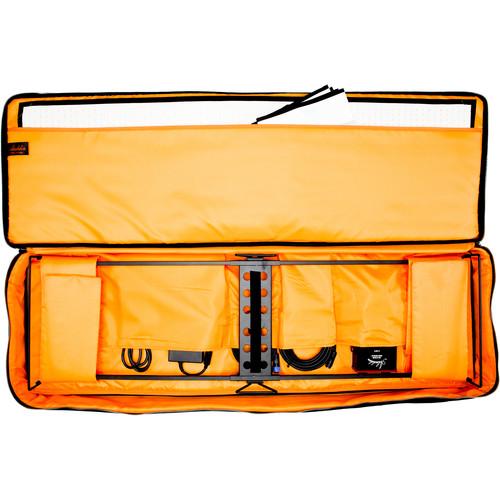

Product description Have everything you need to professionally light your television, film, or still photography production and transport your gear to and from your location shoot with this Bi-Flex4 Bi-Color Gold-Mount Kit with Soft Bag from Aladdin. This kit includes a moldable LED panel with an integrated Gold-Mount. The LED panel features bi-color 2900-6400K color temperature with a CRI of 98ra for daylight and 97ra for tungsten with a 100-5% dimming. Integrated DMX controls allow for further control of your lights. This lightweight and portable light source offers flicker-free output suitable for a variety of locations, sets, or even inside objects for product shots. The back of each panel is lined with male touch-fasteners allowing you to mount the panel to any surface using female touch-fasteners.
The Bi-Flex4 panel is fully submersible with an IP rating of 67. This kit includes a professional-grade dimmer with an integrated Gold-Mount battery plate and DMX controls. An AC adapter, a metal frame with a 16mm stud, a ball head stand mount, a diffuser, and a 16' extension cable are included. A soft bag allows you to safely protect and transport your gear. - Photometrics
- At 3000K
8300 lux at 2' (60cm)
4200 lux at 3' (1m)
1400 lux at 6' (2m)
700 lux at 9' (3m)
At 4200K
10000 lux at 2' (60cm)
5500 lux at 3' (1m)
1700 lux at 6' (2m)
800 lux at 9' (3m)
At 6000K
11,000 lux at 2' (60cm)
6000 lux at 3' (1m)
1800 lux at 6' (2m)
840 lux at 9' (3m) In the Box Aladdin Bi-Flex4 Bi-Color LED Panel Kit with Soft Bag (Gold-Mount) Bi-Flex4 Bi-Color LED Panel Only (1 x 4') Dimmer with Integrated Battery Plate AC Adapter Metal Frame with 16mm Stud Ball Head Stand Mount 16' Extension Cable Diffuser Soft Bag Table of Contents
|
Upload User Manual
Have you got an user manual for the Aladdin Bi-Flex4 Bi-Color LED Panel Kit with Soft Bag in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAladdin Bi-Flex4 Specs | | | Beam Angle | 140° | | Color Temperature | 2900 to 6400K | | Color Accuracy Standard | CRI 97 | | Cooling System | None | | Dimming | Yes, 5 to 100% | | Display | None | | Fixture Dimensions | 48.0 x 12.0 x 0.2" / 120.0 x 30.0 x 0.6 cm | | Fixture Weight | 1.5 lb / 0.7 kg | | | | Battery Plate | 1 x Gold Mount | | DMX Connector | 5-Pin XLR | | | | AC Input Power | 90 to 260 VAC, 50 / 60 Hz | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 200 W | | | | Package Weight | 18.67 lb | | Box Dimensions (LxWxH) | 46.25 x 15.75 x 5.25" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 15 owners. Add your rating and experience with the product.
