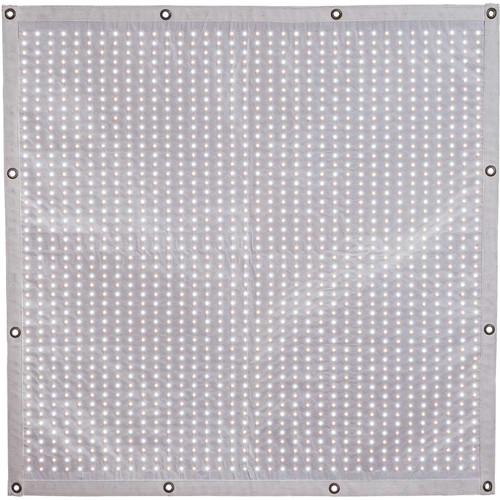

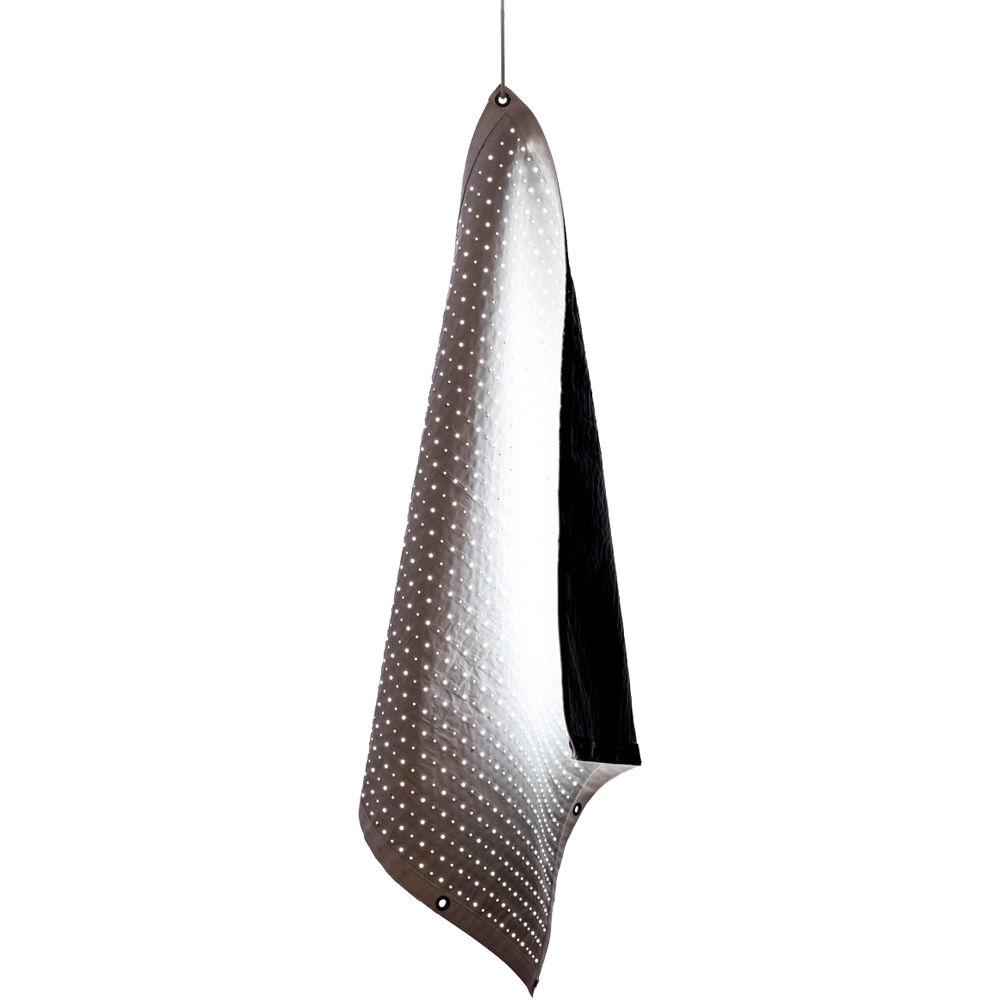

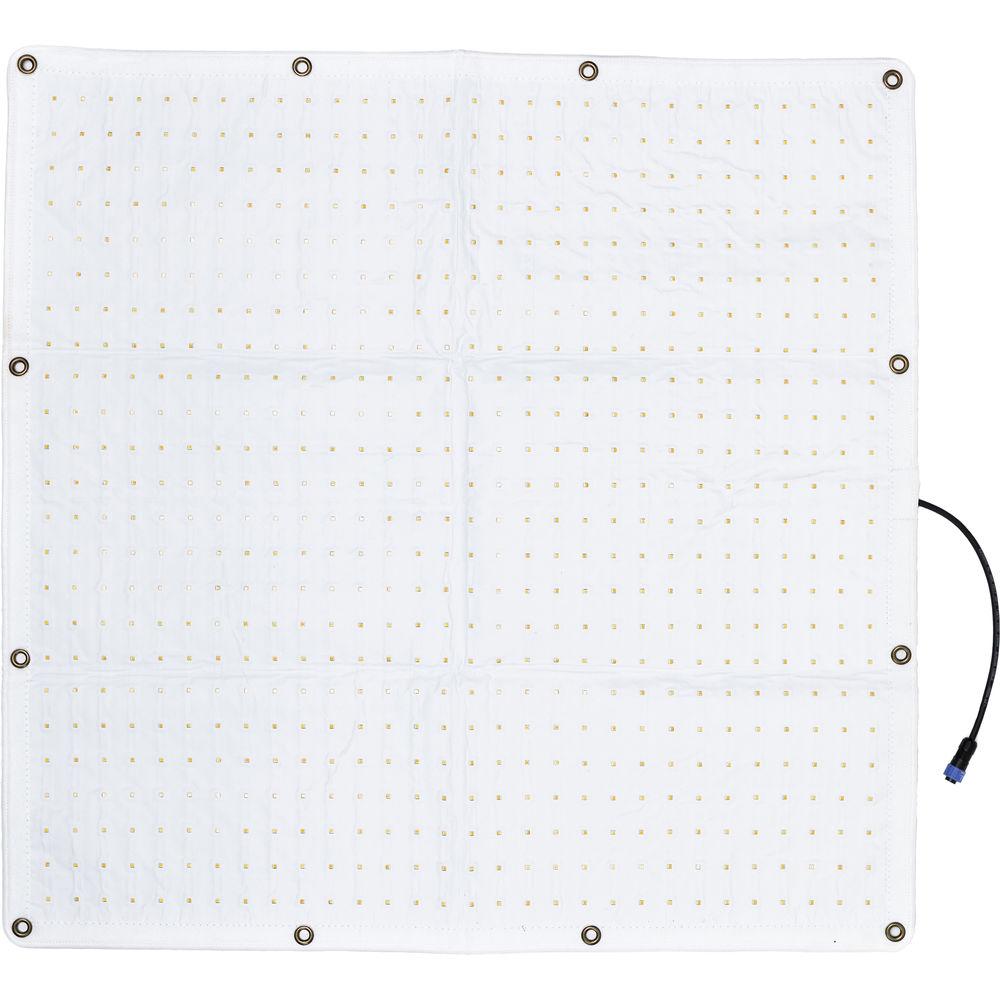

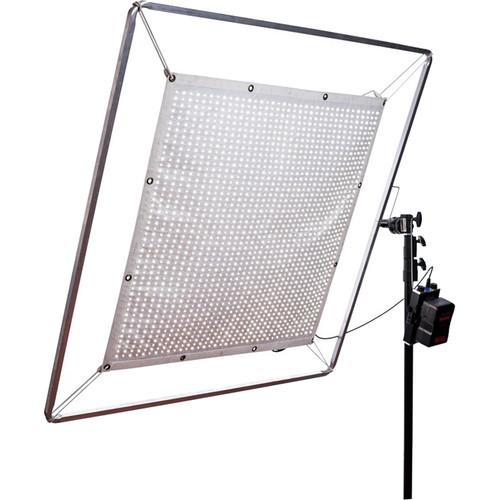

Product description If you've ever wished you could bend your framed LED panel into a shape that conforms to your subject matter, the Fabric-Lite 200W Bi-Color Kit with Gold Mount Battery Plate from Aladdin is your solution. The Fabric-Lite is literally flexible. Bend the 3 x 3' mat into a u-shape for wrap around lighting, into a cylinder for rim lighting, or for long, elegant highlights on glassware or other reflective objects. Its light weight, negligible heat, and thickness of only 0.25" means you can squeeze it into tight places or use it up close to the talent without fear of hazard. The Fabric-Lite is also functionally flexible. Color temperature is variable from 2900 to 6200K, and the light is dimmable from 0.5 to 100%. You can make these adjustments locally on the unit or remotely from a console via wired DMX. The fixture also has LumenRadio DMX capability for wireless freedom. The Fabric-Lite also has flexible power requirements. It is ready for worldwide use via the included 100-240 VAC universal adapter but it will also run on optional Gold Mount batteries when mains power is unavailable. In addition to the Fabric-Lite LED panel, the kit includes a dimmer with a Gold Mount battery plate, power adapter, and 6.5' and 16.4' extension cables. Optional accessories include a rigid frame, diffuser, and a grid. Thanks to grommets and touch-fasteners you can also gang several units on a butterfly frame up to 12 x 12'. - Fabric-Lite 200W Flexible Bi-Color LED Light If you've ever wished you could bend your framed LED panel into a shape that conforms to your subject matter, the Fabric-Lite 200W Flexible Bi-Color LED Light from Aladdin is your solution. The Fabric-Lite is literally flexible. Bend the 3 x 3' mat into a u-shape for wrap around lighting, into a cylinder for rim lighting, or for long, elegant highlights on glassware or other reflective objects. Its light weight, negligible heat, and thickness of only 0.25" means you can squeeze it into tight places or use it up close to the talent without fear of hazard. The Fabric-Lite is also functionally flexible. Color temperature is variable from 2900 to 6200K, and the light is dimmable from 0.5 to 100%. You can make these adjustments locally on the unit or remotely from a console via wired DMX. The fixture also has LumenRadio DMX capability for wireless freedom. The Fabric-Lite also has flexible power requirements. It is ready for worldwide use via the optional 100-240 VAC universal adapter but it will also run on optional V-mount or Gold mount batteries when mains power is unavailable. This listing is for the LED mat only. It requires a power adapter and dimmer for use.
- Dimmer20 with Gold Mount Battery Plate for Fabric-Lite 200 LED Light The Dimmer20 with Gold Mount Battery Plate for Fabric-Lite 200 LED Light from Aladdin combines controls and a power source for the fixture. The Dimmer20 controls light intensity from 0.5 to 100% and is rated for 200W of output power. Settings are visible on the unit's large 5.0 x 2.5" OLED display. The dimmer supports both wired and wireless DMX via DMX512 protocol or LumenRadio. The Dimmer20 can run on AC power via a separately purchased adapter or on optional 26V batteries via its Gold mount battery plate.

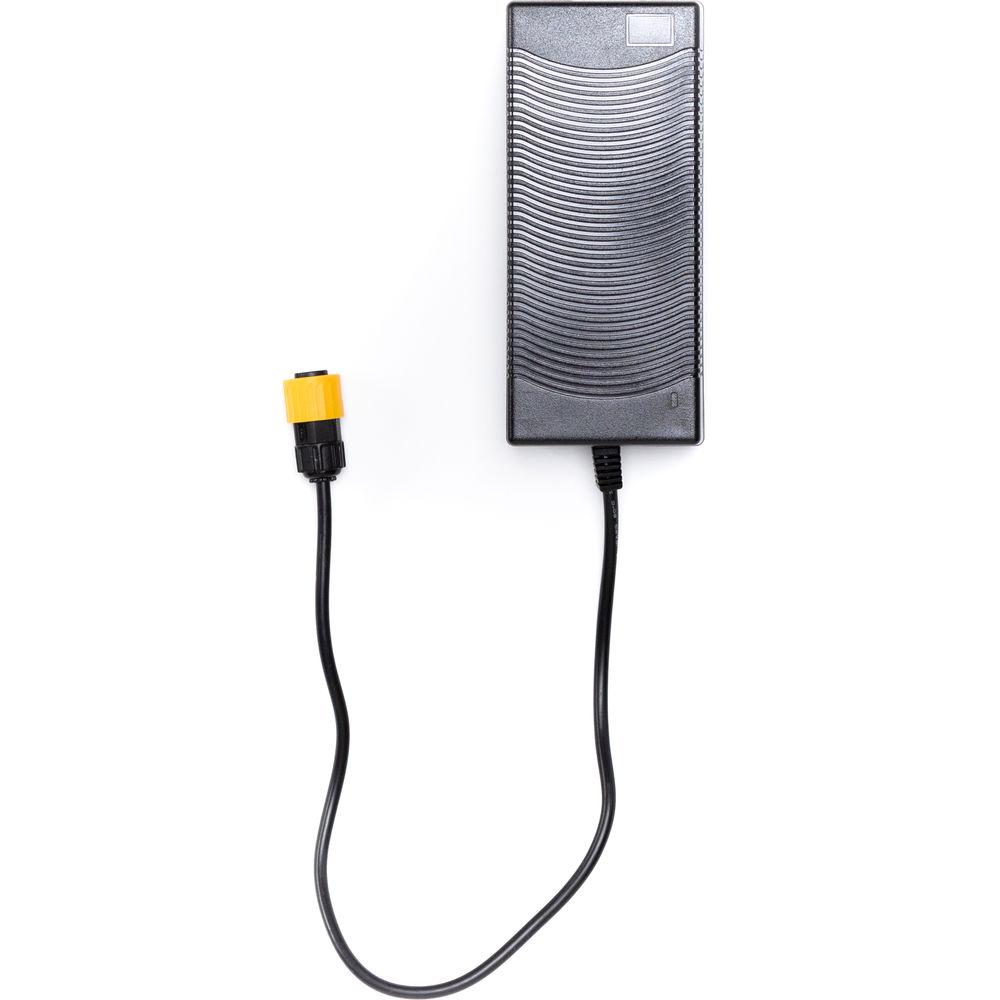

- AC Power Supply for FABRIC-LITE 200 The AC Power Supply for FABRIC-LITE 200 from Aladdin provides 100 to 240 VAC mains current to power the FABRIC-LITE.
- Extension Cable for Fabric-Lite LED Light (6.5') The Aladdin 6.5' Extension Cable for Fabric-Lite LED Light connects the flexible LED mats to its AC power supply.
- Universal Extension Cable for Bi-Flex2, Bi-Flex4, and Fabric-Lite LED Panels (16') The Aladdin 16' Universal Extension Cable for Bi-Flex2, Bi-Flex4, and Fabric-Lite LED Panels connects these flexible LED mats to their AC power supplies.
- Single Panel Storage Pouch for FABRIC-LITE 200W and 350W (Black) Store your FABRIC-LITE 200W or 350W in the black Aladdin Pouch.
- Compatibility
- Holds FABRIC-LITE 2002 or 350W

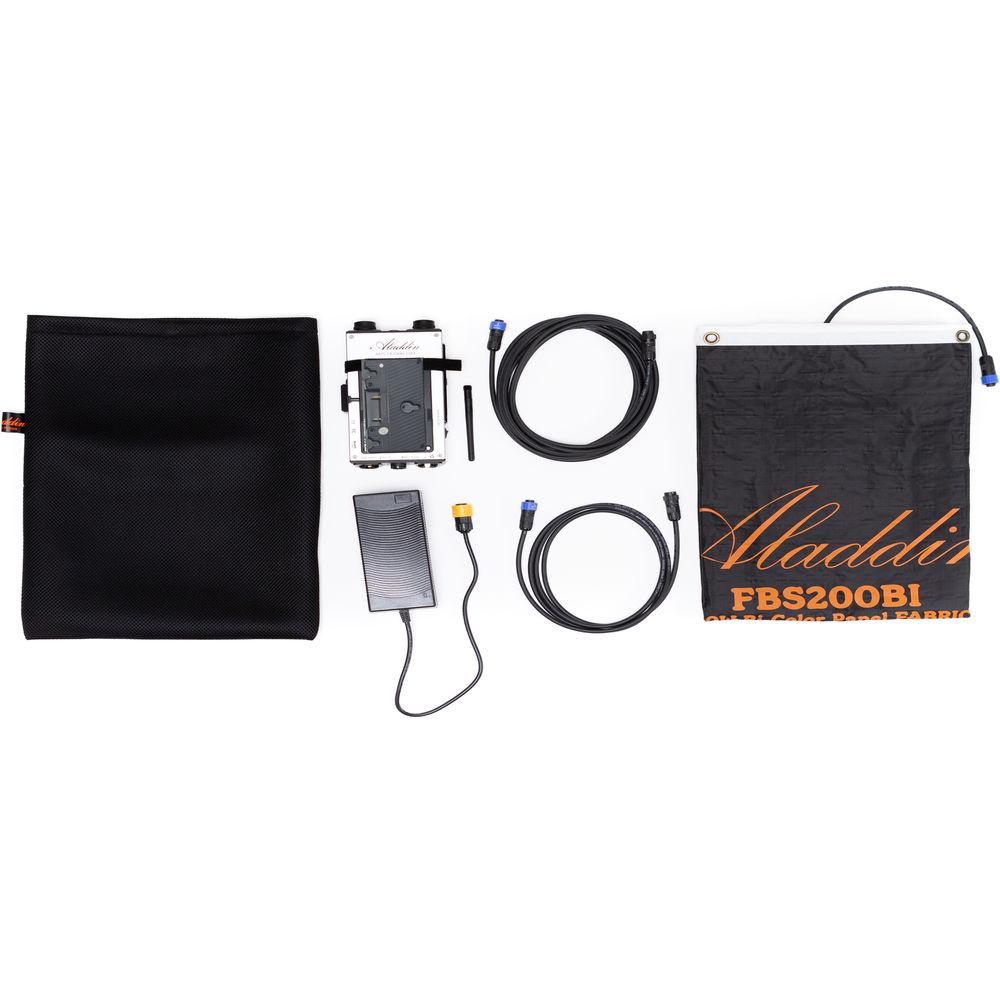

In the Box Bundle Items Fabric-Lite 200W Flexible Bi-Color LED Light sddutvebzbucwcvvrezxwfuxds Dimmer20 with Gold Mount Battery Plate for Fabric-Lite 200 LED Light AC Power Supply for FABRIC-LITE 200 Extension Cable for Fabric-Lite LED Light (6.5') Universal Extension Cable for Bi-Flex2, Bi-Flex4, and Fabric-Lite LED Panels (16') Single Panel Storage Pouch for FABRIC-LITE 200W and 350W (Black)
Also Includes Table of Contents
|
Upload User Manual
Have you got an user manual for the Aladdin Fabric-Lite 200W Bi-Color Kit with Gold Mount Battery Plate in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Fabric-Lite 200W Flexible Bi-Color LED Light
| | | Beam Angle | 140° | | Color Temperature | 2900 to 6200K | | Color Accuracy Standard | CRI 97
TLCI 97 | | Cooling System | Passive | | Dimming | Yes, 1 to 100% (Continuous) | | Fixture Dimensions | Flood: 35.4 x 35.4 x 0.0" / 900.0 x 900.0 x 0.2 mm | | | | Fixture Mount | None | | Accessory Mount | None | | | | AC Input Power | None | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 200 W | - Dimmer20 with Gold Mount Battery Plate for Fabric-Lite 200 LED Light
| Dimming | Range: 0.5-100%
Resolution: 0.1% | | Output | Up to 200 W
Output Channel: 2 channels / bi-color | | Input | 24 VDC via adapter, 26 VDC via battery | | DMX | Wired DMX: Supports DMX512 protocol with In/Out port
Wireless DMX: Supports LumenRadio | | Display | Graphic OLED (5.0 x 2.5" / 128 x 64 mm) | | Dimensions | 7.9 x 4.0 x 2.4" / 200 x 110 x 62 mm | - AC Power Supply for FABRIC-LITE 200
| | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Box Dimensions (LxWxH) | 8.3 x 3.75 x 3.6" | - Extension Cable for Fabric-Lite LED Light (6.5')
- Universal Extension Cable for Bi-Flex2, Bi-Flex4, and Fabric-Lite LED Panels (16')
| | | Box Dimensions (LxWxH) | 10.0 x 7.75 x 2.4" | - Single Panel Storage Pouch for FABRIC-LITE 200W and 350W (Black)
