User Manual for Aladdin Fabric-Lite 200W Bi-Color Kit with Gold Mount Battery Plate

• Product category: LED Lights Aladdin
• Brand: Aladdin
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Aladdin LED Lights

Product description

• Fabric-Lite 200W Flexible Bi-Color LED Light If you've ever wished you could bend your framed LED panel into a shape that conforms to your subject matter, the Fabric-Lite 200W Flexible Bi-Color LED Light from Aladdin is your solution. The Fabric-Lite is literally flexible. Bend the 3 x 3' mat into a u-shape for wrap around lighting, into a cylinder for rim lighting, or for long, elegant highlights on glassware or other reflective objects. Its light weight, negligible heat, and thickness of only 0.25" means you can squeeze it into tight places or use it up close to the talent without fear of hazard. The Fabric-Lite is also functionally flexible. Color temperature is variable from 2900 to 6200K, and the light is dimmable from 0.5 to 100%. You can make these adjustments locally on the unit or remotely from a console via wired DMX. The fixture also has LumenRadio DMX capability for wireless freedom. The Fabric-Lite also has flexible power requirements. It is ready for worldwide use via the optional 100-240 VAC universal adapter but it will also run on optional V-mount or Gold mount batteries when mains power is unavailable. This listing is for the LED mat only. It requires a power adapter and dimmer for use.
• Dimmer20 with Gold Mount Battery Plate for Fabric-Lite 200 LED Light The Dimmer20 with Gold Mount Battery Plate for Fabric-Lite 200 LED Light from Aladdin combines controls and a power source for the fixture. The Dimmer20 controls light intensity from 0.5 to 100% and is rated for 200W of output power. Settings are visible on the unit's large 5.0 x 2.5" OLED display. The dimmer supports both wired and wireless DMX via DMX512 protocol or LumenRadio. The Dimmer20 can run on AC power via a separately purchased adapter or on optional 26V batteries via its Gold mount battery plate.
• AC Power Supply for FABRIC-LITE 200 The AC Power Supply for FABRIC-LITE 200 from Aladdin provides 100 to 240 VAC mains current to power the FABRIC-LITE.
• Extension Cable for Fabric-Lite LED Light (6.5') The Aladdin 6.5' Extension Cable for Fabric-Lite LED Light connects the flexible LED mats to its AC power supply.
• Universal Extension Cable for Bi-Flex2, Bi-Flex4, and Fabric-Lite LED Panels (16') The Aladdin 16' Universal Extension Cable for Bi-Flex2, Bi-Flex4, and Fabric-Lite LED Panels connects these flexible LED mats to their AC power supplies.

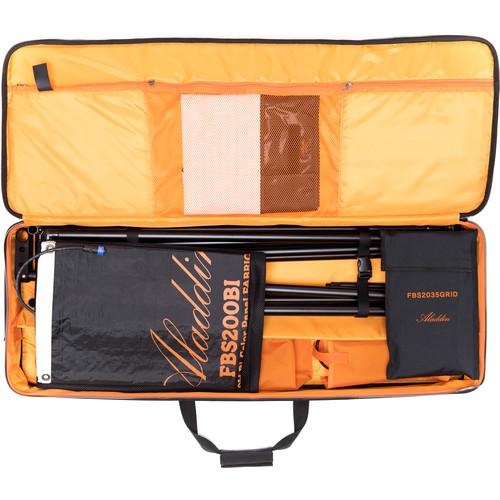

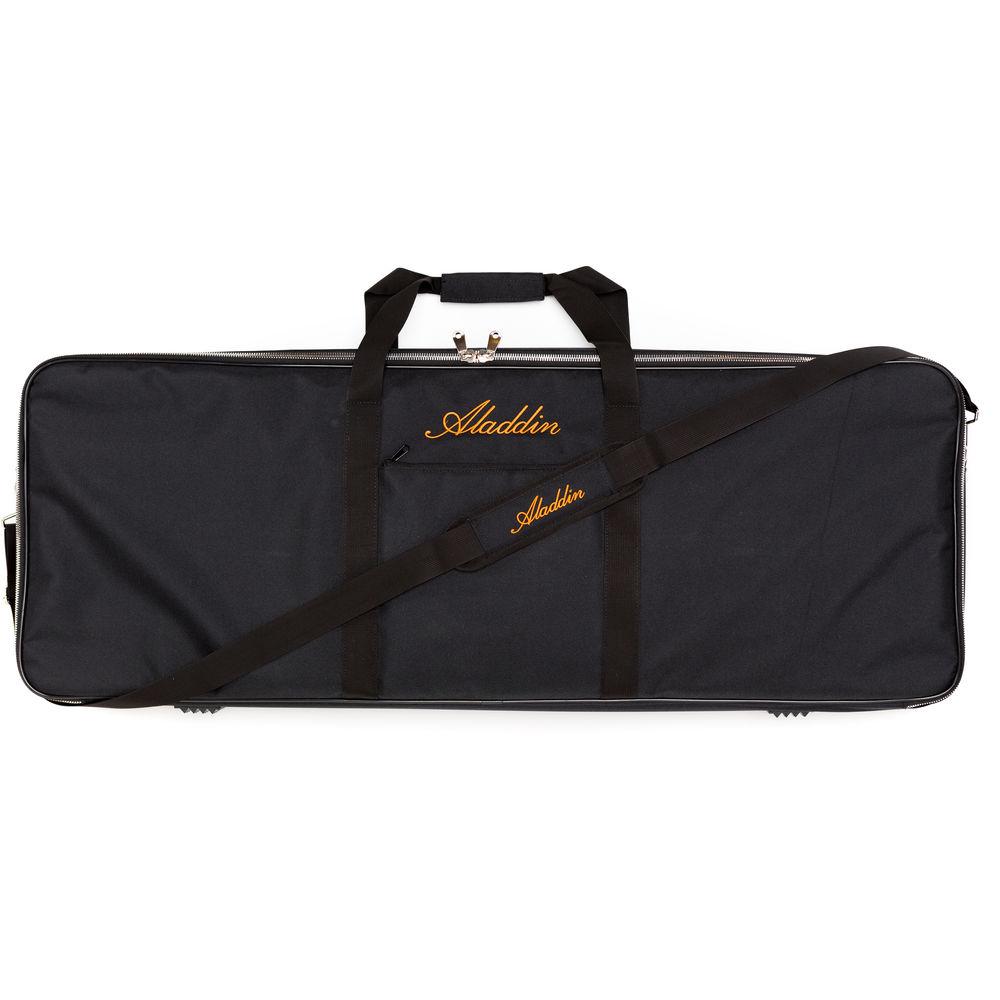

• Soft Case for Basic Fabric-Lite System Store, protect, and transport your Aladdin Basic Fabric-Lite System with the Aladdin Soft Case.
• Grid for Fabric-Lite 200 and 350 LED Lights Measuring approximately 3 x 3', the Grid for Fabric-Lite 200 and 350 LED Lights from Aladdin mounts quickly on the optional frame and diffuser to narrow the light's beam spread, control spill light, and provide directional control for selective lighting.
• Diffuser for Fabric-Lite 200 LED Light The Diffuser for Fabric-Lite 200 LED Light from Aladdin softens the bright LEDs' quality of light while it reduces contrast.

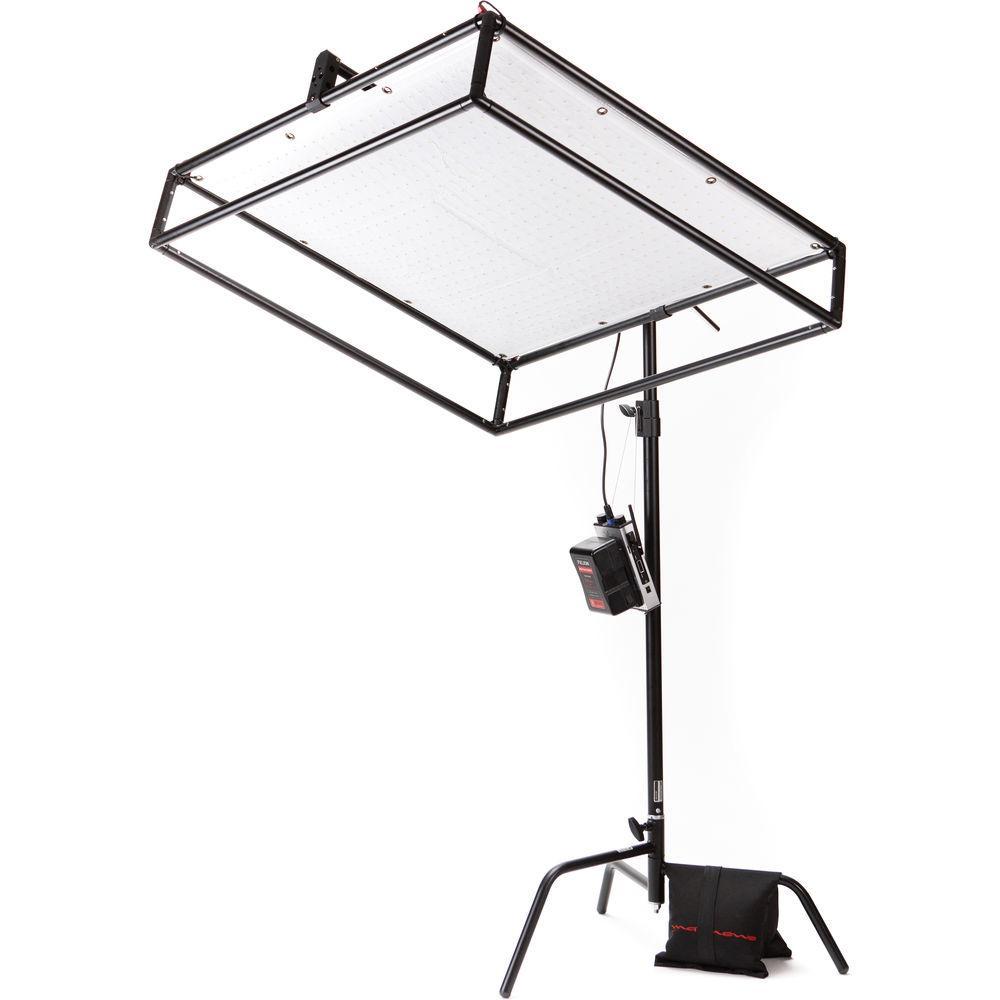

• Frame for Fabric-Lite 200 The Aladdin Frame for Fabric-Lite 200 is a metal support that turns the flexible Fabric-Lite into a rigid LED panel. The frame accepts such modifiers as a diffuser and a honeycomb grid.
• Single Panel Storage Pouch for FABRIC-LITE 200W and 350W (Black) Store your FABRIC-LITE 200W or 350W in the black Aladdin Pouch.
  Compatibility
  • Holds FABRIC-LITE 2002 or 350W

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Carrying Case

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

Also Includes

• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Fabric-Lite 200W Flexible Bi-Color LED Light

  Beam Angle	140°
  Color Temperature	2900 to 6200K
  Color Accuracy Standard	CRI 97 TLCI 97
  Cooling System	Passive
  Dimming	Yes, 1 to 100% (Continuous)
  Fixture Dimensions	Flood: 35.4 x 35.4 x 0.0" / 900.0 x 900.0 x 0.2 mm

  Battery Plate	None

  Fixture Mount	None
  Accessory Mount	None

  AC Input Power	None
  Power Source	AC Adapter, External Battery
  Max Power Consumption	200 W

• Dimmer20 with Gold Mount Battery Plate for Fabric-Lite 200 LED Light

  Dimming	Range: 0.5-100% Resolution: 0.1%
  Output	Up to 200 W Output Channel: 2 channels / bi-color
  Input	24 VDC via adapter, 26 VDC via battery
  DMX	Wired DMX: Supports DMX512 protocol with In/Out port Wireless DMX: Supports LumenRadio
  Display	Graphic OLED (5.0 x 2.5" / 128 x 64 mm)
  Dimensions	7.9 x 4.0 x 2.4" / 200 x 110 x 62 mm

• AC Power Supply for FABRIC-LITE 200

  AC Input Power	100 to 240 VAC, 50 / 60 Hz

  Box Dimensions (LxWxH)	8.3 x 3.75 x 3.6"

• Extension Cable for Fabric-Lite LED Light (6.5')

  Length

  6.56' / 2.0 m

• Universal Extension Cable for Bi-Flex2, Bi-Flex4, and Fabric-Lite LED Panels (16')

  Length

  16' / 4.9 m

  Box Dimensions (LxWxH)	10.0 x 7.75 x 2.4"

• Grid for Fabric-Lite 200 and 350 LED Lights

  Shape	Square
  Dimensions	Approximately 3.0 x 3.0' / 91.4 x 91.4 cm

• Frame for Fabric-Lite 200

  Size	Approximately 36 x 36" / 91 x 91 cm

• Soft Case for Basic Fabric-Lite System
• Diffuser for Fabric-Lite 200 LED Light
• Single Panel Storage Pouch for FABRIC-LITE 200W and 350W (Black)
