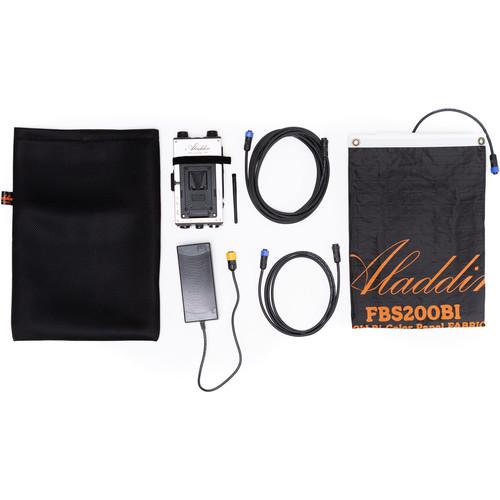

User Manual for Aladdin Fabric-Lite 350W Bi-Color Kit with Gold Mount Battery Plate Click to enlarge the picture
Contents of the user manual for the Aladdin Fabric-Lite 350W Bi-Color Kit with
- Product category: LED Lights Aladdin
- Brand: Aladdin
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Aladdin LED Lights
|
User manual for the Aladdin Fabric-Lite 350W Bi-Color Kit with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Aladdin product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Aladdin user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Aladdin product will considerably shorten its lifespan!
|
Product description The Fabric-Lite 350W Bi-Color Kit with Gold Mount Battery Plate was put together by Aladdin to provide everything you'll need to get up and running with this unique light source. The kit includes the Fabric-Lite 3 x 3' Flexible LED Mat with storage pouch, two multi-voltage AC power supplies, a dimmer with built in DMX and LumenRadio wireless DMX, and 6.6' and 16.4' extension cables. - Fabric-Lite 350W Flexible Bi-Color LED Light If you've ever wished you could bend your framed LED panel into a shape that conforms to your subject matter, the Fabric-Lite 350W Flexible Bi-Color LED Light from Aladdin is your solution. The Fabric-Lite is literally flexible. Bend the 3 x 3' mat into a u-shape for wrap around lighting, into a cylinder for rim lighting, or for long, elegant highlights on glassware or other reflective objects. Its light weight, negligible heat, and thickness of only 0.25" means you can squeeze it into tight places or use it up close to the talent without fear of hazard. The Fabric-Lite is also functionally flexible. Color temperature is variable from 2900 to 6200K, and the light is dimmable from 0.5 to 100%. You can make these adjustments locally on the unit or remotely from a console via wired DMX. The fixture also has LumenRadio DMX capability for wireless freedom. The Fabric-Lite also has flexible power requirements. It is ready for worldwide use via the optional 100-240 VAC universal adapter but it will also run on optional V-mount or Gold-mount batteries when mains power is unavailable. This listing is for the LED mat only. It requires a power adapter and dimmer for use.
- Benefits
-
- The foldable design makes it easy to carry around or neatly fold away for transport.
- High Output, High Quality LED - TLCI 97
- Foldable design to conform to the shape of your subject
- Can be used in a an optional frame with diffuser and grid for more control
- Can be arranged with three more to create 12 x 12' source
- Dimmer35 for Fabric-Lite 350W (Gold Mount) Featuring a graphic OLED user display, the Dimmer35 for Fabric-Lite 350W from Aladdin is both wired DMX and LumenRadio wireless DMX compatible. The dimmer is able to adjust the Fabric-Lite from 0.5-100%. Two AC power supplies are required to operate the Fabric-Lite 350W with the dimmer.
- AC Power Supply for FABRIC-LITE 200 The AC Power Supply for FABRIC-LITE 200 from Aladdin provides 100 to 240 VAC mains current to power the FABRIC-LITE.
- Universal Dimmer Cable for Bi-Flex2 and Bi-Flex4 (6') The 6' Aladdin Universal Dimmer Cable for Bi-Flex2 and Bi-Flex4 LED lights connects the dimmer to either of these LED fixtures.
- Universal Extension Cable for Bi-Flex2, Bi-Flex4, and Fabric-Lite LED Panels (16') The Aladdin 16' Universal Extension Cable for Bi-Flex2, Bi-Flex4, and Fabric-Lite LED Panels connects these flexible LED mats to their AC power supplies.
- Single Panel Storage Pouch for FABRIC-LITE 200W and 350W (Black) Store your FABRIC-LITE 200W or 350W in the black Aladdin Pouch.
- Compatibility
- Holds FABRIC-LITE 2002 or 350W
In the Box Bundle Items Fabric-Lite 350W Flexible Bi-Color LED Light dwxryzuwstsqwbysauxvvtxrbs Dimmer35 for Fabric-Lite 350W (Gold Mount) 2 x AC Power Supply for FABRIC-LITE 200 dwxryzuwstsqwbysauxvvtxrbs Universal Dimmer Cable for Bi-Flex2 and Bi-Flex4 (6') Universal Extension Cable for Bi-Flex2, Bi-Flex4, and Fabric-Lite LED Panels (16') Single Panel Storage Pouch for FABRIC-LITE 200W and 350W (Black)
Also Includes Table of Contents
|
Upload User Manual
Have you got an user manual for the Aladdin Fabric-Lite 350W Bi-Color Kit with Gold Mount Battery Plate in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Fabric-Lite 350W Flexible Bi-Color LED Light
| | | Beam Angle | 140° | | Color Temperature | 2900 to 6200K | | Color Accuracy Standard | CRI 97
TLCI 98 | | Cooling System | Passive | | Dimming | Yes, 1 to 100% With Optional Dimmer | | Photometrics | 140° at 3200K:
217.4 fc / 2340 lux at 6.56' / 2 m
248 fc / 2670 lux at 6.56' / 2 m Upper Reading at 3200K, Lower Reading at 5600K | | Fixture Dimensions | Flood: 35.4 x 35.4 x 0.2" / 900.0 x 900.0 x 6.0 mm | | | | Fixture Mount | None | | Accessory Mount | None | | | | AC Input Power | None | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 350 W | - Dimmer35 for Fabric-Lite 350W (Gold Mount)
| DMX | DMX512 Protocol with In/Out Port / 2 Channels
LumenRadio Wireless DMX | | Dimming | Dimming Range: 0.5-100%
Dimming Resolution: 0.1% | | Display | Graphic OLED (128 x 64) | | Input Power | 48 VDC or 2 x 26 V Batteries | | Dimensions | 7.5 x 4.3 x 2.4" / 19 x 11 x 6.2 cm | - AC Power Supply for FABRIC-LITE 200
| | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Box Dimensions (LxWxH) | 8.3 x 3.75 x 3.6" | - Universal Dimmer Cable for Bi-Flex2 and Bi-Flex4 (6')
- Universal Extension Cable for Bi-Flex2, Bi-Flex4, and Fabric-Lite LED Panels (16')
| | | Box Dimensions (LxWxH) | 10.0 x 7.75 x 2.4" | - Single Panel Storage Pouch for FABRIC-LITE 200W and 350W (Black)
