Product description

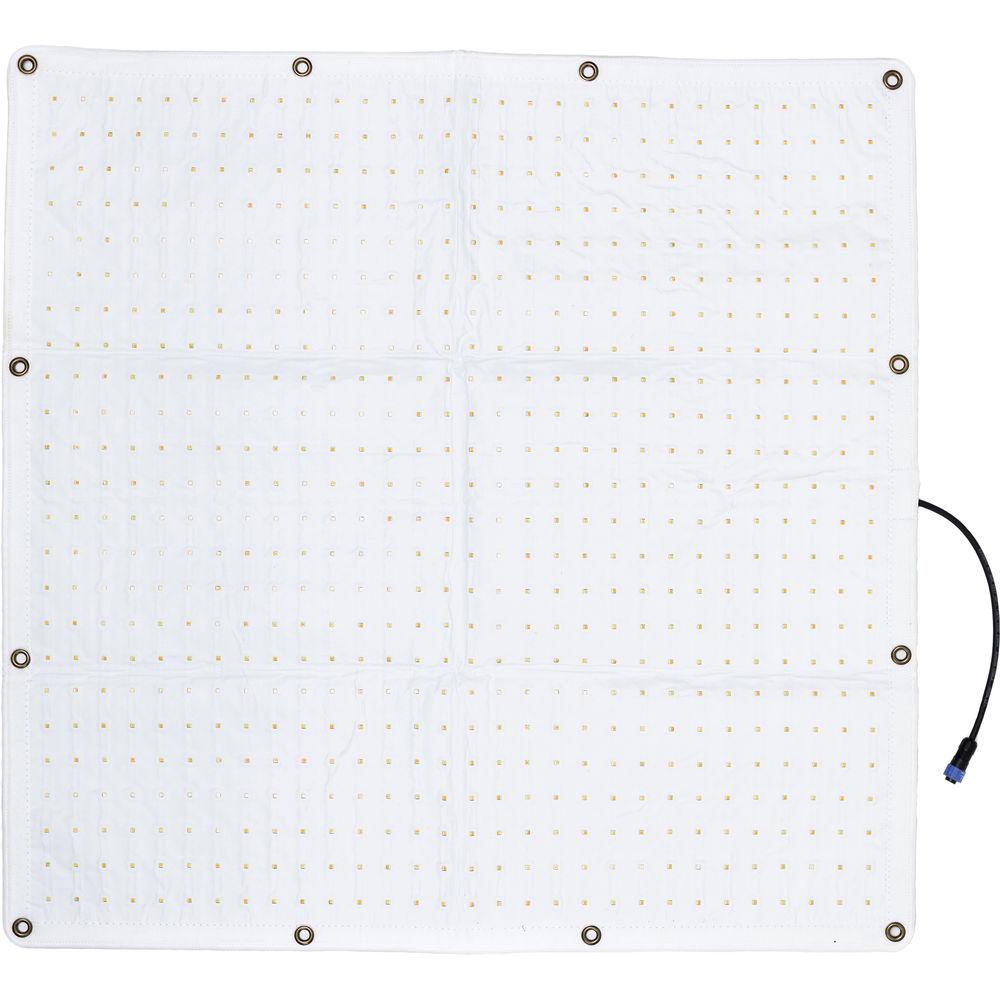

• Fabric-Lite 350W Flexible Bi-Color LED Light If you've ever wished you could bend your framed LED panel into a shape that conforms to your subject matter, the Fabric-Lite 350W Flexible Bi-Color LED Light from Aladdin is your solution. The Fabric-Lite is literally flexible. Bend the 3 x 3' mat into a u-shape for wrap around lighting, into a cylinder for rim lighting, or for long, elegant highlights on glassware or other reflective objects. Its light weight, negligible heat, and thickness of only 0.25" means you can squeeze it into tight places or use it up close to the talent without fear of hazard. The Fabric-Lite is also functionally flexible. Color temperature is variable from 2900 to 6200K, and the light is dimmable from 0.5 to 100%. You can make these adjustments locally on the unit or remotely from a console via wired DMX. The fixture also has LumenRadio DMX capability for wireless freedom. The Fabric-Lite also has flexible power requirements. It is ready for worldwide use via the optional 100-240 VAC universal adapter but it will also run on optional V-mount or Gold-mount batteries when mains power is unavailable. This listing is for the LED mat only. It requires a power adapter and dimmer for use.
  Benefits

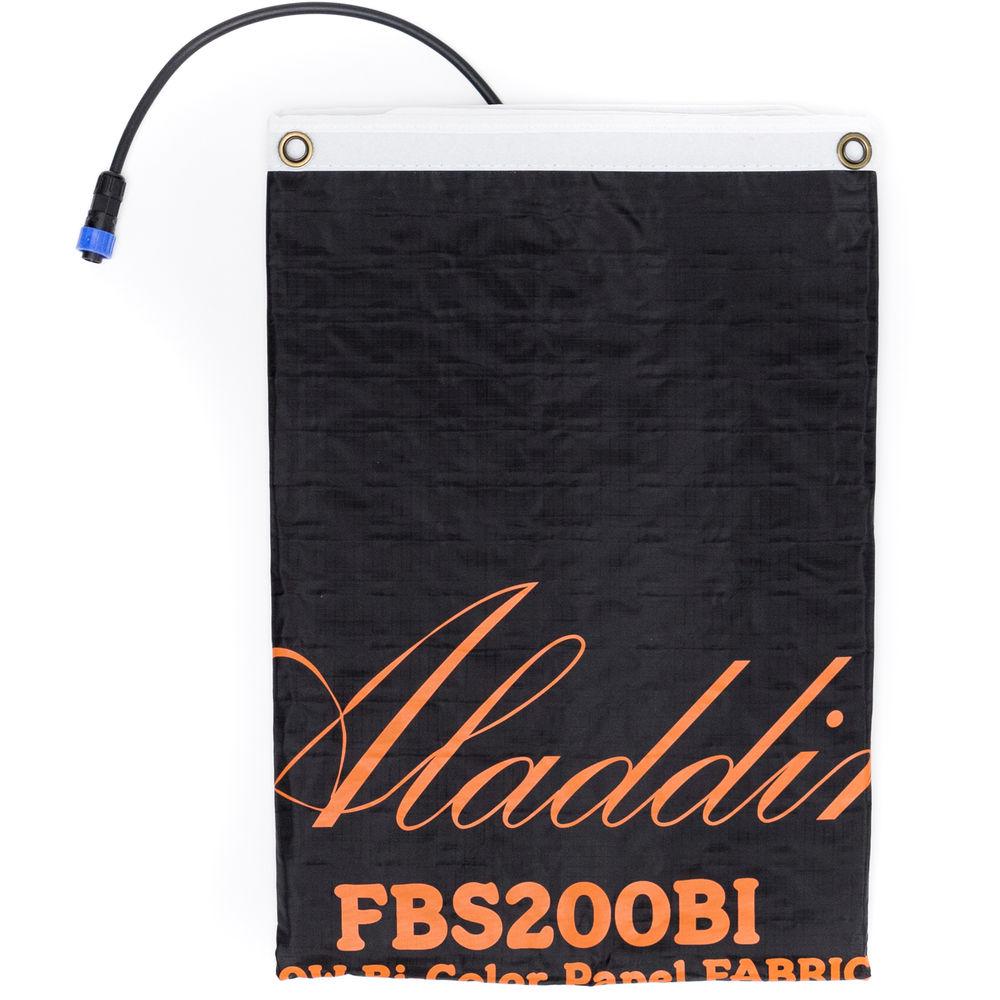

  • The foldable design makes it easy to carry around or neatly fold away for transport.
  • High Output, High Quality LED - TLCI 97
  • Foldable design to conform to the shape of your subject
  • Can be used in a an optional frame with diffuser and grid for more control
  • Can be arranged with three more to create 12 x 12' source
• Dimmer35 for Fabric-Lite 350W (V-mount) Featuring a graphic OLED user display, the Dimmer35 for Fabric-Lite 350W from Aladdin is both wired DMX and LumenRadio wireless DMX compatible. The dimmer is able to adjust the Fabric-Lite from 0.5-100%. Two AC power supplies are required to operate the Fabric-Lite 350W with the dimmer.
• AC Power Supply for FABRIC-LITE 200 The AC Power Supply for FABRIC-LITE 200 from Aladdin provides 100 to 240 VAC mains current to power the FABRIC-LITE.
• Universal Dimmer Cable for Bi-Flex2 and Bi-Flex4 (6') The 6' Aladdin Universal Dimmer Cable for Bi-Flex2 and Bi-Flex4 LED lights connects the dimmer to either of these LED fixtures.
• Universal Extension Cable for Bi-Flex2, Bi-Flex4, and Fabric-Lite LED Panels (16') The Aladdin 16' Universal Extension Cable for Bi-Flex2, Bi-Flex4, and Fabric-Lite LED Panels connects these flexible LED mats to their AC power supplies.
• Single Panel Storage Pouch for FABRIC-LITE 200W and 350W (Black) Store your FABRIC-LITE 200W or 350W in the black Aladdin Pouch.
  Compatibility
  • Holds FABRIC-LITE 2002 or 350W

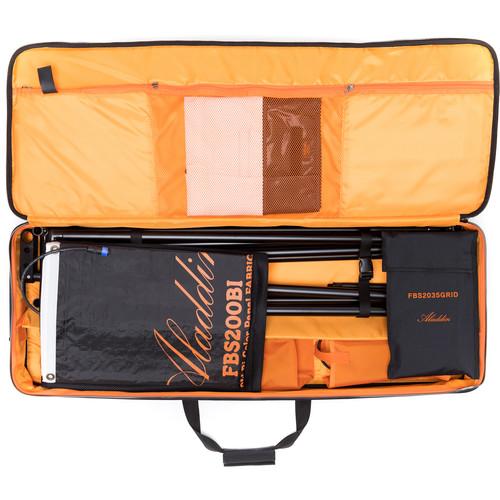

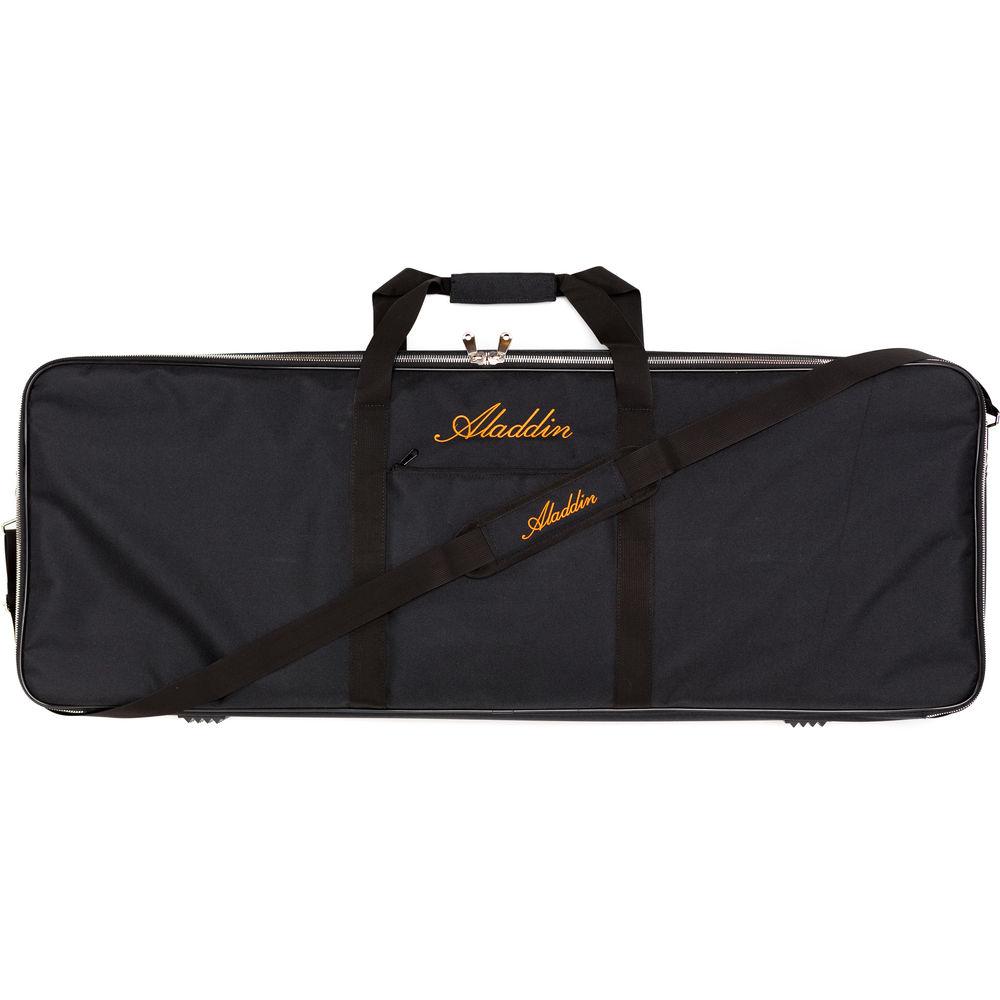

• Soft Case for Full Kit Fabric-Lite System Store, protect, and transport your Aladdin Full Kit Fabric-Lite System with the Aladdin Soft Case.
• Frame for Fabric-Lite 200 The Aladdin Frame for Fabric-Lite 200 is a metal support that turns the flexible Fabric-Lite into a rigid LED panel. The frame accepts such modifiers as a diffuser and a honeycomb grid.
• Diffuser for Fabric-Lite 200 LED Light The Diffuser for Fabric-Lite 200 LED Light from Aladdin softens the bright LEDs' quality of light while it reduces contrast.
• Grid for Fabric-Lite 200 and 350 LED Lights Measuring approximately 3 x 3', the Grid for Fabric-Lite 200 and 350 LED Lights from Aladdin mounts quickly on the optional frame and diffuser to narrow the light's beam spread, control spill light, and provide directional control for selective lighting.

• Limited 1-Year Warranty

• V-mount Battery Plate

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Carrying Case

• Limited 1-Year Warranty

Also Includes

• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Fabric-Lite 350W Flexible Bi-Color LED Light

  Beam Angle	140°
  Color Temperature	2900 to 6200K
  Color Accuracy Standard	CRI 97 TLCI 98
  Cooling System	Passive
  Dimming	Yes, 1 to 100% With Optional Dimmer
  Photometrics	140° at 3200K: 217.4 fc / 2340 lux at 6.56' / 2 m 248 fc / 2670 lux at 6.56' / 2 m Upper Reading at 3200K, Lower Reading at 5600K
  Fixture Dimensions	Flood: 35.4 x 35.4 x 0.2" / 900.0 x 900.0 x 6.0 mm

  Battery Plate	None

  Fixture Mount	None
  Accessory Mount	None

  AC Input Power	None
  Power Source	AC Adapter, External Battery
  Max Power Consumption	350 W

• Dimmer35 for Fabric-Lite 350W (V-mount)

  DMX	DMX512 Protocol with In/Out Port / 2 Channels LumenRadio Wireless DMX
  Dimming	Dimming Range: 0.5-100% Dimming Resolution: 0.1%
  Display	Graphic OLED (128 x 64)
  Input Power	48 VDC or 2 x 26 V Batteries
  Dimensions	7.5 x 4.3 x 2.4" / 19 x 11 x 6.2 cm

• AC Power Supply for FABRIC-LITE 200

  AC Input Power	100 to 240 VAC, 50 / 60 Hz

  Box Dimensions (LxWxH)	8.3 x 3.75 x 3.6"

• Universal Dimmer Cable for Bi-Flex2 and Bi-Flex4 (6')

  Length

  6' (2 m)

• Universal Extension Cable for Bi-Flex2, Bi-Flex4, and Fabric-Lite LED Panels (16')

  Length

  16' / 4.9 m

  Box Dimensions (LxWxH)	10.0 x 7.75 x 2.4"

• Frame for Fabric-Lite 200

  Size	Approximately 36 x 36" / 91 x 91 cm

• Grid for Fabric-Lite 200 and 350 LED Lights

  Shape	Square
  Dimensions	Approximately 3.0 x 3.0' / 91.4 x 91.4 cm

• Single Panel Storage Pouch for FABRIC-LITE 200W and 350W (Black)
• Soft Case for Full Kit Fabric-Lite System
• Diffuser for Fabric-Lite 200 LED Light
