User Manual for Aleratec 1:16 HDD Copy Cruiser High-Speed WL Duplicator Click to enlarge the picture
Contents of the user manual for the Aleratec 1:16 HDD Copy Cruiser High-Speed
- Product category: Drive Duplicators Aleratec
- Brand: Aleratec
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Aleratec Drive Duplicators
 |
User manual for the Aleratec 1:16 HDD Copy Cruiser High-Speed contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Aleratec product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Aleratec user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Aleratec product will considerably shorten its lifespan!
|

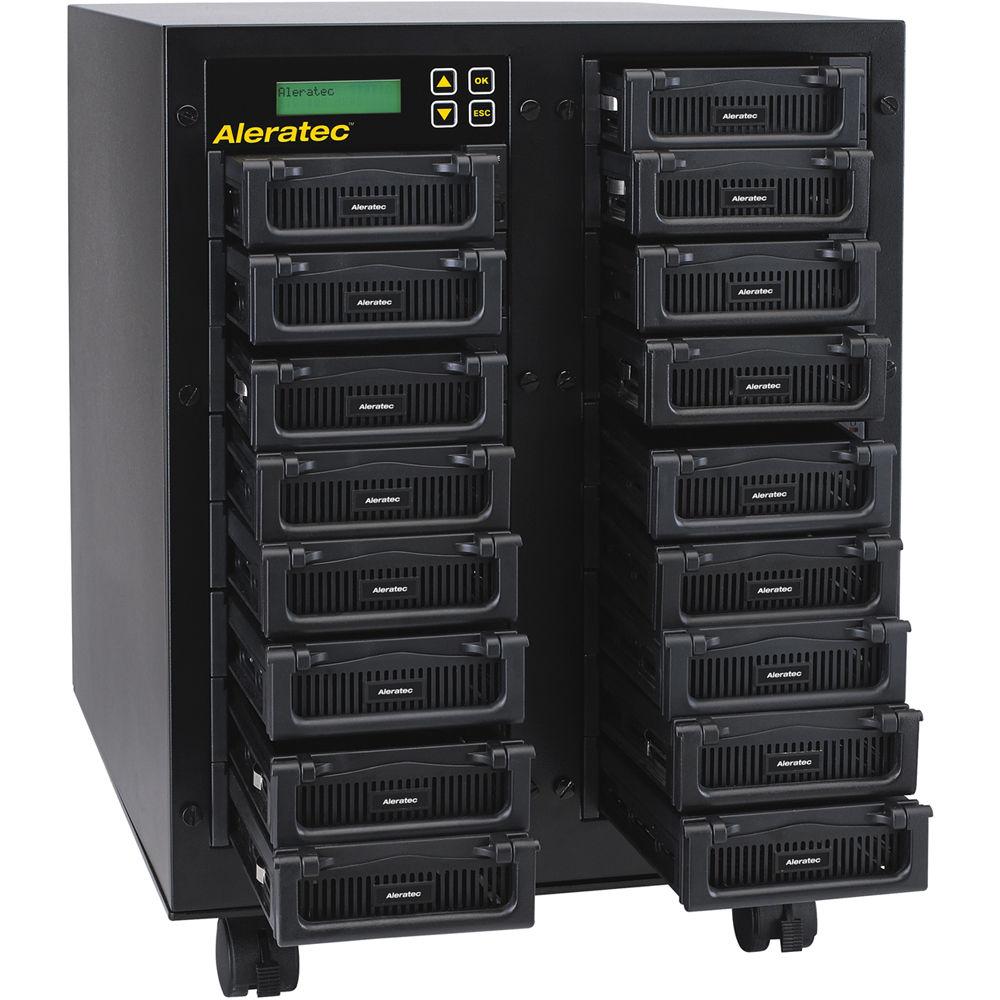

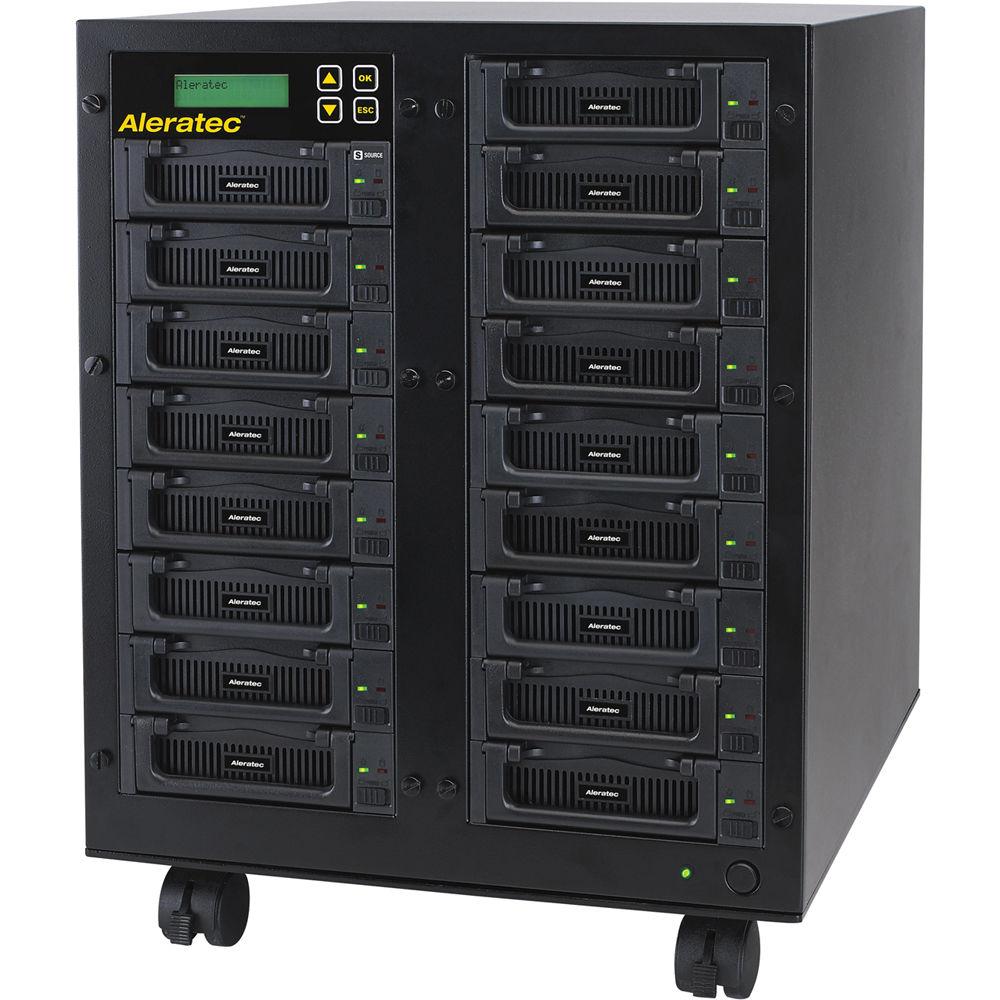

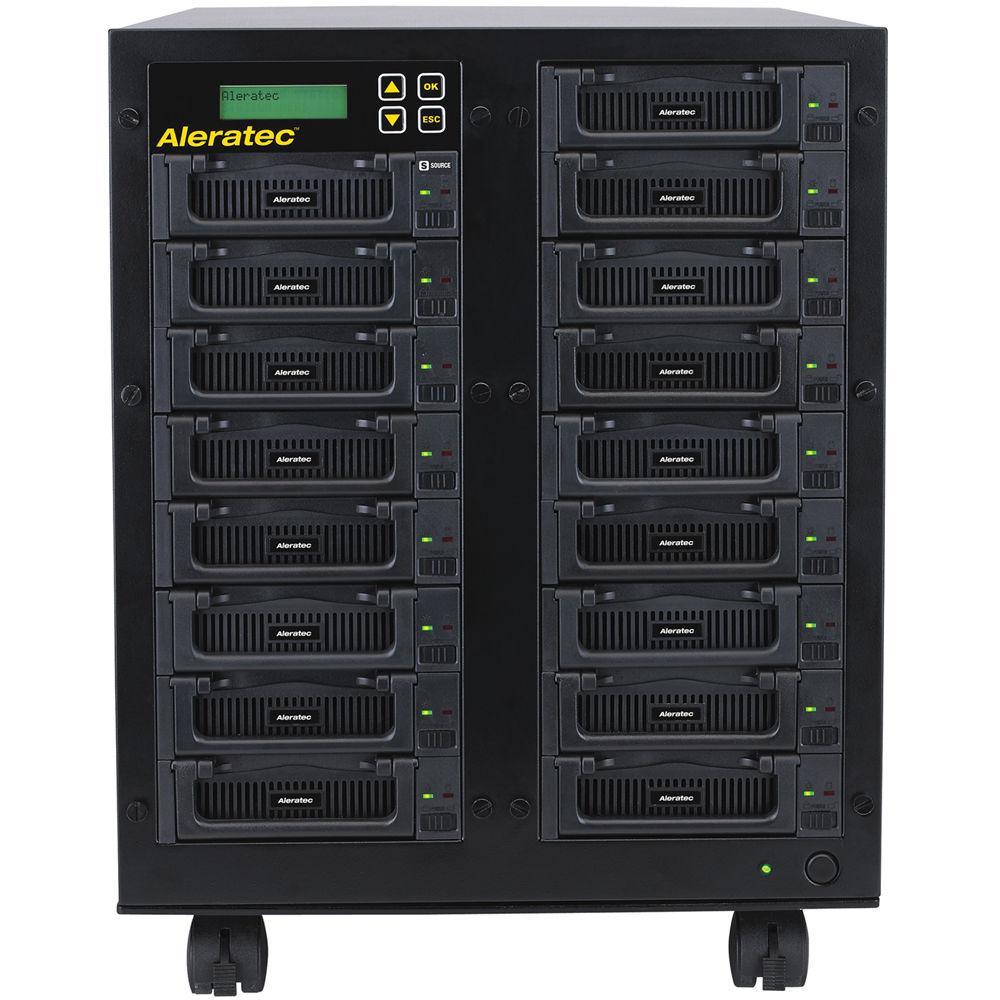

Product description - Aleratec HDD Copy Cruiser IDE/SATA High-Speed WL duplicators & sanitizers w/logging
Clone up to 16 drives or erase the data on up to 17 drives without using a computer with the Aleratec 1:16 HDD Copy Cruiser High-Speed WL Duplicator. It features a source bay that extracts a drive's data and then copies the information to 16 drives. These bays come armed with IDE and SATA interfaces to support 3.5" hard drives, 2.5" SATA-based HDDs, and 2.5" SSDs. You can also use optional adapters to utilize mSATA SSDs, CF/CFast cards, 2.5" IDE-based HDDs, and 1.8" micro-SATA SSDs in these bays. Aleratec has designed this stand-alone duplicator to be compatible with FAT16/32, Linux ext2/3/4, and NTFS formats. For convenience, it sports four buttons as well as an LCD screen so you can quickly perform duplication and sanitization functions. There's also 2176MB of buffer memory to speed up the duplication process.
Aside from duplication, the Aleratec Copy Cruiser lets you sanitize the data on up to 17 drives to make them safe for reuse or disposal. This WL series duplicator has been certified for DoD 7-pass that makes the drives forensically unrecoverable. It also comes with Secure Erase, quick, 1-pass, 3-pass, and 3-pass with verify options to best fit your needs. Another notable feature of the Copy Cruiser is the ability to connect with your computer so you can monitor and generate logs of the sanitization process. In addition, you may track the drives by serial number, model number, brand, speed, and capacity as well as produce accurate documentation for an audit trail or proof of compliance. - Create Exact Clones of up to 16 HDDs
- The 1:16 HDD Copy Cruiser WL is easy to operate with a 4-button front panel LCD screen that lets you perform duplication and sanitization functions without the need of a computer or special software. Sector-by-sector copies, including partition and boot sector information, can be made from a single source hard disk. It supports formats such as FAT16/32, Linux ext2/3/4, and NTFS. The Copy Cruiser WL offers transfer speeds of up to 120 Mb/s for the SATA drives and supports up to 2TB of drive capacity. This unit also includes front-locking dual casters so you can easily move it to a desired location.
- Sanitization Algorithms for Securing Drives
- The 1:16 HDD Copy Cruiser WL allows you to sanitize up to 17 hard disk drives at once with Secure Erase, which features a highly effective method of sanitization that uses the hard drive's own built-in utility for purging the data completely. Users can also choose 1-pass overwrite, 3-pass overwrite with verify, and DoD 7-pass. For high-security applications, real-time motoring and logging allow you to produce an audit trail for compliance purposes as well as accurate records after purging hard disk drives. Users can view and print out jobs executed, model names, serial numbers of drives, speed, and capacity.
- 7-pass Overwrite Independently Verified
- The 1:16 HDD Copy Cruiser WL comes with a certified Sanitization label that confirms all digital data stored on the hard drives are sanitized by the 7-pass overwrite function to make them forensically unrecoverable. This function enables users to recommission or decommission drives without the risk of exposing confidential data.
UPC: 808068010128 In the Box Aleratec 1:16 HDD Copy Cruiser High-Speed WL Duplicator Limited 1-Year Warranty More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the Aleratec 1:16 HDD Copy Cruiser High-Speed WL Duplicator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAleratec 350142 Specs | Form Factor | Tower | | Operating Type | Stand-alone | | Target | 16 | | Simultaneous Copies | 16 with logging and monitoring | | Simultaneous Sanitization | 17 with logging and monitoring | | Supported Hard Drives | 2.5/3.5" SATA HDDs and SSDs, 3.5" IDE HDDs | | Hard Drive Capacity | > 2 TB | | Transfer Rate | Up to 120 MB/s (SATA) | | Buffer Memory | 2176 MB | | Formats Supported for Disc Creation | FAT16/32, Linux ext2/3/4, NTFS | | HPA Copy | Yes | | Verification Features | Compare, Copy+Compare | | Sanitization Options | Secure Erase, quick, 1-pass, 3-pass, 3-pass with verify, DoD 7-pass | | Certified Sanitization | DoD 7-pass | | Display/Controls | Backlit LCD Display, 4-button controller | | Drive Bays | Protective HDD Tray | | Compatibility | With optional adapters: mSATA SSDs, CF/CFast cards, 2.5" IDE HDDs, 1.8" micro-SATA SSDs | | Firmware Upgradable | Yes | | Operating Temperature | 41 to 122°F (5 to 50°C) | | Operating Humidity | 15 to 80% RH | | Power | 100 to 240 VAC, switchable, 50/60 Hz | | Regulations | FCC, RoHS | | Dimensions | 17.0 x 15.0 x 19.5" / 43.2 x 38.1 x 49.5 cm | | Weight | 87.5 lb / 39.7 kg | | | | Package Weight | 93.7 lb | | Box Dimensions (LxWxH) | 29.2 x 24.5 x 22.2" |
