User Manual for Alesis DM10 MKII Studio Kit, Nine-Piece Electronic Drum Kit with Mesh Heads Click to enlarge the picture
Contents of the user manual for the Alesis DM10 MKII Studio Kit, Nine-Piece
- Product category: Electronic Drums Alesis
- Brand: Alesis
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Alesis Electronic Drums
 |
User manual for the Alesis DM10 MKII Studio Kit, Nine-Piece contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Alesis product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Alesis user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Alesis product will considerably shorten its lifespan!
|

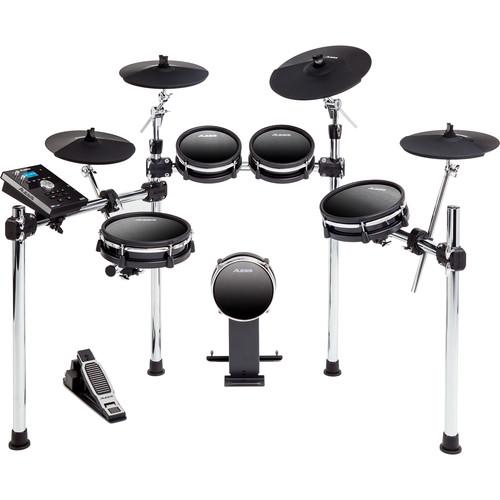

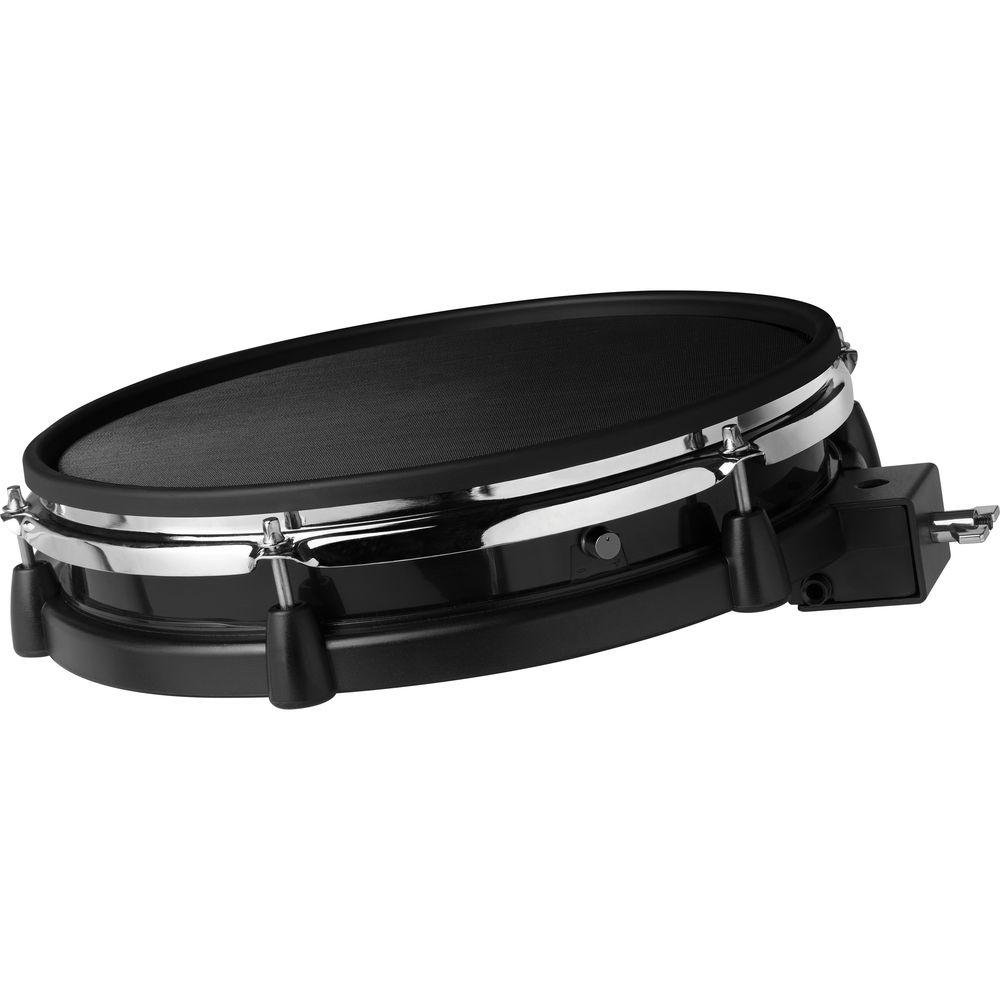

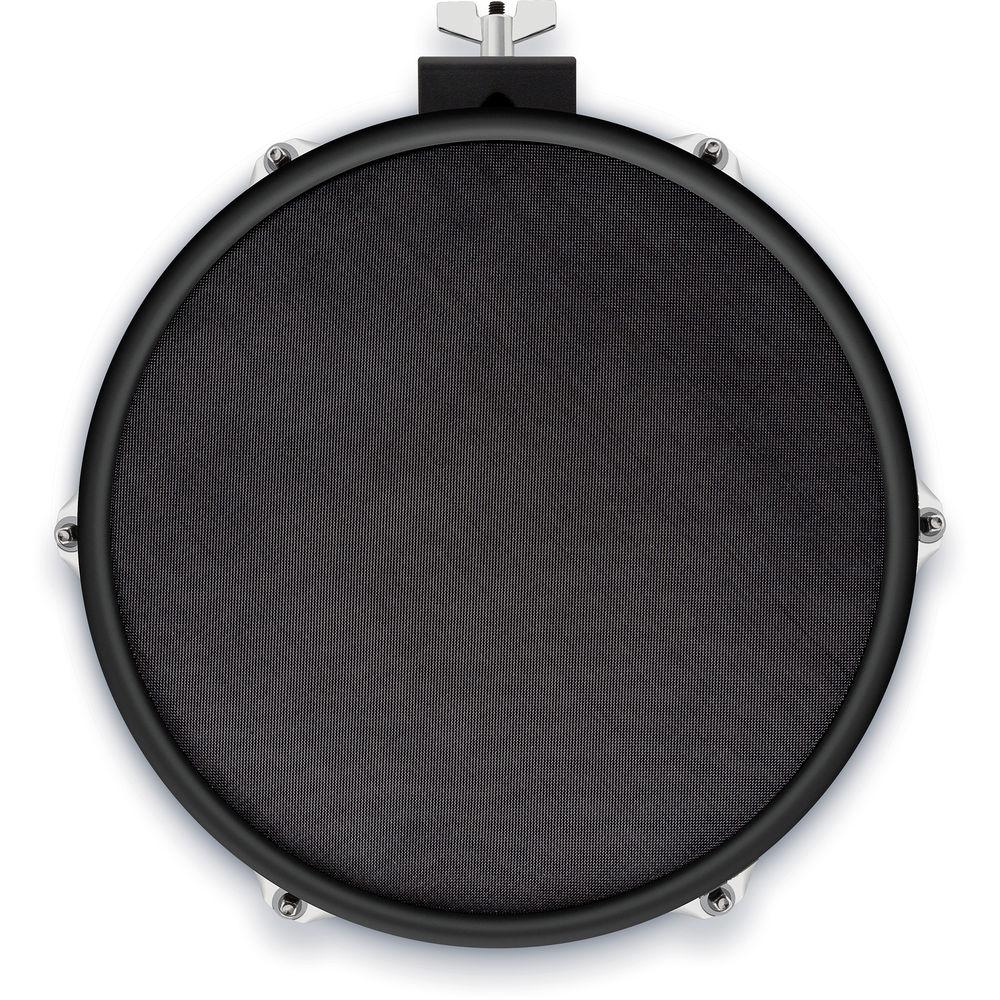

Product description The DM10 MKII Studio Kit, Nine-Piece Electronic Drum Kit with Mesh Heads from Alesis includes a DM10 MKII Studio sound module, two 8" mesh drum pads, two 10" mesh drums pads, an 8" mesh kick pad, and four cymbals: a 12" hi-hat pad, a 14" ride pad, and two 12" crash pads. A 4-post, quick-lock chrome drum rack, power supply, and other accessories are also included. The kit comes complete with everything you need to deliver a realistic drum performance for studio and live applications. The drum module has 74 drum kits—54 preset and 20 user kits—for a total of 671 sounds. The DM10 MKII's mesh drumheads come closer to duplicating the feel and natural rebound of an acoustic drumhead than previous Alesis models. Built with an adjustment knob, each drum pad allows you to adjust the drumhead, so you can provide the exact response to suit your playing style. In addition, the Alesis woven black mesh drumheads dampen acoustic noise and provide a natural drumming experience. - Tightly woven black mesh drumheads enhance feel and playing response
- Five-piece pad set with dual-zone toms (two 8" and one 10"), a 10"dual-zone snare, and an 8" kick
- Four-piece cymbal set with a 12" hi-hat, two 12" crash pads, and a 14" triple-zone ride
- 4-post, quick-lock chrome rack with integrated cymbal arms

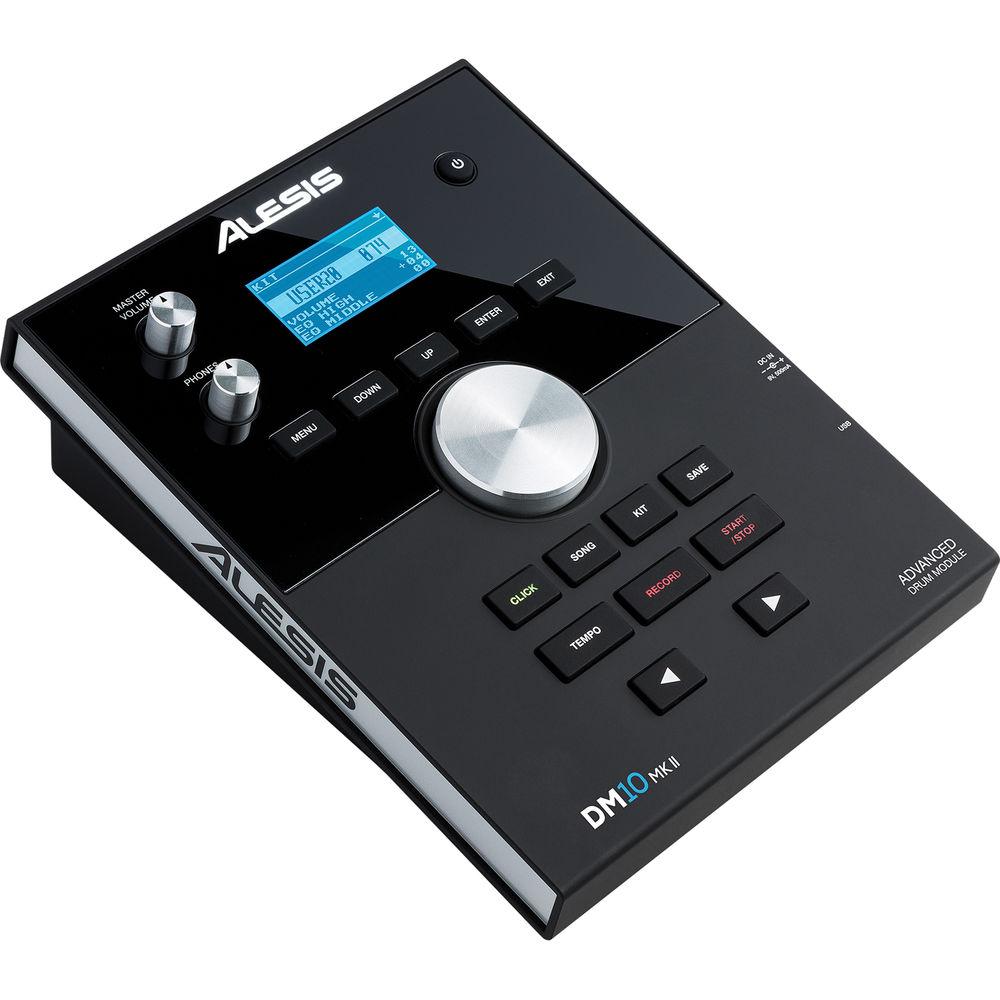

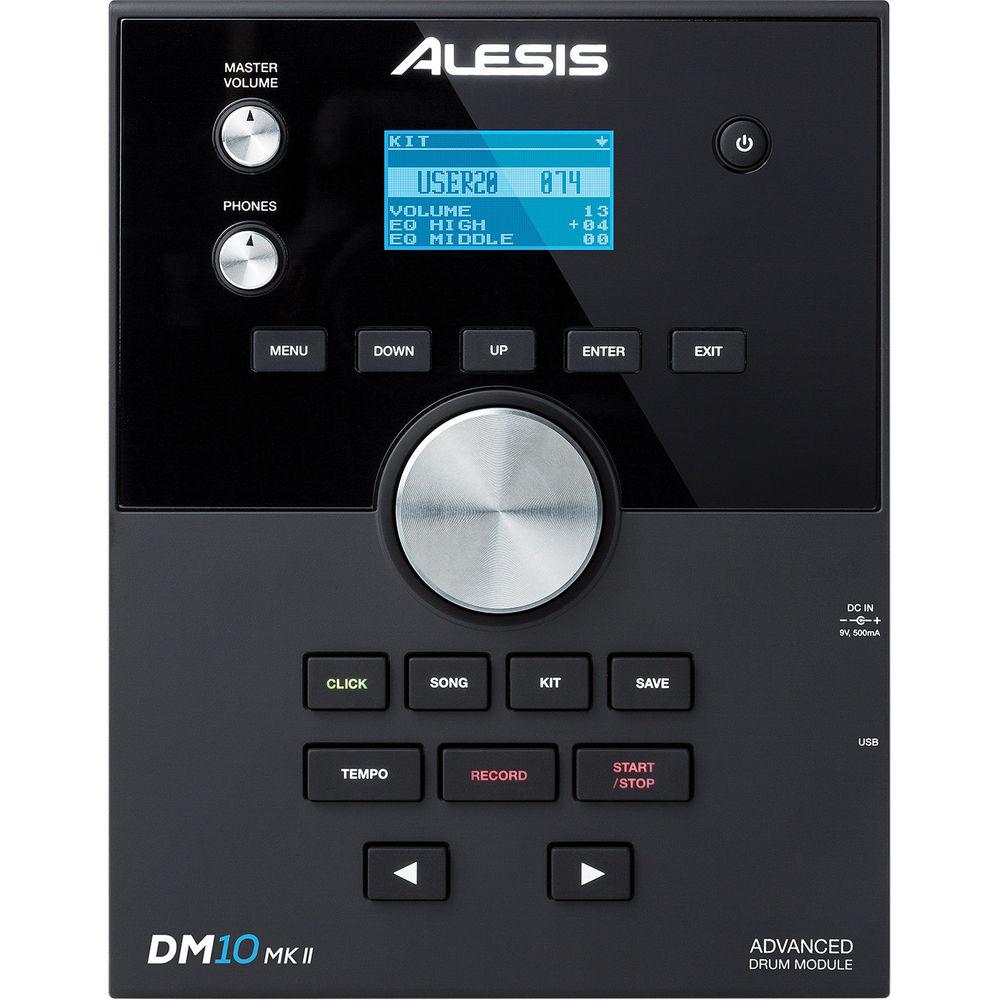

- Includes DM10 MKII Studio sound module
- Download your favorite voices to the drum module
- Enjoy playing and recording with the built-in songs
- Mix input for practicing with digital music and CD players
- 74 kits (54 preset + 20 user) with a total of 671 sounds
UPC: 694318022610 In the Box Alesis DM10 MKII Studio Kit, Nine-Piece Electronic Drum Kit with Mesh Heads DM 10 MKII Studio Sound Module 2 x 8" Mesh Drum Pads 2 x 10" Mesh Drum Pads 8" Mesh Kick Pad DMPad 12" Hi-Hat 2 x DMPad 12" Crash Pads DMPad 14" Ride RealHat Pedal 4-Post, Quick-Lock Chrome Rack Module Mount Cable Snake Cable Wrap Strips Alesis Logo Plate Pair of Drumsticks Drum Key Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Alesis DM10 MKII Studio Kit, Nine-Piece Electronic Drum Kit with Mesh Heads in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAlesis DM10 MKII Specs | Requirements | For USB-MIDI Performance and System Updates:
Mac OS X 10.9 and above
Windows 7, 8, or 10
Available USB port | | Maximum Polyphony | 64 voices | | Kits | 74 (54 preset + 20 user) | | Sounds | 671 sounds/voices (drum, percussion, effect)
Up to 99 user-loaded samples, 15 MB total | | Sequencer | 125 patterns (120 preset songs + 5 user songs)
Up to 99 user songs in 1 folder on USB flash drive
192 ticks per beat
Real-time record

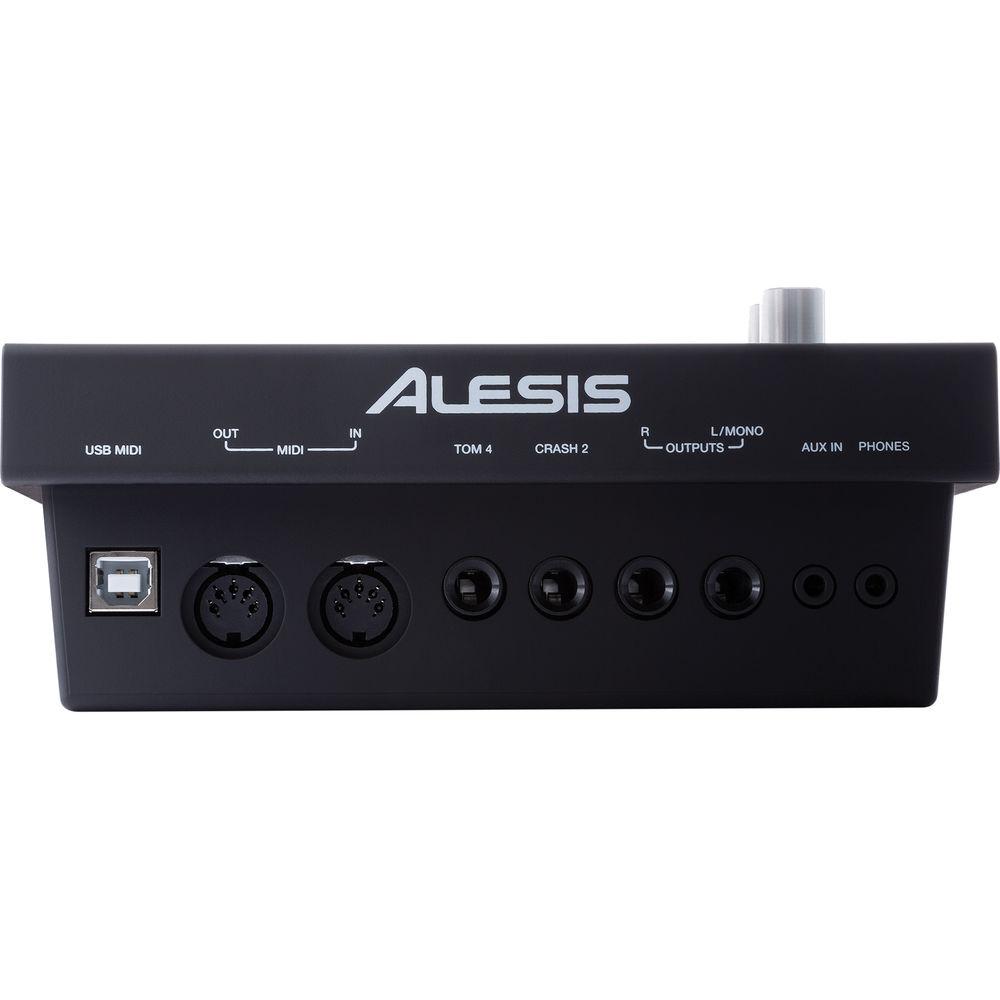

Approx. 6800 notes per user song | | Tempo | 30 to 280 BPM | | Display | 64 x 128 pixel, monochrome, backlit display | | Connections | 1 x DB-25 cable snake
1 x 1/4" (6.3 mm) TS/TRS crash 2
1 x 1/4" (6.3 mm) TS/TRS tom 4
2 x 1/4" (6.3 mm) TRS main outputs
1 x 1/8" (3.5 mm) stereo headphone output
1 x 1/8" (3.5 mm) stereo auxiliary input
1 x 5-pin MIDI input
1 x 5-pin MIDI output
1 x USB MIDI port
1 x USB host port
1 x power adapter input | | Power | 9 VDC, 500 mA, center-positive | | Dimensions (W x D x H) | 9.1 x 6.3 x 2.7" (230 x 160 x 69 mm) | | Weight | 1.1 lb (0.5 kg) | | | | Package Weight | 73.5 lb | | Box Dimensions (LxWxH) | 48.0 x 19.5 x 12.0" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 12 owners. Add your rating and experience with the product.
