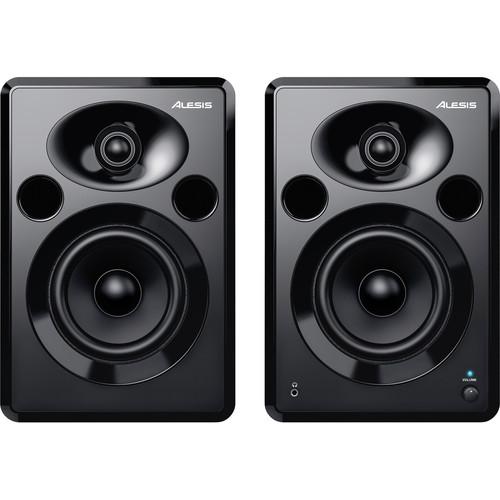

User Manual for Alesis Elevate 5 MKII - 80W 5" Two-Way Active Desktop Studio Monitors Click to enlarge the picture
Contents of the user manual for the Alesis Elevate 5 MKII - 80W
- Product category: Studio Monitors Alesis
- Brand: Alesis
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Alesis Studio Monitors
|
User manual for the Alesis Elevate 5 MKII - 80W contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Alesis product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Alesis user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Alesis product will considerably shorten its lifespan!
|
Product description The pair of Elevate 5 MKII Active Desktop Studio Monitors from Alesis are well suited for multimedia, gaming, desktop audio applications, and portable mobile sound reproduction applications. Each monitor features a 3" woofer and a 1" soft-dome silk tweeter that combine to provide a frequency range of 56 Hz to 20 kHz. The right speaker houses the electronics and includes a stereo pair of RCA inputs, a stereo pair of 1/4" inputs, two 40W amplifiers, and a 1/4" interconnect jack for connecting the left speaker. Additionally, the right speaker features a volume/power knob on the front panel, as well as an 1/8" headphone output, which defeats the main speakers when headphones are connected for quick and easy quiet enjoyment.The custom wood cabinet is magnetically shielded and utilizes a carefully formed baffle radius to reduce edge diffraction. The monitor includes a bass boost switch to deliver full lows, while the elliptical high-frequency waveguide provides clean highs, and a detailed stereo image. The Elevate 3 MKII ships with an RCA to 1/8" audio cable, an 1/8" speaker interconnection cable, and a power cable. -
- Well suited for home studios, video-editing, gaming and mobile devices
- Separate high- and low-frequency drivers with crossover
- 5" low-frequency driver in ported enclosure delivers rich, tight bass
- 1" silk dome tweeter provides smooth, clear highs
- 40W per channel output power; 80W total
- High-density wood cabinets suppress unwanted resonances
- Elliptical tweeter waveguide optimizes dispersion and stereo imaging
- Carefully formed baffle radius reduces edge diffraction
- Magnetically shielded
UPC: 694318022696 In the Box Alesis Elevate 5 MKII - 80W 5" Two-Way Active Desktop Studio Monitors (Pair) 1/8" to RCA Audio Cable 1/4" Interconnection Cable Power Cable Limited 1-Year Warranty User Manual PDF 3mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Alesis Elevate 5 MKII - 80W 5" Two-Way Active Desktop Studio Monitors in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAlesis Elevate 5 MKII Specs | Frequency Response | 56 Hz - 20 kHz | | Output Power | 2 x 40 W (continuous) | | Drivers | LF Driver: 5.0" / 127.0 mm
HF Driver: 1.0" / 25.4 mm (silk dome) | | Front Baffle | Front Baffle Thickness: 0.6" / 15.0 mm | | Audio Inputs | 2 x 1/4" / 6.35 mm (left & right)
2 x RCA (left & right) | | Outputs | Headphone Output 1/8" / 3.5 mm stereo | | Interconnecting Cable | 1/4" / 6.35 mm | | Power | 110 - 240 VAC, 50/60 Hz; universal switching power supply | | Dimensions (W x D x H) | 7.3 x 8.7 x 10.6" / 184.2 x 221.0 x 269.2 mm | | Weight | 12.5 lb / 5.7 kg | | | | Package Weight | 15.0 lb | | Box Dimensions (LxWxH) | 22.8 x 14.7 x 10.8" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 59 owners. Add your rating and experience with the product.
