User Manual for Alesis MultiMix 10 Wireless Rackmount 10-Channel Mixer with Bluetooth Click to enlarge the picture
Contents of the user manual for the Alesis MultiMix 10 Wireless Rackmount 10-Channel
- Product category: Analog Recording Mixers Alesis
- Brand: Alesis
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Alesis Analog Recording Mixers
 |
User manual for the Alesis MultiMix 10 Wireless Rackmount 10-Channel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Alesis product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Alesis user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Alesis product will considerably shorten its lifespan!
|

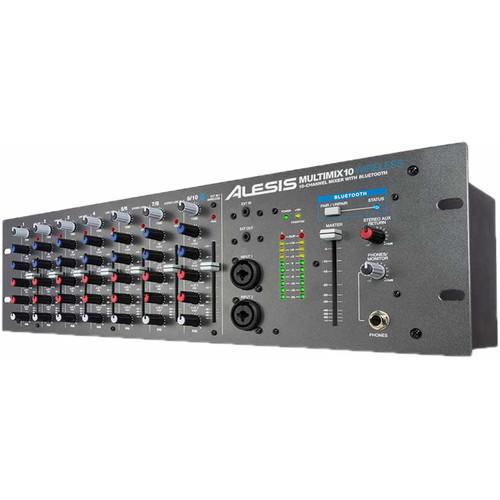

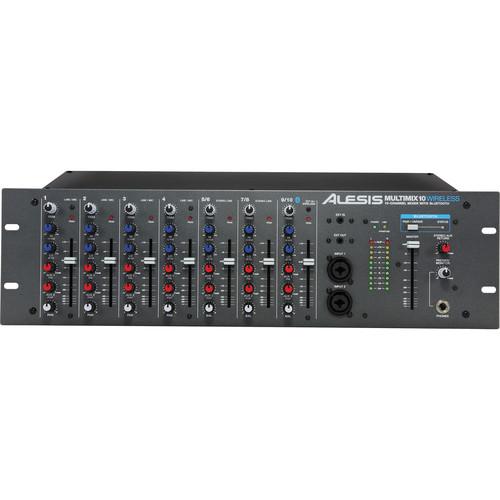

Product description The MultiMix 10 Wireless Rackmount 10-Channel Mixer with Bluetooth from Alesis is well suited to smaller clubs and venues, houses of worship and mobile rigs. The MultiMix features 4 mono channels, 2 stereo channels and a Bluetooth audio channel. Each channel offers a peak LED, trim knob, 2-band EQ, pre and post aux sends, a pan knob, and a smooth-travelling 60mm fader.
Channels 1 through 4 offer both XLR microphone inputs and balanced 1/4" TRS inputs. Phantom power can be engaged via a global switch on the rear panel. Channels 1 through 4 also provide 1/4" TRS send/return inserts, allowing you to add external processing to an individual signal path. Channels 1 and 2 also have doubled connections via XLR/TRS combo jacks on the MultiMix's front panel. The front panel connections override the respective rear inputs, making it easy to temporarily connect a microphone or other sound source without unplugging anything.
The stereo-paired analog channels, 5/6 and 7/8, offer left and right balanced 1/4" TRS inputs. Channel 7/8 also offers a stereo pair of RCA inputs. Channel 9/10 is dedicated to receiving a stereo audio signal from any Bluetooth-enabled device. Simple, single-button front-panel pairing makes it easy.

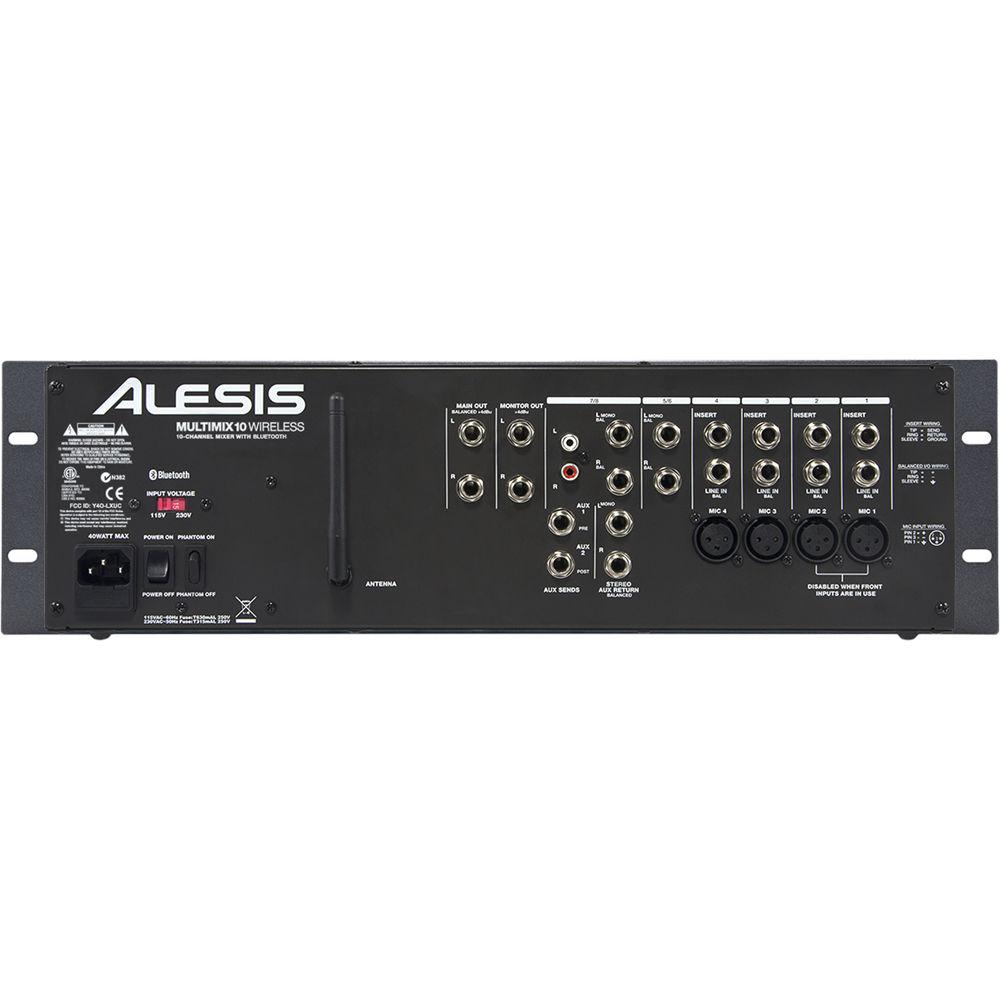

On the back panel, the MultiMix 10 Wireless features 1/4" TRS jacks for the pre- and a post-fader aux as well as the stereo aux return, main outputs and monitor outputs. An 1/8" jack allows a non-Bluetooth source to access Channel 9/10. Located alongside the master fader, the twin 10-stage LED meters feature red peak indicators. A dedicated 1/4" stereo headphone jack is provided; the level is controlled by the monitor/phones knob. A handy 1/8" output provides the main mix directly from the front panel. UPC: 694318014394 In the Box Alesis MultiMix 10 Wireless Rackmount 10-Channel Mixer with Bluetooth Power Cable Limited 1-Year Warranty User Manual PDF 3.3mbwaqtwrzydqybufdeyafdbaxxxcerazz Table of Contents
|
Upload User Manual
Have you got an user manual for the Alesis MultiMix 10 Wireless Rackmount 10-Channel Mixer with Bluetooth in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAlesis MULTIMIX 10 WIRELESS Specs | Input Connectors | 4 x XLR balanced - channels 1 to 4
4 x 1/4" TRS balanced line - channels 1 to 4
4 x 1/4" TRS balanced (2 x L/R) - channels 5 to 8
2 x RCA phono (1 x L/R) - channels 7 and 8 | | Output Connectors | 2 x 1/4" TRS (1 x L/R) - Monitor Out
2 x 1/4" TRS (1 x L/R) - Main Out | | AUX Sends | 1 x 1/4" TRS - Aux 1, pre-fader
1 x 1/4" TRS - Aux 2, post-fader | | AUX Returns | 2 x 1/4" TRS (1 x L/R) - Stereo Aux Return | | Inserts | 4 x 1/4" TRS send/return jacks - channels 1 to 4 | | Antenna | Rear-panel Bluetooth antenna for channels 9 and 10 | | Dimensions | Not specified by Manufacturer | | Weight | Not specified by Manufacturer | | | | Package Weight | 11.1 lb | | Box Dimensions (LxWxH) | 22.7 x 9.8 x 8.7" |
