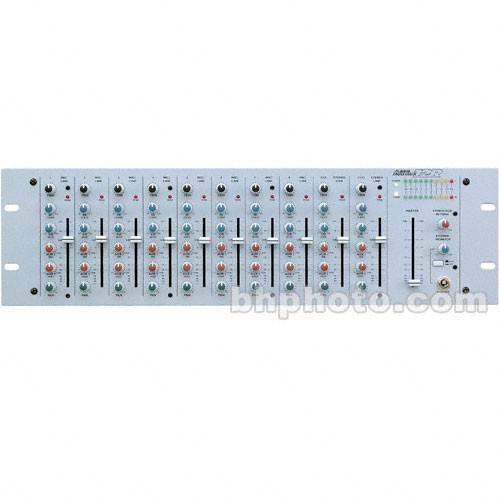

User Manual for Alesis MULTIMIX 12R Rack Mountable 10-Channel, 12-Input Mixer Click to enlarge the picture
Contents of the user manual for the Alesis MULTIMIX 12R Rack Mountable 10-Channel,
- Product category: Sound Reinforcement Mixers Alesis
- Brand: Alesis
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Alesis Sound Reinforcement Mixers
|
User manual for the Alesis MULTIMIX 12R Rack Mountable 10-Channel, contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Alesis product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Alesis user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Alesis product will considerably shorten its lifespan!
|
Product description The Alesis MULTIMIX 12R Rack Mountable 10-Channel, 12-Input Mixer is a high quality, rack mountable audio mixer designed for recording and sound reinforcement applications. The mixer features 8 mono inputs and 2 stereo paired (L/R) inputs, for a total of 12 line level inputs via balanced 1/4" TRS Phone connectors. Channels 1 through 8 feature XLR Balanced microphone inputs with phantom power (global switch). Each channel features a 2 band EQ (High / Low), 2 AUX sends and PAN (Balance control on stereo inputs). Additional I/O include L/R AUX returns, L/R Tape In and Tape Out jacks via RCA connectors, and L/R Main and Monitor outputs via balanced 1/4" TRS connectors. Channels 1 through 8 feature Inserts for direct routing of channels through out-board effects or signal processors using insert cables. The Insert points are also suitable for use as monitor sends (using tip-sleeve 1/4" cable only). All this enclosed in a convenient rack mountable enclosure provide sonic quality, durability while remaining portable. - Rack Mountable Enclosure
- The mixer is enclosed in a 3-unit rack mountable enclosure making it a suitable road-worthy mixer for recording or sound reinforcement.
- Mono & Stereo Channels
- Channels 1 through 8 feature mono balanced 1/4" TRS inputs. The 2 remaining channels feature stereo paired (L/R) 1/4" TRS inputs, suitable for keyboards play-back devices and other stereo signals.
- Balanced Mic Inputs
- 3-pin XLR female microphone inputs are featured on channels 1 through 8. All mic-preamps provide phantom power (global switched) for condenser microphones.
- Insert Points
- Channels 1 through 8 feature insert points for routing channels to effects or signal processors.
UPC: 694318007372 In the Box Alesis MULTIMIX 12R Rack Mountable 10-Channel, 12-Input Mixer Power cable 1 Year Warranty User Manual PDF 1.9mbffcedcqbuyzwdssdbsewrexzdw Table of Contents
|
Upload User Manual
Have you got an user manual for the Alesis MULTIMIX 12R Rack Mountable 10-Channel, 12-Input Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAlesis MULTIMIX 12R Specs | Total # Of Inputs | 12 - Total Line Inputs | | Mic/Line Inputs | 12 - Balanced 1/4" TRS Phone Inputs
8 - Balanced XLR Mic Inputs | | Stereo Line Inputs | 2 - Stereo Paired 1/4" Phone (inputs 9,10 & 11,12) | | In-Line Inputs/Returns | No | | AUX Sends | 2 - 1/4" TRS Phone (L/R) | | AUX Returns | 2 - 1/4" TRS Phone (L/R) | | Inserts | 8 - 1/4" Phone Inserts on Channels 1 through 8 | | BUS (Group) Outputs | Stereo Buss Only | | 2 Trk Master I/O | Main Output: Balanced 1/4" Phone (L/R) | | ALT I/O | Tape In: Unbalanced RCA female (L/R)
Main Out: Unbalanced RCA female (L/R) | | Monitor Outputs | Monitor Out: Balanced 1/4" Phone (L/R) | | EQ Section | High: 12kHz +/- 15dB
Low: 80Hz +/- 15dB | | Solo/Mute | No | | Channel Level Control | Fader Control | | Trim/Gain Control | Sealed Potentiometers
Max Gain: +76 dB, MIC IN to MAIN OUT, balanced +80dB, MIC IN to MONITOR OUT, balanced or unbalanced | | Phantom Power | +48 Volt (global switch) | | Metering | 10 segment stereo peak indicators
Phantom and Power indicator LEDs | | Frequency Response | 10Hz - 65kHz +0/-1 dB (any input to any output at nominal operating levels)
-3dB Point: 125kHz | | Dynamic | not specified by manufacturer | | Signal-to-Noise Ratio | MIC IN to INSERT OUT: -128.5 dBu Equivalent Input Noise at maximum gain
Residual output noise (MASTER fader at nominal, channel faders at minimum): <-88dBu 12 inputs, faders and trims at unity gain, inputs terminated 150 ohms: <-85dBu unbalanced (+22 dB max unbalanced out = 107 dB dynamic range) | | Total Harmonic Distortion (THD) | measured with a 0 dBu signal coming into a MIC IN jack with trim set for a +15 dBu output from the insert jack
At INSERT jack: >0.0010% At MAIN OUT: >0.0015% (+21 dBu balanced output level) | | Power Requirement | 120 VAC, 60Hz, 40 watts max. power consumption (U.S.A. model) | | Dimensions (WxHxD) | 18.97 x 5.24 x 4.13" (482 x 133 x 105 mm) | | Weight | 8 lbs (3.6 kg) | | | | Package Weight | 11.5 lb | | Box Dimensions (LxWxH) | 23.0 x 10.0 x 9.3" |
