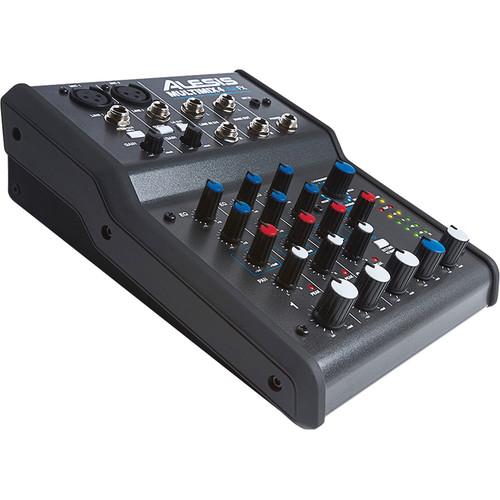

User Manual for Alesis MultiMix 4 USB FX 4-Channel Mixer and USB Audio Interface Click to enlarge the picture
Contents of the user manual for the Alesis MultiMix 4 USB FX 4-Channel
- Product category: Analog Recording Mixers Alesis
- Brand: Alesis
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Alesis Analog Recording Mixers
 |
User manual for the Alesis MultiMix 4 USB FX 4-Channel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Alesis product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Alesis user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Alesis product will considerably shorten its lifespan!
|

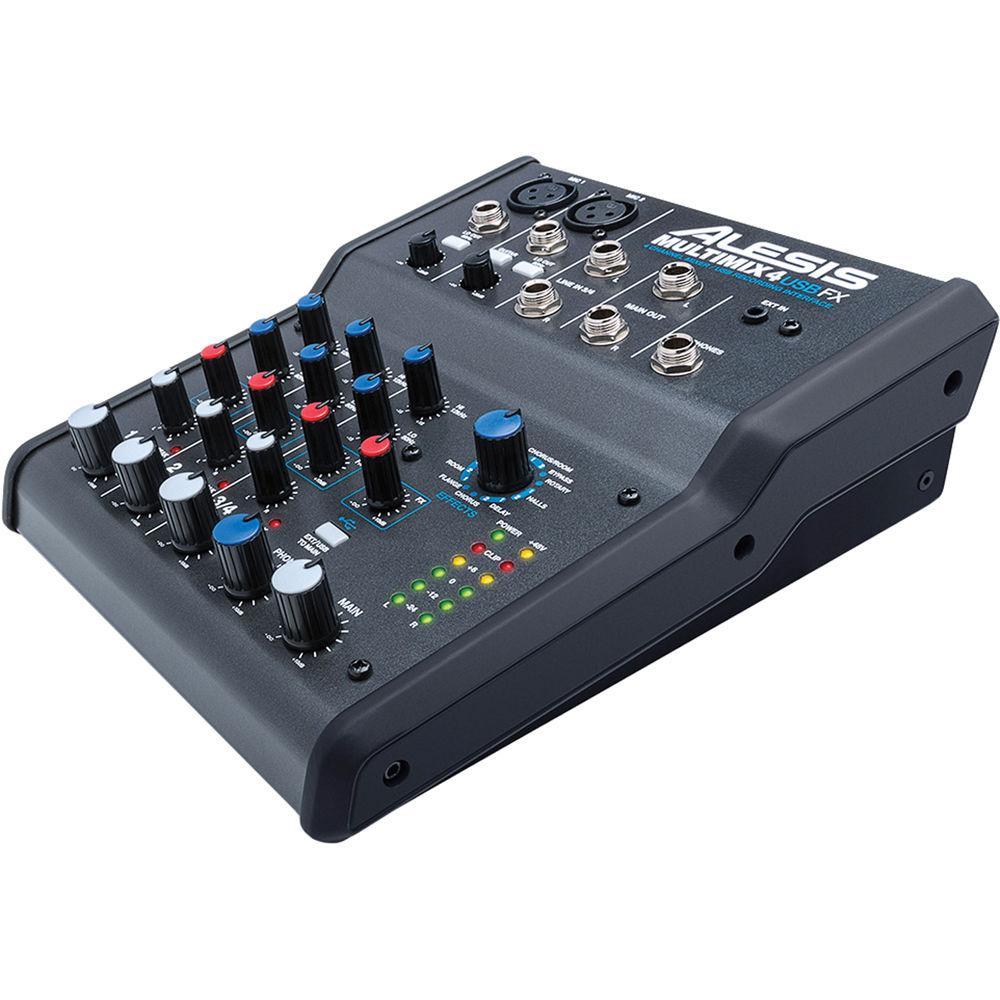

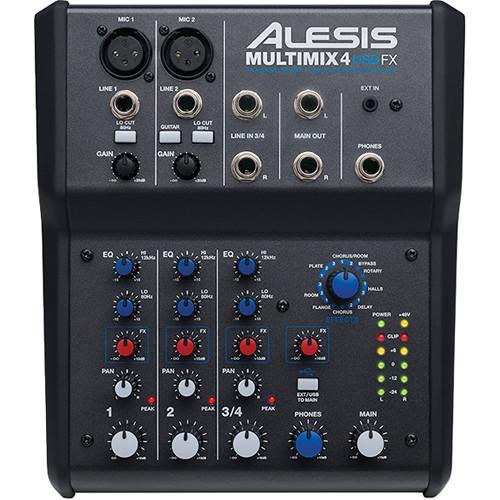

Product description Designed to allow you to mix and record in both live and home studio settings, the MultiMix 4 USB FX 4-Channel Mixer and USB Audio Interface from Alesis features both XLR microphone and 1/4" line/Hi-Z inputs as well as integrated DSP effects. Capable of recording your audio in up to 16-bit, 48 kHz resolutions, the MultiMix 4 USB provides you with two XLR microphone-level inputs, four 1/4" line-level inputs, and a 1/4" Hi-Z in for directly connecting your guitar, bass, or keyboard. Each of its channels boasts a 2-band EQ for shaping your sound, while its internal DSP includes reverbs, delays, phasers, and more.
The interface is plug-and-play compatible with both Mac and Windows computers. With the addition of an Apple Camera Connection Kit (not included), the MultiMix 4 USB can be used with your iPad as well. A download for Cubase LE and a USB cable are included. - 4-channel mixer with stereo 1/4" inputs, 2 XLR inputs, and stereo 1/4" outputs
- 16-bit, 44.1/48 kHz signal stereo in / stereo out via USB for easy recording and playback
- 2x XLR inputs with gain trim, switchable high-pass filters, and 48V phantom power
- 4x 1/4" line-level inputs for instruments and high-impedance guitar input
- Record directly to your iPad via the Apple iPad Camera Connection Kit (sold separately)
- Dual-band EQ on XLR inputs for accurate tone control
- 15 DSP effects with footswitch bypass control and aux bus for external processing
- Multicolor LED metering for real-time, visual level feedback
- Headphone output with independent level control for additional monitoring and mixing
- Class-compliant USB for plug-and-play support on both Mac and PC
- Includes Cubase LE download for out-of-the-box music creation
UPC: 694318016374 In the Box Alesis MultiMix 4 USB FX 4-Channel Mixer and USB Audio Interface USB Cable Power Adapter Cubase LE Download Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Alesis MultiMix 4 USB FX 4-Channel Mixer and USB Audio Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAlesis Multimix 4 USB FX Specs | Inputs | Line (Channels 1 & 2): 1/4" (6.3 mm) connectors, 10 kOhms input impedance, 5.5 mV ~ 4.9 V RMS sensitivity for max output
Mic (Channels 1 & 2): XLR connectors, 600 ohms input impedance (balanced), 700 mV RMS sensitivity for max output
Line (Channels 3 & 4): 1/4" (6.3 mm) connectors, 700 mV RMS sensitivity for max output | | High Pass Filter | Channels 1 & 2: 200 Hz (-1 dB), 80 Hz (-3 dB), 20 Hz (-24 dB) | | Outputs | Line: 2x 1/4" (6.3 mm) connectors, 7 V RMS max
Headphones: 1x 1/4" (6.3 mm) connector, 0.5 W into 47 ohms | | Signal to Noise Ratio | Line: > 92 dB
Mic: > 62 dB, max output; JIS A-weighted | | Distortion | < 0.02% | | Frequency Response | Line: 20 Hz to 20 kHz (± 0.5 dB)
Mic: 20 Hz to 15 kHz (± 0.5 dB) | | Channel EQ | Bass: ± 14 dB @ 80 Hz
Treble: ± 14 dB @ 12 kHz | | Channel Fader Kill | > 90 dB @ 1 kHz | | Crosstalk | > 85 dB @ 1 kHz | | Interface | USB 1.1 or higher (stereo in and stereo out) | | Power Adapter | 10 V AC, 500 mA | | Dimensions (L x W x H) | 7.75 x 6 x 2" (19.7 x 15.2 x 5.1 cm) | | Weight | 1.5 lb (0.7 kg) | | | | Package Weight | 4.15 lb | | Box Dimensions (LxWxH) | 11.6 x 10.0 x 4.0" |
