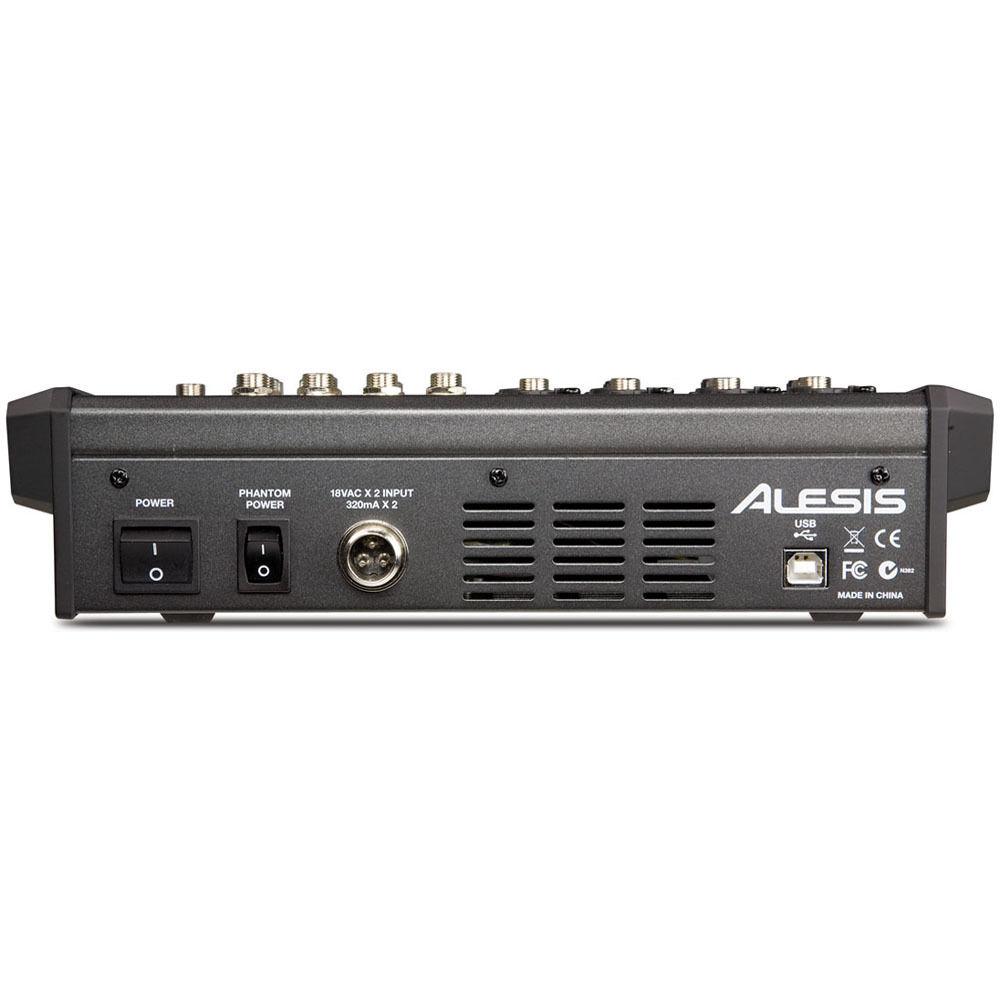

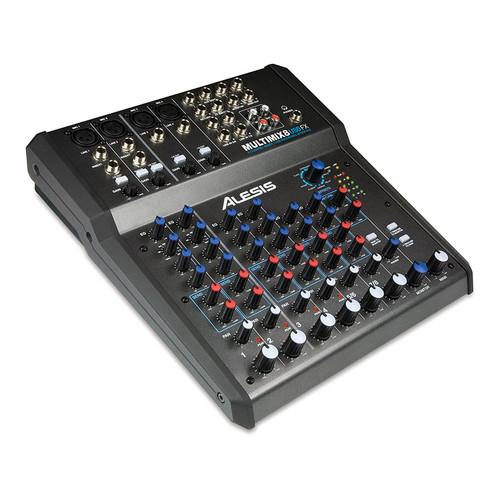

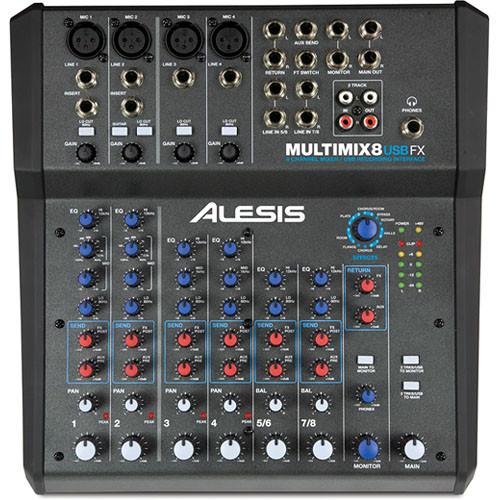

User Manual for Alesis MultiMix 8 USB FX 8-Channel Mixer with Effects and USB Interface Click to enlarge the picture
Contents of the user manual for the Alesis MultiMix 8 USB FX 8-Channel
- Product category: Analog Recording Mixers Alesis
- Brand: Alesis
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Alesis Analog Recording Mixers
 |
User manual for the Alesis MultiMix 8 USB FX 8-Channel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Alesis product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Alesis user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Alesis product will considerably shorten its lifespan!
|
Product description The Alesis MultiMix 8 USB FX is an 8-channel audio recording and sound reinforcement mixer with an internal effects processor and USB connection. The USB connection provides fast, low-latency, 16-bit/48kHz stereo audio recording. Designed for project studios and small P.A. applications, the MultiMix features 1/4" inputs for line level devices and guitars, as well as XLR inputs with gain trim, high-pass filters, and 48V phantom power for connecting microphones.
A 3-band EQ with sweepable parametric mids is provided on channels 1 and 2, with a standard 3-band EQ on channels 3 and 4, and 2-band EQ on channels 5 through 8. The built-in DSP effects processor provides a variety of effects, and also supports footswitch bypass control and has an Aux buss for external processing. A multicolor LED meter is provided for visual monitoring, while main and headphone outputs with level controls provide convenient aural monitoring. Cubase LE software is also included for editing your recordings on your computer. - Compact 8-channel mixer has mic, line, and guitar level inputs, ideal for home, project, and mobile studios
- USB connector provides plug-and-play compatibility with Macs and PCs with no drivers to install
- USB interface supports 16-bit, 44.1/48kHz audio for high-quality computer-based recording and playback
- XLR inputs have gain trim, switchable high-pass filters, and 48V phantom power for connecting microphones
- 1/4" line and guitar level inputs let you directly connect instruments and guitars
- EQ is provided on every channel: 3-band with sweepable parametric mids on channels 1 and 2, 3-band on channels 3 and 4, and 2-band on channels 5 through 8
- Built-in DSP effects processor also has footswitch bypass control and an Aux buss for external processing
- Multicolor LED level meter provides information at a glance
- Main and headphone output connectors with independent level controls for convenient aural monitoring
- Cubase LE software is included so you can edit your recordings
UPC: 694318011355 In the Box Alesis MultiMix 8 USB FX 8-Channel Mixer with Effects and USB Interface Power Supply USB Cable Software CD Quick Start Guide 1-Year Limited Warranty User Manual PDF 2.5mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Alesis MultiMix 8 USB FX 8-Channel Mixer with Effects and USB Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAlesis MULTIMIX 8 USB FX Specs | Total # Of Inputs | 8 | | Mic/Line Inputs | 8 x Balanced 1/4" TRS Phone Inputs
4 x Balanced XLR Mic Inputs | | Stereo Line Inputs | 2 x Stereo Paired 1/4" Phone (Inputs 3,4 - 5,6) | | In-Line Inputs/Returns | No | | AUX Sends | 1 x 1/4" TRS Phone (L/R) | | AUX Returns | 2 x 1/4" TRS Phone (A-L/R)(B-L/R) | | Inserts | No | | BUS (Group) Outputs | No | | 2 Trk Master I/O | Main Mix Out: Balanced 1/4" TRS Phone (L/R) | | ALT I/O | 2-Track In/Out: Unbalanced RCA Connectors (L/R) | | Monitor Outputs | CTRL RM Out: Balanced 1/4" TRS Phone (L/R) | | EQ Section | High-Pass Filter: 75Hz, 18dB/octave
High Shelving: 12kHz, ±15dB Mid Bandpass/Band Reject: 2.5kHz, ±15dB
Low Shelving: 80Hz, ±5dB | | Solo/Mute | No | | Channel Level Control | Sealed Rotary Potentiometers | | Trim/Gain Control | Sealed Rotary Potentiometers | | Phantom Power | +48 Volt, Switched Globally | | Metering | 4-segment Peak LEDs
Power and Phantom Power Indicator LEDs | | Frequency Response | 20Hz to 20kHz | | Dynamic Range | Mic In Sensitivity Range: -60dBu to -10dBu nominal, +5dBu max.
Line In Sensitivity Range: -40dBu to +10dBu nominal, +25dBu max. Mic/Line Gain Range: +10 to +60dB | | Signal-to-Noise Ratio | Not Specified by Manufacturer | | Total Harmonic Distortion (THD) | Not Specified by Manufacturer | | Power Supply | 18.5 VAC @ 700mA | | Dimensions | Not Specified by Manufacturer | | Weight | Not Specified by Manufacturer | | System Requirements | USB Port
Windows XP, Vista, or 7
Mac OSX | | | | Package Weight | 8.15 lb | | Box Dimensions (LxWxH) | 18.4 x 15.4 x 6.4" |
