Alesis Surge Mesh Kit Eight-Piece Electronic

Search your instruction manual in PDF to download

User Manual for Alesis Surge Mesh Kit Eight-Piece Electronic Drum Kit with Mesh Heads

Click to enlarge the picture
Alesis Surge Mesh Kit Eight-Piece Electronic Drum Kit with Mesh Heads Contents of the user manual for the Alesis Surge Mesh Kit Eight-Piece Electronic
  • Product category: Electronic Drums Alesis
  • Brand: Alesis
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Alesis Electronic Drums

Alesis Surge Mesh Kit Eight-Piece Electronic Drum Kit with Mesh Heads Alesis Surge Mesh Kit Eight-Piece Electronic Drum Kit with Mesh Heads
User manual for the Alesis Surge Mesh Kit Eight-Piece Electronic contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Alesis product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Alesis user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Alesis product will considerably shorten its lifespan!



Product description

  • Introducing the Alesis Surge Mesh Kit

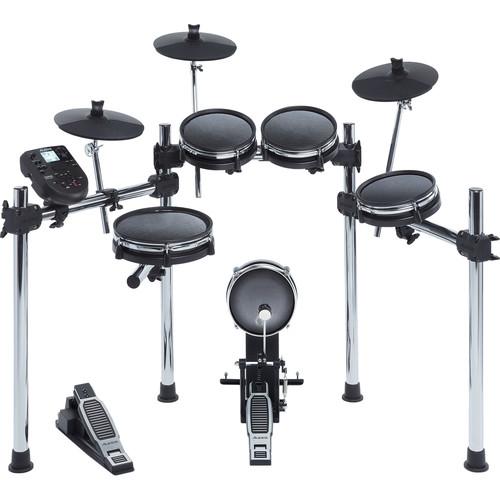

The Surge Mesh Kit Eight-Piece Electronic Drum Kit with Mesh Heads from Alesis is a complete 8-piece electronic drum kit that includes a 10" dual-zone mesh snare pad, three 8" dual-zone mesh tom pads, and an 8" mesh kick pad tower. Three 10" cymbals are also included: a hi-hat, a ride with choke, and a crash with choke. Pedals for the kick and hi-hat, a 4-post chrome drum rack, and a power supply are also supplied. Other accessories include a cable snake, touch-tab cable wraps, a drum key, and drum sticks. It can be used as an electronic drum kit for home practice, studio, rehearsal, and professional recording applications.The Surge module is the brains of the system and includes 40 classic and modern ready-to-play kits. Tweak any of the existing kits or create your own with the 385 drum, cymbal, and percussion sounds included in the module. Improve your skill level with built-in learning features, including sixty play-along music tracks, an onboard metronome, and a performance recorder and sequencer to expand your music-making potential.In addition to the USB MIDI connection for use with computers and mobile devices, there are standard MIDI in and out jacks to hook up MIDI-equipped drum machines, sound modules, or other audio gear. The Surge Mesh Kit is built with a headphone jack for private practice, plus stereo outs to connect to a PA system, amplifier, or recording console. Finally, the stereo AUX input jack allows you to jam along with your favorite audio tracks from a CD or MP3 player.
    Premium Feel and Natural Dynamics
  • The Surge Mesh Kit is an 8-piece electronic drum kit that includes everything a drummer needs to play like a professional. The mesh heads are designed to deliver unmatched response and playability, while the compact size means the Surge Kit goes where larger kits can't.
    Expanded Sounds

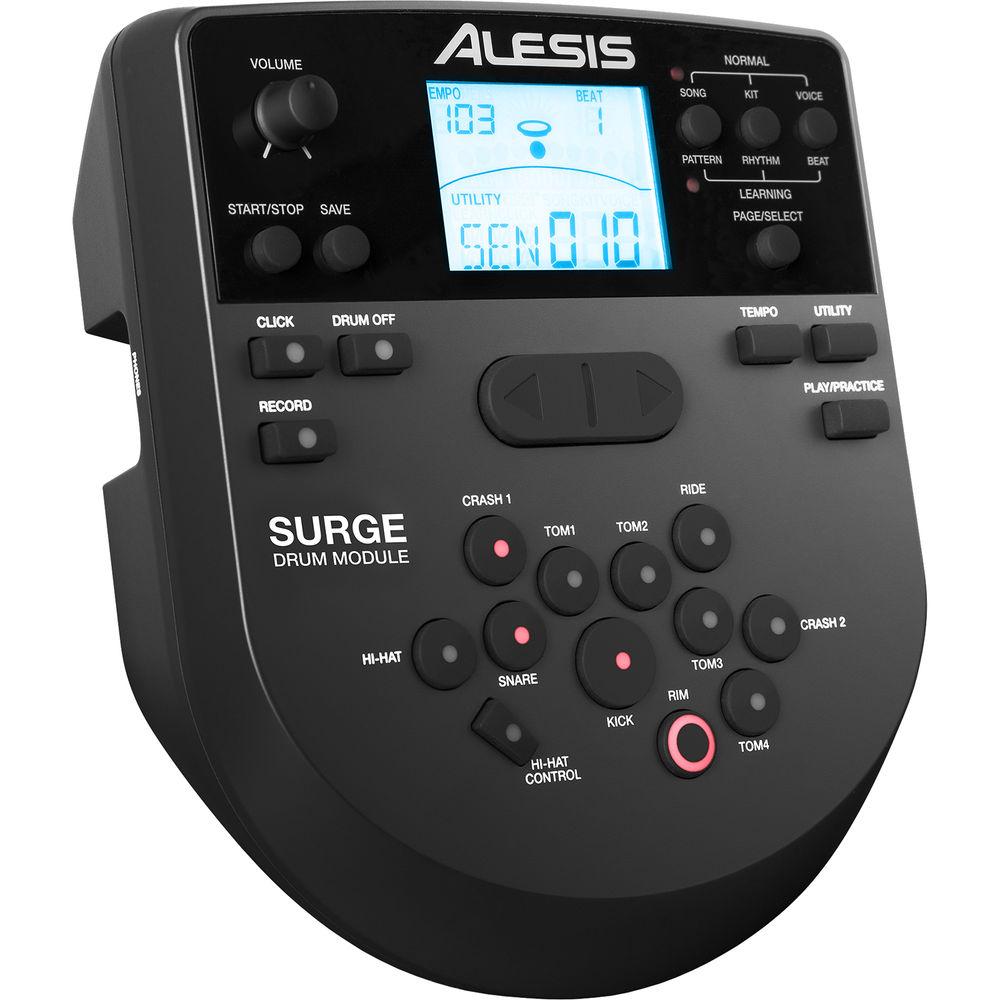

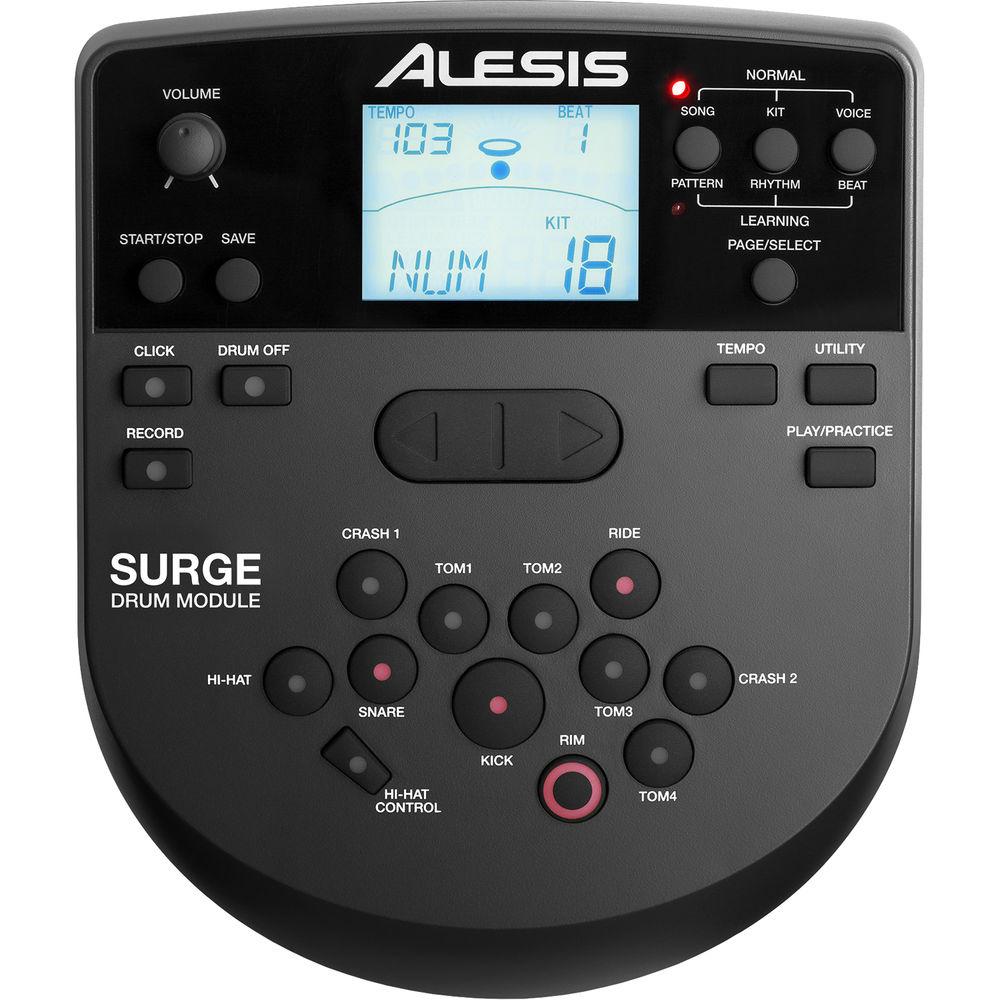

  • The Surge module features a backlit LCD screen that makes navigation a breeze. Drum and cymbal buttons are arranged to resemble the layout of a traditional kit, making it quick and easy to assign sounds and create kits. Featuring 40 classic and modern ready-to-play kits, the Surge module allows you to easily tweak any existing kit, or create your own using the 385 drum, cymbal, and percussion sounds.
    Expanded Features
  • The built-in learning features include sixty play-along music tracks, an onboard metronome, and a sequencer and performance recorder to expand your music-making potential. The Surge module offers a USB MIDI connection for use with computers and mobile devices. Standard MIDI in and out jacks, a headphone jack for private practice, and a stereo out to connect to a PA system, amplifier, or recording console are provided. Jam along to your favorite audio track from a CD or MP3 player using the stereo AUX input jacks.
UPC: 694318023679 In the Box Alesis Surge Mesh Kit Eight-Piece Electronic Drum Kit with Mesh Heads
  • Surge Drum Module
  • 10" Dual-Zone Mesh Snare Pad
  • 3 x 8" Dual-Zone Mesh Tom Pads
  • 8" Mesh Kick Pad Tower
  • 10" Hi-Hat Cymbal
  • 10" Crash Cymbal with Choke
  • 10" Ride Cymbal with Choke
  • Kick Pedal
  • Hi-Hat Pedal
  • 4-Post Chrome Rack
  • Cable Snake
  • Touch-Tab Cable Wraps
  • Drum Key
  • Drum Sticks
  • Power Supply
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Alesis Surge Mesh Kit Eight-Piece Electronic Drum Kit with Mesh Heads in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Alesis Surge Specs

    Requirements For USB-MIDI Performance and System Updates:
    Mac: macOS 10.7 or later
    Windows: Windows 7 or later
    Available USB port
    Maximum Polyphony 64
    Drum Kits 40 kits (24 preset kits + 16 user kits)
    11 general MIDI kits
    Instruments 385 (drums, percussion, SFX)
    7 hi-hat combinations (open/closed)
    Effects Reverb, 3-band equalizer
    Sequencer Normal Mode: 80 songs
    Learning Mode: 20 beats, 12 rhythms, 10 patterns
    Resolution: 120 ticks per quarter note
    Maximum Note Storage: approximately 1600 notes
    Tempo 30 to 280 BPM
    Display Backlit segment LCD
    Connectors 25-pin cable input (9-trigger cable snake)
    1/8" / 3.5 mm stereo output (headphones)
    1/8" / 3.5 mm stereo input (auxiliary)
    2 x 1/4" / 6.3 mm trigger inputs (Tom 4 & Crash 2)
    2 x 1/4" / 6.3 mm outputs (main left & right)
    5-pin MIDI input
    5-pin MIDI output
    USB Type-B port
    Power 9 VDC, 500 mA, center-positive

    Note: This appliance is not equipped with a main power switch. Even when the appliance is turned off, the power supply to the appliance is not completely turned off when the power adapter is plugged in. Disconnect the power adapter when not using the appliance for long periods.
    Dimensions (W x H x L) 5.8 x 4.4 x 7.2" / 14.7 x 11.2 x 18.3 cm
    Weight 1.1 lb / 0.5 kg
    Package Weight 61.15 lb
    Box Dimensions (LxWxH) 39.5 x 24.0 x 11.0"
