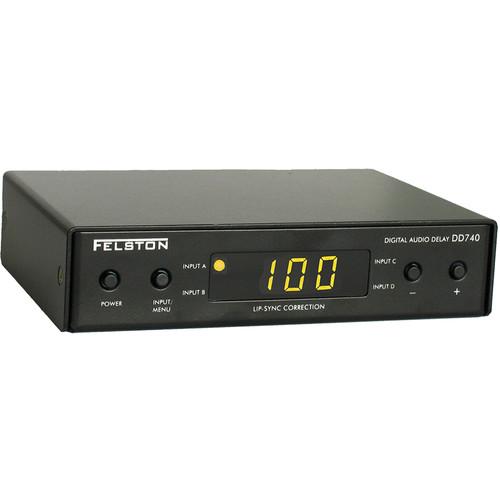

User Manual for Allen Avionics DD740 Digital Audio Delay Correction Master Delay Box Click to enlarge the picture
Contents of the user manual for the Allen Avionics DD740 Digital Audio Delay
- Product category: Video & Audio Delays Allen Avionics
- Brand: Allen Avionics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Allen Avionics Video & Audio Delays
 |
User manual for the Allen Avionics DD740 Digital Audio Delay contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Allen Avionics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Allen Avionics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Allen Avionics product will considerably shorten its lifespan!
|
Product description The DD740 Digital Audio Delay Correction Master Delay Box from Allen Avionics is designed to restore lip-syncing to the audio output from a digital satellite receiver or DVD player. Digital display processing takes time and can produce an audio delay in relation to the picture display. This is particularly noticeable in speech, where the voice comes first and the lips move after. This occurs during satellite broadcasting featuring remastered movies with digital surround sound. This DD740 allows control over audio/video synchronization by delaying audio to match the video delay. By inserting the DD740 between the source and the processor, advanced digital synchronization can be achieved by increments as fine as 0.33ms, which results in a precise sound and picture synchronization.
The DD740 has 4 input channels and 2 output channels. The Delay Box allows storage of up to 36 preset delay settings, 9 per each input channel. All operations can be performed either using the standalone device or with the remote control provided with the device. The Delay Box works with audio outputs from each of the sources connected to the digital audio inputs (A, B, C, or D). In order to connect an analog stereo audio source, you will need an analog-to-digital audio converter (not included). - Input can be selected in either standby or active mode
- 4 input and 2 output channels
- Allows storage of up to 36 delay settings
- 5 display brightness levels

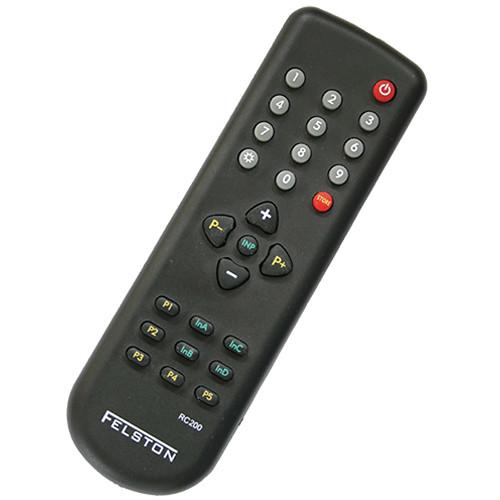

UPC: 893247001011 In the Box Allen Avionics DD740 Digital Audio Delay Correction Master Delay Box Remote Control Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Allen Avionics DD740 Digital Audio Delay Correction Master Delay Box in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAllen Avionics DELAY BOX DD740 Specs | Audio Delay | 0 - 680 ms in 1 ms or 0.33 ms increments (32 / 48 kHz)

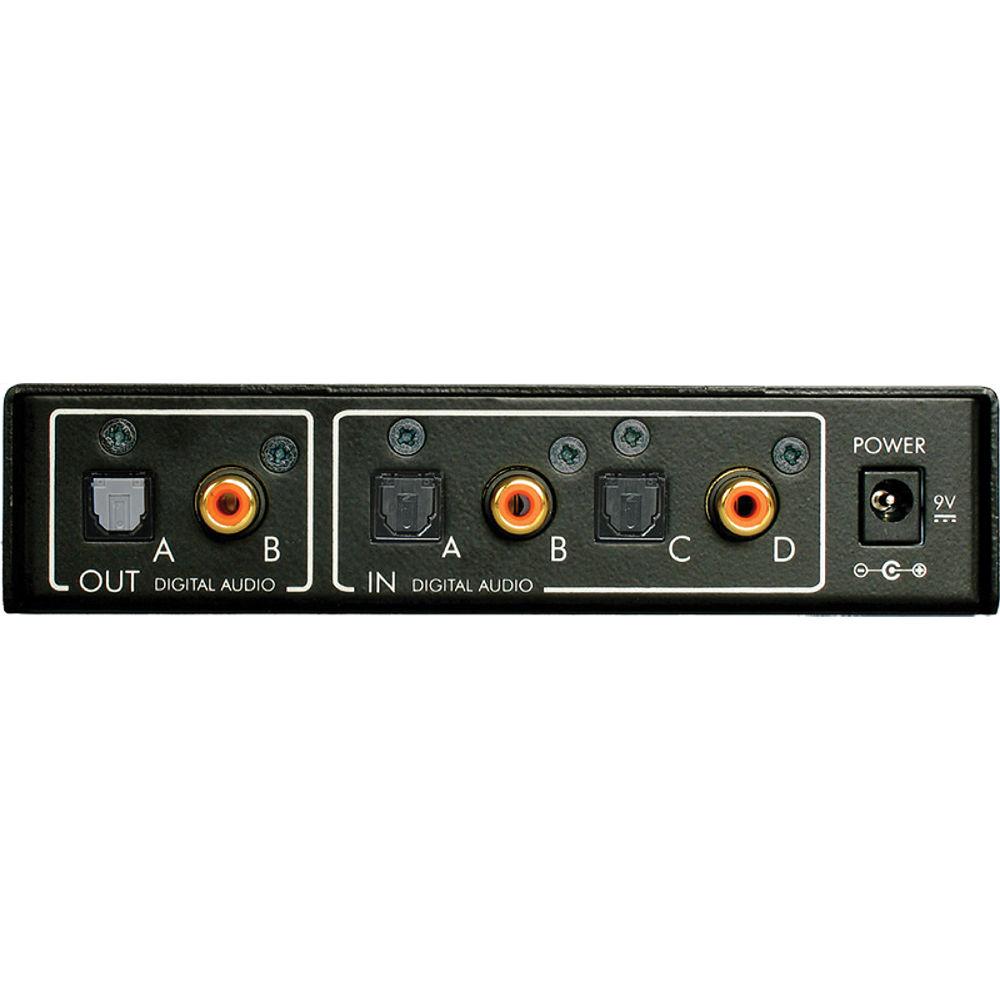

0 - 340 ms in 1 ms or 0.33 ms increments (96 kHz) | | Digital Audio | Signal Compatibility: S/PDIF digital audio on both coax and TOSLINK | | Connectors | 1 x TOSLINK female, audio optical input A
1 x RCA female, audio coaxial input B
1 x TOSLINK female, audio optical input C
1 x RCA female, audio coaxial input D
1 x TOSLINK female, audio optical output A
1 x RCA female, audio coaxial output B
1 x Barrel power, 9 VDC | | Front Panel Buttons | 1 x Power
1 x Input/Menu
1 x Delay -
1 x Delay + | | Front Panel LCD | Digital display with infrared sensor | | Power Requirements | 9 VDC, < 200 mA | | Dimensions | 5.7 x 4.1 x 1.4" (14.5 x 10.4 x 3.6 cm) | | Weight | 10.0 oz (283.5 g) approximately | | | | Package Weight | 2.25 lb | | Box Dimensions (LxWxH) | 15.5 x 8.1 x 2.8" |
