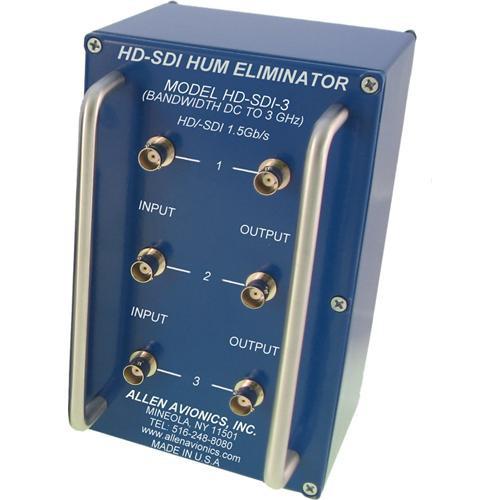

Product description The Allen Avionics HD-SDI-3 is a video hum and noise eliminator for HD-SDI applications. Hum eliminators work best when interference causes small differences in ground potential (less than 20VDC) or long cable runs have induced currents. HD-SDI units also work well when there are multiple power panels in a building that create differences in ground potential which induce ground loop current flow and 60Hz hum. - Reduces Electromechanically Induced Hum
- The HD-SDI of hum eliminators increase the attenuation at the power frequency (50Hz or 60Hz) when induced currents are high, therefore reducing hum.
- HD-SDI
- Unlike analog signals, the digital signals do not degrade gracefully and are subject to a cliff effect. The eye pattern is typically used to evaluate signal quality. When an external factor such as random induced noise affects the absolute bit timing it can result in lost data. This noise reduction device can keep the digital signal from degrading by eliminating the noise.
- Connector Location
- The connectors on the "V" model are located on the broadside of the unit featuring 1/4 inch steel guardrails and connector covers.
In the Box Allen Avionics HD-SDI-3 Video Hum Eliminator Ground Loop Eleminator 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Allen Avionics HD-SDI-3 Video Hum Eliminator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAllen Avionics HD-SDI-3 Specs Input | HD-SDI video 3 Channels: SMPTE-259M and 292M, @ 75 ohms, on BNC connectors | Output | HD-SDI video 3 Channels SMPTE-259M and 292M, @ 75 ohms, on BNC connectors | Bandwidth | 3GHz | Hum Rejection | 60dB ground loop isolation | Return Loss | 15dB | Dimensions (WxDxH) | 4.75 x 3.1 x 7.6" 12 x 7.9 x 19.3cm | Weight | 9 lbs 4.1kg | | Package Weight | 5.15 lb | Box Dimensions (LxWxH) | 7.6 x 5.1 x 4.4" |
