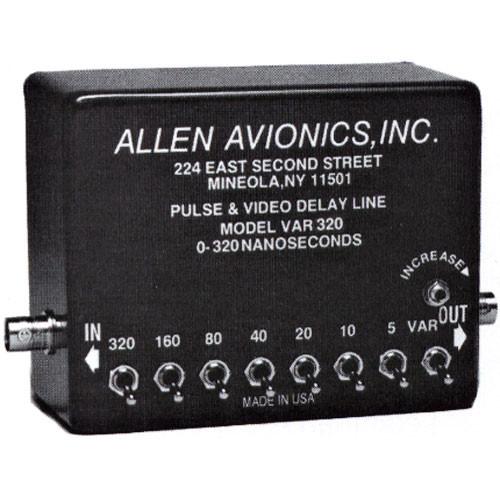

Product description This "in line" video delay utilizes front mounted toggle switches and a fine trimmer to adjust video delay parameters; it is useful in matching video sources with varied cable runs. A video delay will take the place of the mound of coiled coax that some studios use to time equipment. - Toggle Switches
- Toggle switches are used to adjust the main timing parameters.
- Trimmer
- A fine "trimmer" adjustment is available to make small adjustments to the delay signal.
In the Box Allen Avionics VAR-320 Variable Video Delay, Toggles and Trimmer Adjust, Composite Video 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Allen Avionics VAR-320 Variable Video Delay, Toggles and Trimmer Adjust, Composite Video in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAllen Avionics VAR320 Specs | Input | Composite Video, @ 75 ohms, on a BNC connector | | Output | Composite Video, @ 75 ohms, with delay, on a BNC connector | | Pulse Distortion | 3% | | Delay Range | 0 to 320 nano-seconds | | Control | Incremental toggle switches with a variable trimmer | | Power Source | None | | Dimensions (WxDxH) | 1.31 x 4.375 x 2.375"
3.3 x 11.1 x 6cm | | Weight | Not Specified by Manufacturer |
