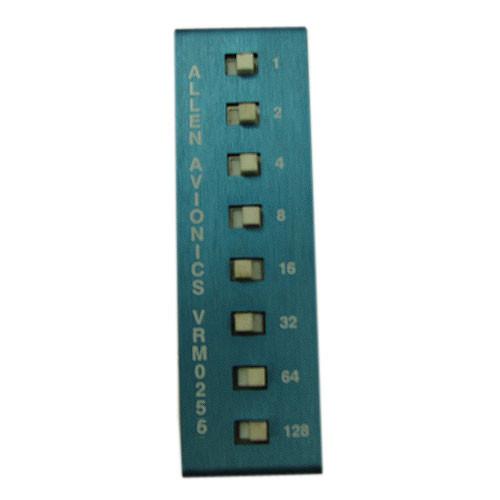

Product description This rack mountable video delay line utilizes front mounted switches with a fine adjust trimmer to adjust video delay. This unit is useful in matching video sources with varied cable runs. It will take the place of the mound of coiled coax that some studios use to time equipment. - Toggle Switches
- Toggle Switches are used to adjust timing variables.
- Trimmers
- A fine trim adjustment is utilized to accurately adjust the delay.
- Rackmountable
- This device can be used in rackmounting unit RM-1 with the RMC-1 to mount several delay devices in a 2 RU holder.
In the Box Allen Avionics Video Delay, Toggle Switch and Fine Trimmer Adjust, Composite, Rackmountable 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Allen Avionics Video Delay, Toggle Switch and Fine Trimmer Adjust, Composite, Rackmountable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAllen Avionics VRM0256 Specs | Input | Composite Video, @ 75 ohms, on a BNC connector | | Output | Composite Video, @ 75 ohms, with delay, on a BNC connector | | Pulse Distortion | 4% | | Delay Range | 0 to 256 nano-seconds | | Control | Front Panel Toggle Switches and fine adjust trimmers | | Power Source | None | | Dimensions (WxDxH) | 1.31 x 3.69 x 4.69"
3.33 x 9.37 x 11.9cm | | Weight | Not Specified by Manufacturer |
