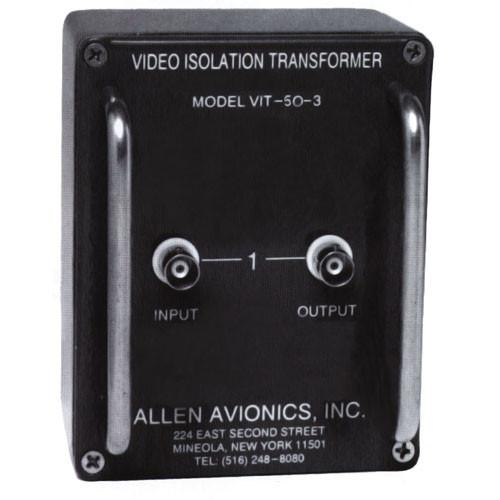

Product description Allen-Avionics VIT-50Usually video isolation involves breaking the ground in transmission lines to eliminate the 60 Hz hum; when there are high voltage potentials involved (above 20 VDC) the VIT series isolation transformers are the devices to use. The dielectric withstanding voltage of the VIT series is over 500 VDC. There is no DC path between transformer windings, therefore accomplishing true isolation. - ABS Plastic Case
- High Impact, non-conductive material makes for a lightweight device that will install in a variety of studio or field locations.
- 50 Ohms Impedance
- For budget minded users implementing 50 ohm connectors or consumer devices that work better at 50 ohms impedance.
- Withstands High DC Voltage
- Will isolate signal even with up to 500 VDC at the dielectric.
In the Box Allen Avionics VIT-50 Isolation Transformer, Noise and Hum Eliminator, One I/O, 50 ohms, ABS Plastic Housing 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Allen Avionics VIT-50 Isolation Transformer, Noise and Hum Eliminator, One I O, 50 ohms, ABS Plastic Housing in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAllen Avionics VIT-50 Specs | Input | One composite video, 50 ohms impedence
On a 50 ohm BNC connector | | Output | One composite video, 50 ohms impedence
On a 50 ohm BNC connector | | Bandwidth | 6 MHz | | Hum Rejection | Video Isolation: 100M ohms minimum | | Return Loss | 20 dB minimum | | Dimensions | 2.625 x 3.75 x 1.5" (WxDxH)
6.67 x 9.52 x 3.81cm (WxDxH) | | Weight | 1 lb
.45 kg | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 5.0 x 3.0 x 2.0" |
