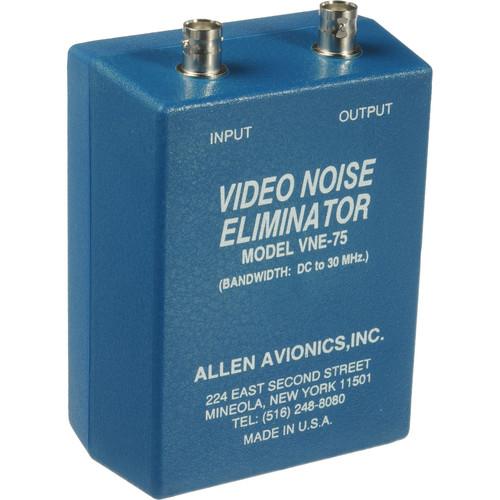

User Manual for Allen Avionics VNE-75 Video Noise Eliminator, Hum and Noise Eliminator, One I O, 75 ohms, ABS Plastic Housing Click to enlarge the picture
Contents of the user manual for the Allen Avionics VNE-75 Video Noise Eliminator,
- Product category: Noise Eliminators & Isolators Allen Avionics
- Brand: Allen Avionics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Allen Avionics Noise Eliminators & Isolators
|
User manual for the Allen Avionics VNE-75 Video Noise Eliminator, contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Allen Avionics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Allen Avionics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Allen Avionics product will considerably shorten its lifespan!
|
Product description Video Noise Eliminators are best used when video signals operating above 20 MHz up to 30 MHz are being used; this encompasses higher definition signals. Therefore, hum rejection is much less in the VNE series than the HEC equipment; the use of this series is recommended when higher frequencies are involved. - High Frequency Bandwidth Applications
- Specifically designed for signals operating above 20 MHz up to 30 MHz including high definition use.
- ABS Plastic Housing
- A high impact, non conductive housing is used making this unit easily adapted for studio or field use.
In the Box Allen Avionics VNE-75 Video Noise Eliminator, Hum and Noise Eliminator, One I/O, 75 ohms, ABS Plastic Housing 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Allen Avionics VNE-75 Video Noise Eliminator, Hum and Noise Eliminator, One I O, 75 ohms, ABS Plastic Housing in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAllen Avionics VNE-75 Specs | Input | One composite video, 75 ohms impedence
On a BNC connector | | Output | One composite video, 75 ohm impedence
On a BNC connector | | Bandwidth | 30 MHz | | Hum Rejection | 40 dB for 60 Hz hum | | Return Loss | 20 dB minimum | | Dimensions | 3.25 x 2 x 4.375" (WxDxH)
8.25 x 5.08 x 11.11cm (WxDxH) | | Weight | 1 lb
.45 kg | | | | Package Weight | 0.95 lb | | Box Dimensions (LxWxH) | 6.0 x 3.5 x 2.0" |
