User Manual for Allen & Heath DX168 Portable DX Expander for dLive Mixing Systems Click to enlarge the picture
Contents of the user manual for the Allen & Heath DX168 Portable DX
- Product category: Digital Mixer Accessories Allen & Heath
- Brand: Allen & Heath
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Allen & Heath Digital Mixer Accessories
 |
User manual for the Allen & Heath DX168 Portable DX contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Allen & Heath product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Allen & Heath user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Allen & Heath product will considerably shorten its lifespan!
|

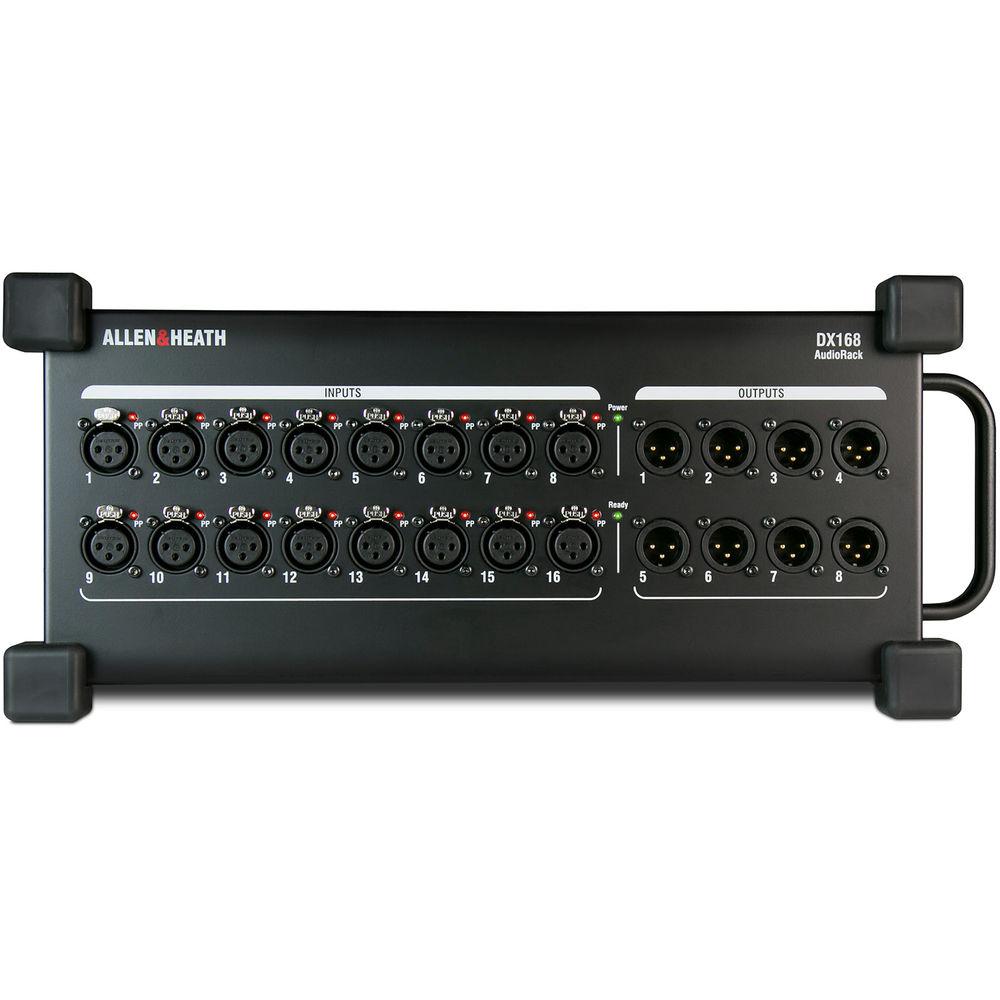

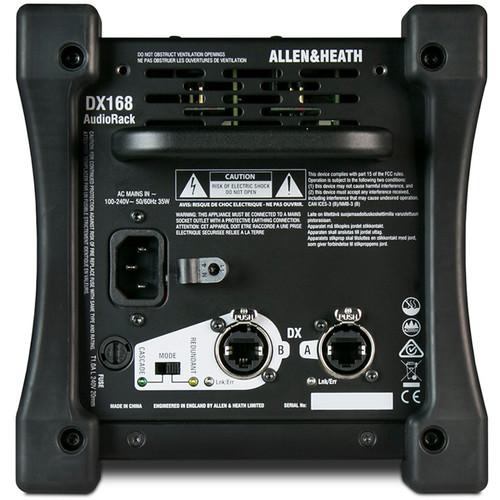

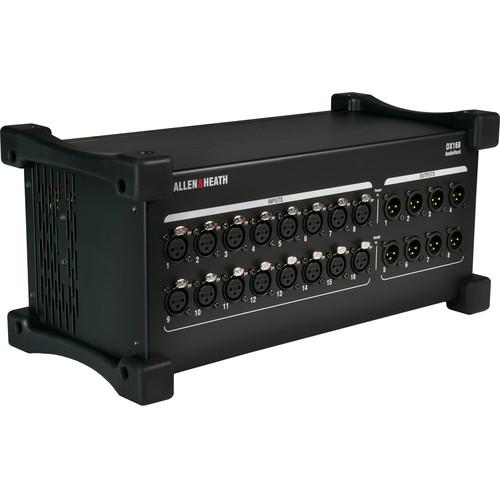

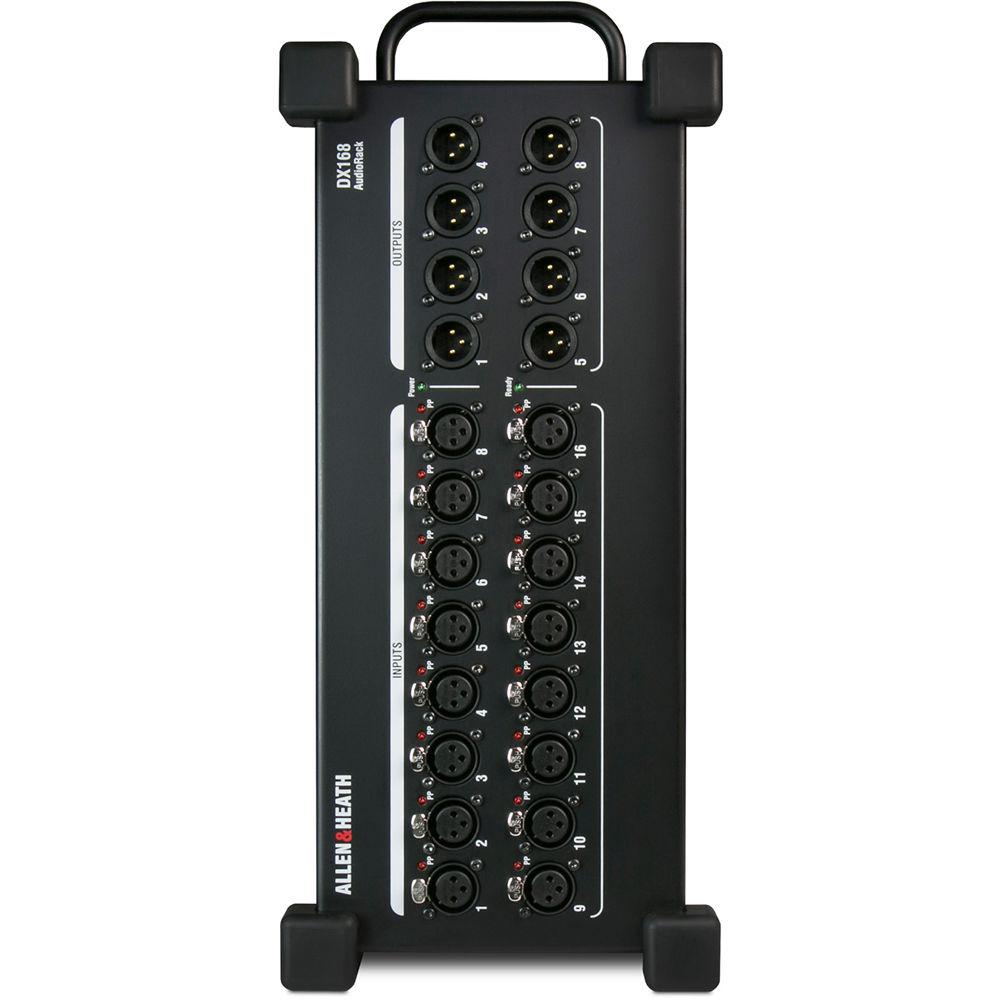

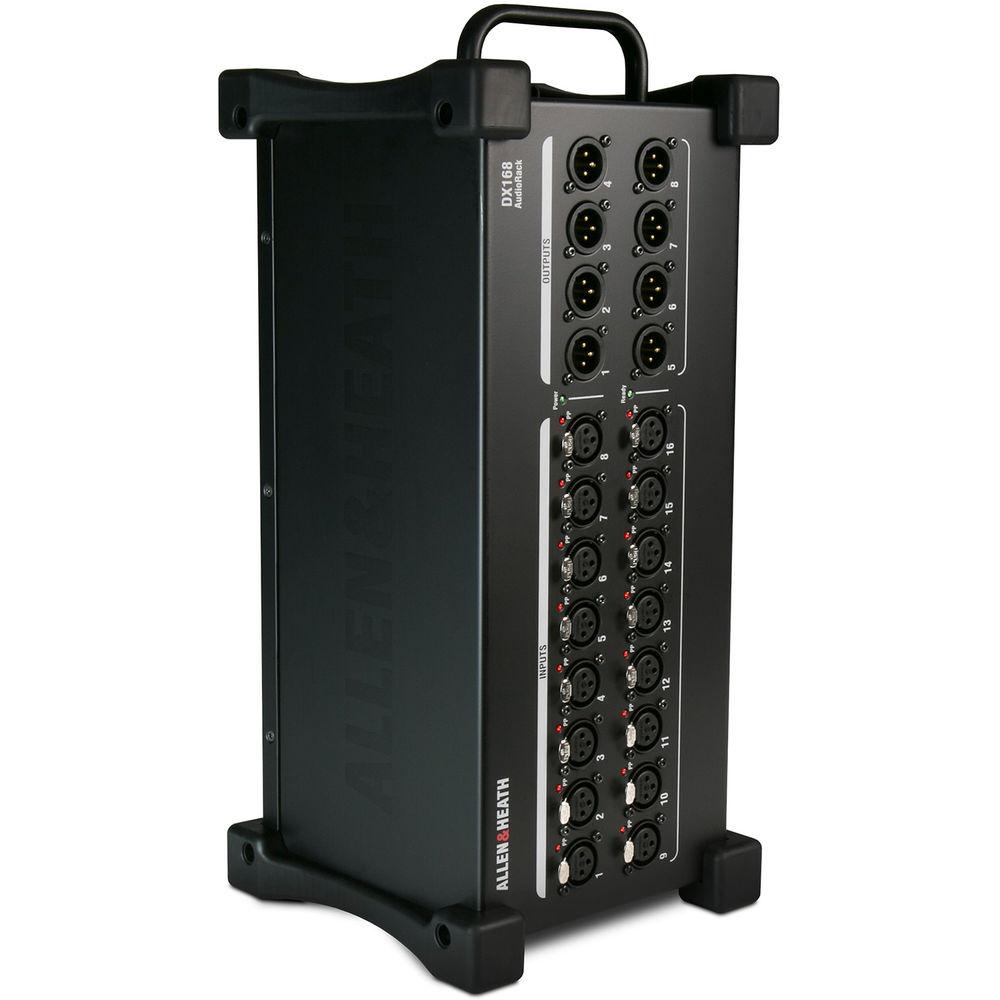

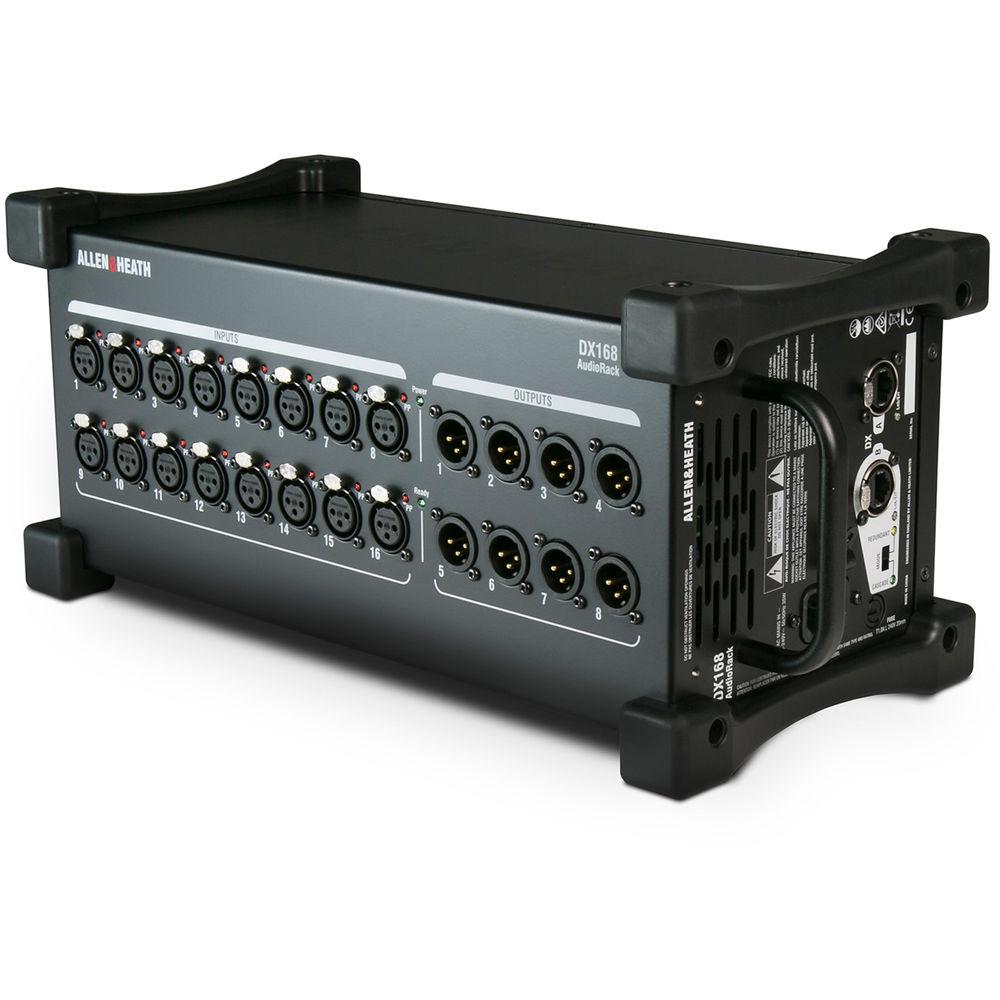

Product description The rugged DX168 Portable DX Expander from Allen & Heath adds remote inputs and outputs to the dLive S Class or C Class mixing systems. It features 16 XLR mic/line inputs, with independent phantom power LED indicators, along with eight XLR line outputs. The expander connects to the dLive system via a Cat 5 cable (sold separately), allowing for the inputs and outputs to be positioned up to 330' away from the mixer.
Up to six DX168 units can be added to a dLive system for a total of 96 inputs and 48 outputs, and Cascade mode allows daisy-chaining of two DX168 expanders for additional inputs and outputs. The sturdy and versatile design of the expander and hard-wearing rubber bumpers allow it to be placed directly on the stage floor during performances or rack-mounted in a standard 19" rack or case (requires a remote audio rack kit—sold separately). It also comes with a carry handle for convenience and portability. - Redundant DX connection to dLive S Class hardware
- Plug-and-play, no IP addressing required
In the Box Allen & Heath DX168 Portable DX Expander for dLive Mixing Systems (16 Input / 8 Output) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Allen & Heath DX168 Portable DX Expander for dLive Mixing Systems in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAllen & Heath DX168 Specs | | | XLR Mic/Line Inputs | Balanced, 48 V phantom power
Mic/Line Preamp: Fully recallable
Input Sensitivity: -60 to 15 dBu
Analogue Gain: 5 to 60 dB, 1 dB steps
Pad: -20 dB active pad
Maximum Input Level: 30 dBu (pad in)
Input Impedance: >4 kOhms (pad out), >10 kOhms (pad in) | | Mic/Line Channel Noise | 22 Hz to 22 kHz, direct output at unbalanced output
Mic EIN: -127 dB with 150 Ohm source
Unity Gain (Pad In): -90 dBu
Low Gain (5 dB, Pad Out): -96 dBu
Mid Gain (30 dB, Pad Out): -90 dBu | | Mic/Line Channel THD+N | 22 Hz to 22 kHz, direct output at unbalanced output
Unity Gain (Pad In): 0.003% -88 dBu at 1 kHz, 0 dBu output
Low Gain (5 dB, Pad Out): 0.002% -93 dBu at 1 kHz, 0 dBu output
Mid Gain (30 dB, Pad Out): 0.003% -88 dBu at 1 kHz, 0 dBu output | | Sample Rate | 96 kHz | | | | XLR Outputs | Balanced, relay protected
Output Impedance: <75 Ohms
Nominal Output: 4 dBu = 0 dB meter reading
Maximum Output Level: 22 dBu
Residual Output Noise: -92 dBu (muted, 20 to 20 kHz) | | | | Operating Temperature | 32 to 95°F / 0 to 35°C | | Mains Power | 100 to 240 VAC, 50/60 Hz | | Power Consumption | 40 W maximum | | Dimensions | 16.1 x 7.5 x 7.3" / 41.0 x 19.0 x 18.5 cm | | Weight | 10.1 lb / 4.6 kg | | | | Package Weight | 17.35 lb | | Box Dimensions (LxWxH) | 23.3 x 13.1 x 13.1" |
