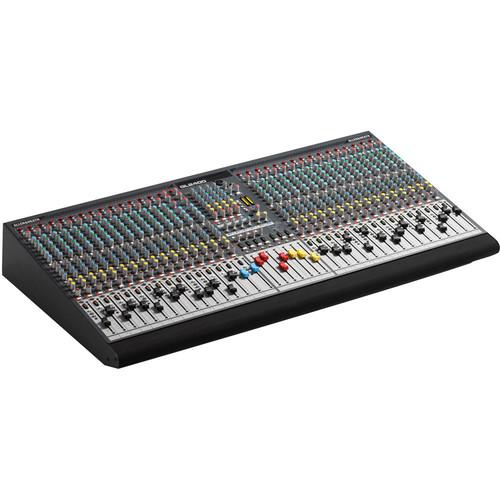

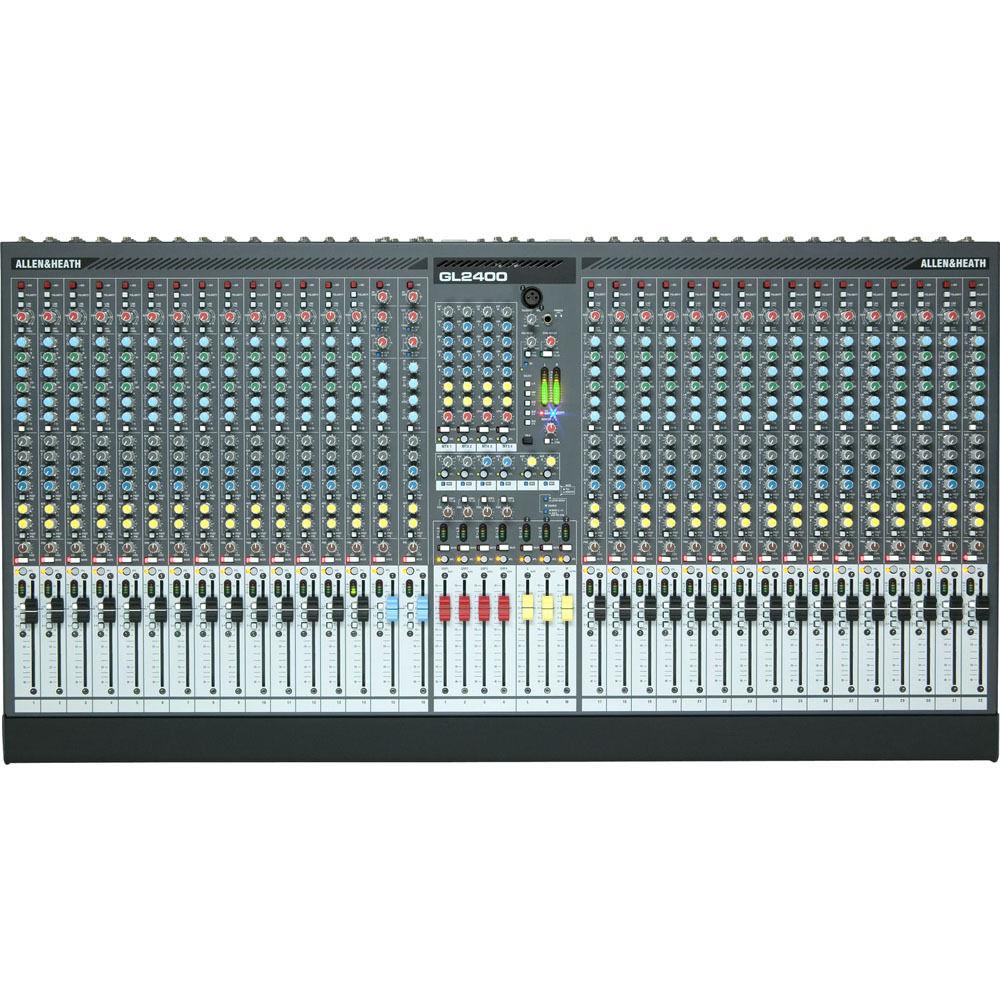

Product description The Allen & Heath GL series live sound reinforcement consoles exhibit the quality and detail synonymous with consoles that would render some live sound rigs over budget. The GL2400 is available in a 16, 24, 32 and 40 input chassis with a compact enclosure ideal for any custom, portable flight case.The GL2400-32 is the 32 input version, complete with 32 line inputs, 32 microphone preamplifier's and 4-buss group routing. There is absolutely no shortage of routing possibilities with 2 stereo input channels, 6 Auxiliary sends and a 7x4 routing Matrix section. Also featured are 1/4" phone TRS inserts on all input channels, auxiliary sends and stereo master output. Direct outputs via 1/4" phone connectors are provided on every input channel, enabling input signal to be routed directly to multitrack recorders, monitor mixers, etc.Each input channel features a 4-band semi-parametric EQ, complete with In/Out switch. A HPF filter switch attenuates frequencies below 100Hz by 12dB per octave. The main output section consists of Left, Right and Mono outputs via balanced 3-pin male XLR connections. The combination of stereo and mono outputs allows the engineer to mix a stereo image while sending mono signals to subs or a separate center (or "C") channel mix.The Allen & Heath GL2400 is a budget conscious, work-horse sound-reinforcement mixer designed to meet the needs in large clubs, houses-of-worship, theaters, halls, outdoor band shells, rehearsal studios, recording studios and anywhere a large format, quality sound-reinforcement mixer is needed. - Outstanding Performance
- Allen & Heath circuitry provides exceptionally low residual noise from the mix head amplifier and output stages. Improved microphone preamplifiers maintain low noise and can except as much as +34dBu.
- Stereo Line Inputs
- 2 stereo input channels (15/16) provide dual L/R stereo line inputs, for a total of 4 stereo line level inputs.
- Direct Microphone Outputs
- Both stereo input channels also feature a mono microphone input with a standard 3-pin balanced XLR connection and a 1/4" phone microphone output. The microphone output is convenient for feeding ambient microphone signal to recorders, RTA measurement systems, etc.
- 7x4 Matrix Routing
- The 7x4 Matrix is literally a mixer within a mixer. 4 output channels feature independent output level control and signal routing from any of the 4-sub groups, L/R stereo or Matrix External inputs (7x4). Applications include assisted listening mixes, additional monitor mixes, remote broadcasts, zone feeds, mono recording and stereo recording comps.
- 6 Auxiliary Sends
- 6 auxiliary sends provide adequate routing to external effects devices, monitors, etc.
- 4-Sub Group Outputs
- 4-sub groups are ideal for drum kit and back ground vocal comps. Individual channel feeds can be routed to multitrack recorders as well.

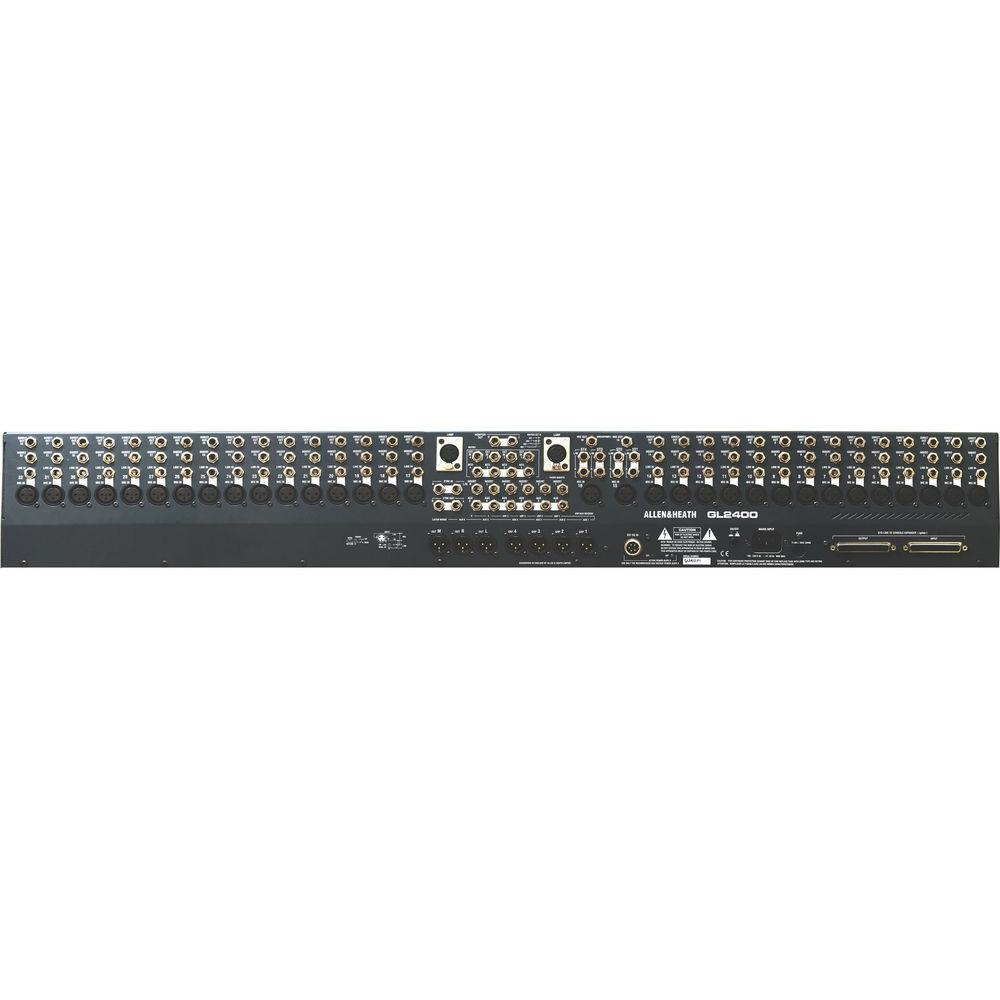

- Inserts
- 1/4" TRS phone inserts are located on all input channels, stereo mix output and sub-groups. The inserts enable direct, signal-loop routing to signal processors, monitor mixers, etc.
- Direct Outputs
- All input channels feature a direct output with a 1/4" phone connection. This allows for direct routing to large multitrack recorders, monitor mixers, etc.
- System Link
- An optional card provides the 37 pin D connectors necessary for integrating an additional GL2400. The Sys-Link allows the second mixer to operate as an input expander module.
- Gooseneck Lamp Connections
- Dual 4-pin male connections are provided for adapting gooseneck lamps.
In the Box Allen & Heath GL2400-32 32-Input, 4-Buss Live Sound Reinforcement Analog Mixing Console 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Allen & Heath GL2400-32 32-Input, 4-Buss Live Sound Reinforcement Analog Mixing Console in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAllen & Heath GL2400 Specs | Total # Of Inputs | 32 | | Mic/Line Inputs | 32 Line: 1/4" Phone
32 Mic: 3-pin XLR | | Stereo Line Inputs | 4 Stereo: L/R 1/4" Phone | | In-Line Inputs/Returns | No | | AUX Sends | 6 Aux Sends: 1/4" Phone | | AUX Returns | No | | Inserts | 32 Line: TRS 1/4" Phone
4 Group: TRS 1/4" Phone
2 Stereo Out: TRS 1/4" Phone | | BUS (Group) Outputs | 4 Group Outputs: Balanced 3-pin XLR | | 2 Trk Master I/O | Main Outputs: Left / Right / Mono (sub) Balanced 3-pin XLR
2Trk In: L/R 1/4" Phone 2Trk Out: L/R 1/4" Phone | | ALT I/O | Matrix -
4 EXT In: 1/4" Phone 4 MTX: 1/4" Phone | | Monitor Outputs | Monitor Out: L/R 1/4" Phone | | EQ Section | Gain (each band): +/- 15dB
Mono Channels- Low: Shelf 80Hz
Low Mid: 35Hz - 1kHz Q=1.8 High Mid: 500Hz - 15kHz Q=1.8
High: Shelf 12kHz Stereo Channels -
Band Frequencies: 60Hz, 250Hz, 2.5kHz, 12kHz Q=1.8 Filter (mono inputs): Switch 100Hz | | Solo/Mute | Mute / PFL on all channels | | Channel Level Control | 100mm faders | | Trim/Gain Control | Sealed Rotary Potentiometers | | Phantom Power | +48 Volt Phantom Power (all mono channels) | | Metering | 12 Segment Stereo Peak LEDs | | Frequency Response | 20Hz to 30kHz
Mic to Main output (+40dB gain): +0/-0.5dB Line to Main output (0dB): +0/-0.5dB | | Dynamic Range | not specified by manufacturer | | Signal-to-Noise Ratio | (22Hz to 22kHz unweighted)
Mic EIN with 150ohm source: -128dB Residual output noise main outputs: < -98dBu
Main Mix noise (nothing routed): < -92dBu Main Mix noise (24 channels routed): < -86dBu (90dB S/N) | | Total Harmonic Distortion (THD) | THD + Noise (mic In +40dB gain): < 0.004%
THD + Noise (line in 0dB gain): < 0.006% | | Power Supply | Up to 2 x 4pin XLR-F Internal (16,24,32) | | Dimensions | 45" x 10" x 25" (114.3 x 25.4 x 63.5cm) (WxHxD)
H = maximum meter bridge height | | Weight | 66 lb (30 kg) | | | | Package Weight | 75.0 lb | | Box Dimensions (LxWxH) | 47.5 x 29.0 x 12.7" |
