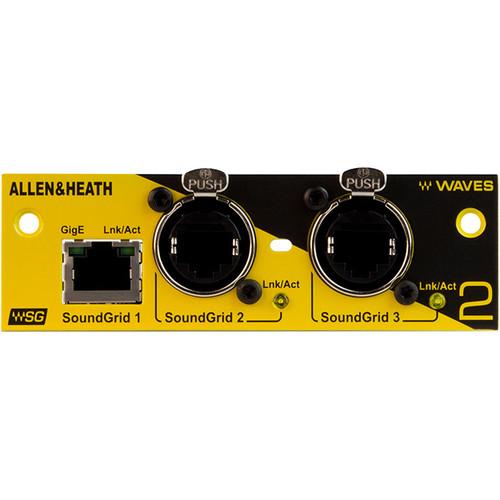

Product description The M-WAVES V2 Audio Networking Card/Software from Allen & Heath is an audio networking card which can be fitted to iLive, dLive, GLD, or ME digital mixing systems. It uses the Audio-over-Ethernet SoundGrid networking and processing platform to transport multi-channel audio to and from a computer for processing using Waves plugins or for direct to computer multi-track recording and playback. Real-time audio processing can also be performed on low-latency standard Intel-based SoundGrid plug-in servers, running a Waves-customized real-time version of Linux. The M-Waves V2 gives access to 64 bi-directional audio channels and is equipped with an integrated Ethernet switch with two EtherCon and one RJ45 SoundGrid ports over CAT5 cables. - SoundGrid network provides applications such as digital microphone splitting, audio distribution, and FoH and monitor sharing a single SG server
- The M-WAVES V2 can be fitted to the port B expansion slot in iLive fixed format MixRacks (iDR-16, iDR-32, iDR-48, and iDR-64) or expander (xDR-16), and port B in iLive modular MixRacks (iDR0, iDR10) if they are fitted with the new RAB-2 standard
- It can also be fitted to the I/O port expansion slot in a GLD mixer, the input slot in a ME-U hub, or an I/O port in a dLive system when equipped with a M-DL-ADAPT interface
- Redundancy and recovery options
- Built-in 3-port Gigabit switch for connection to multiple devices
- Clock sync over Ethernet for digital splits
- Direct connection to computer for multi-track recording/playback
- Runs on standard Intel CPUs and 1 GB/s Ethernet networks
- Works with Soundgrid studio software for ASIO or Core audio
- Works with MultiRack software for multiple plug-in control
- LEDs for link and status activity
In the Box Allen & Heath M-WAVES V2 Audio Networking Card for iLive, GLD, and ME Digital Mixing Systems Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Allen & Heath M-WAVES V2 Audio Networking Card for iLive, GLD, and ME Digital Mixing Systems in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAllen & Heath AH-M-WAVES2-A Specs | Compatibility | iLive, GLD, and ME Digital Mixing Systems | | System Requirements | iLive firmware version 1.90 or higher
GLD firmware version 1.40 or higher
ME-U firmware version 1.02 or higher | | Connectors | 1 x RJ45 Gigabit Ethernet, Soundgrid 1 port
1 x RJ45 EtherCon, Soundgrid 2 port (locking)
1 x RJ45 EtherCon, Soundgrid 3 port (locking)
1 x multi-pin module port | | Indicators | 2 x LED GigE/Link/Act status, Soundgrid 1 port
1 x LED Link/Act status, Soundgrid 2 port
1 x LED Link/Act status, Soundgrid 3 port | | Dimensions | 4.3 x 4.7 x 1.4" / 10.9 x 11.9 x 3.6 cm | | Weight | 0.26 lb / 0.12 kg | | | | Package Weight | 0.65 lb | | Box Dimensions (LxWxH) | 9.3 x 6.1 x 2.8" |
