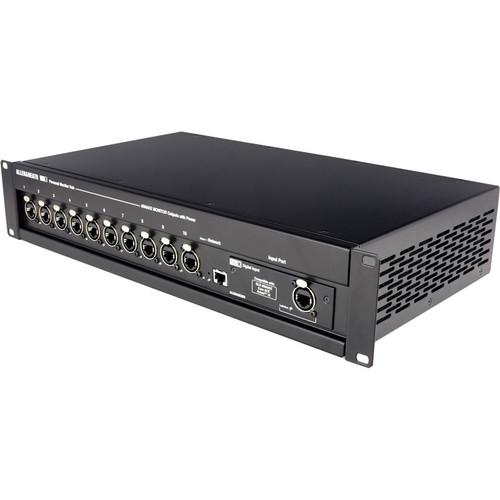

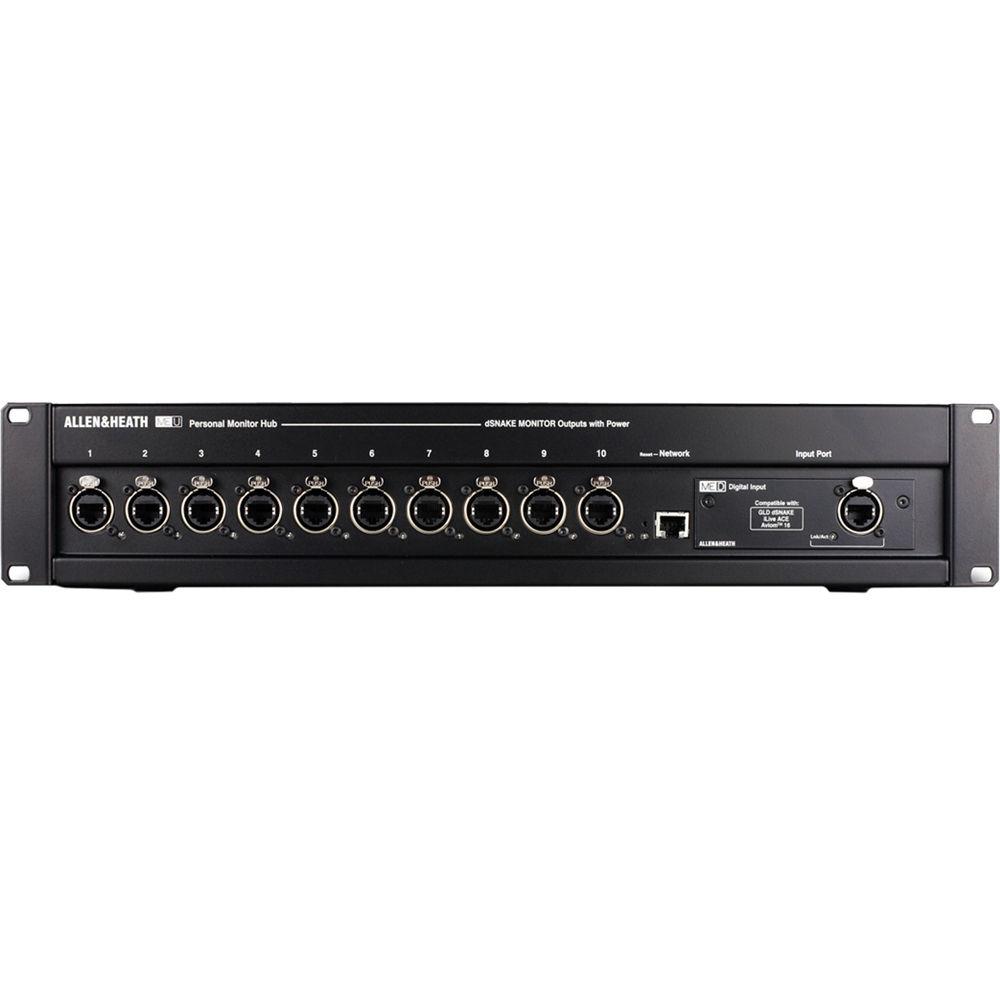

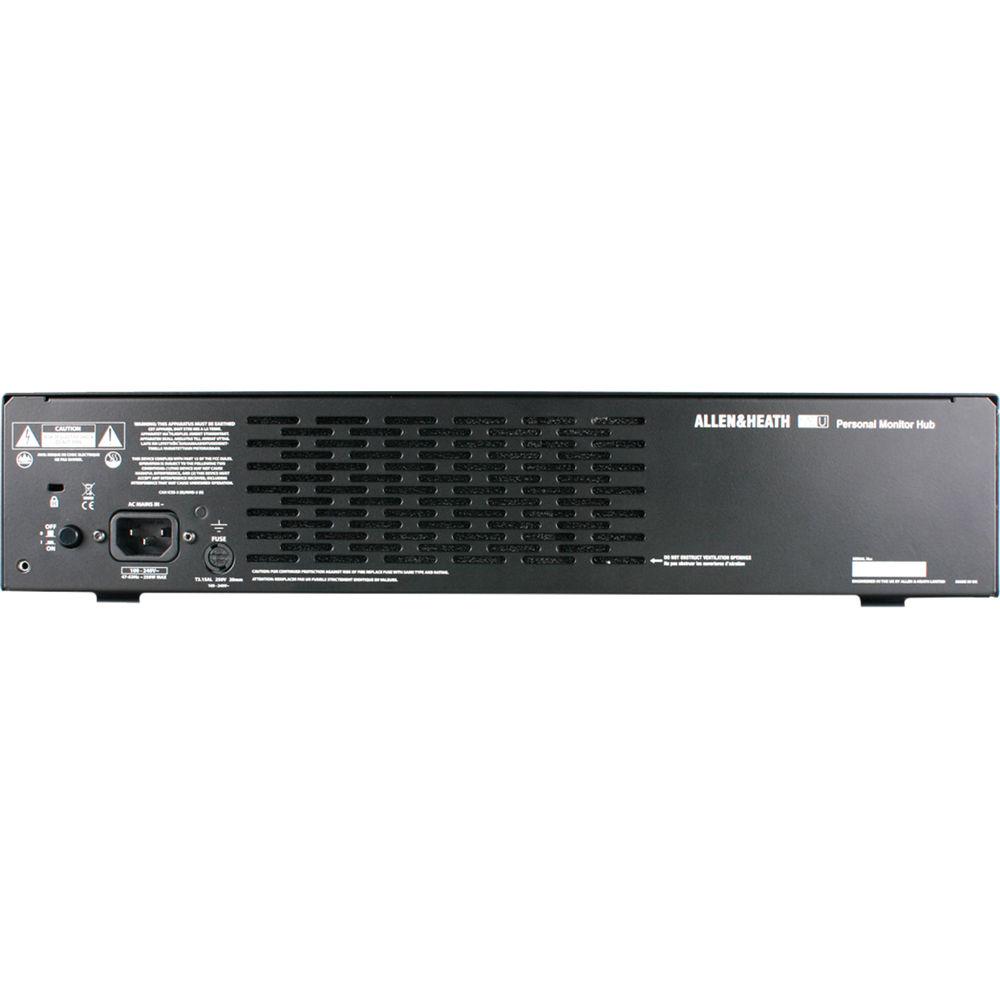

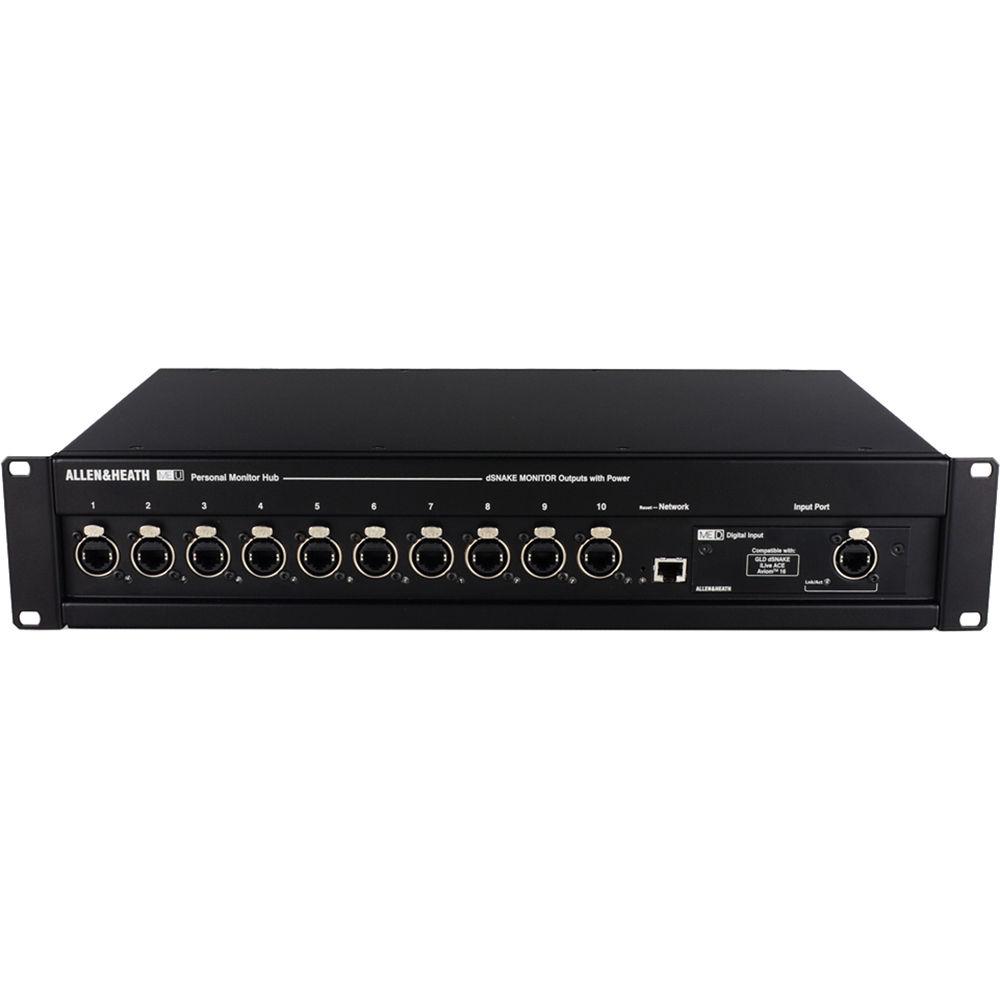

Product description Allen & Heath's ME-U 10-Port Monitor Hub for ME-1 is a touring-grade, 10-port PoE hub providing power and audio to connect multiple ME-1 personal mixers. It comes with a standard input card to interface with dSNAKE (GLD & Qu mixers), iLive ACE or Aviom A-Net, which can be replaced with an optional MADI, Dante or EtherSound card to take a digital feed of up to 40 sources from third-party systems. - 10 ports with locking EtherCon connectors
- Daisy chain for more outputs - up to 19 ME-1s with 2 hubs
- Each port provides power + 40 audio sources to connected ME-1s
- Touring-grade build quality
- Multi-purpose Network port
- • Connect PC or Mac for web page setup of unit name and IP address, and manual entry of channel names
• Connect iLive AH-Net network to pick up channel names automatically from an iLive system In the Box Allen & Heath ME-U 10-Port Monitor Hub for ME-1 Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Allen & Heath ME-U 10-Port Monitor Hub for ME-1 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAllen & Heath AH-ME-U Specs | Input | Card option slot, 40 channels
48 kHz digital audio
ME-D (dSNAKE, ACE, Aviom) card provided
Aviom A-Net16 compatible, 16 channels
M-Dante network card option available
M-MADI card option available
M-ES EtherSound card option available | | Output | 10 ports
Compatible with ME mixers
Locking EtherCon connectors
PoE available on all output ports | | Network | Port: Ethernet TCP/IP
System setup and receiving iLive channel data | | Setup | Uses PC or Mac web browser
Received or manual channel names
Received or manual odd/even stereo links
iLive mode for receiving iLive names/links
Change TCP/IP address | | IP Addresses | Default: 192.168.1.40
Subnet Mask: 255.255.255.0
Default Gateway: 192.168.1.254 | | Power | 100-240 V AC, 47-63 Hz, 250 W | | PoE Capable Ports | 15 W at each ME-U output | | Dimensions | 19 x 10 x 3.6" (483 x 253 x 92 mm) | | Weight | 10.1 lb (4.6 kg) | | | | Package Weight | 14.6 lb | | Box Dimensions (LxWxH) | 22.8 x 14.9 x 9.6" |
