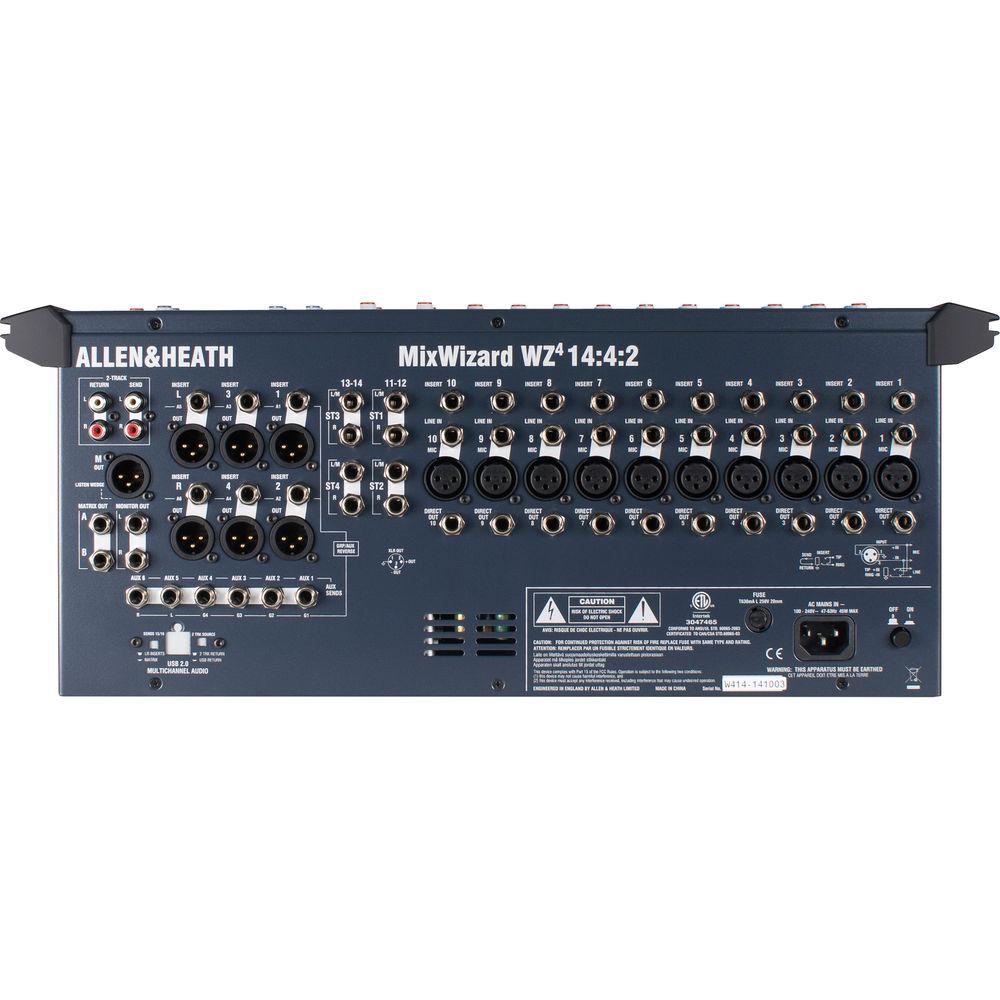

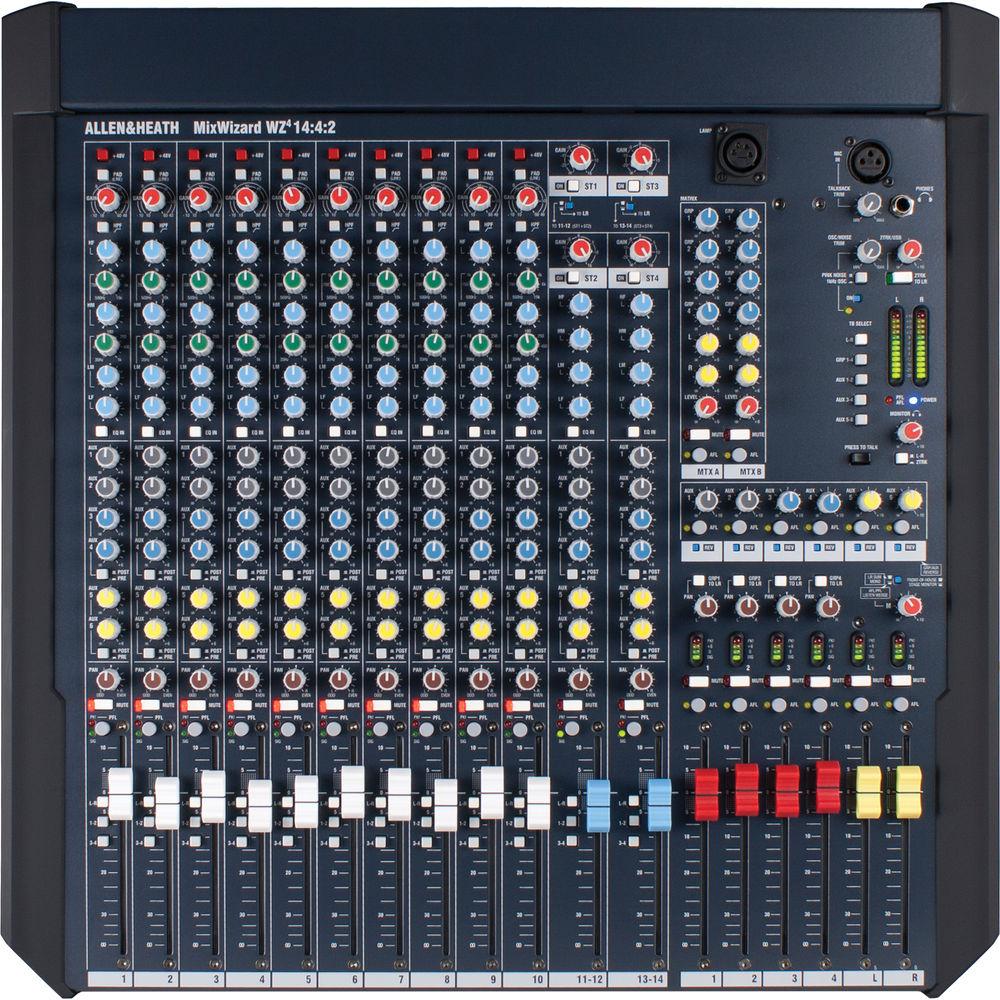

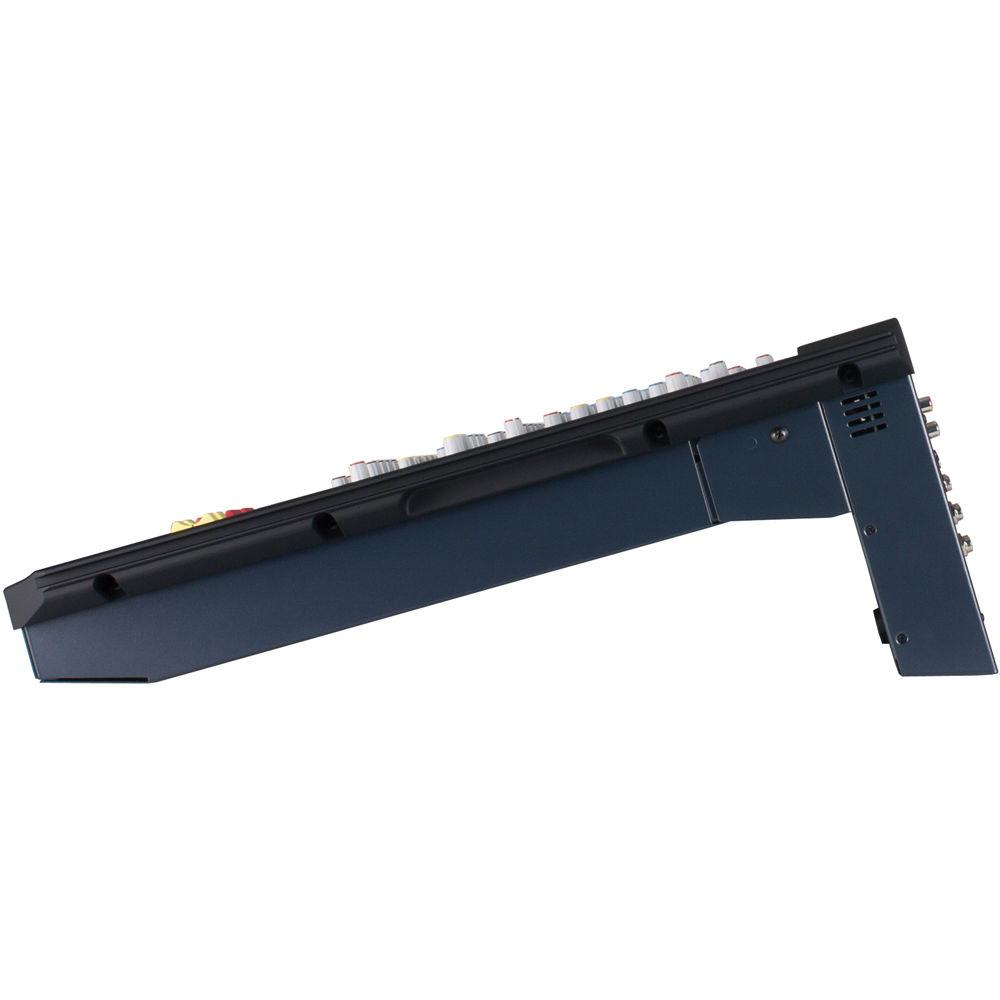

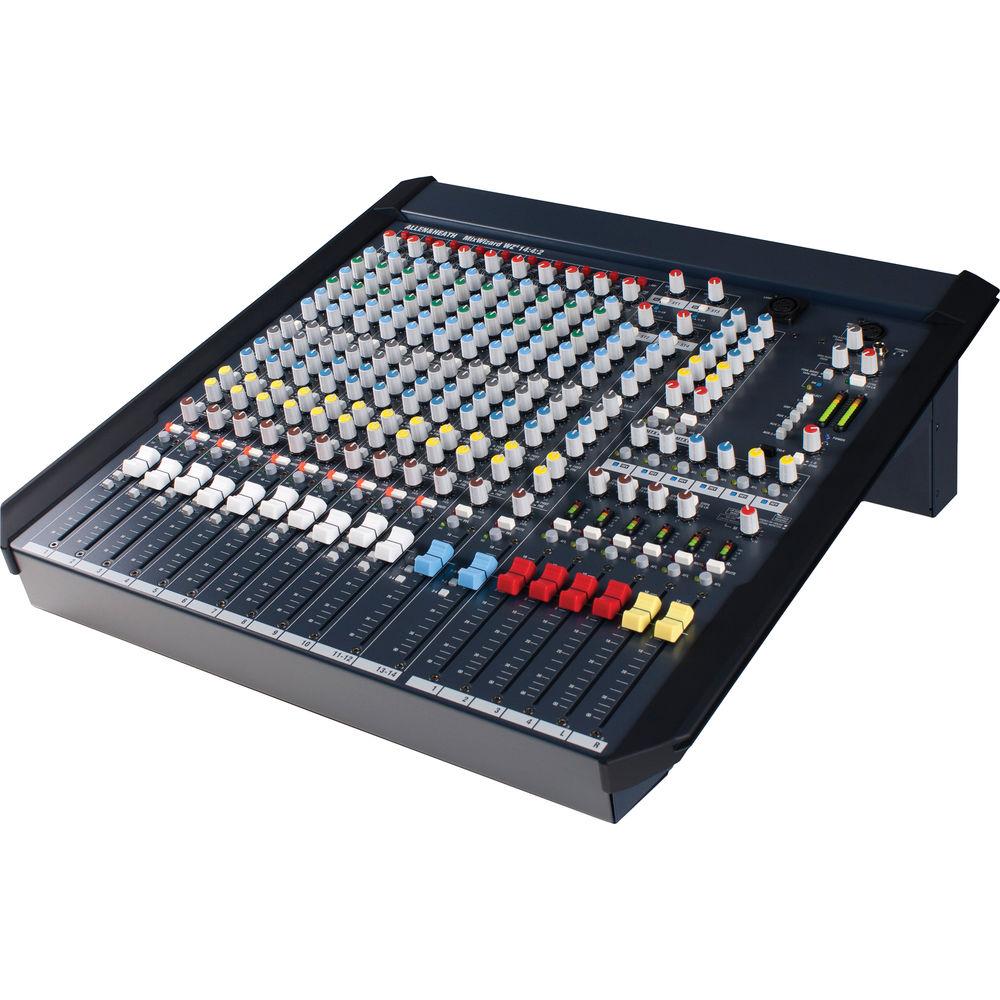

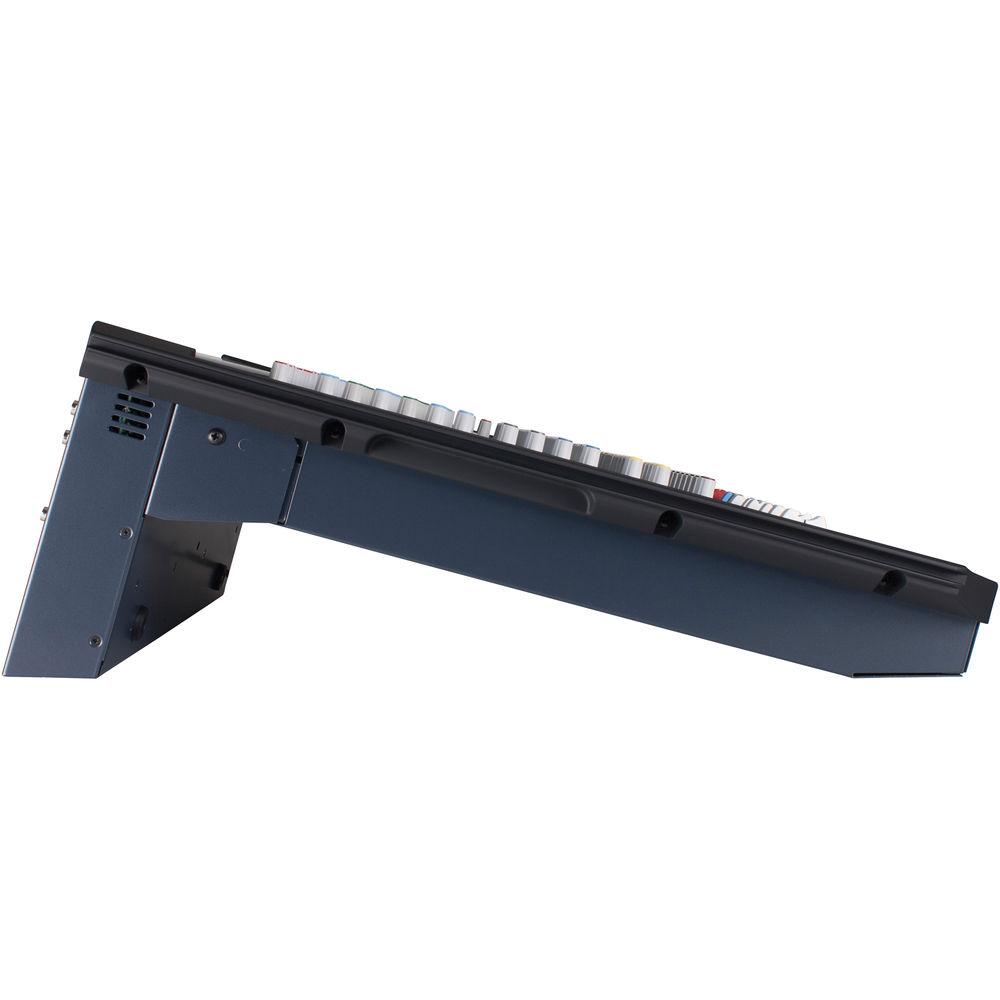

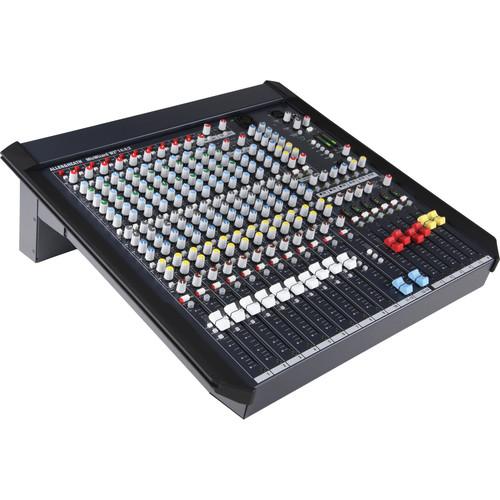

Product description The MixWizard WZ4 14:4:2 from Allen & Heath is a desk/rack mountable professional-grade live sound mixer with ten mic/line inputs, 48V phantom power, and balanced XLR/TRS jacks. It can be used in scenarios where you don't need a lot of channels for applications such as microphones, keyboards, and equally at home for sound re-enforcement, on monitors, music playback systems, and more. The WZ4 14:4:2 is built with two dual-stereo channels, a 4-band EQ with 2 sweepable mids, and 100mm faders. Furthermore, it has 12-segment bargraph metering, six aux sends, and a QCC connector system for easy desktop, rack, or flightcase mounting. This fourth generation MixWizard console includes the option to fit a multichannel USB interface with a 16-channel soundcard for easy multitrack recording and 2-track playback. - 10 mic/line inputs with balanced XLR/TRS jack, insert and direct output
- 2 Dual Stereo inputs with separate gain and 'ON' switches allowing inputs to be selected independently or mixed together
- 6 Aux sends - switchable pre/post fade
- USB multitrack recording option
- Footswitch connector (mutes/unmutes the ST1 FX Return)
- 6×2 Matrix for providing feeds for in-ear monitors, delay speakers, video, broadcast and more
- Oscillator and Pink Noise generator for line-up and speaker testing
In the Box Allen & Heath MixWizard WZ4 14:4:2 Desk/Rack Mountable Mixer AC Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Allen & Heath MixWizard WZ4 14:4:2 Desk Rack Mountable Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAllen & Heath WZ4 Specs | Inputs | 10x balanced XLR mic inputs
10x TRS jack inserts
2x dual stereo input channels
2-track replay input | | Outputs | 10 direct outputs | | AUX Sends | 6 | | | | Maximum Output Level | XLR: +26 dBu into 600 ohms max load
Jack: +21 dBu into 2 kOhms max load | | Internal Headroom | Channels: +21 dB
Mix: +23 dB | | Meters | 3-color LED, quasi peak response
Master Meters: 12 segments -30 to +16 dB
Channel Meters: 2 segments -12, +16 dB (5 dB before clip) | | Sensitivity | 0VU = +4 dBu at XLR output | | Frequency Response | 10 Hz to 30 kHz +/-0.5 dB | | Total Harmonic Distortion(THD) + N | Channel to mix out < 0.004% at +10 dBu 1 kHz | | Crosstalk | Fader shutoff, channel mute, and inter channel >90 dB at 1 kHz | | Noise | Rms 22 Hz to 22 kHz:
Mic EIN: -127 dB
Residual Output Noise: < -95 dBu (-99 dB S/N)
Unity Fader Mix Noise: < -83 dBu (-87 dB S/N) | | Channel HPF | 12 dB/octave below 80 Hz | | Mono EQ | HF Shelving, +/-15 dB, 12 kHz
HM Peak/dip, +/-15 dB, 500 Hz to 15 kHz, Q=1.8
LM Peak/dip, +/-15 dB, 35 Hz to 1 kHz, Q=1.8
LF Shelving, +/-15 dB, 80 Hz | | Stereo EQ | HF Shelving, +/-15 dB, 12 kHz
HM Peak/dip, +/-15 dB, 2.5 kHz, Q=1.8
LM Peak/dip, +/-15 dB, 250 Hz, Q=1.8
LF Shelving, +/-15 dB, 80 Hz | | Power Supply | 100-240 V, 50/60 Hz auto sensing, IEC input
Power consumption: 45 W max
Mains fuse: T630 mA L 20 mm | | Dimensions (W x D x H) | Free Standing: 20 x 20.9 x 7.7" (507 x 530 x 194 mm)
Rack Mounted Underside Connectors: 19 x 4.8 x 17.5" (483 x 122 x 444 mm) 10U
Rack Mounted Rear Connectors: 19 x 7.6 x 19.6" (483 x 193 x 497 mm) 11.2U | | Weight | 24 lb (11 kg) | | | | Package Weight | 33.5 lb | | Box Dimensions (LxWxH) | 25.0 x 24.0 x 13.5" |
