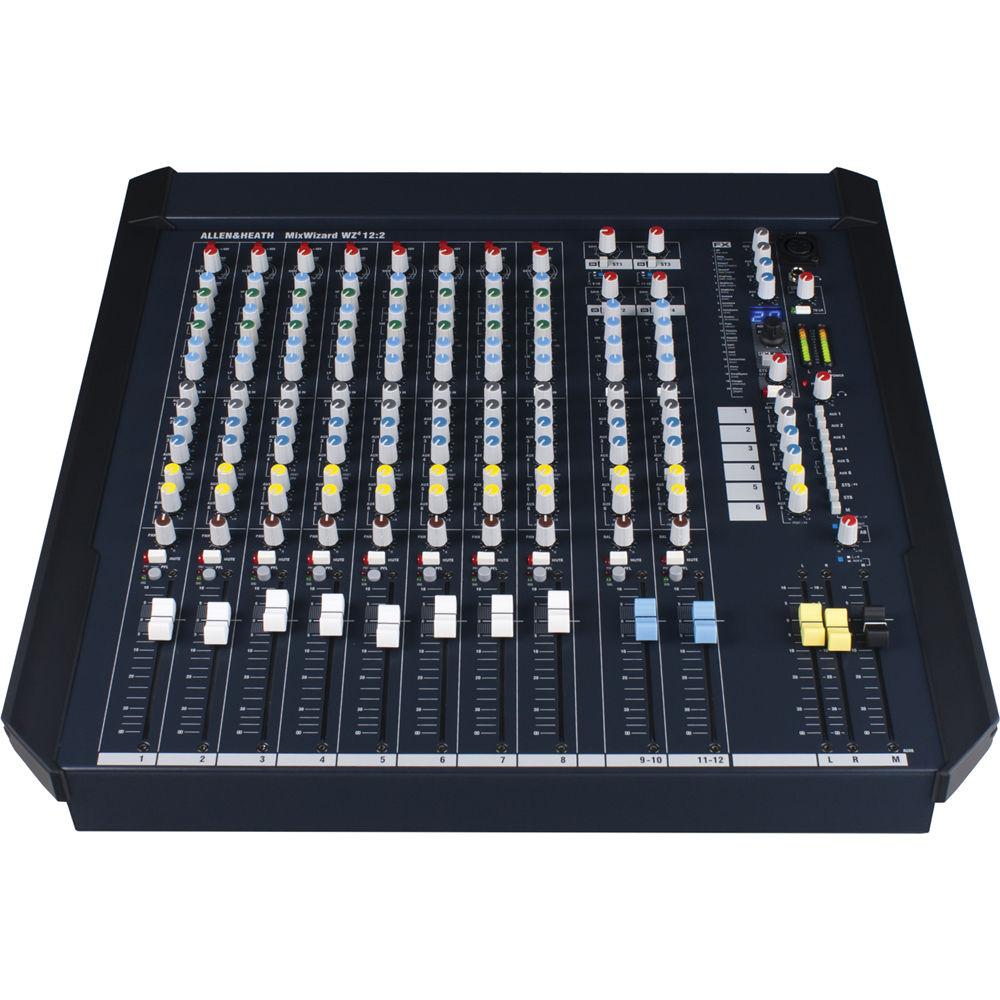

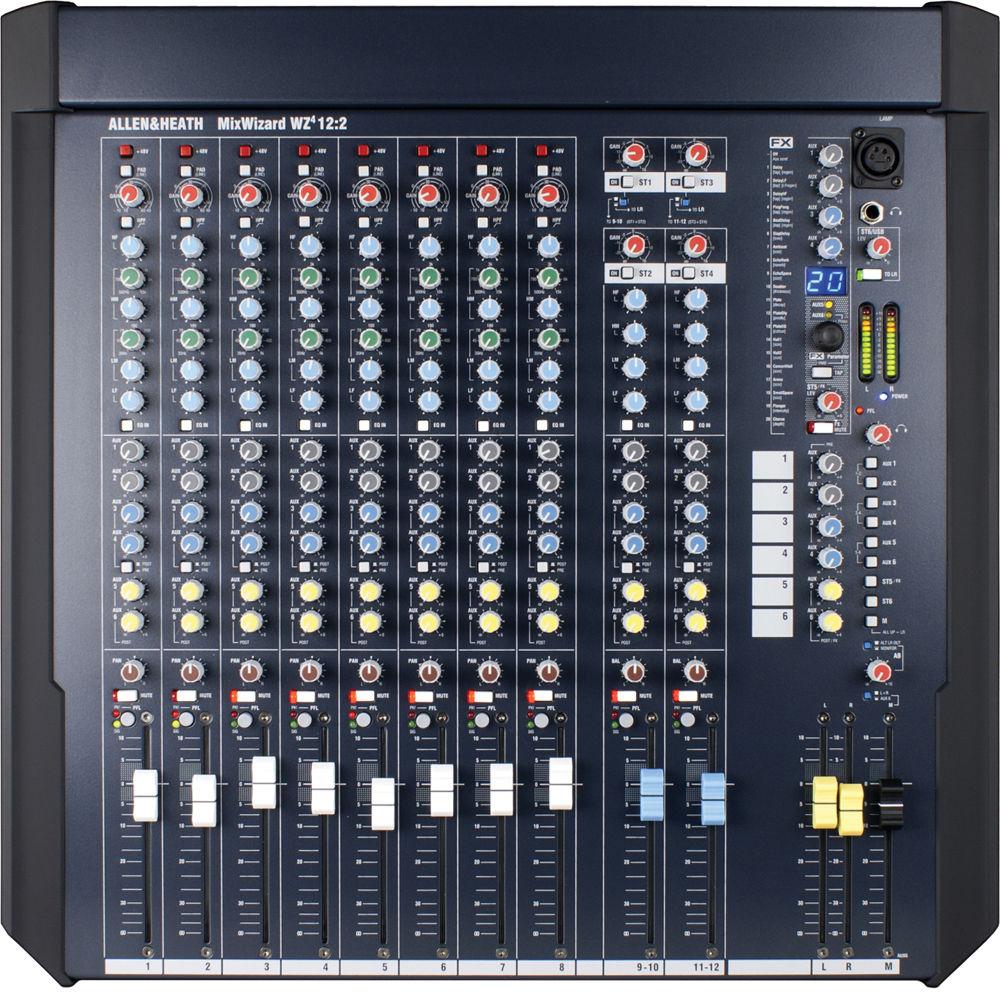

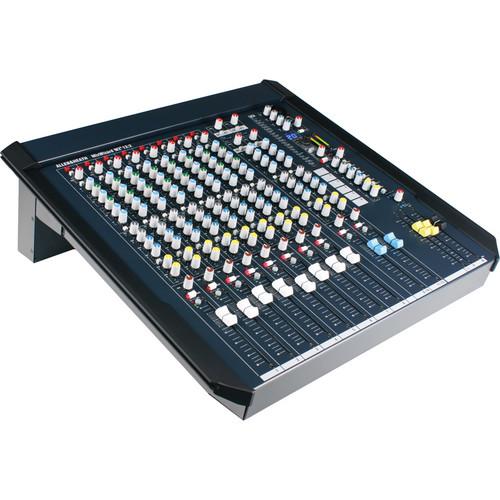

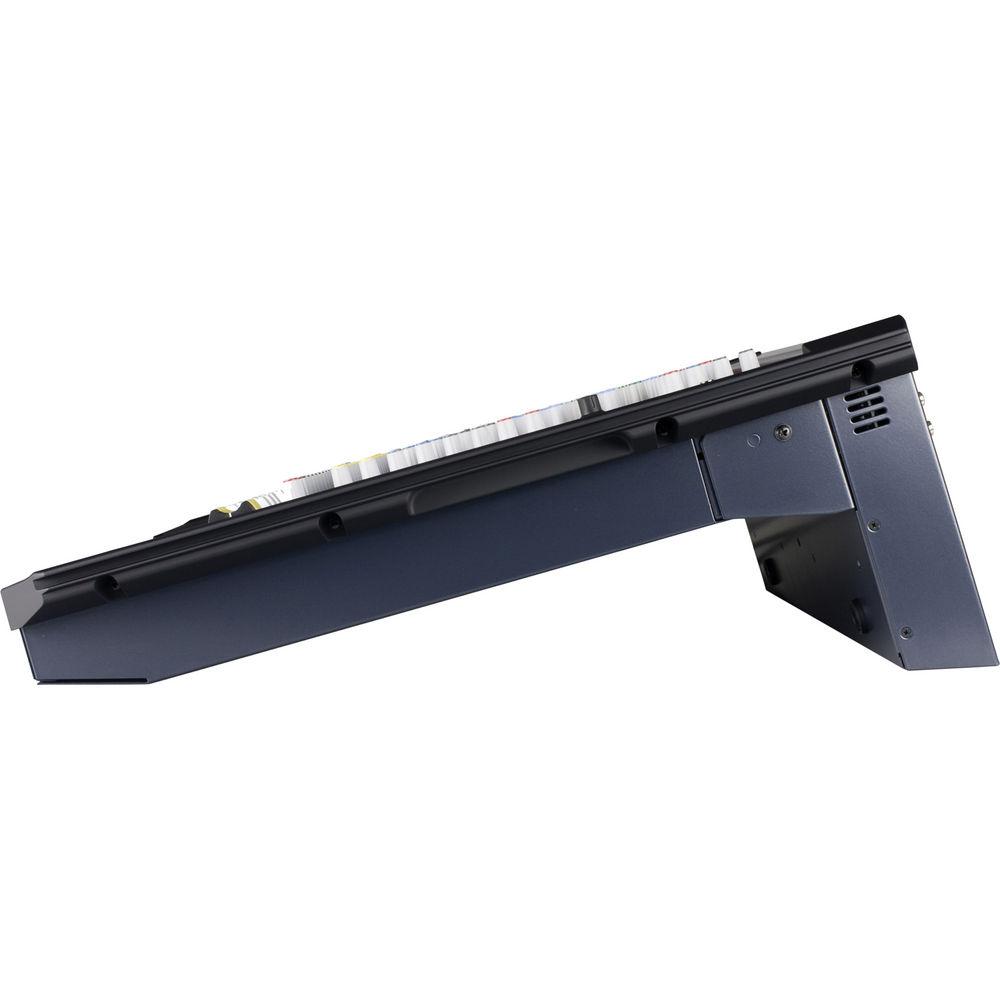

Product description The MixWizard4 12:2 from Allen & Heath is a versatile, all-purpose professional mixing console with 100mm faders. The console features 8 mic/line inputs with inserts and direct outputs, six auxiliary outputs, two full channel dual stereo inputs, two stereo returns and two built-in FX engines with 20 presets.
Channels 1 through 8 feature mic/line inputs with balanced XLR and TRS jacks with 48V phantom power for plugging in microphones and instruments, each with a 4-band EQ with sweepable mids. They each also feature a peak indicator, -20dB pad, six aux send knobs, pan knob, channel mute and a high-pass filter that attenuates frequencies below 80Hz by 12dB per octave. The mixer also includes two channels with dual stereo inputs that can be used separately, mixed together, or split and routed so that one feeds the other.

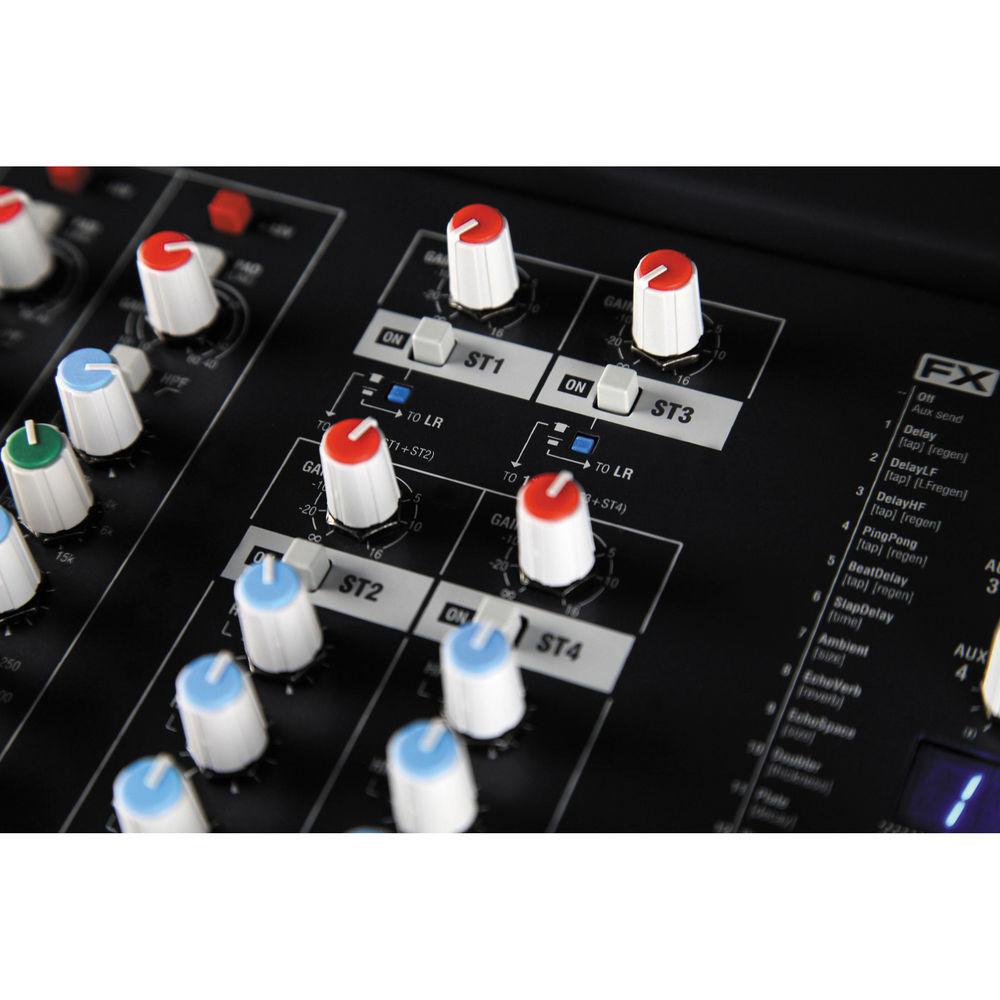

Channels 1 through 8 also feature inserts that can be used for inserting processing equipment into the signal chain such as compressors, outboard EQ and delay units. Furthermore, they each have direct outputs that can be sent to a multi-track hardware recorder or computer audio interface for tracking live performances. The console's six aux sends use balanced TRS output jacks that can be used to feed stage monitors, outboard effects and other gear. In addition, the MixWizard4 12:2 is equipped with two stereo returns with TRS inputs that feature separate gain knobs. These allow for returns from outboard effects or input from external audio devices such as CD or MP3 players to be mixed to the stereo bus. - 8 mic/line inputs with balanced XLR/TRS jack, insert and direct output
- Dedicated mono output fader - can be switched to provide an L+R mono feed for a center or fill speaker, or sub bass feed

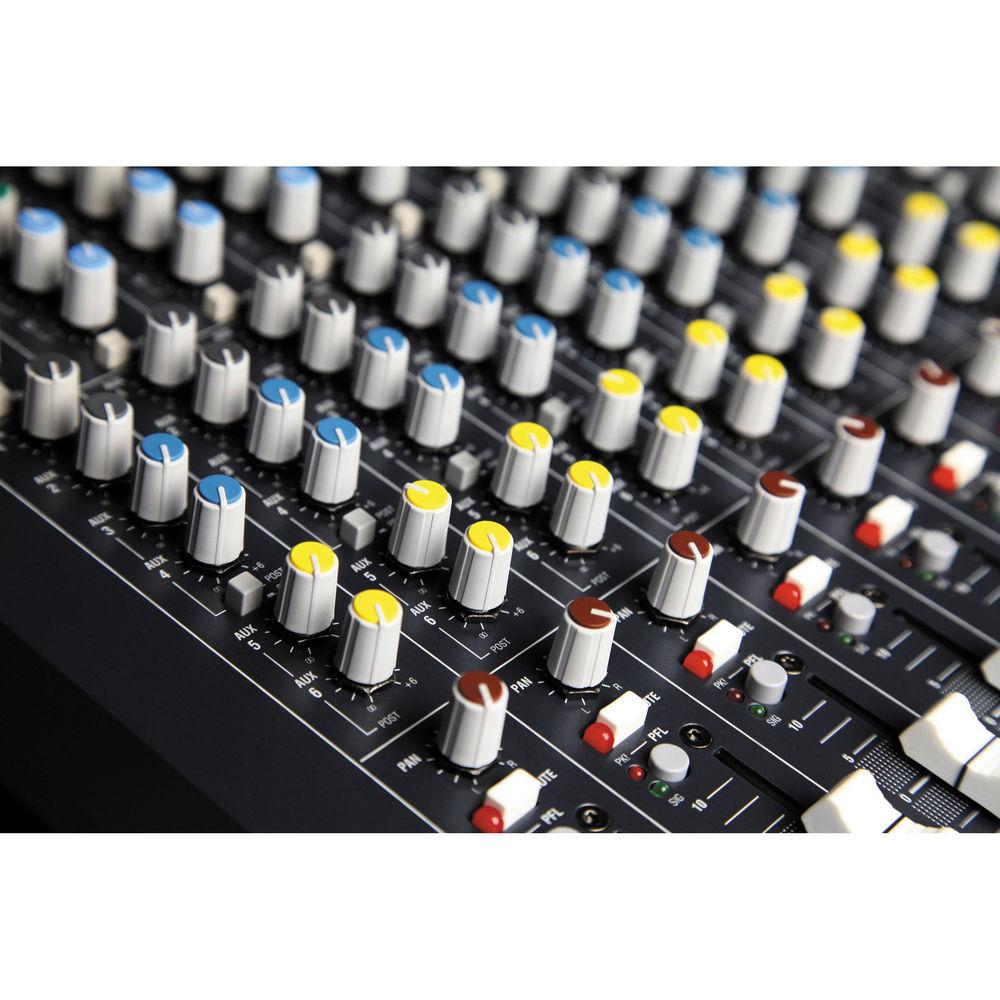

- 6 aux sends - 2x pre fade / 2x switched / 2x post fade
- L and R main outputs - XLR outputs with inserts
- Independent A-B output for feeding 2-track recorders, monitor wedges and more

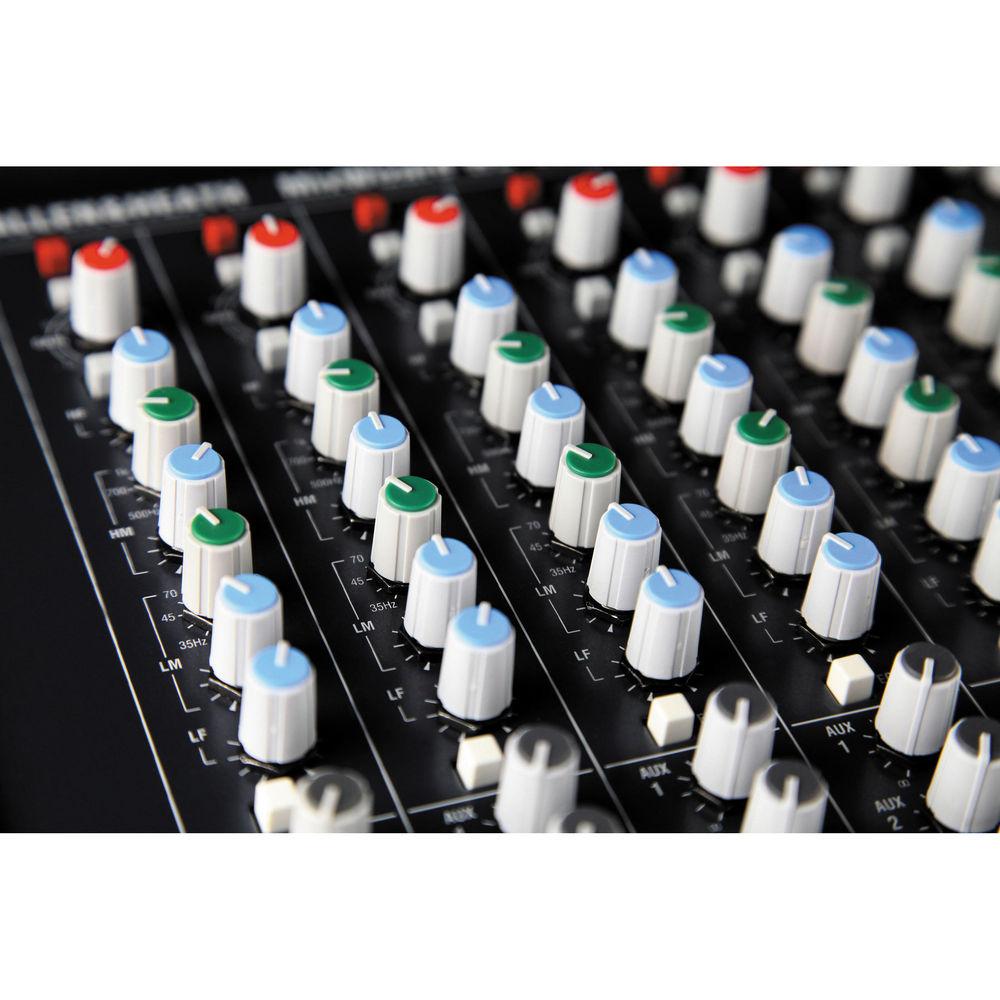

- 4-band EQ with 2 swept mids
- Twin FX engines with 20 FX presets
- Tri-color, 12-segment bar graph metering
- Footswitch connector (mutes/unmutes the ST1 FX Return)
In the Box Allen & Heath MixWizard4 12:2 - Professional Mixing Console Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Allen & Heath MixWizard4 12:2 - Professional Mixing Console in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAllen & Heath WZ4 Specs | | | Maximum Output Level | XLR - +26 dBu into 600 ohms max load
1/4" jack - +21 dBu into 2k ohm max load | | Headroom | Channels +21 dB
Mix +23 dB | | Metering | 3-color LED, quasi peak response:
Sensitivity - 0VU = +4 dBu at XLR output
Master meters - 12-segment -30 to +16 dB
Channel meters - 2-segment -12, +16 dB (5 dB before clip) | | Frequency Response | 10 Hz to 30 kHz (+/-0.5 dB) | | THD + N | Channel to mix out < 0.004% (at +10 dBu 1 kHz) | | Crosstalk | Fader shutoff > 90 dB (at 1 kHz)
Mute shutoff > 90 dB (at 1 kHz)
Inter channel > 90 dB (at 1 kHz) | | Noise | Mic EIN, -127 dB, (rms 22 Hz to 22 kHz)
Residual output noise, < -95 dBu (-99 dB S/N), (rms 22 Hz to 22 kHz)
LR unity fader mix noise, < -83 dBu (-87 dB S/N), (rms 22 Hz to 22 kHz) | | High-Pass Filter | 12 dB/octave below 80 Hz, (channel) | | Equalization | EQ:
HF shelving, +/-15 dB, 12 kHz
HM peak/dip, +/-15 dB, 500 Hz to 15 kHz, Q = 1.8
LM peak/dip, +/-15 dB, 35 Hz to 1kHz, Q = 1.8
LF shelving, +/-15 dB, 80 Hz
Stereo EQ
HF Shelving ±15 dB, 12 kHz
HM Peak/dip ±15 dB, 2.5 kHz, Q=1.8
LM Peak/dip ±15 dB, 250 Hz, Q=1.8
LF Shelving, ±15 dB, 80 Hz | | Power Supply | 100 - 240 V, 50/60 Hz auto sensing, IEC input
Power consumption 45 W max

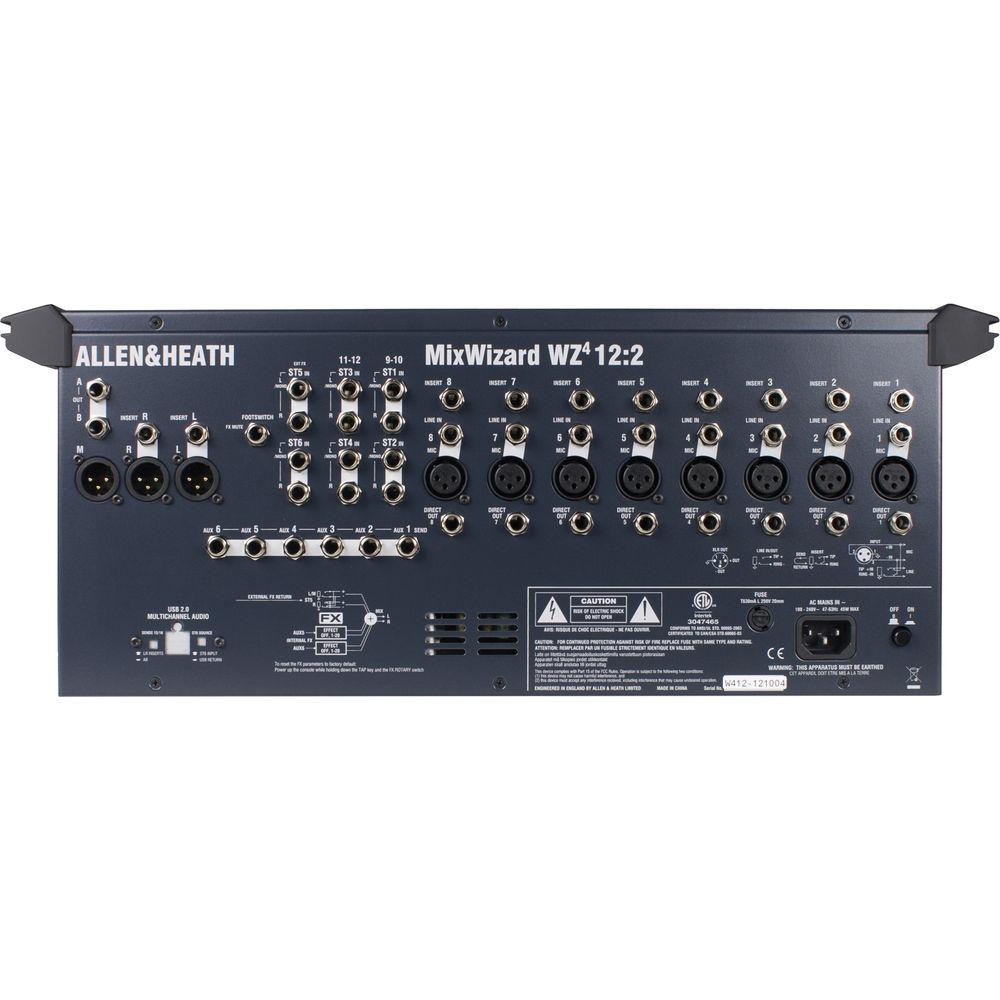

Mains fuse T630 mA L 20 mm | | | | Connections | Mono channel:
XLR balanced pin 2 hot, -60 to +10 dBu, sensitivity
TRS balanced tip hot, -40 to +10 dBu, sensitivity
Pad out (MIC), 2 kΩ
Pad in (MIC or LINE), >10 kΩ, -20 dB
Max input level, +30 dBu
XLR phantom power, +48 V, on/off
Stereo channel:
ST1, 3 TRS unbalanced >10 kΩ, -16 to +20 dBu
ST2, 4 TRS balanced >10 kΩ, -16 to +20 dBuStereo returns:
ST1(5) TRS balanced >10 kΩ, -6 to +20 dBu
ST2(6) TRS unbalanced >2 kΩ, -2 to +20 dBu
Inserts:
Channel TRS, tip send, ring return, 0 dBu
Output TRS, tip send, ring return, -2 dBu
L, R, M outputs:
XLR balanced pin 2 hot, <75 Ω, +4 dBu, +26 dBu max
Aux 1-6 output
TRS impedance balanced, <75 Ω, -2 dBu, +21 dBu max
Electronic balance option, <75 Ω, +4 dBu, +26 dBu max
Direct out:
TRS impedance balanced, <75 Ω, 0 dBu, +21 dBu max
AB out:
TRS impedance balanced, <75 Ω, -2 dBu, +21 dBu max
Headphones:
TRS, tip L, ring R, 30 to 600 Ω headphones recommended
Lamp:
4-pin XLR, max 12 V 5 W lamp | | | | Dimensions | 20 x 20.9 x 7.7" (507 x 530 x 194 mm), (free standing)
19 x 4.8 x 17.5" (483 x 122 x 444 mm), (rack mounted, 10U, underside connectors)
19 x 7.6 x 19.6" (483 x 193 x 497 mm), (rack mounted, 11.2U, rear connectors) | | Weight | 24 lb (11 kg) | | | | Package Weight | 35.0 lb | | Box Dimensions (LxWxH) | 24.5 x 23.0 x 13.5" |
