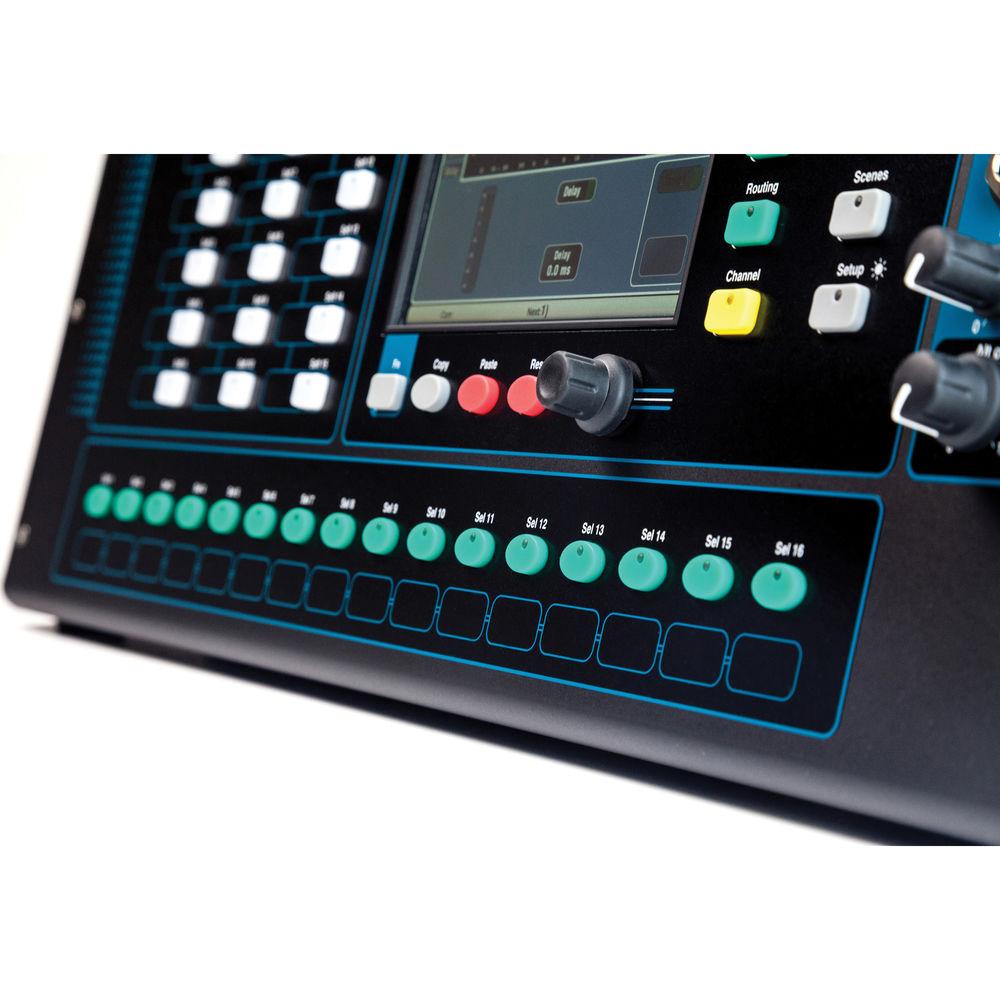

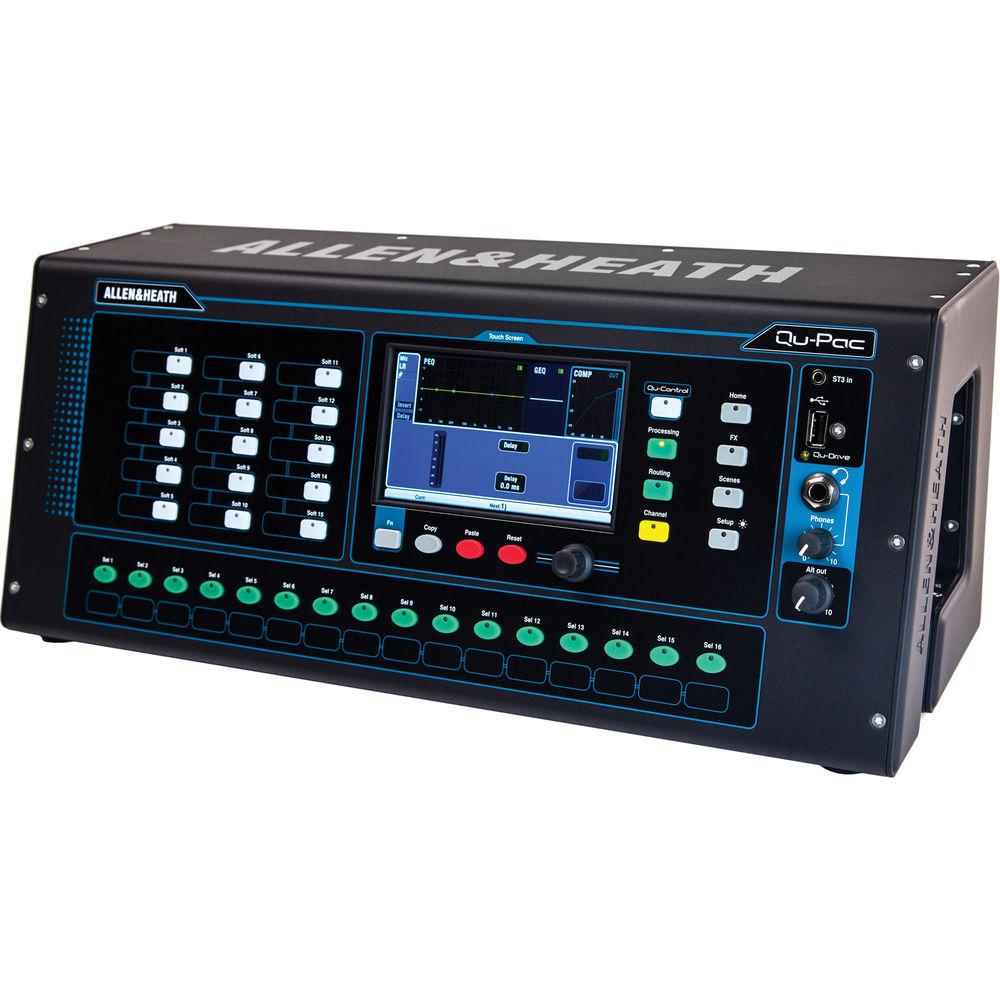

User Manual for Allen & Heath Qu-Pac - 16-In 12-Out Compact Mountable Mixer Click to enlarge the picture
Contents of the user manual for the Allen & Heath Qu-Pac - 16-In
- Product category: Digital Mixers Allen & Heath
- Brand: Allen & Heath
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Allen & Heath Digital Mixers
 |
User manual for the Allen & Heath Qu-Pac - 16-In contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Allen & Heath product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Allen & Heath user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Allen & Heath product will considerably shorten its lifespan!
|
Product description - Which Qu Are You? Qu-Pac.

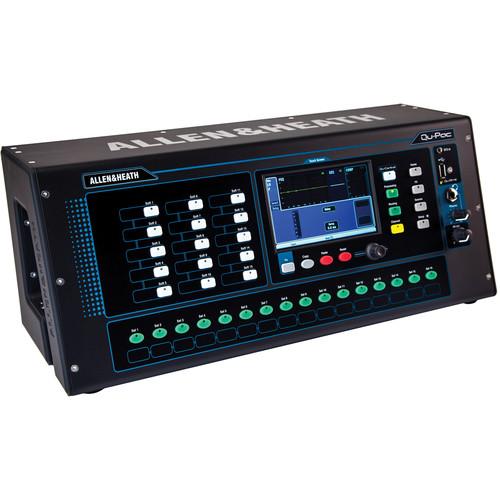

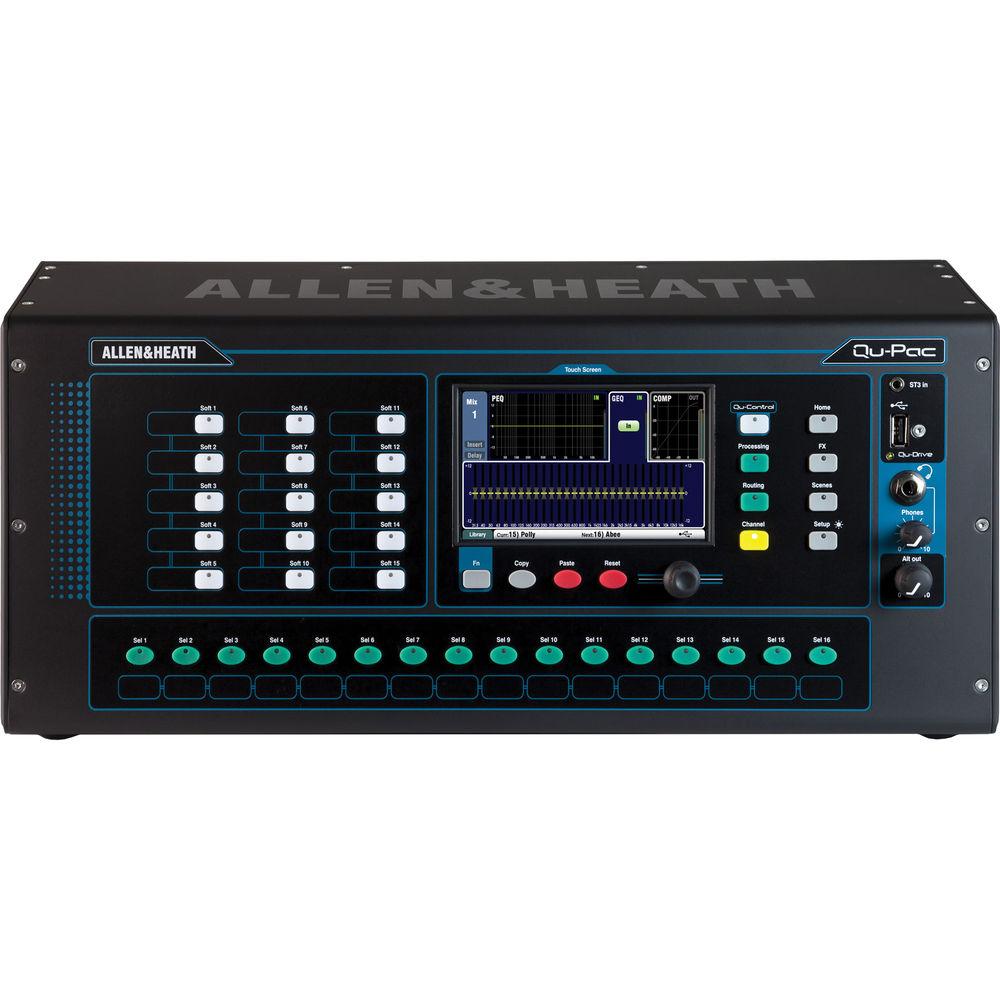

- Allen & Heath Qu-Pac Ultra-Compact Digital Mixer
Designed to accommodate a wide variety of live sound reinforcement and recording scenarios, the Allen & Heath Qu-Pac is a 16-in/12-out rack-mountable, console-less digital mixer that doubles as a 32x32 USB recording interface. Featuring 16 of the company's recallable AnalogiQ microphone preamps, and powered by a 5 core ARM processor, the Qu-Pac provides a variety of integrated effects and processing, including channel-independent 4-band parametric EQs, compressors, delay, and reverb.
The mixer is compatible with both the ME Personal Mixing System and dSNAKE digital connectivity system from Allen & Heath, which allows for up to 38 inputs. The Qu-Pac can also be used with the Qu-Pad app, allowing you to use your iPad to mix from anywhere in the venue when connected to a wireless network. Engineered for intuitive navigation, the mixer also features a 5" touchscreen display, providing access to all settings. - Features at a Glance:
-
- 16 AnalogiQ recallable preamps
- 16 On-board Mic / Line Inputs (XLR / TRS)
- Expandable up to 38 inputs via dSNAKE
- 3 Stereo Inputs (TRS)
- 32 Mono + 3 Stereo Input Channels
- 12 On-board Mix Outputs (XLR)
- 4 Stereo Groups
- 2 Stereo Matrix Outs
- AES Digital Out
- 4 DCA Groups
- 4 Mute Groups
- Qu-Pad iPad App for all live mixing controls
- Qu-You iPhone App for personal monitoring
- Qu-Drive direct Multitrack Recording / Playback on USB drives

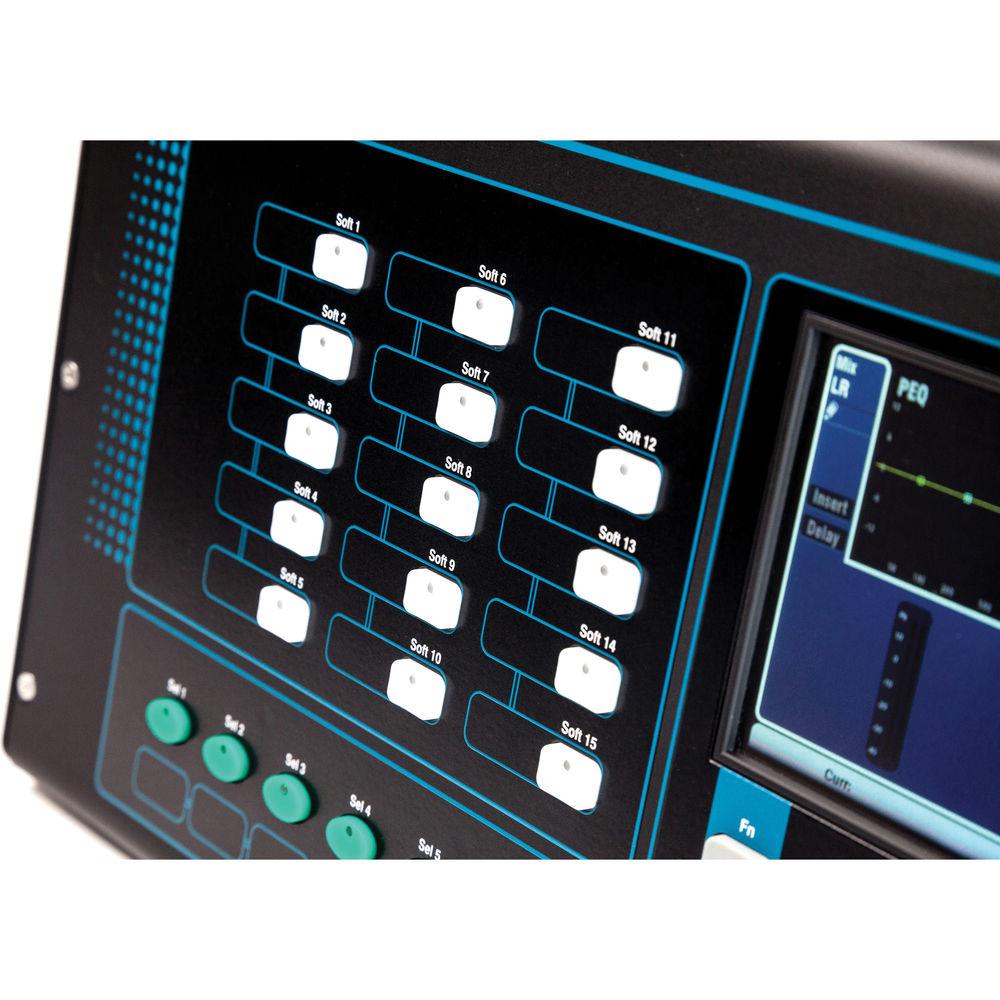

- 15 Soft Keys
- 16 Custom Select keys
- Qu-Control custom screen to suit application
- 4 FX Engines
- 4 FX Sends / Returns
- 32x32 USB Audio Interface
- 5" Touchscreen
- iLive FX Library
- Compatible with ME Personal Mixing System
- Trim, polarity, HPF, gate, insert / ducker, 4-band PEQ, compressor and delay on all Inputs
- Insert, 4-band PEQ, 1/3 octave GEQ, compressor and delay on all Mix outputs
- Built-in Signal Generator
- RTA with Peak Band indication
In the Box Allen & Heath Qu-Pac - 16-In/12-Out Compact Mountable Mixer Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Allen & Heath Qu-Pac - 16-In 12-Out Compact Mountable Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

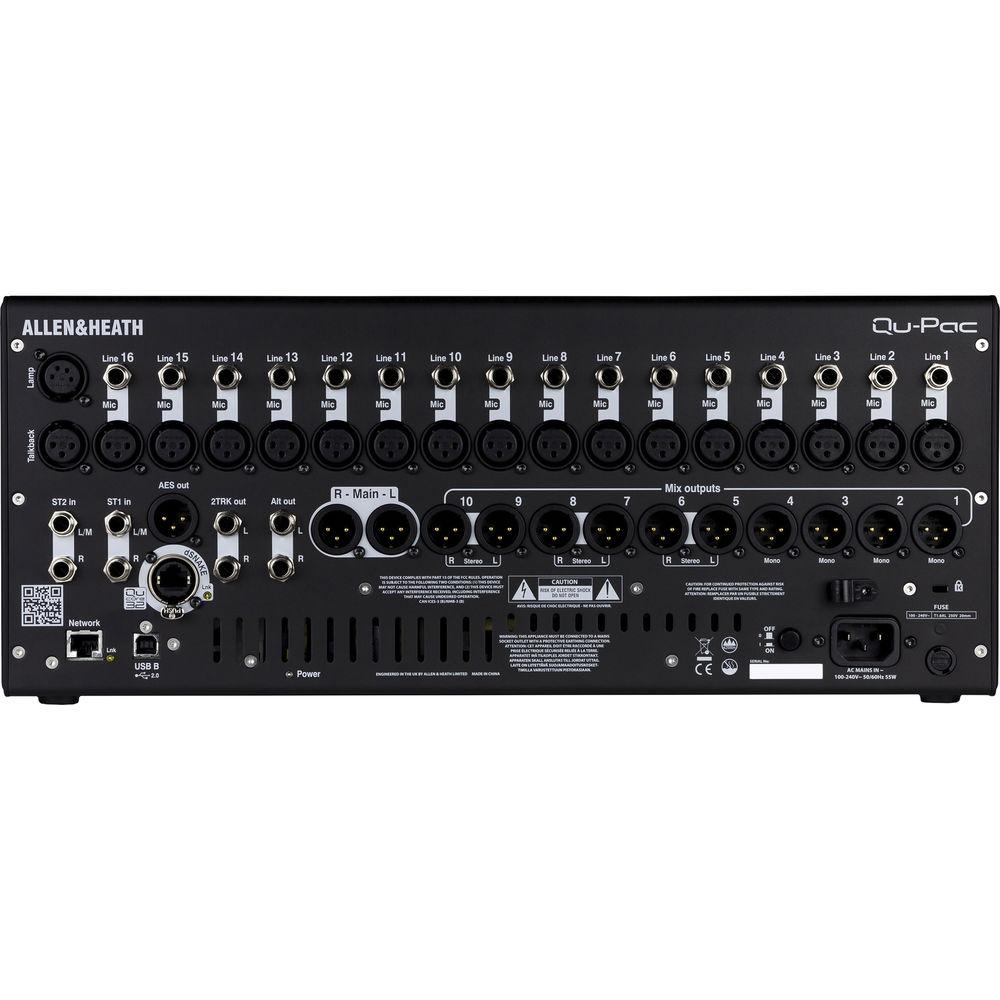

Technical parametersAllen & Heath AH-QU-PAC-32 Specs | | | Mic/Line Inputs | Balanced, XLR and 1/4" TRS jacks, fully recallable
Input Sensitivity: -60 to +5 dBu / -50 to +15 dBu (XLR / TRS)
Analog Gain: -5 to +60 dB, 1 dB steps
Maximum Input Level: +19 / +29 dBu
Input Impedance: >5 kOhms (XLR), >10 kOhms (TRS)
THD+N, Unity Gain 0 dB: 0.0005%, -89 dBu (20 Hz to 20 kHz, direct out @ 0 dBu, 1 kHz)
THD+N, Mid Gain +30 dB: 0.001%, -83 dBu (20 Hz to 20 kHz, direct out @ 0 dBu, 1 kHz) | | Stereo Line Inputs | ST1, ST2 Connector: Balanced, 1/4" (6.3 mm) TRS jacks, half-normalled
ST3 Connector: Unbalanced 1/8" (3.5 mm) mini jack
Input Sensitivity (ST1, ST2, ST3): +4 /0 dBu, nominal
Trim: +/-24 dB
Maximum Input Level (ST1, ST2, ST3): +22 /+18 dBu
Input Impedance: >7 kOhms | | | | Line Outputs | Mix 1 to 10 & LR Out: Balanced XLR
Output Impedance: <75 ohms
Nominal Output: +4 dBu = 0 dB meter reading
Maximum Output Level: +22 dBu
Residual Output Noise: -90 dBu (muted, 20 Hz to 20 kHz) | | Stereo Output | Stereo Alt Out & 2 Trk Out : Balanced 1/4" (6.3 mm) TRS jacks
Source (Alt Output/2 Trk Output): Patchable/LR post fade
Output Impedance: <75 ohms
Nominal Output: +4 dBu = 0 dB meter reading
Maximum Output Level: +22 dBu
Residual Output Noise: -90 dBu (muted, 20 Hz to 20 kHz) | | AES Digital Audio Outputs | 2-channel
48 kHz sampling rate
XLR Out
2.5 Vpp balanced terminated 110 ohms | | | | Inputs | Remote source for CH1-32, ST1, ST2, ST3 | | Outputs | Patchable from Mix 1-10, LR, Grp 1-8, MTX 1-4
Compatible with AudioRacks AR2412, AR84, AB168
Compatible with ME personal mixing system | | | | Dynamic Range | 112 dB | | Frequency Response | 20 Hz to 20 kHz (+0/-0.5 dB) | | Headroom | +18 dB | | Operating Level | Internal Operating Level: 0 dBu | | Alignment | dBFS: +18 dBu = 0 dBFS (+22 dBu @ XLR output) | | Calibration | Meter Calibration: 0 dB meter = -18 dBFS (+4 dBu @ XLR output) | | Indicators | Meter Peak Indication: -3 dBFS (+19 dBu @ XLR out), multi-point sensing
Meter Signal Indication: -48 dBFS (-26 dBu @ XLR out)
Meter Type: Fast (peak) response | | Sampling Rate | 48 kHz +/-100 PPM | | Converters | 24-bit Delta-Sigma | | Latency | 1.2 ms (local XLR in to XLR out)
0.7 ms (local XLR in to AES out) | | Operating Temperature | 32 to 95°F (0 to 35°C) | | Power | Mains Power: 100-240 VAC, 50/60 Hz, 150 W maximum | | | | USB Audio | Qu-Drive: USB A
Device: Use a USB hard drive (not a USB key)
Stereo Record: 2-channel, WAV, 48 kHz, 24-bit, patchable
Stereo Playback: 2-channel, WAV, 44.1 or 48 kHz, 16- or 24-bit, to ST3
Multitrack Record: 18-channel, WAV, 48 kHz, 24-bit, patchable
Multitrack Playback: 18-channel, WAV, 48 kHz, 24-bit
USB Audio Streaming: USB B, Core Audio compliant
Send (upstream): 32-channel, WAV, 48 kHz, 24-bit
Return (downstream): 32-channel, WAV, 48 kHz, 24-bit | | | | Touchscreen | 5" TFT, 800 x 480 resolution | | Softkeys | 10 | | Groups | Mute Groups: 4
DCA Groups: 4 | | Network | TCP/IP Ethernet for MIDI commands and iPad app | | | | Source | Channels 1 to 32: Local, dSNAKE, or USB
ST1, ST2: Local, dSNAKE, or USB
ST3: Local, dSNAKE, or USB Stereo
USB Global Source: Qu-Drive or USB B Streaming | | Stereo Linking | Stereo Linking: Odd/even input pairs
Parameters Linked: EQ, dynamics, insert, delay, assignments, sends
Link Options: Preamp, polarity, sidechains, fader, mute, pan | | Polarity | Normal & reverse | | HPF | 12 dB/octave, 20 Hz to 20 kHz | | Insert | Assign FX1-4 into input channels | | Delay | Up to 85 ms | | Gate | Self-key sidechain
Threshold: -72 to +18 dBu
Depth: 0 to 60 dB
Attack: 50 μs to 300 ms
Hold: 10 ms to 5 s
Release: 10 ms to 1 s | | Equalizer | 4-band fully parametric, 20 Hz to 20 kHz, +/-15 dB
Band 1: Selectable LF shelving (Baxandall), bell
Band 2 & 3: Bell
Band 4: Selectable HF shelving (Baxandall), bell
Bell Width: Non-constant Q, variable, 1.5 to 1/9 octave | | Compressor | Self-key sidechain
Threshold: -46 to 18 dBu
Ratio: 1:1 to infinity
Attack: 300 μs to 300 ms
Release: 100 ms to 2 s
Knee: Soft or Hard
Types: Peak manual, RMS manual, SlowOpto, PunchBag | | | | USB Output | Channel Direct Out to USB: Follow fader, follow mute (global options)
Source Select (Global): Post-preamp, pre-EQ, post-EQ, post-delay | | Insert | Assign FX into Mix channels | | Delay | Up to 170 ms | | Equalizer | Graphic EQ: Constant 1/3 octave, 28 bands from 31 Hz to 16 kHz, +/-12 dB
Parametric EQ: 4-band fully parametric, 20 Hz to 20 kHz, +/- 15 dB
Band 1: Selectable LF shelving (Baxandall), bell
Band 2 & 3: Bell
Band 4: Selectable HF shelving (Baxandall), bell
Bell Width: Non-constant Q, variable, 1.5 to 1/9 octave | | Compressor | Self-key sidechain
Threshold: -46 to 18 dBu
Ratio: 1:1 to infinity
Attack: 300 μs to 300 ms
Release: 100 ms to 2 s
Knee: Soft or Hard
Types: Peak manual, RMS manual, SlowOpto, PunchBag | | Effects | Internal FX: 4x RackFX engines, Send>Return or Inserted
Types: Reverbs, delays, gated reverbs, ADT, chorus, symphonic chorus, phaser, flanger
4x Dedicated Stereo FX Returns: Fader, pan, mute, routing to Mix/LR, 4-band PEQ | | | | PAFL | PFL or stereo in-place AFL
0 to -24 dB trim
85 ms delay | | Talkback | Assignable to any mix
12 dB/octave HPF | | Signal Generator | Assignable to any mix
Sine, white, pink, bandpass noise | | RTA | 31-bands, 1/3 octave 20 Hz to 20 kHz
Follows PAFL source | | | | Dimensions (WxDxH) | Desk mounted: 17.3 x 7 x 7" (440 x 180 x 181 mm)
Rack mounted: 19 x 6.9 x 7" (483 x 174 x 181 mm), 4U | | Weight | 14.5 lb (6.6 g) | | | | Package Weight | 20.8 lb | | Box Dimensions (LxWxH) | 24.0 x 11.5 x 11.0" |
