Allen & Heath SQ-7 48-Channel 36-Bus Digital Mixer with 32 1 Motorized Faders Allen & Heath SQ-7 48-Channel 36-Bus Digital Mixer with 32 1 Motorized Faders Allen & Heath SQ-7 48-Channel 36-Bus Digital Mixer with 32 1 Motorized Faders Allen & Heath SQ-7 48-Channel 36-Bus Digital Mixer with 32 1 Motorized Faders Allen & Heath SQ-7 48-Channel 36-Bus Digital Mixer with 32 1 Motorized Faders
User manual for the Allen & Heath SQ-7 48-Channel 36-Bus contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Allen & Heath product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Allen & Heath user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Allen & Heath product will considerably shorten its lifespan!

Product description

  • Introducing SQ-7 a 33 fader 96kHz mixer from Allen & Heath

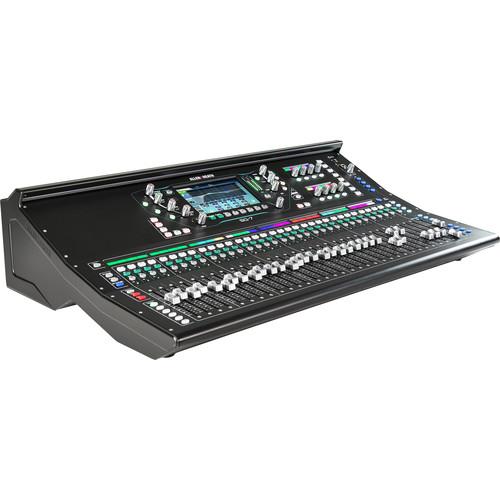

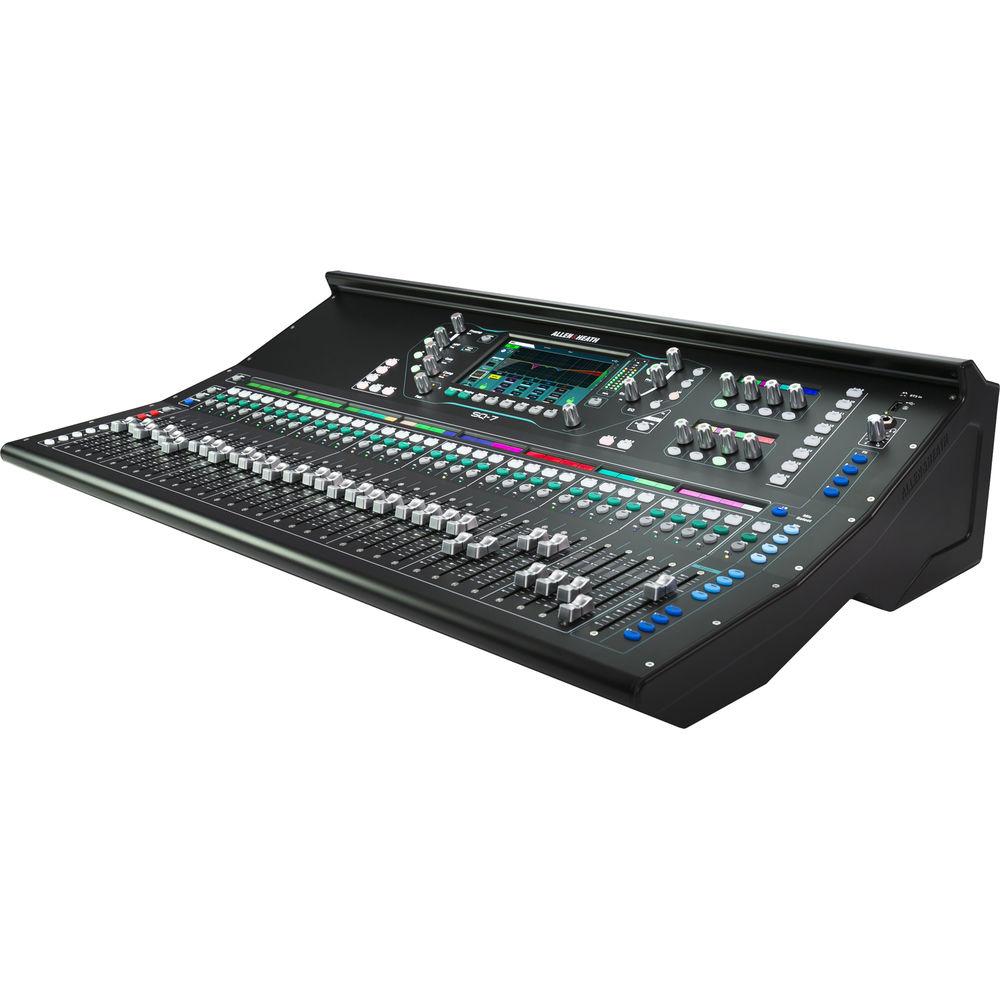

The Allen & Heath SQ-7 is a 48-channel, 36-bus digital mixing console well suited for live sound, corporate A/V, recording studios, and houses of worship. The SQ-7 features 32+1 motorized faders and 32 professional-quality microphone preamps. There are also eight stereo FX engines with dedicated return channels and access to the RackExtra FX library. The mixer's 12 stereo outputs (configurable as groups or auxes) are well suited for in-ear-monitor setups, while the Automatic Mic Mixing function offers quick and easy operation over multiple microphones for conferences, panel talks, and more.

At the heart of the SQ-7 lies the 96 kHz XCVI Core FPGA engine, which delivers professional, high-resolution audio quality, ultra-low latency (less than 0.7 ms), variable bit depth for precision and noise performance, mix coherency down to the sample, and the power to handle high channel/mix counts and ample FX processing. The SQ's DEEP processing architecture allows you to hand-pick boutique compressor and preamp emulations and embed them directly within the mixer's inputs and mix channels, all without adding system latency or setup hassles.

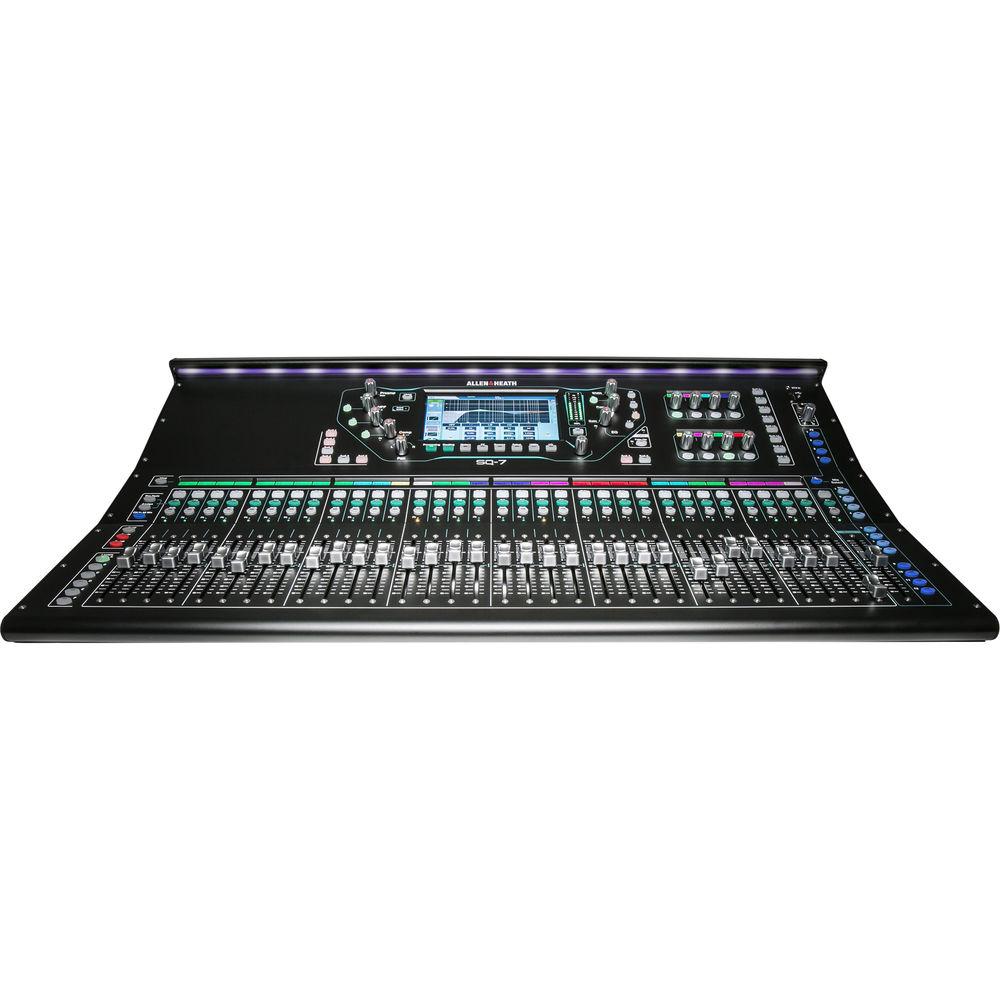

The front panel is centered around the mixer's 7" capacitive touchscreen and framed by an array of high-grip, illuminated encoders, which offer clear visual feedback and quick, hands-on control. You can drag-and-drop channels and mixes to any strip with custom naming and color coding on the strip display, allowing you to build a mix environment that mirrors your workflow. The SQ-7 offers 16 softkeys, which can be freely assigned to any function for a customized and advanced workflow. The on-board recorder uses a USB Type-A port to record stereo and multitrack sessions to a flash drive. The recorder can also playback stereo and multitrack files, handy for virtual sound checks and studio mixing.

The SQ-7 offers expansion options via Allen & Heath's stage box expanders, or install an optional Dante or Waves card to adapt and expand using the latest digital technologies. SQ is fully compatible with the ME Personal Mixing System, allowing performers to take control of their own monitor mixes. Any number of ME-1 and ME-500 personal mixers can be daisy-chained from the mixer's SLink port, or from a connected remote expander. The Allen & Heath SQ-7 includes a power cord.
    • Compact digital mixer for live, studio, and installation
    • 48 input channels
    • 32 local mic inputs (XLR)
    • Two 1/4” stereo inputs (TRS)
    • One 1/8" stereo input
    • 36 total busses
    • 12 stereo mixes (Aux or Group) + Main
    • PAFL bus
    • 18 assignable local outputs (16 XLR + two 1/4” TRS)
    • AES digital output
    • Dedicated talkback mic input (XLR)
    • 1/4" TRS headphone out with dedicated control
    • SLink EtherCON connection for remote audio using dSnake, DX, or gigaACE protocol (64x64 channels)
    • I/O port for option card (including 3rd party protocols – Dante/Waves)
    • 8 mute groups
    • 8 DCA groups
    • 8 stereo FX with dedicated FX returns
    • DEEP processing ready
    • RackFX effects suite
    • 7" color touchscreen
    • 16 assignable SoftKeys
    • Eight assignable soft rotaries
    • Dedicated physical controls for channel processing (Gain, HPF Frequency, Gate Threshold, Compressor Threshold, Pan, EQ Gain/Frequency/Width)
    • 32+1 faders with 6 layers for 192 assignable channel strips
    • Motorized faders for sends on faders, GEQ fader flip, and mix recall
    • 32 backlit LCD channel-strip displays
    • Chromatic channel metering
    • Integrated surface illumination
    • Single/dual footswitch control
    • Input channel linking for stereo sources
    • Patchable insert points
    • Input processing – Preamp, HPF, Gate, PEQ, Compressor, Delay
    • Mix processing – PEQ, Graphic EQ, Compressor, Delay
    • Fully integrated Automatic Mic Mixing (AMM)
    • 31-band, real-time analyzer (RTA)
    • Quick copy/paste/reset for parameters
    • User permissions to restrict operator access
    • 300 scene memories per show
    • Channel safes, global and per-scene recall filters
    • FX, processing, and channel libraries
    • SQ-Drive for stereo and multitrack recording/playback direct to USB drive
    • USB transfer of scenes, libraries, shows
    • 32x32 channel USB streaming to/from Mac/Windows
    • DAW control driver for MIDI control via USB or TCP/IP

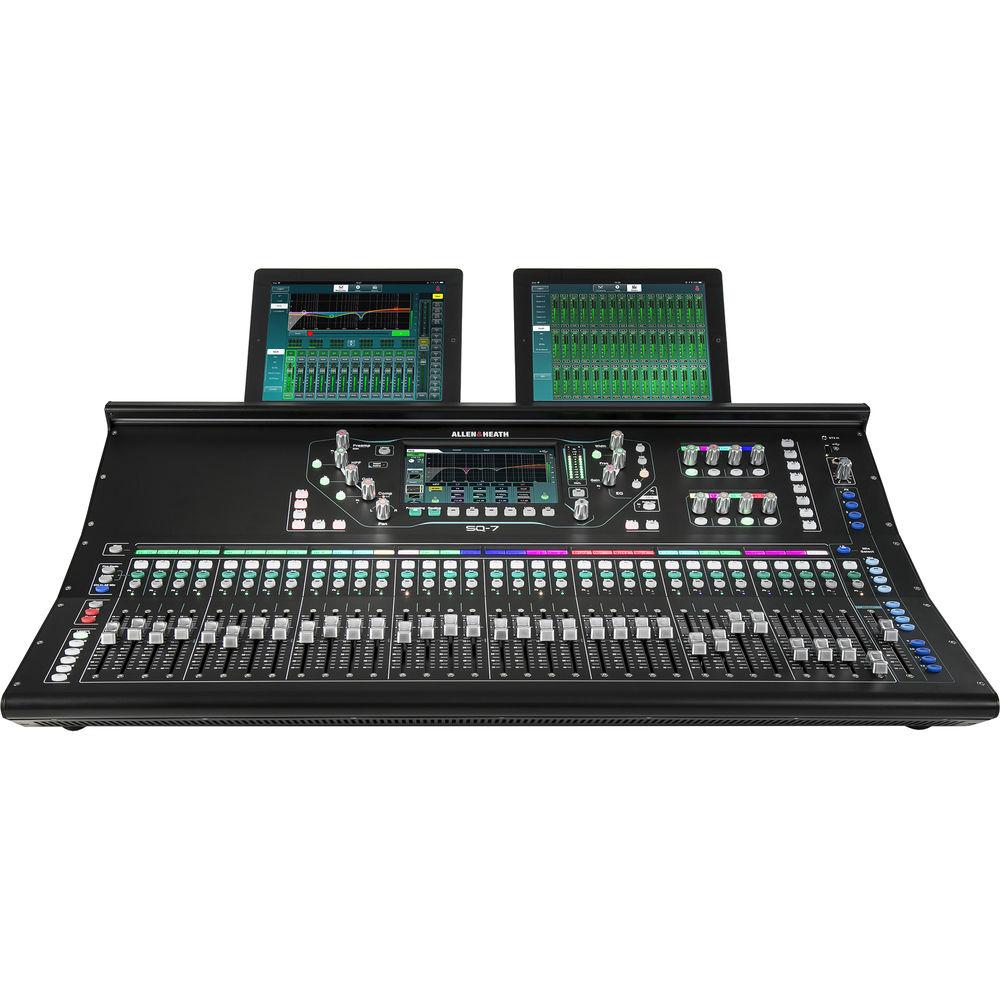

    • Wireless remote mixing apps for iPad and Android
    • Compatible with ME personal-monitoring range
In the Box Allen & Heath SQ-7 48-Channel / 36-Bus Digital Mixer with 32+1 Motorized Faders
  • Power Cord
  • Limited 1-Year Warranty
  • Table of Contents

    Upload User Manual

    Have you got an user manual for the Allen & Heath SQ-7 48-Channel 36-Bus Digital Mixer with 32 1 Motorized Faders in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:


    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)


    Technical parameters

    Allen & Heath AH-SQ-7 Specs

    Mic/Line Inputs Mic/Line Inputs: Balanced XLR, fully recallable
    Input Sensitivity: -60 to +0 dBu
    Switchable Pad: -20 dB
    Analog Gain: 0 to +60 dB, 1 dB steps
    Maximum Input Level: +30 dBu
    Input Impedance: >5 kOhms
    THD+N, Unity Gain (0 dB): 0.002% -92 dBu (20 Hz - 20 kHz, AES direct out, @ 0 dBu 1 kHz)
    THD+N, Mid-Gain (+30 dB): 0.003% -91 dBu (20 Hz - 20 kHz, AES direct out, @ -30 dBu input 1 kHz)
    Phantom Power +48V (+3V / -2V)
    Stereo Line Inputs ST1, ST2 Connectors: Balanced, 1/4" / 6.3 mm TRS
    ST3 Connector: Unbalanced, stereo 1/8" / 3.5 mm
    Input Sensitivity (ST1, ST2 / ST3): Nominal +4 dBu ST1, ST2 / 0 dBu ST3
    Trim: +/-24 dB
    Maximum Input Level (ST1,ST2 / ST3): +22 dBu / +18 dBu
    Input Impedance: >7 kOhms

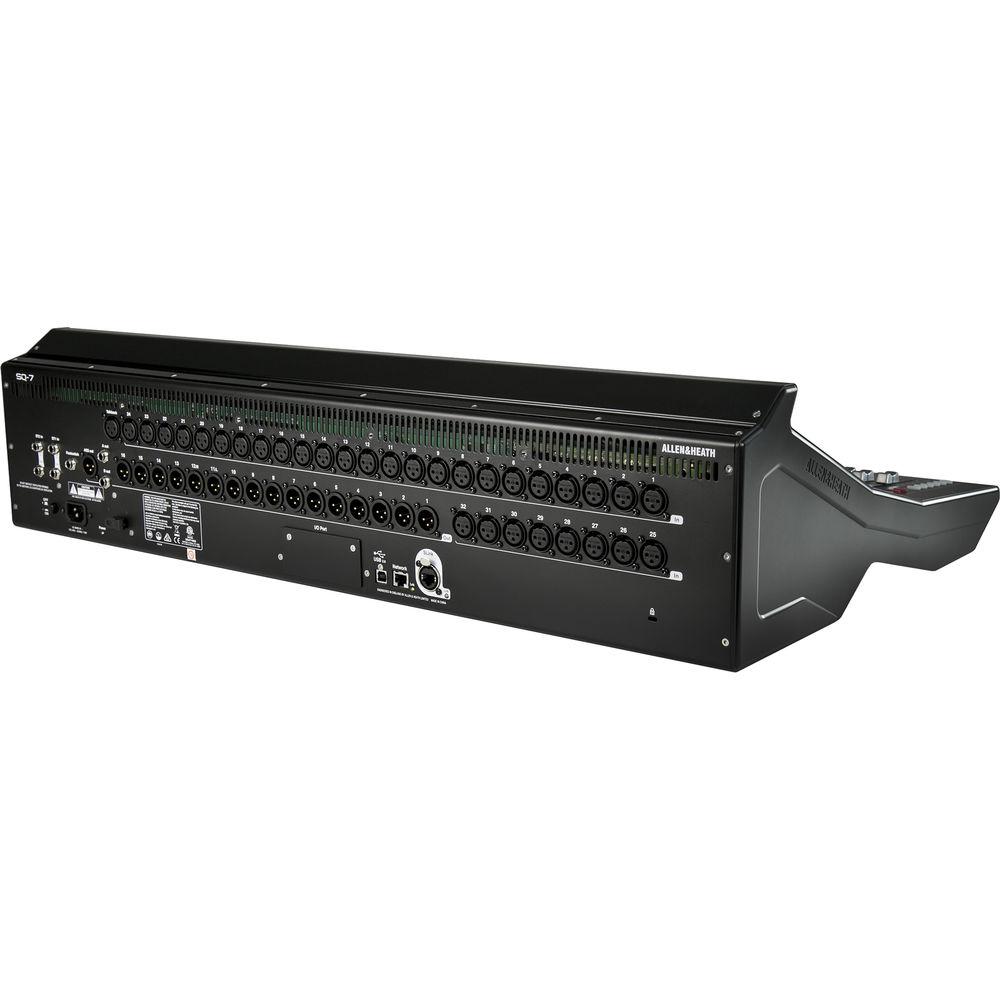

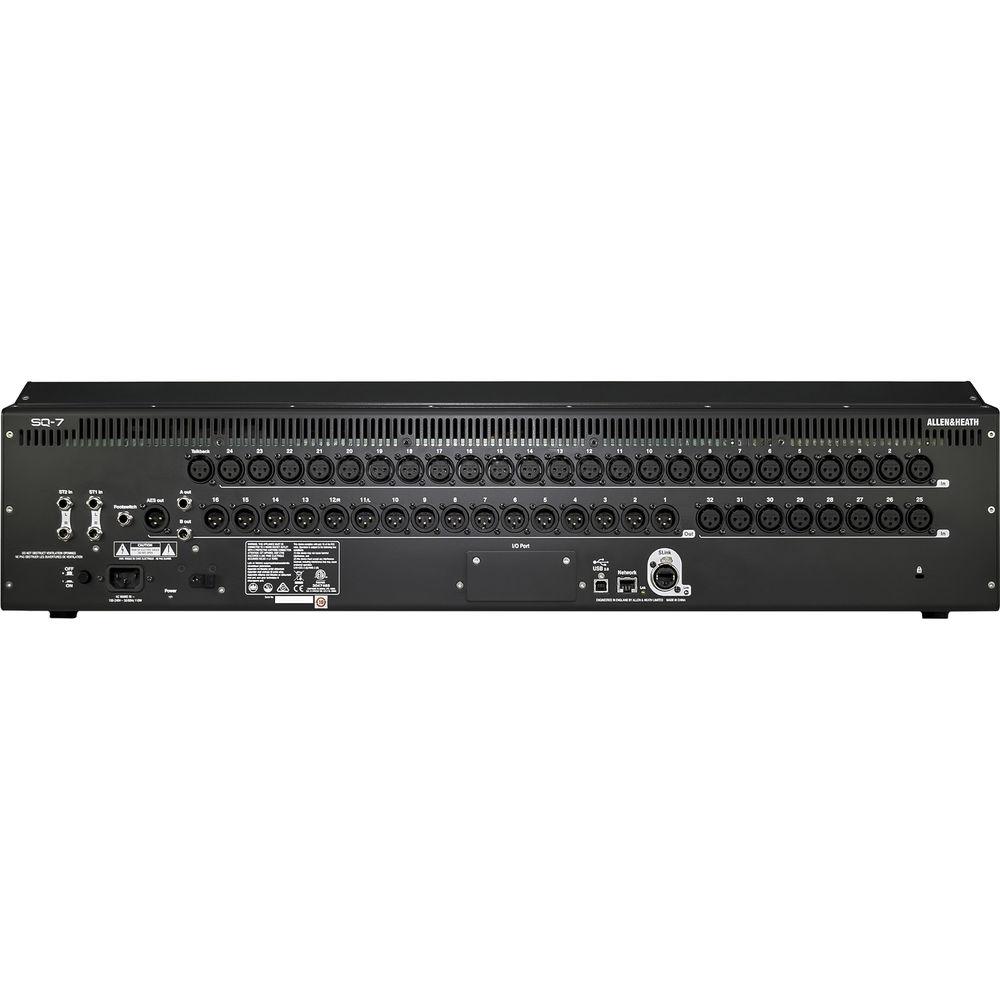

    Analog Outputs Outputs 1-16: Balanced, XLR
    Outputs A and B: Balanced 1/4" / 6.3 mm TRS
    Source: Patchable
    Output Impedance: <75 Ohms
    Nominal Output: +4 dBu = 0 dB meter reading
    Maximum Output Level: +22 dBu
    Residual Output Noise: -90 dBu (muted, 20 Hz to 20 kHz)
    AES Digital Audio Outputs AES Digital Output: Balanced XLR, 2 channel
    96 kHz sampling rate (default with SRC bypassed)
    Switchable Output Sample Rates: 44.1, 48, 88.2, 96 kHz
    2.5 Vpp balanced terminated 110 Ohms
    Network Connections Connection: Neutrik EtherCON (RJ45)
    dsnake mode (48 kHz devices): 64 channels assignable, compatible with AR2412, AR84, AB168, ME, Qu
    dx mode (96 kHz Devices): 32 channels assignable, compatible with DX168
    gigaACE (96 kHz Devices): 128 channels assignable, compatible with dLive, SQ, and DXHub
    Inputs: Fully patchable
    Outputs: Fully patchable
    Sync/SRC: Assignable as master audio sync for all modes, SRC 64-channel
    I/O Expansion Module Multi-channel IO option module
    Inputs: Fully patchable
    Outputs: Fully patchable
    Sync/SRC assignable as master audio sync
    Audio Specifications Measured balanced XLR in to XLR out, 0 dB gain, 0 dBu input
    Dynamic Range 112 dB
    Frequency Response 20 Hz to 20 kHz (+0/-0.5 dB)
    Headroom +18 dB
    Operating Level Internal Operating Level: 0 dBu
    THD+N THD+N, Mic/Line Routed to Main L/R Out: Unity gain faders @ 0 dB, 0.006%, -84 dBu (20 Hz to 20 kHz)
    dBFS Alignment +18 dBu = 0 dBFS (+22 dBu at XLR output)
    Metering Accuracy Meter Calibration: 0 dB meter = -18 dBFS (+4 dBu at XLR out)
    Metering Main Meter Type: 2 x 12-segment, fast (peak) response
    Channel Meter Type: Chromatic Channel Metering, fully programmable color/brightnesss
    Peak Indication: -3 dBFS (+19 dBu at XLR out), multi-point sensing
    Sampling Rate 96 kHz
    Bit Depth Uses XCVI core custom bit widths in algorithms, up to 96-bit
    Latency <0.7 ms, local mic input routed to main L/R. (direct, no EQ/effects)
    Faders 3.9" / 100.0 mm, motorized
    Touch Screen 7.0" / 178 mm, capacitive, 800 x 480 resolution, 24-bit RGB
    Softkeys Softkeys: 16
    SoftRotarys: 8
    Groups Mute Groups: 8
    DCA Groups: 8
    Network TCP/IP Ethernet for MIDI and control
    MIDI TCP/IP and USB Type-B
    Footswitch Single or dual, momentary or latching
    Source Channels 1-48: Fully patchable
    USB Global Source: SQ-Drive or USB Type-B streaming
    Polarity Normal/inverted
    Trim -24 to +24 dB
    High Pass Filter 12 dB/octave, 20 Hz to 2 kHz
    Insert Insert (Pre EQ/Comp): Fully patchable
    Input Delay Up to 341 ms
    Gate Gate: Patchable sidechain
    Sidechain Filter: Hi-pass (20 Hz to 5 kHz), Band-pass (120 Hz to 10 kHz), Lo-pass (120 Hz to 20 kHz)
    Threshold / Depth: -72 dBu to +18 dBu / 0 to 60 dB
    Attack / Hold / Release: 50 μs to 300 ms / 10 ms to 5 seconds / 10 ms to 1 second
    Parametric Equalizer PEQ: 4-band fully parametric, 20 Hz to 20 kHz, ±15 dB
    Band 1, Band 4: Selectable shelving (Baxandall), bell
    Band 2, Band 3: Bell
    Bell Width: Variable Q, 1.5 to 1/9th octave
    Compressor Compressor: Patchable sidechain
    Sidechain Filter: Hi-pass (20 to 5 kHz), Band-pass (120 Hz to 10 kHz), Lo-pass (120 Hz to 20 kHz), Q=1
    Threshold / Ratio: -46 dBu to 18 dBu / 1:1 to infinity
    Attack / Release: 30 μs to 300 ms / 50 ms to 2 seconds
    Knee: Soft/hard
    Detector Response: Peak/RMS switchable
    Parallel Path Compression: Dry/wet -infin to 0 dB
    Channel Direct Out Follow fader, mute, mute group, DCA (global all channels)
    Source Selection Post-Preamp, Post-HPF, Post Gate, Insert Return, Post PEQ, Post Comp, Post Delay
    Trim: -∞ to 10 dB per channel
    Insert Insert (Pre EQ/Comp): Fully patchable
    Delay Output: Up to 682 ms
    Graphic Equalizer 28 bands 31 Hz to 16 kHz, ±12 dB gain, constant 1/3 octave
    FX Internal FX: 8 x RackFX engine, Send>Return or Inserted (4 dedicated fx bus)
    Types: SMR Reverb, StereoTap Delay, Gated Reverb, ADT, BlueChorus, Symphonic Chorus, Flanger, Phaser
    8 x Dedicated Stereo FX Returns: Fader, Pan, Mute, Routing to Mix/LR, 4-Band PEQ
    PAFL PFL or stereo in-place AFL, 0 to -24 dB trim, PAFL
    Delay up to 682 ms
    Talkback Dedicated input, assignable to any mix, Gain, Pad, 48 V, 12 dB/oct HPF
    Signal Generator Assignable to any mix, (sine/white/pink/bandpass noise)
    RTA Real Time Analyzer 31-bands, 1/3 octave 20 Hz to 20 kHz, follows PAFL source
    Recorder SQ-Drive: USB Type-A
    Stereo Record: 2-channel, WAV, 96 kHz, 24-bit, source fully patchable
    Stereo Playback: 1/2-channel, WAV, 44.1, 48, 96 kHz, 16-/24-bit, source fully patchable
    Multitrack Record: 16-channel, WAV, 96 kHz, 24-bit, track sources fully patchable
    Multitrack Playback: 16-channel, WAV, 96 kHz, 24-bit fully patchable
    USB Audio USB Audio Streaming: USB Type-B, Core Audio compliant, ASIO/WDM for Windows
    Send (Upstream): 32-channel, 96 kHz, 24-bit
    Return (Downstream): 32-channel, 96 kHz, 24-bit
    Automatic Mic Mixing AMM: 2 x 24 channels or 1 x 48 channels, freely assignable
    Mode: Gain sharing
    Sidechain Filter: 12 dB/octave
    HPF: 20 Hz to 5 kHz
    LPF: 120 Hz to 20 kHz
    Priority: -15 dB to +15 dB per channel
    Power 100 to 240 VAC, 50 / 60 Hz
    Maximum Power Consumption: 110W
    Operating Temperature 32 to 104°F / 0 to 40°C
    Dimensions (W × H × D) 31.7 x 20.3 x 7.8" / 805 x 516 x 198 mm
    Weight 39.3 lb / 17.8 kg
    Package Weight 48.5 lb
    Box Dimensions (LxWxH) 38.25 x 27.3 x 14.0"


    90% users recommend this product to others. And what about you?
    Rating: 4.5 of 5

    This product has already been rated by 83 owners. Add your rating and experience with the product.


    Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems.

    Post new comment to Allen & Heath SQ-7 48-Channel 36-Bus Digital Mixer with 32 1 Motorized Faders

    Subject: i want user maual
    Date: 31.01.2023 14:03:09Name: mohamed
    Post reply

    Subject: i want user maual
    Date: 31.01.2023 14:02:36Name: mohamed
    please user manual
    Post reply

    Post a new topic / query / comment:

    Items marked with * are required.
    Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution.
    Processing of personal data in accordance with GDPR

    Request for user manual
    You can’t find the operation manual you are looking for? Let us know and we will try to add the missing manual:

    I’m looking for a manual / Request for manual

    Current requests for instruction manuals:

    Easy One Wireless 2. Wireless Charging Car Mount Dash and Windshield...
    Jay Turser JTB134 Semi Hollow 4 String Bass Guitar ...
    Military marine 8x30 binocular...
    Pom Gear Sport Pods Model P2G-SP5-BK...
    Mackie Thump15A 1300W 15” powered loudspeaker...

    Latest contributions to the discussion:

    I have a CyberPower 1000VA unit that won't stop humming
    Name: Daryle W Hier
    CyberPower CP1000AVRLCD Intelligent LCD UPS
    We had a power surge during a storm and it set off our two UPS units. The one we just hit the on off button a couple times and it came back on without the humming. However the other one, which is only a couple years old, keeps humming. We've turn it off and back on again and it s...
    Funcionará este flash con una canon T100
    Name: brayan Cerdas Pereira
    Neewer NW670 TTL Flash for Canon
    Tengo la duda ya qué el flash viene con 5 contactos y la canon T100 viene con 4 contactos no trae pin central. ...
    Wi Fi range
    Name: chops huysamen
    ezviz ezNVR X5C 8-Channel Wi-Fi NVR
    Hi there I am having an issue with getting my 4 Ezviz cameras. I have tried everything. The NVR is situated about 50 metres from the furthest 2 cameras. The 2 closer ones at about 25 metres away. The NVR used to be in the middle of the 4 cameras. I had to move our fibre from the...
    Name: Jan Samuelsson
    Logitech MK850 Performance Wireless Keyboard and
    How do I "print screen" with this keyboard? (MK 850). Please e-mail me a pdf-manual for keyboard and mouse (MK 850)...
    IK Multimedia AXE I O Audio Interface
    Name: Zdeněk Götz
    IK Multimedia AXE I O Audio
    Good day, I bought an AX I/ O and now I want to connect it to my computer. But I have it 8 meters from the AX and when I use a normal USB cable, I was told that it is not able to transmit the signal further than 4.5 meters. So I bought AXAGON ADR-205 USB REPEATER CABLE 5 M and wi...

    PDF User Manuals
    We regularly supplement and update our library. Latest instruction manuals added for download:

    Detail - Aputure VS-2 FineHD 7" Field Monitor upload/ aputure-vs-2-finehd-7-field-monitor-423887-user-manual.pdf
    Detail - ROVA Selfie Drone upload/ rova-selfie-drone-268976-user-manual.pdf
    Detail - Rosco V-Hazer Fog Machine upload/ rosco-v-hazer-fog-machine-160543-user-manual.pdf
    Detail - Ibanez GA5TCE Acoustic Electric Thin-Line Classical upload/ ibanez-ga5tce-acoustic-electric-thin-line-classical-guitar-201729-user-manual.pdf
    Detail - MIRFAK Moin Micro LED Photo and upload/ mirfak-moin-micro-led-photo-and-video-light-245549-user-manual.pdf

    What our users say about us:

    Peter Morgan: "Thanks for this website! With help from your instructions I’ve got my dishwasher working again."

    Nick Jackson: "Your site’s been a massive help because the user manual didn’t come with the product. Thanks a lot."

    Leslie Scott: "I finally found the user's guide with you that I couldn’t find anywhere else! Totally happy!"

    Take a look through our user manuals in our on-line library, with instruction manuals and service handbooks downloadable in PDF format. Our instructions database is constantly updated and supplemented with new products. Looking for instruction manuals? Ask us!
