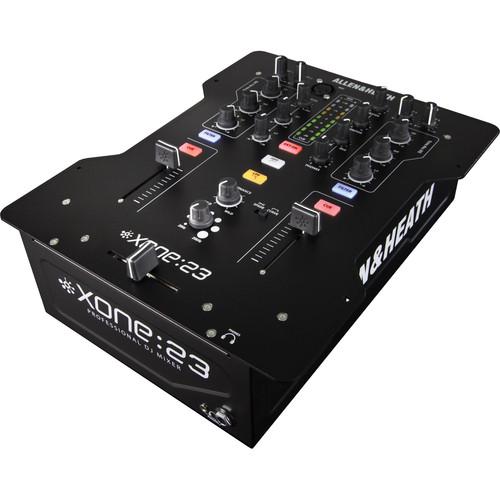

The Allen & Heath XONE:23 - 2+2 Channel DJ Mixer is designed for professional and home DJ applications such as at a party or in the club. The mixer features an enhanced version of Allen and Heath's Xone voltage controlled filter system with resonance control, a 3-band total kill EQ per side, VCA faders, illuminated switches, styling from the flagship DB4 DJ mixer, and a user upgradeable crossfader with curve selector.

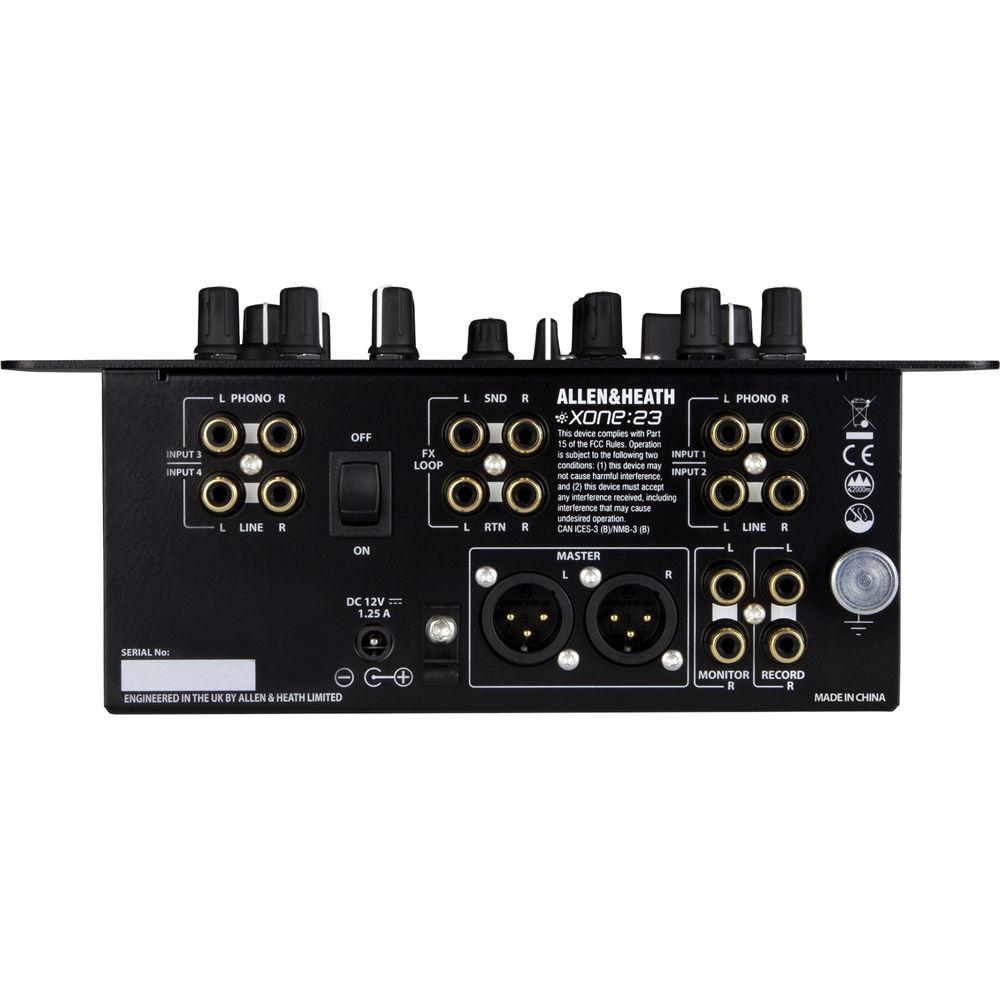

For I/O, the mixer includes two pairs of RCA line inputs and two pairs of RCA phono inputs. Though the mixer has two faders, each of the four inputs has an independent level control to enable playing up to four simultaneous sources in the mix. It also features dedicated stereo send and return channels for integrating external effects units. The front panel of the unit includes a balanced XLR input for connecting a microphone with level, high frequency, and low frequency equalizer controls.

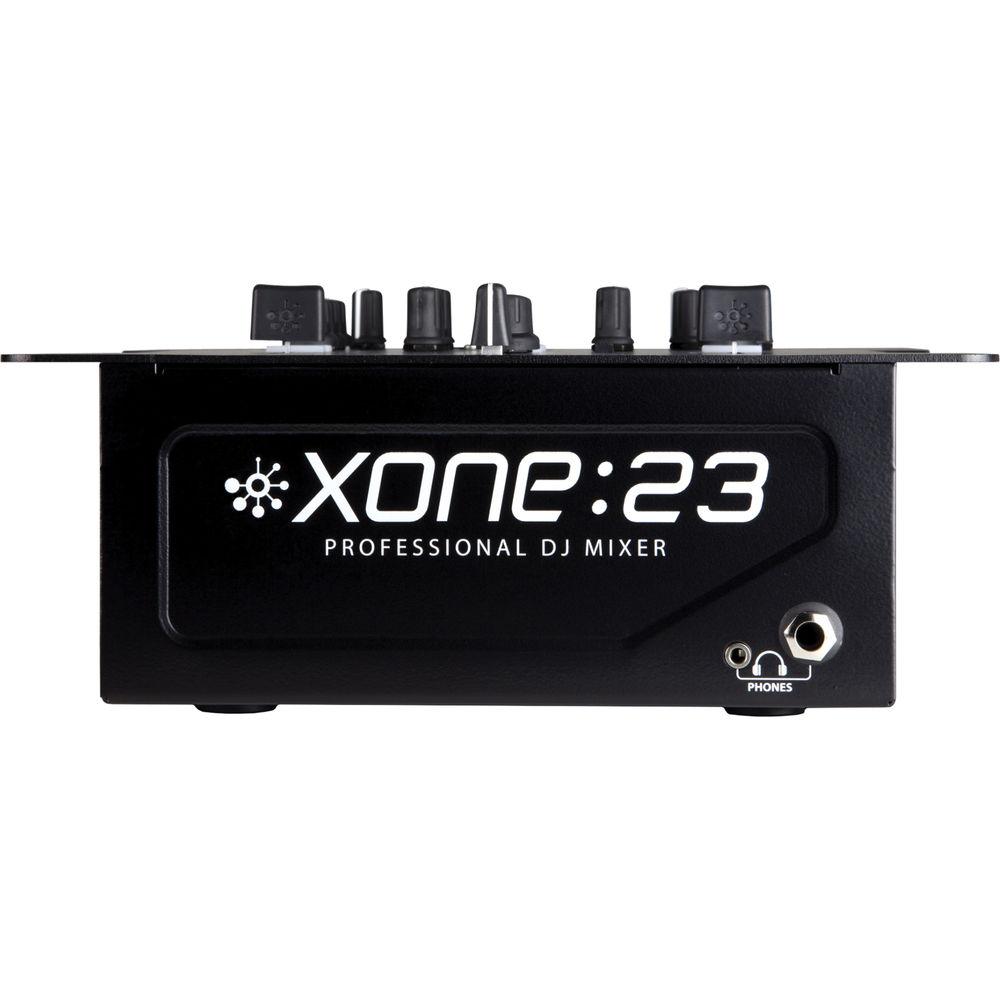

The master outputs are on balanced XLR connectors and the mixer includes a dedicated stereo booth output, as well as a dedicated stereo record out for capturing your mixes to a portable recorder. An 1/8" and a 1/4" headphone connector enable cueing with a wide variety of DJ headphones.

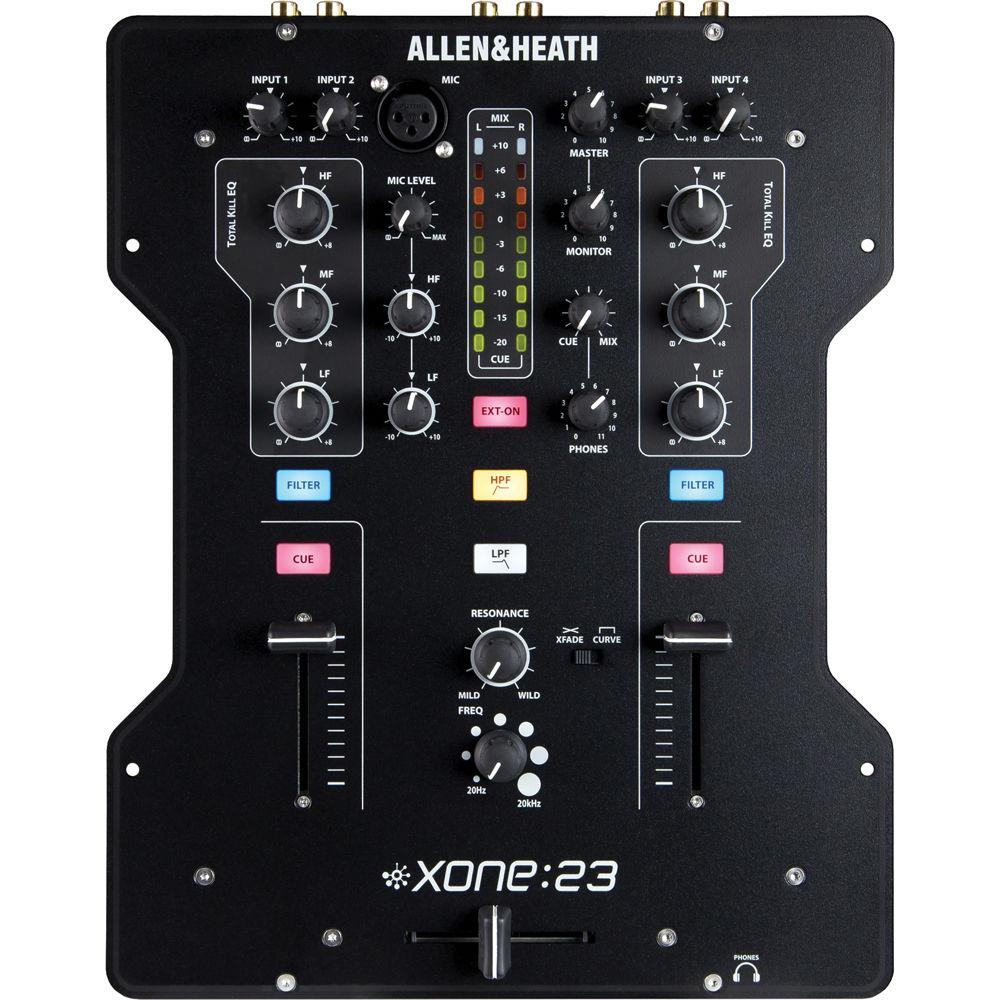

For control, the front panel of the mixer features gain knobs for all four channels. The four inputs are slit into left and right sides, each with a 9-segment LED light meter, separate high, mid, and low frequency total kill EQ knobs, a VCA channel fader, illuminated cue button, and an illuminated button to engage the filter on that side. The center section includes an illuminated button for engaging the external effects send/return, an illuminated button for engaging a high pass filter, an illuminated button for engaging the low pass filter, a frequency selector knob for the filter, and a VCA resonance control knob from mild to wild.
The crossfader features a switchable curve for mixing or scratching. As an option, the user can replace the stock crossfader with Allen and Heath's high end Innofader for enhanced performance (sold separately).
Filters
Provides voltage controlled low and high pass filters with frequency and resonance control
External FX Loop
Enables send and return connection to external effects processor with the push of a button
Crossfader Curve Selector
Switches curves between modes dedicated to mixing and scratching
Upgradeable Crossfader
Allows for user to purchase and install an Allen and Heath Innofader for enhanced crossfader performance
Input Level Control
Enables simultaneous mixing of all four inputs
Headphone Output
Provides 1/8" and ¼" jacks for connecting to a variety of DJ headphones
Record Output
Enables recording DJ mixes to external recorders
In the Box Allen & Heath XONE:23 - 2+2 Channel DJ Mixer
Power Cord
Power Supply
Limited 1-Year Warranty
User Manual PDF 1mbbfwrydatafadstfdrayvacfdeddetcxscy Table of Contents
Upload User Manual
Have you got an user manual for the Allen & Heath XONE:23 - 2 2 Channel DJ Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Output Main Mix: 100 Ω Monitor: 100 Ω Record: 100 Ω FX Send: 100 Ω Headphones: 1 Ω
Nominal Level
Input Phono: 7 to 100 mV Line: -10 to +20 dBu FX Return: 0 to +20 dBu Mic: -42 to -12 dBu
Output Main Mix: +4 dBu Monitor: -2 dBu Record: -2 dBu FX Send: -2 dBu
Distortion: +10 dBu Noise: unity
Maximum Level
Output Main Mix: +28 dBu Monitor: +22 dBu Record: +19 dBu FX Send: +19 dBu Headphones: 200 mW RMS into 30 Ω Fader shut off: > -80 dB Xfade shut off: > -80 dB
Distortion
0.01% THD +N
Noise
Main Mix Out (22 to 22,000 Hz): -85 dBu un-weighted
Frequency Response
10 to 50,000 Hz ± 0 dB
Dimensions (W x D x H)
9.4 x 12.4 x 4.2" (240 x 315 x 106 mm)
Weight
6.0 lb (2.7 kg)
Package Weight
10.9 lb
Box Dimensions (LxWxH)
18.2 x 13.1 x 7.7"
