User Manual for Allen & Heath Xone:23 2 Channel DJ Mixer Kit with Hard Case Click to enlarge the picture
Contents of the user manual for the Allen & Heath Xone:23 2 Channel
- Product category: DJ Mixers Allen & Heath
- Brand: Allen & Heath
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Allen & Heath DJ Mixers
|
User manual for the Allen & Heath Xone:23 2 Channel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Allen & Heath product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Allen & Heath user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Allen & Heath product will considerably shorten its lifespan!
|

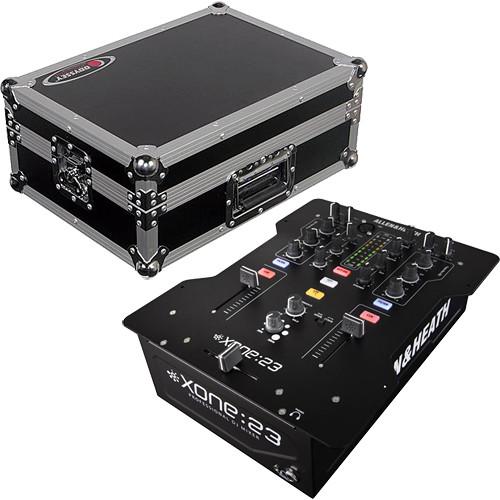

Product description This Kit combines the Allen and Heath XONE:23 DJ Mixer with a hard case so that you can travel to gigs and protect this mixer from the rigors of on-the-road wear and tear. The two channel mixer is designed for professional and home DJ applications and features an enhanced version of Allen and Heath's Xone voltage controlled filter system with resonance control, a 3-band total kill EQ per side, VCA faders, illuminated switches, and a user upgradeable crossfader with curve selector. The hard case is designed to accommodate 10" mixers and features a 3/8" laminated plywood enclosure with aluminum trim, butterfly latches, spring loaded handle, and heavy-duty ball corners. - Allen & Heath XONE:23 - 2+2 Channel DJ Mixer
- Xone:23 Mixer Extended Overview | NAMM 2014
The Allen & Heath XONE:23 - 2+2 Channel DJ Mixer is designed for professional and home DJ applications such as at a party or in the club. The mixer features an enhanced version of Allen and Heath's Xone voltage controlled filter system with resonance control, a 3-band total kill EQ per side, VCA faders, illuminated switches, styling from the flagship DB4 DJ mixer, and a user upgradeable crossfader with curve selector.
For I/O, the mixer includes two pairs of RCA line inputs and two pairs of RCA phono inputs. Though the mixer has two faders, each of the four inputs has an independent level control to enable playing up to four simultaneous sources in the mix. It also features dedicated stereo send and return channels for integrating external effects units. The front panel of the unit includes a balanced XLR input for connecting a microphone with level, high frequency, and low frequency equalizer controls.
The master outputs are on balanced XLR connectors and the mixer includes a dedicated stereo booth output, as well as a dedicated stereo record out for capturing your mixes to a portable recorder. An 1/8" and a 1/4" headphone connector enable cueing with a wide variety of DJ headphones.
For control, the front panel of the mixer features gain knobs for all four channels. The four inputs are slit into left and right sides, each with a 9-segment LED light meter, separate high, mid, and low frequency total kill EQ knobs, a VCA channel fader, illuminated cue button, and an illuminated button to engage the filter on that side. The center section includes an illuminated button for engaging the external effects send/return, an illuminated button for engaging a high pass filter, an illuminated button for engaging the low pass filter, a frequency selector knob for the filter, and a VCA resonance control knob from mild to wild.
The crossfader features a switchable curve for mixing or scratching. As an option, the user can replace the stock crossfader with Allen and Heath's high end Innofader for enhanced performance (sold separately). - Filters
- Provides voltage controlled low and high pass filters with frequency and resonance control
- External FX Loop
- Enables send and return connection to external effects processor with the push of a button
- Crossfader Curve Selector
- Switches curves between modes dedicated to mixing and scratching
- Upgradeable Crossfader
- Allows for user to purchase and install an Allen and Heath Innofader for enhanced crossfader performance
- Input Level Control
- Enables simultaneous mixing of all four inputs
- Headphone Output
- Provides 1/8" and ¼" jacks for connecting to a variety of DJ headphones
- Record Output
- Enables recording DJ mixes to external recorders
- Odyssey Innovative Designs FR10MIXE Econo Universal Flight Ready DJ Mixer Case
- Xone:23 Mixer Extended Overview | NAMM 2014
The Odyssey Innovative Design FR10MIXE Econo Universal Flight Ready DJ Mixer Case (Black and Chrome) is made of ABS plastic laminated 1/4" plywood with adjustable width foam strips. It is designed to ship, carry and protect most 10" mixers. The case has a removable cover with breakaway hinges. The case has steel hardware, chrome-plated butterfly latches and recessed, spring-loaded handles. It also has stackable medium-duty corners, aluminum edging and rubber feet. - Construction
-
- ABS plastic laminated 1/4" plywood
- Adjustable width foam strips
- Removable cover
- Breakaway hinges
- Chrome-plated butterfly latches
- Stackable medium-duty corners
- Aluminum edging
- Rubber feet to prevent skidding
- Recessed, spring-loaded, chrome-plated handles
- Compatible with most 10" DJ mixers
UPC: 807822027723 In the Box - XONE:23 - 2+2 Channel DJ Mixer exutvzxadetuffssayeasrwyfdwsyctzwue
- Power Cord
- Power Supply
- Limited 1-Year Warranty
- Odyssey Innovative Designs - FR10MIXE Econo Universal Flight Ready DJ Mixer Case
Table of Contents
|
Upload User Manual
Have you got an user manual for the Allen & Heath Xone:23 2 Channel DJ Mixer Kit with Hard Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Allen & Heath XONE:23 - 2+2 Channel DJ Mixer
| | | I/O | Input
Phono: 4x RCA (2 pair)
Line: 4x RCA (2 pair)
FX Return: 2x RCA (pair)
Mic: XLR-3M
Output
Main Mix: 2x balanced XLR-3M (pair)
Monitor: 2x RCA (2 pair)
Record: 2x RCA (pair)
FX Send: 2x RCA (pair)
Headphones: stereo 3.5 mm and 1/4" TRS jacks | | Impedance | Input
Phono: 47 K/330pF
Line: 20 kΩ
FX Return: 10 kΩ
Mic: <2 kΩ
Output
Main Mix: 100 Ω
Monitor: 100 Ω
Record: 100 Ω
FX Send: 100 Ω
Headphones: 1 Ω | | Nominal Level | Input
Phono: 7 to 100 mV
Line: -10 to +20 dBu
FX Return: 0 to +20 dBu
Mic: -42 to -12 dBu
Output
Main Mix: +4 dBu
Monitor: -2 dBu
Record: -2 dBu
FX Send: -2 dBu
Distortion: +10 dBu
Noise: unity | | Maximum Level | Output
Main Mix: +28 dBu
Monitor: +22 dBu
Record: +19 dBu
FX Send: +19 dBu
Headphones: 200 mW RMS into 30 Ω
Fader shut off: > -80 dB
Xfade shut off: > -80 dB | | Distortion | 0.01% THD +N | | Noise | Main Mix Out (22 to 22,000 Hz): -85 dBu un-weighted | | | | Frequency Response | 10 to 50,000 Hz ± 0 dB | | Dimensions (W x D x H) | 9.4 x 12.4 x 4.2" (240 x 315 x 106 mm) | | Weight | 6.0 lb (2.7 kg) | | | | Box Dimensions (LxWxH) | 18.2 x 13.1 x 7.7" | - Odyssey Innovative Designs FR10MIXE Econo Universal Flight Ready DJ Mixer Case
| Type | Case | | Carrying/Transport Options | Recessed Handle | | Type of Closure | Latch | | Padding | Foam | | Material of Construction | ABS Plywood | | Plywood Thickness | 0.25" / 6.35 mm | | Exterior Dimensions (W x H x D) | 21 x 9.4 x 12.8" / 53.3 x 23.8 x 32.4 cm | | Weight | 11 lb / 5 kg | | | | Box Dimensions (LxWxH) | 21.4 x 13.7 x 9.8" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 97 owners. Add your rating and experience with the product.
