Product description - Xone:23C 2+2 Channel DJ Mixer with Soundcard

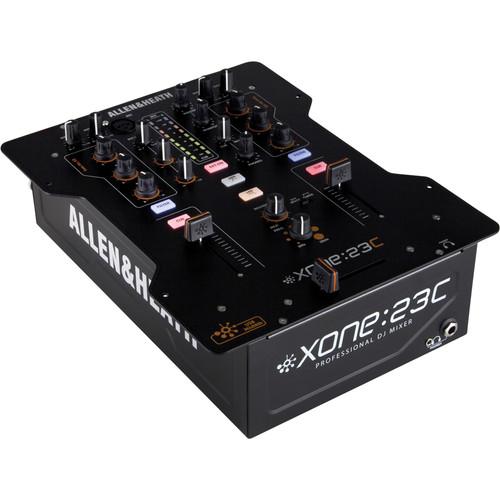

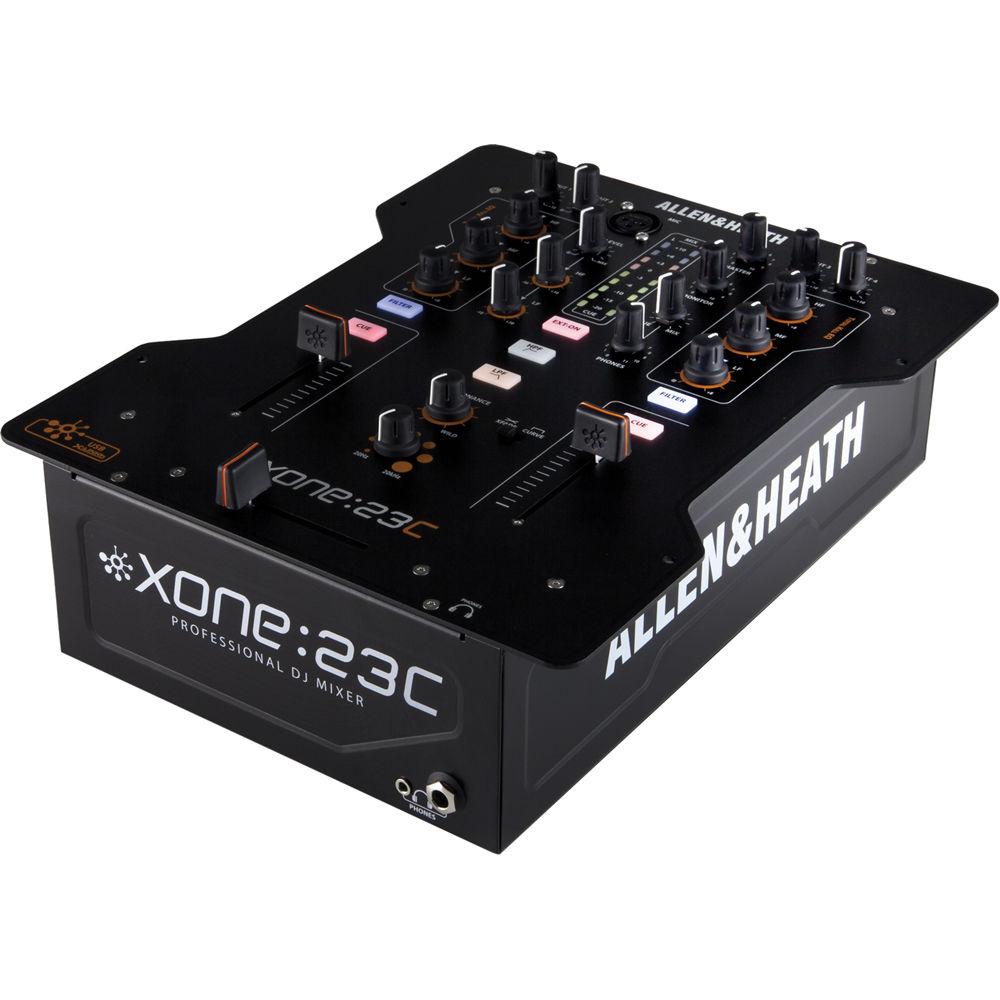

The Allen & Heath XONE:23C - DJ Mixer + Internal Soundcard is designed for professional and home DJ applications such as at a party or in the club. The mixer features an internal 4 stereo channel 96 kHz 24-bit USB sound card, an enhanced version of Allen and Heath's Xone voltage controlled filter system with resonance control, a 3-band total kill EQ per side, VCA faders, illuminated switches, styling from the flagship DB4 DJ mixer, and a user upgradeable crossfader with curve selector.

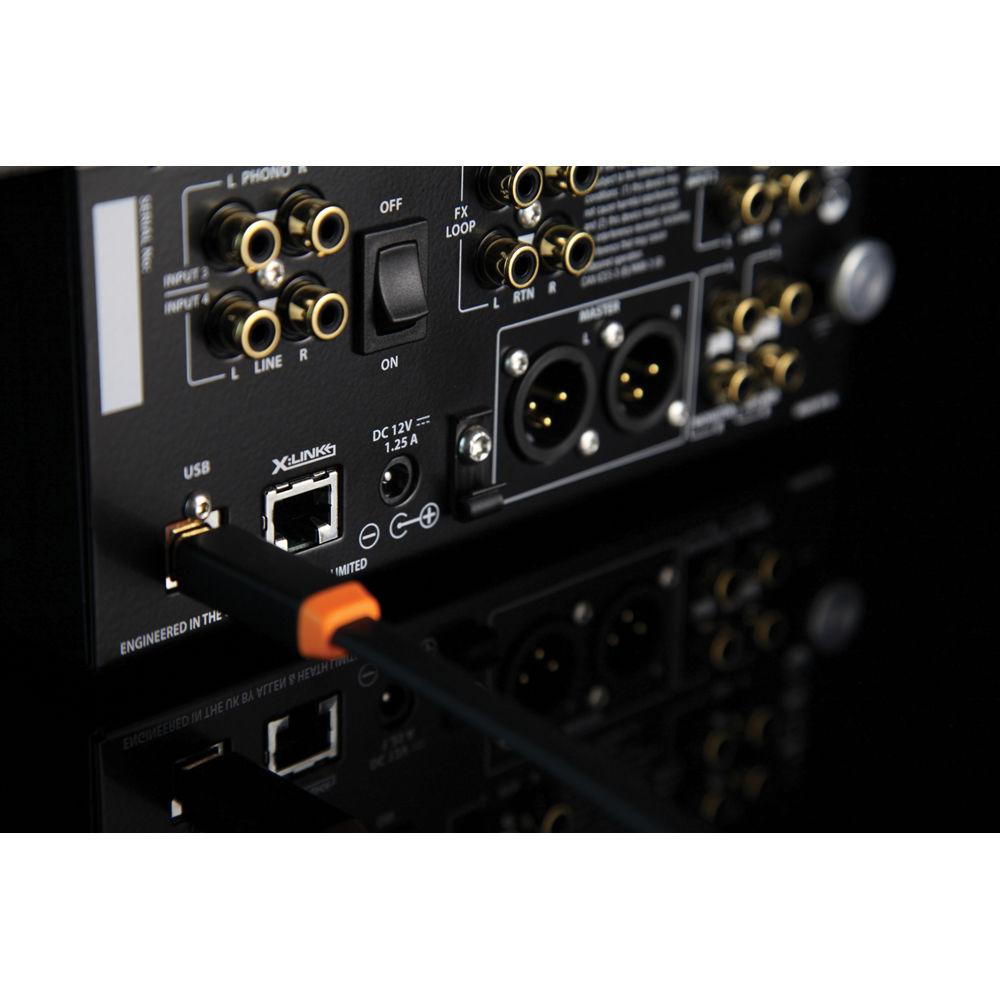

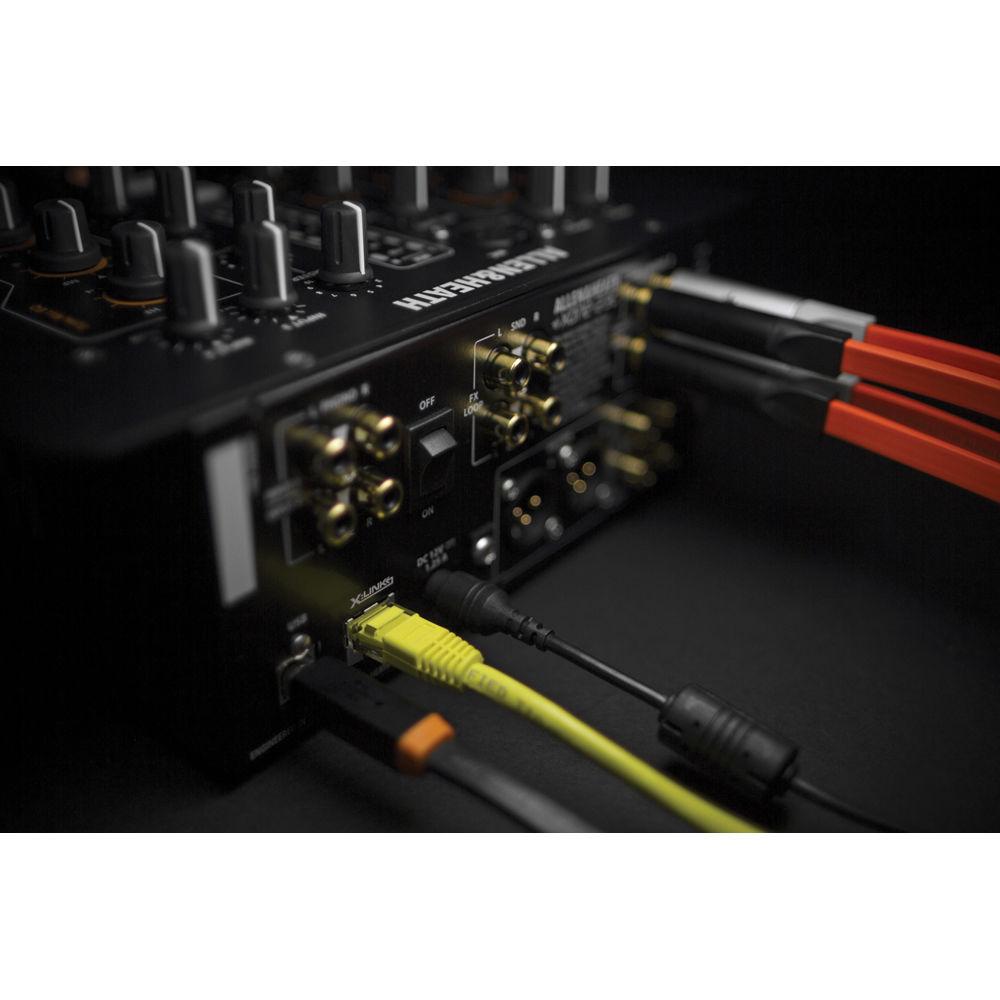

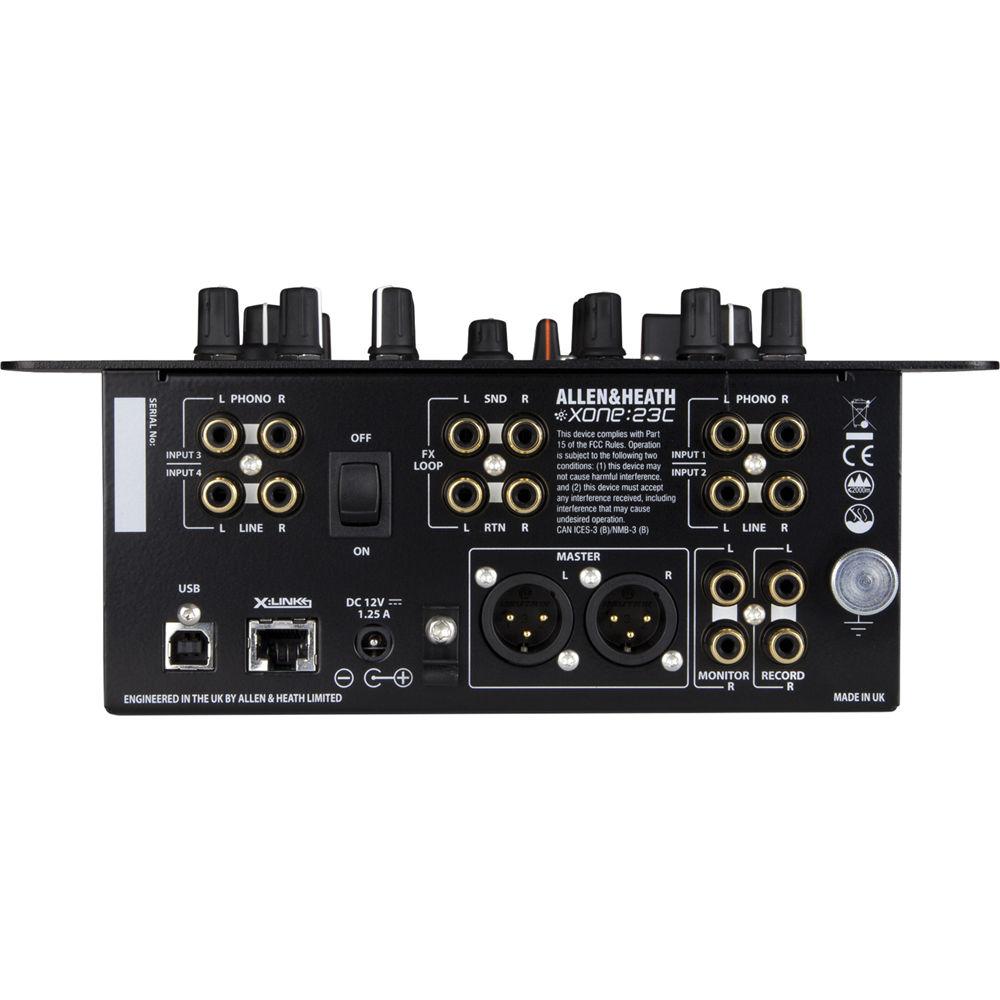

For I/O, the mixer includes two pairs of RCA line inputs and two pairs of RCA phono inputs. Though the mixer has two faders, each of the four inputs has an independent level control to enable playing up to four simultaneous sources in the mix. It also features dedicated stereo send and return channels for integrating external effects units. The front panel of the unit includes a balanced XLR input for connecting a microphone with level, high frequency, and low frequency equalizer controls.
The master outputs are on balanced XLR connectors and the mixer includes a dedicated stereo booth output, as well as a dedicated stereo record out for capturing your mixes to a portable recorder. An 1/8" and a 1/4" headphone connector enable cueing with a wide variety of DJ headphones.

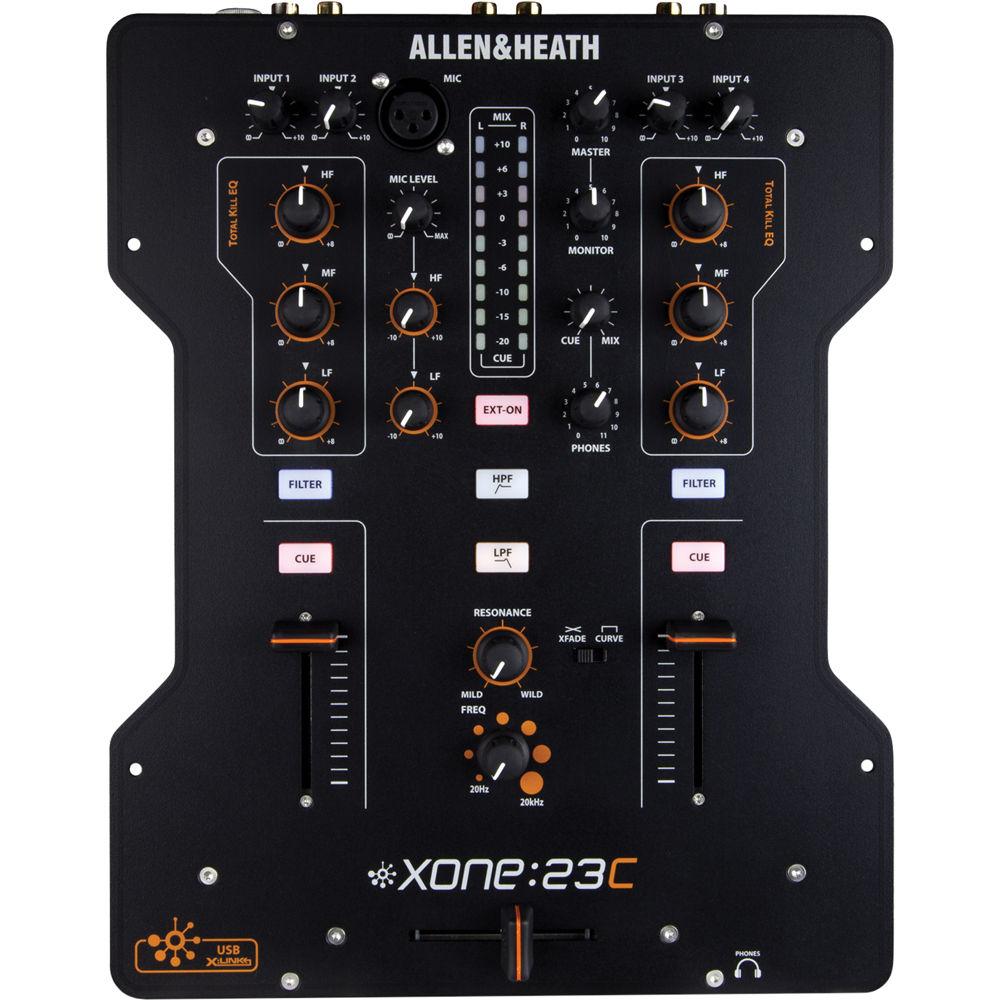

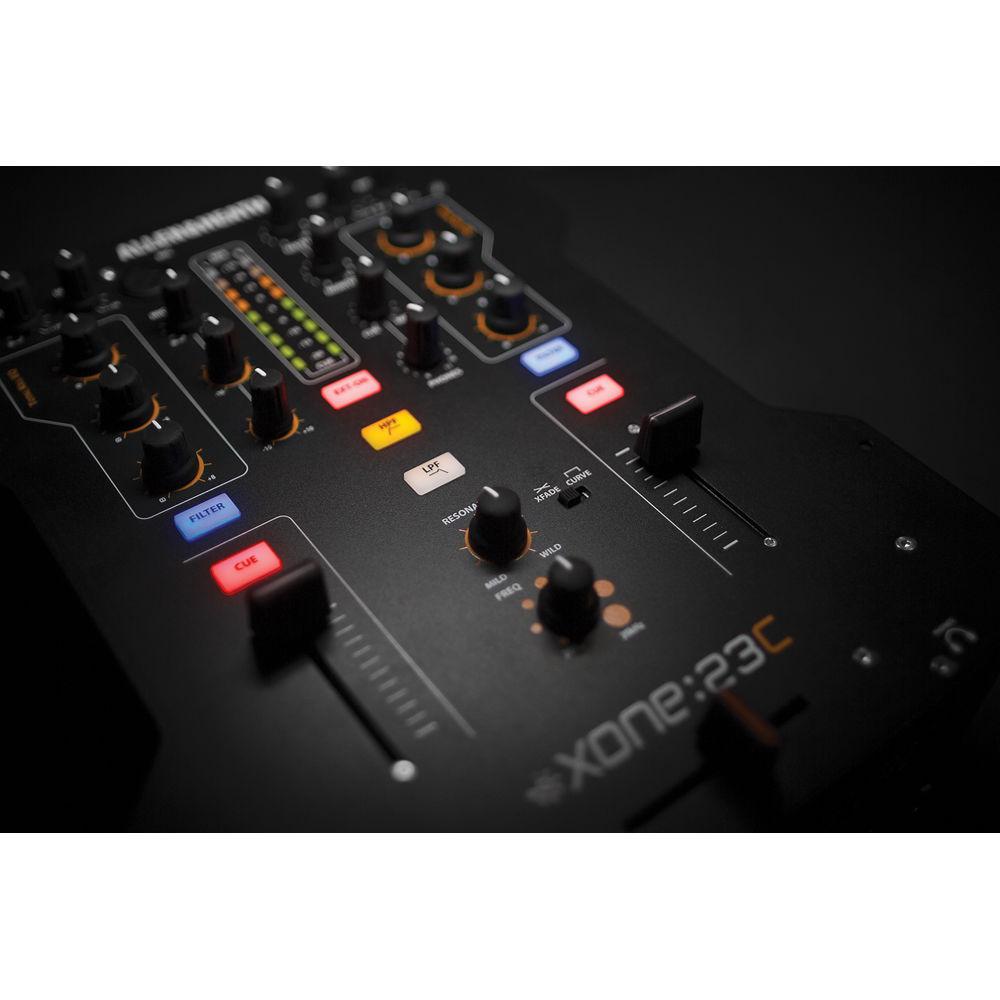

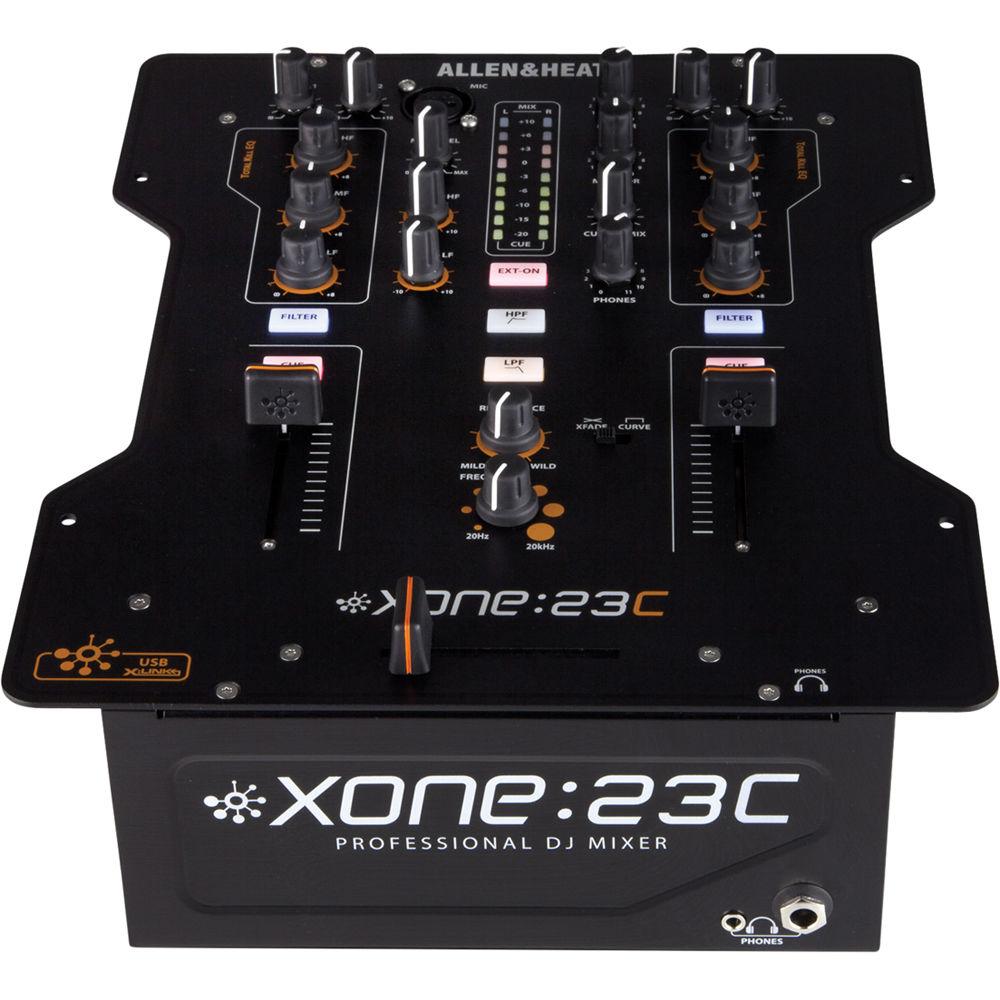

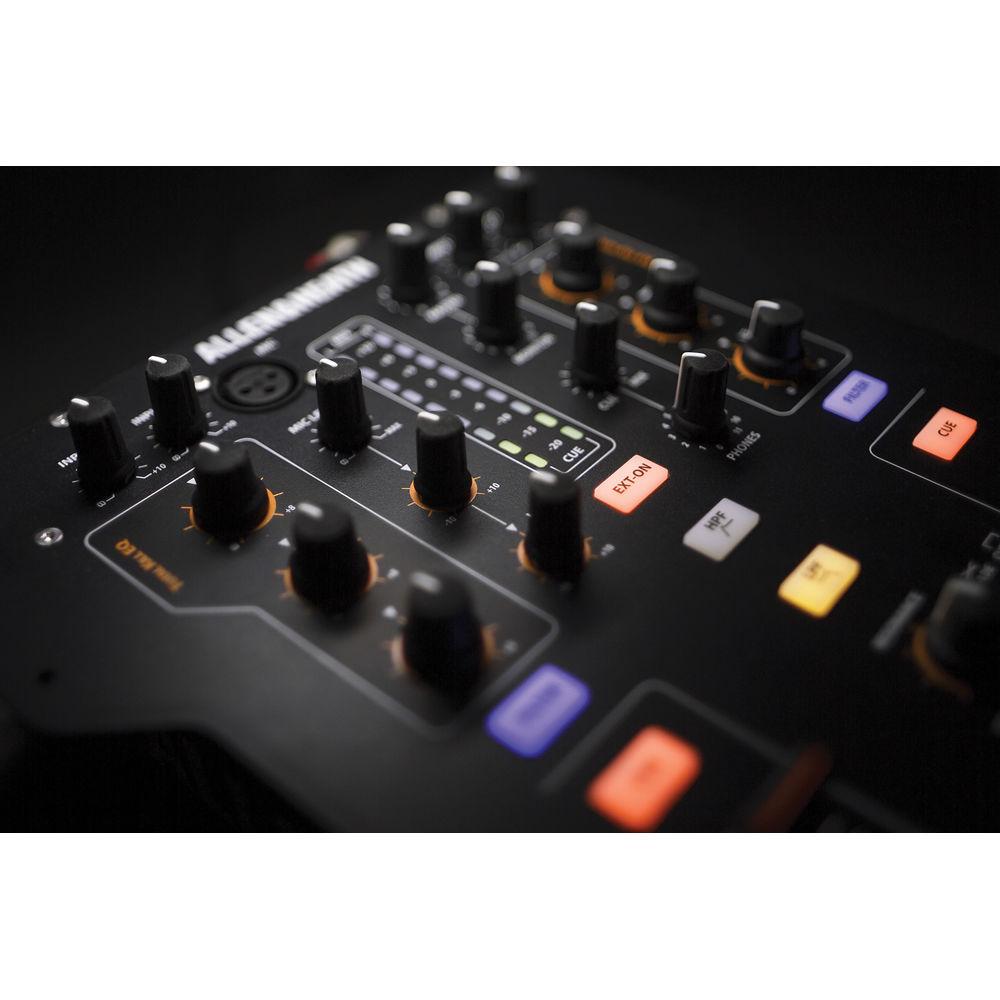

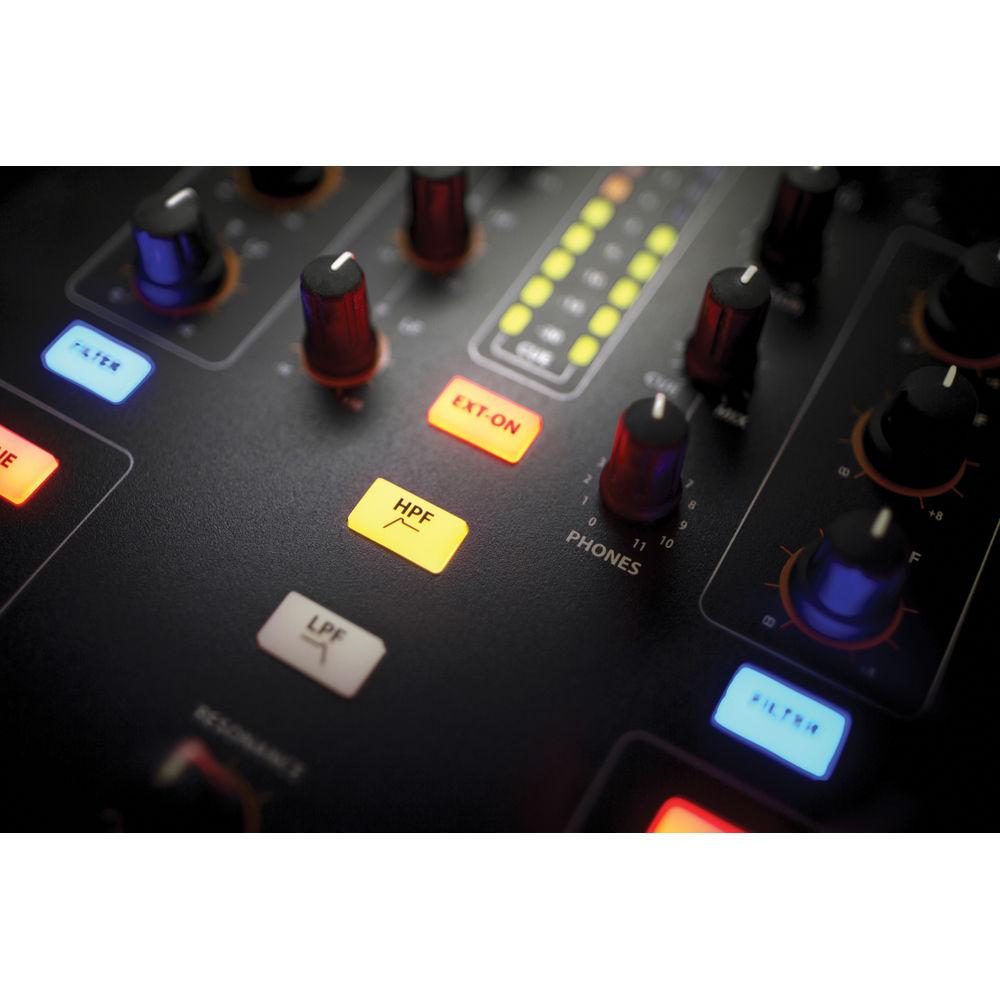

For control, the front panel of the mixer features gain knobs for all four channels. The four inputs are slit into left and right sides, each with a 9-segment LED light meter, separate high, mid, and low frequency total kill EQ knobs, a VCA channel fader, illuminated cue button, and an illuminated button to engage the filter on that side. The center section includes an illuminated button for engaging the external effects send/return, an illuminated button for engaging a high pass filter, an illuminated button for engaging the low pass filter, a frequency selector knob for the filter, and a VCA resonance control knob from mild to wild.
The crossfader features a switchable curve for mixing or scratching. As an option, the user can replace the stock crossfader with Allen and Heath's high end Innofader for enhanced performance (sold separately). - Internal Sound Card
- Provides 4 stereo channels of 96 kHz 24-Bit digital to analog conversion of music from your computer via USB
- Filters
- Provides voltage controlled low and high pass filters with frequency and resonance control
- External FX Loop
- Enables send and return connection to external effects processor with the push of a button
- Crossfader Curve Selector
- Switches curves between modes dedicated to mixing and scratching
- Upgradeable Crossfader
- Allows for user to purchase and install an Allen and Heath Innofader for enhanced crossfader performance
- Input Level Control
- Enables simultaneous mixing of all four inputs
- Headphone Output
- Provides 1/8" and ¼" jacks for connecting to a variety of DJ headphones
- Record Output
- Enables recording DJ mixes to external recorders
In the Box Allen & Heath XONE:23C - DJ Mixer + Internal Soundcard Power Cord Power Supply Limited 1-Year Warranty User Manual PDF 2.3mbcvqycdsyzfu Table of Contents
|
Upload User Manual
Have you got an user manual for the Allen & Heath XONE:23C - DJ Mixer Internal Soundcard in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAllen & Heath Xone:23C Specs | | | Sound Card | 4 stereo channel USB2 | | Sample Rate (Audio) | 96 kHz | | Bit Depth | 24-bit | | I/O | Input
Phono: 4x RCA (2 pair)
Line: 4x RCA (2 pair)
FX Return: 2x RCA (pair)
Mic: XLR-3M
Output
Main Mix: 2x balanced XLR-3M (pair)
Monitor: 2x RCA (2 pair)
Record: 2x RCA (pair)
FX Send: 2x RCA (pair)
Headphones: stereo 3.5 mm and 1/4" TRS jacks | | Impedance | Input
Phono: 47 K/330pF
Line: 20 kΩ
FX Return: 10 kΩ
Mic: <2 kΩ
Output
Main Mix: 100 Ω
Monitor: 100 Ω
Record: 100 Ω
FX Send: 100 Ω
Headphones: 1 Ω | | Nominal Level | Input
Phono: 7 to 100 mV
Line: -10 to +20 dBu
FX Return: 0 to +20 dBu
Mic: -42 to -12 dBu
Output
Main Mix: +4 dBu
Monitor: -2 dBu
Record: -2 dBu
FX Send: -2 dBu
Distortion: +10 dBu
Noise: unity | | Maximum Level | Output
Main Mix: +28 dBu
Monitor: +22 dBu
Record: +19 dBu
FX Send: +19 dBu
Headphones: 200 mW RMS into 30 Ω
Fader Shut Off: > -80 dB
Xfade Shut Off: > -80 dB | | Distortion | 0.01% THD +N | | Noise | Main Mix Out (22 to 22,000 Hz): -85 dBu un-weighted | | | | Frequency Response | 10 to 50,000 Hz ± 0 dB | | Dimensions (W x D x H) | 9.4 x 12.4 x 4.2" (240 x 315 x 106 mm) | | Weight | 6.0 lb (2.7 kg) | | | | Package Weight | 11.05 lb | | Box Dimensions (LxWxH) | 19.291 x 13.701 x 8.74" |
