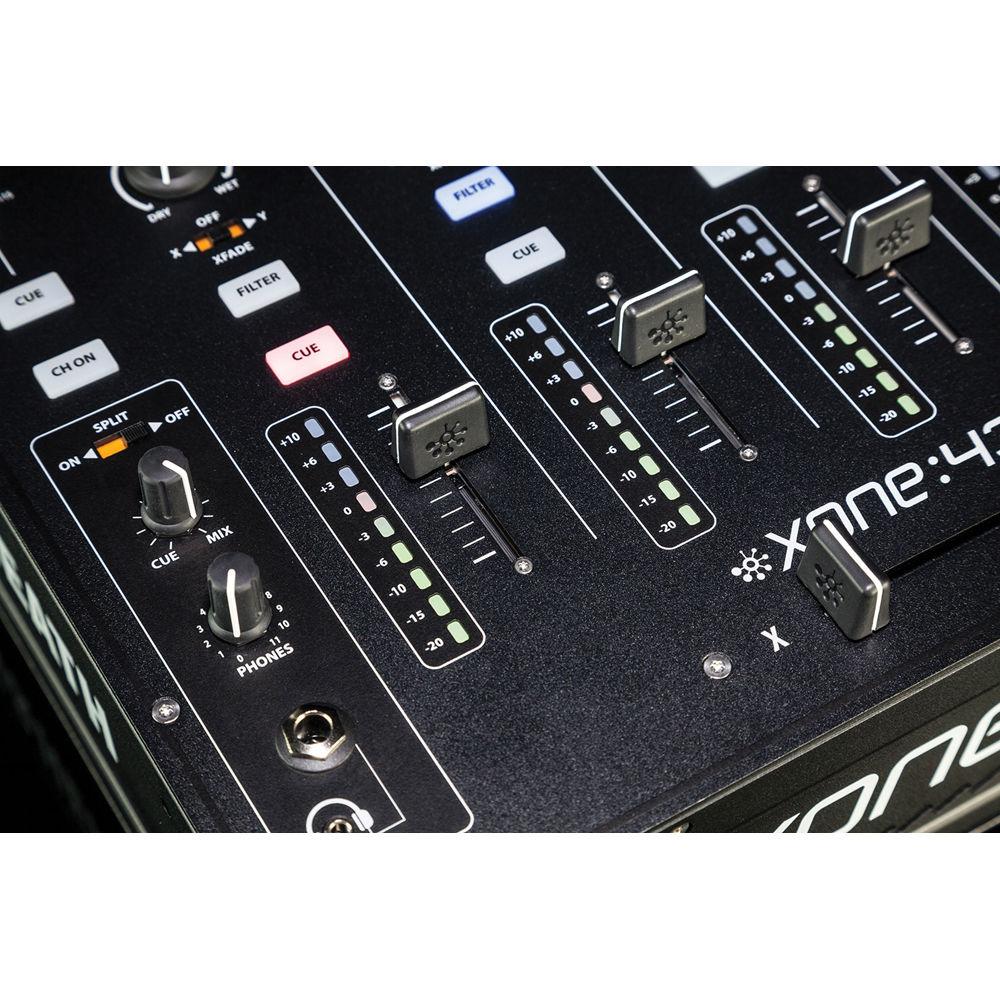

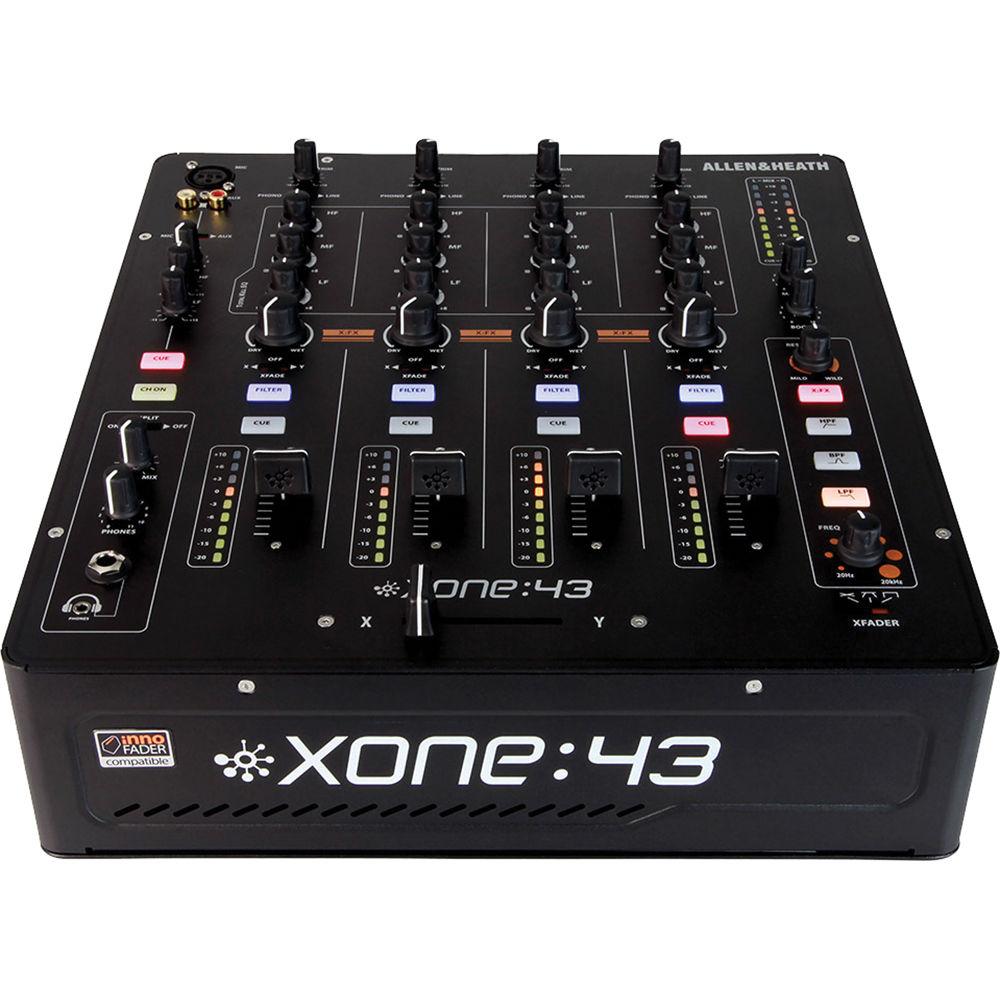

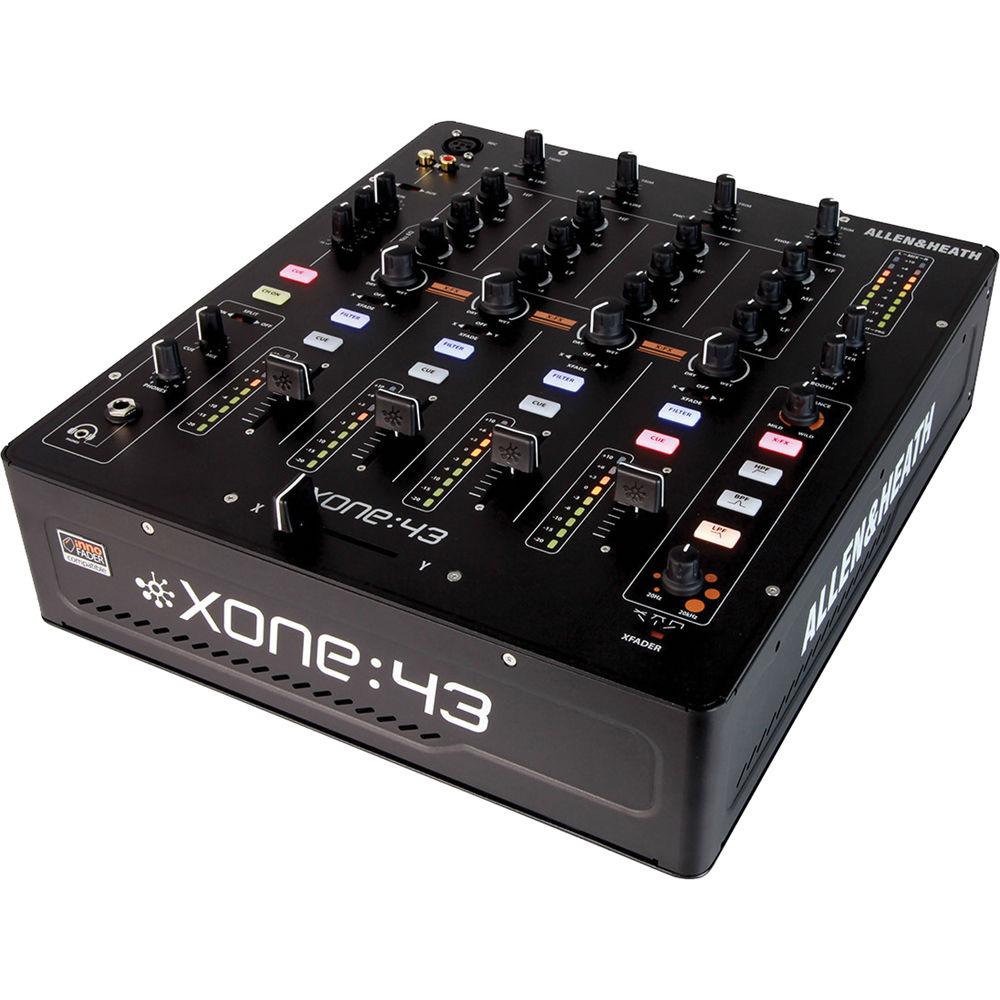

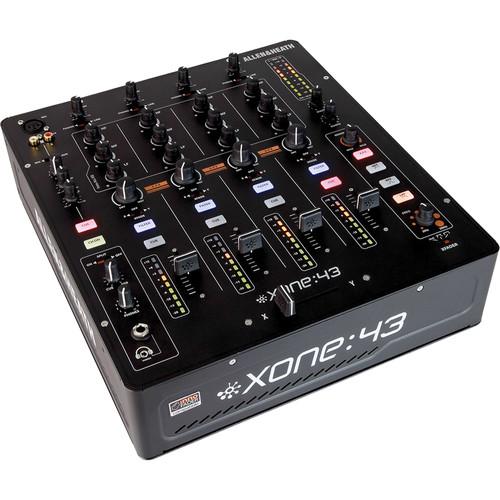

Product description The XONE:43 from Allen & Heath is a 4+1 channel DJ mixer offering professional quality in a simple, yet intuitive layout for professional DJs, serious home enthusiast and night clubs. The mixer features the XONE analog filter with resonance control, 3-band EQ, a replaceable VCA crossfader, and the X:FX send and return that incorporates any outboard FX unit.
The XONE filter includes high pass, band pass, and low pass filter selections, resonance control, and frequency sweep. Additionally, X:FX may be routed to the filter to add layers of FX and filtering. The crossfader offers three settings for blending and scratching styles and is compatible with a custom Innofader. The microphone channel features a 2-band EQ and doubles as an additional auxiliary input via stereo RCA connectors. The mixer offers XLR main outputs with independent booth and record outputs. The XONE:43 ships with a power cord and a spare set of knobs and buttons. -

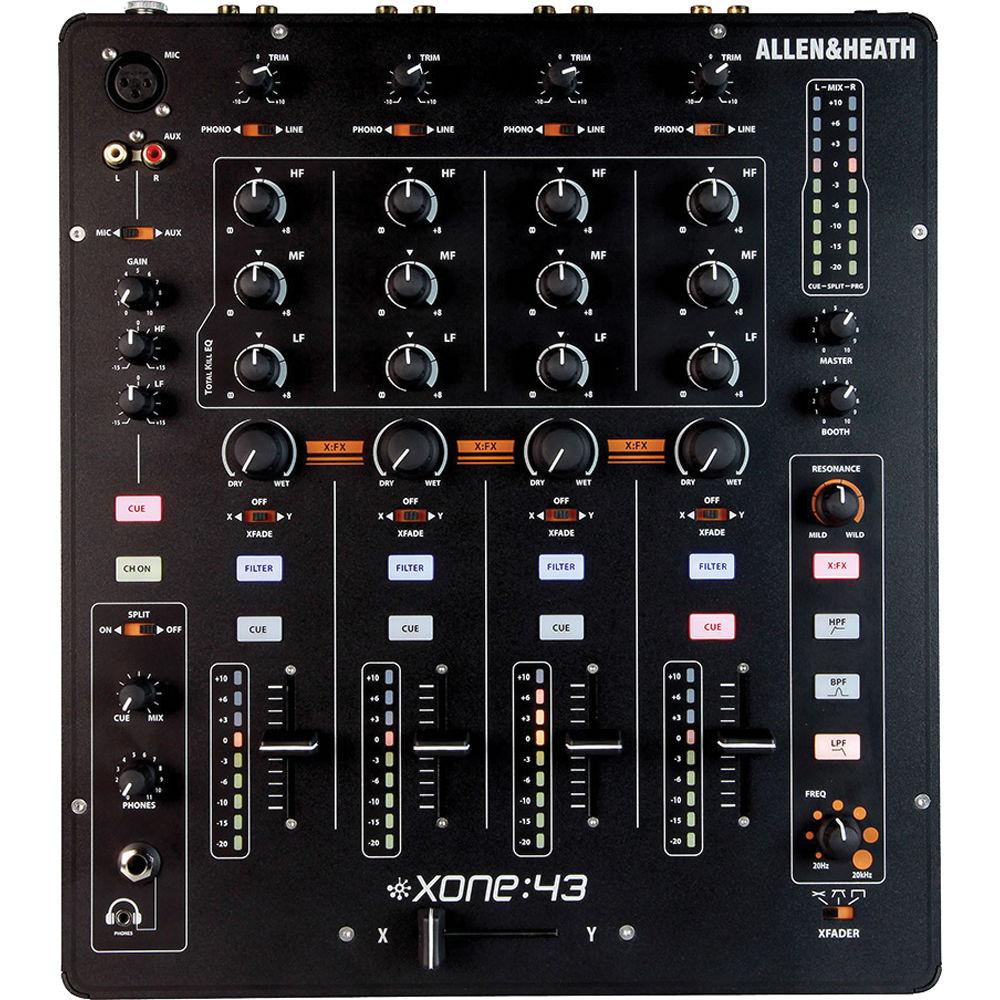

- 4 channels with phono/line inputs

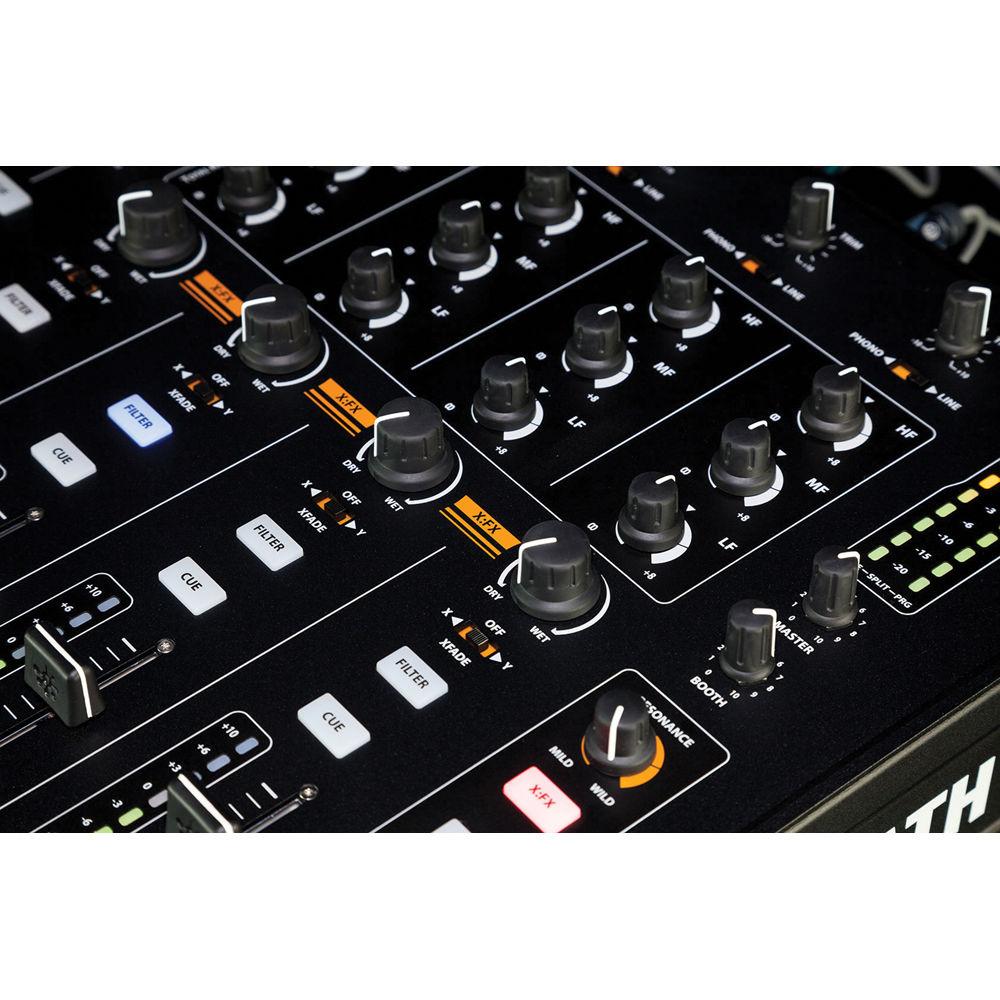

- VCF Filter system – low-pass, high-pass, and band-pass filters plus frequency and resonance controls
- 3-band EQ
- External FX loop (Send/Return) system with dry/wet control per channel
- Mic input on balanced XLR, with 2-band EQ
- Balanced main mix out on XLR
- Independent booth out
- Record out
- 3.5mm and 1/4″ headphone outputs
- Touring grade build quality

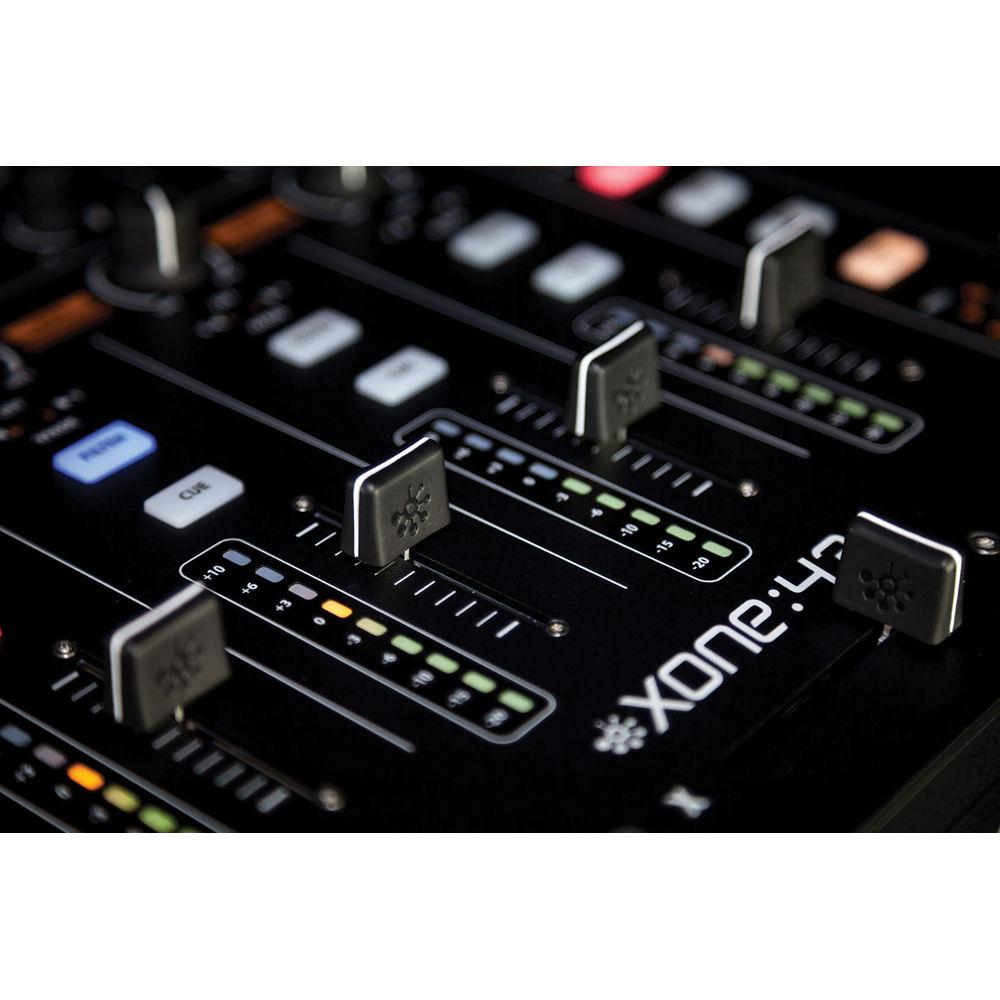

- Smooth VCA channel faders
- User changeable crossfader
- Innofader compatible
- Crossfader curve switch
- 20 dB pro standard headroom
- 9-segment signal level monitoring
In the Box Allen & Heath XONE:43 - 4+1 Channel Analog DJ Mixer Set of Spare Knobs and Buttons Power Cord Limited 1-Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Allen & Heath XONE:43 - 4 1 Channel Analog DJ Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAllen & Heath Xone:43 Specs | Input & Output | Input

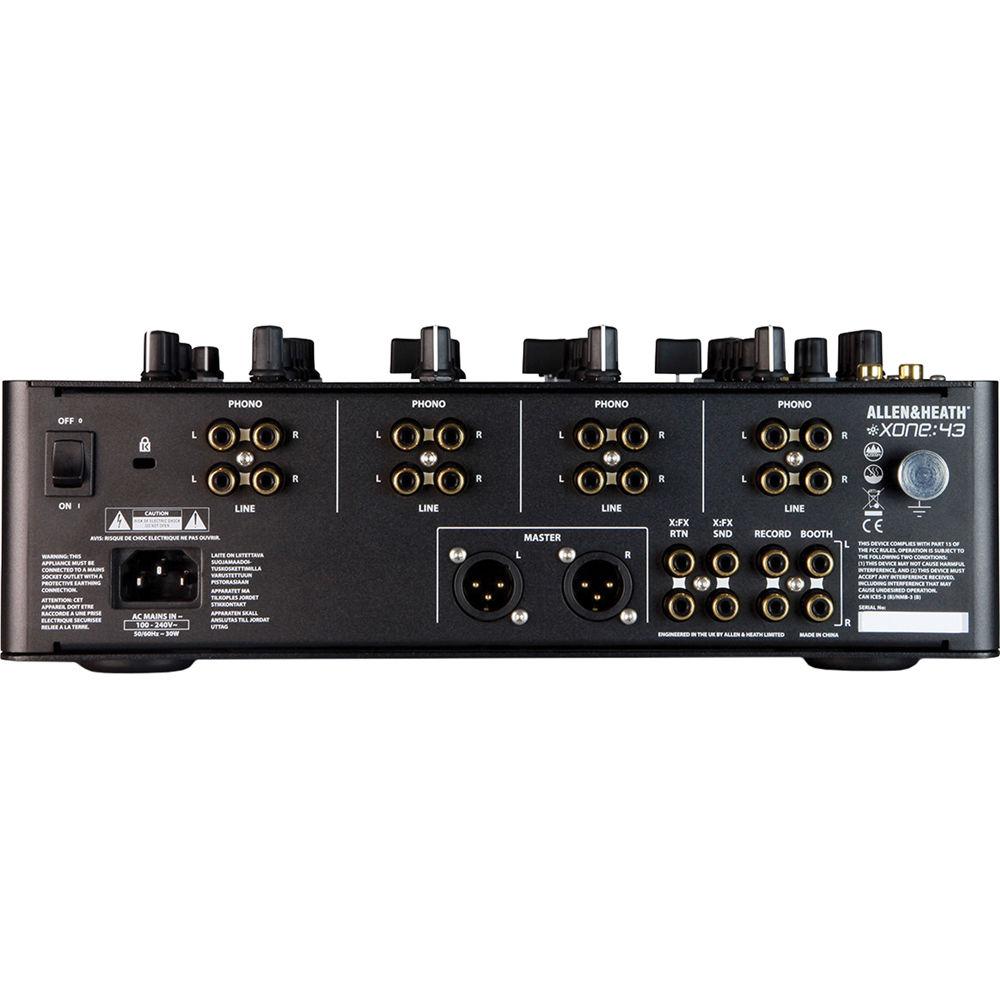

Phono 1-4: 8 x RCA (4 x stereo pair)
Line 1-4: 8 x RCA (4 x stereo pair)
X-FX Return: 2 x RCA (1 x stereo pair)
Output
Master: 2 x XLR (1 x stereo pair)
Booth: 2 x RCA (1 x stereo pair)
Rec: 2 x RCA (1 x stereo pair)
X-FX Send: 2 x RCA (1 x stereo pair) | | Nominal Output Levels | Main Mix: +4 dBu
Booth: 0 dBu
X:FX Send: 0 dBu
Record Out: 0 dBu | | Maximum Output Level | Main Mix: +27 dBu
Booth: +22 dBu
X:FX Send: +20 dBu
Record Out: +20 dBu | | Internal Headroom | Channels +20 dB | | Frequency Response | 20 Hz to 20 kHz ±0.5 dB | | THD + N | <0.05% @ 1 kHz | | Crosstalk | < -83 dB inter-channel | | Residual Noise | Mix 1: -89 dBu
Booth: -93 dBu
X:FX: -77 dBu
Rec: -92 dBu | | Mix Noise | Mix 1: -82 dBu
Booth: -84 dBu
X:FX: -77 dBu
Rec: -87 dBu | | Meters | Channel Meters: Peak reading 9 LED -20 to +10 dB
Main Meters: Peak reading 9 LED -20 to +10 dB | | Equalization | Mic EQ: 2-Band ±12 dB
Channel EQ: 3-Band +6 dB / total kill | | Faders | Channel Fader: 1.8" / 45.0 mm stereo VCA, < -85 dB shutoff
Crossfader: 1.8" / 45.0 mm stereo VCA - replaceable | | Filter | Stereo VCF, analog | | Digital Audio Resolution | N/A | | Power Consumption | Maximum: 30 W | | Dimensions (W x H x D) | 12.6 x 4.3 x 14.6" / 32.0 x 11.0 x 37.0 cm | | Weight | 11.2 lb / 5.1 kg | | | | Package Weight | 15.05 lb | | Box Dimensions (LxWxH) | 20.0 x 18.0 x 8.0" |
