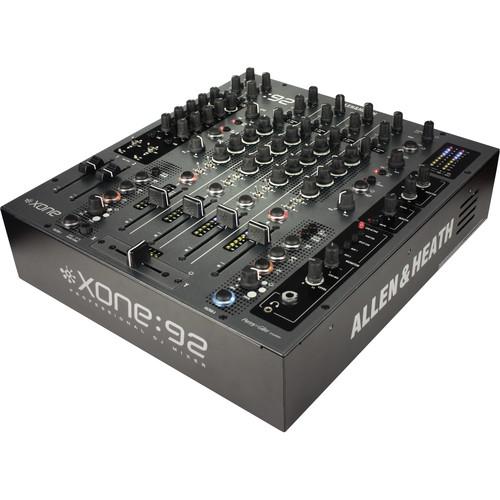

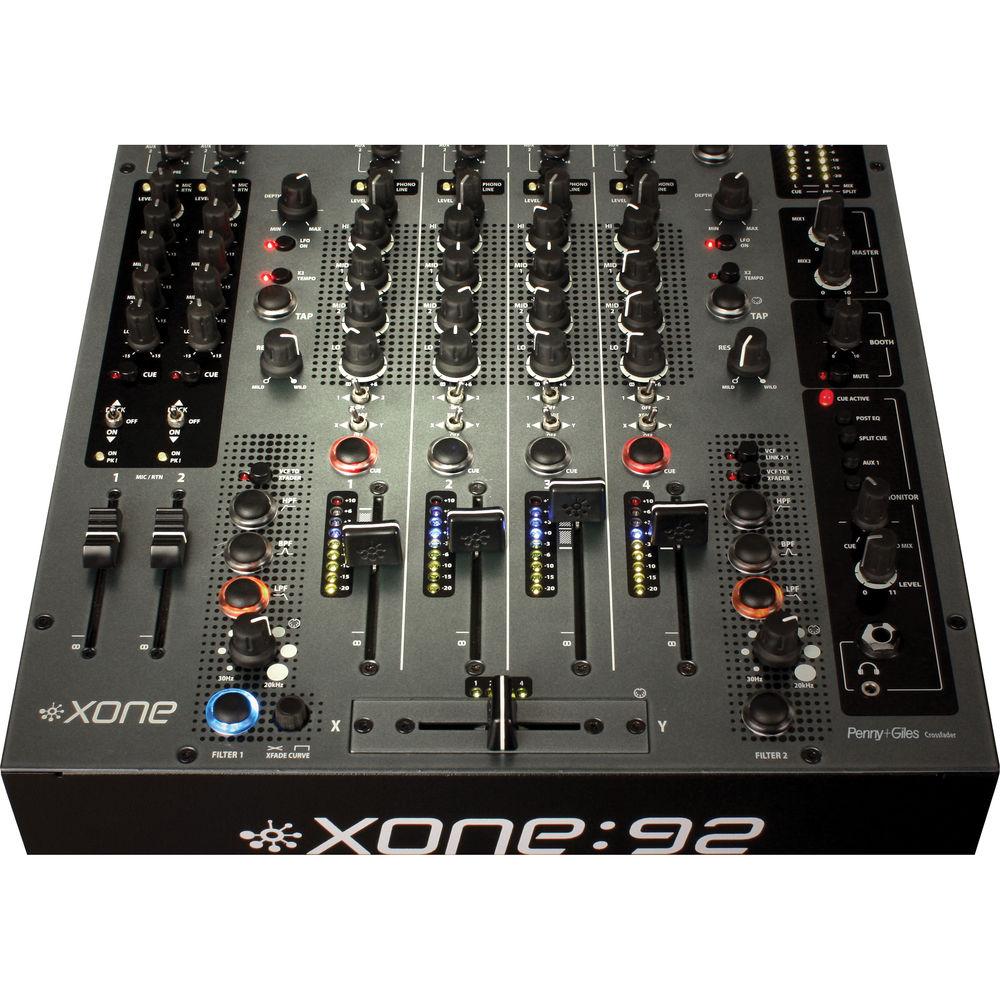

Product description The Allen & Heath XONE:92 is a flexible, professional six-channel DJ mixer designed for nightclub and venue installation. The XONE:92 delivers flexible routing and professional sound quality with four turntable and four line inputs on RCA phono connections. Mic channel 1 and 2 feature balanced XLR microphone inputs, which are switchable to line level with stereo 1/4" inputs for return channels for effects. Both channels offer four-band EQ, level controls, and cue sends.The XONE:92 is packed with sonic and performance enhancing features that include a powerful four-band EQ on every channel, user replaceable Penny & Giles crossfader, and dual voltage controlled multi-mode resonant filters with dedicated LFOs for hands-free control. Two mix outputs feature balanced XLR and 1/4" phone connections, while a dedicated booth output features stereo 1/4" connections, plus an additional record output on RCA phono connections for recording sets. Two aux connections may be used to route signal to external effects and signal processors. The Allen & Heath X:ONE:92 includes a rackmount kit and a power cord. -
- Six dual stereo inputs, two with mic inputs
- RIAA preamps for up to 4 turntables
- Input selectors with two color indicators
- Smooth action level controls
- Two stereo aux sends with pre/post switching

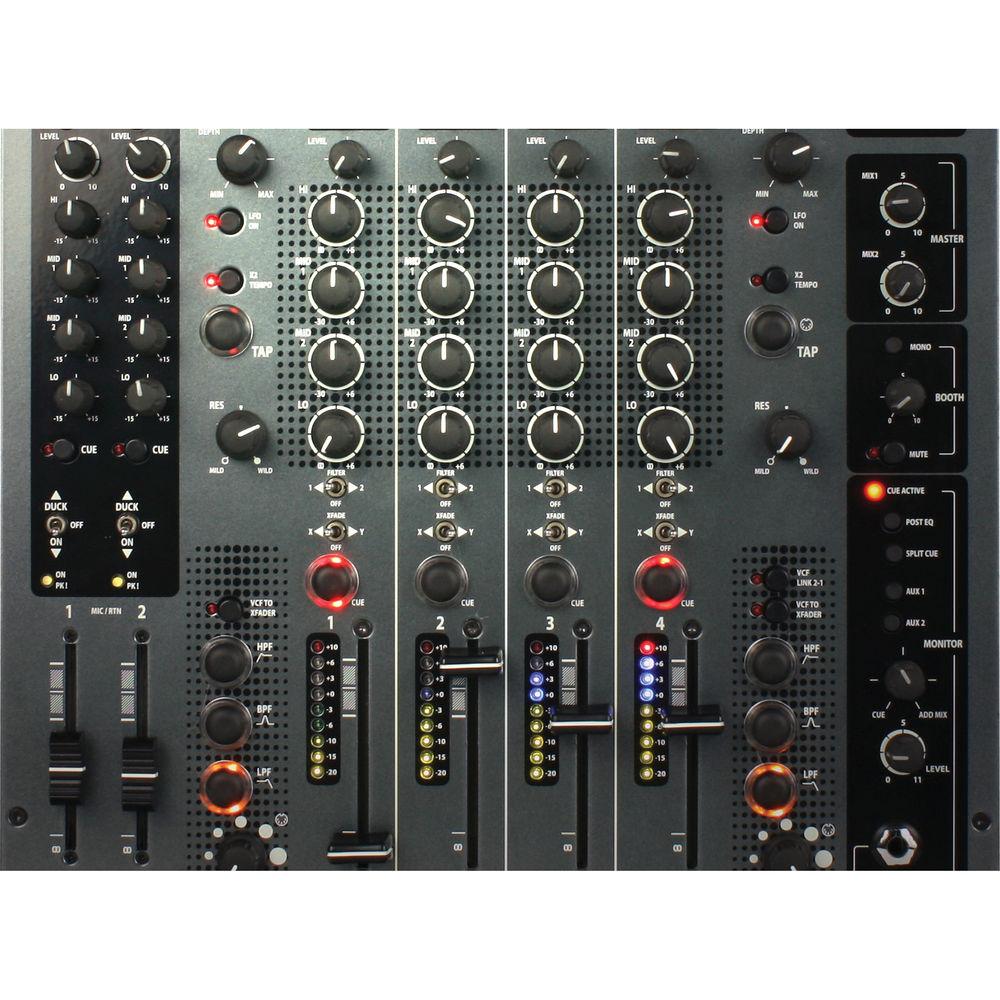

- Four Band EQ: High definition of frequency bands, with infinite kill on HF and LF; wide Q for cut, narrow Q for boost
- MIDI output from VCF 1+2, crossfader, LFO 2 (MIDI clock), dedicated data control and start/stop button
- Large light-pipe illuminated cue switches
- Nine-segment LED channel meters (3 color bulls eye)
- Crossfader and filter assign switches
- Smooth travel 60mm VCA faders
- Active Penny & Giles VCA crossfader allowing contour to be set from smooth to scratch mix
- Cue/Mix monitor balance control
- Two independent mix outputs
- Two rotary master level controls
- Dual stereo analogue VCF effects
- Three filter modes combine for more effects
- Independent frequency sweep controls
- Resonance control for subtle or wild effects
- Filter LFO depth and tempo controls
- Illuminated filter switches punch effect in or out
- Powerful headphones monitor with auto cue
- Headphones split cue and aux 1 and 2 monitoring
- Stereo music only booth monitor output
- Booth mono and mute switching
- Nine-segment LED main meters (3 color bulls eye)
- Mix 1 Output: Balanced +4 dBu XLR stereo
- Mix 2 Output: Impedance balanced line stereo
- Pre-fade recording output
In the Box Allen & Heath XONE:92 Professional Six-Channel Club/DJ Mixer Rackmount Hardware Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Allen & Heath XONE:92 Professional Six-Channel Club DJ Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

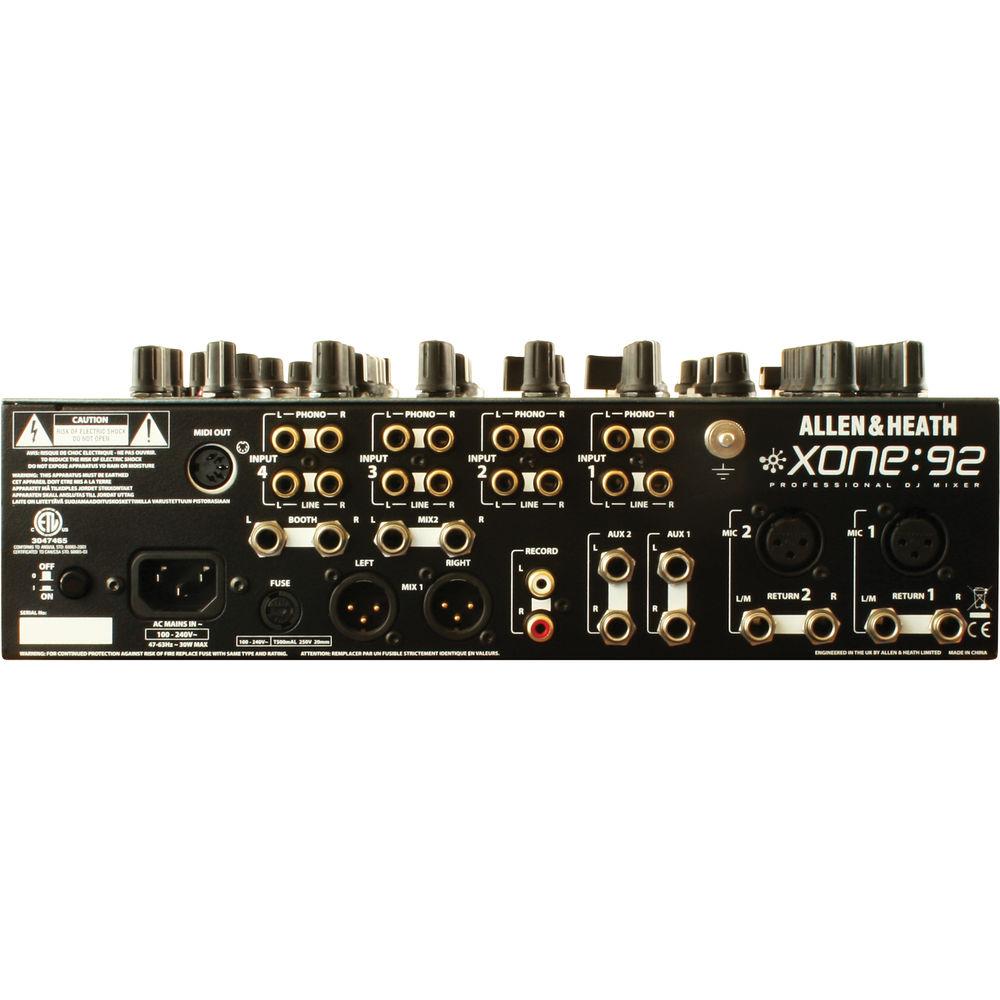

Technical parametersAllen & Heath Xone:92S Specs | Total # Of Channels | 6 | | Input Connectors | Turntable (Phono): 4 x stereo RCA
CD/Line: 4 x stereo RCA
Return/Line: 2 x stereo 1/4" / 6.35 mm
Microphones: 2 x balanced XLR | | Output Connectors | Mix Out 1 (Stereo): 2 x balanced XLR
Mix Out 2 (Stereo): 2 x 1/4" / 6.35 mm
Aux Out: 2 x stereo 1/4" / 6.35 mm
Booth Out (Stereo): 2 x 1/4" / 6.35 mm
Headphones: 1 x 1/4" / 6.35 mm TRS, 1 x 1/8" / 3.5 mm TRS | | Maximum Output Level | Mix 1: +22 dBu into 47 Ohms
Mix 2: +20 dBu into 47 Ohms
Aux: +21 dBu into 47 Ohms
Rec: +11 dBV into 600 Ohms | | Internal Headroom | Channels: +22 dB | | Frequency Response | 5 Hz to 30 kHz (±0.5 dB) | | THD + N | <0.003% at 1 kHz | | Crosstalk | Inter-Channel: >-93 dB | | EIN | Mic EIN (22 Hz to 22 kHz): -126 dB (150 Ohm source) | | Residual Noise | Mix 1: -99 dBu
Mix 2: -106 dBu
Aux: -90 dBu
Booth: -106 dBu
Rec: -96 dBu | | Mix Noise | Mix 1: -88 dBu (-90 dB S/N)
Mix 2: -90 dBu (-88 dB)
Aux: 88 dBu (-86 dB)
Booth: -89 dBu (-87 dB)
Rec: -96 dBu | | Meters | Channel Meters: Peak reading 9 LED (-20 to +10)
Main Meters: Peak reading 9 LED (-20 to +10) | | Equalizer | Mic EQ: 4-band
Hi: 10 kHz ±15 dB
Hi-Mid: 2.5 kHz ±15 dB
Lo-Mid: 250 Hz ±15 dB
Lo: 100 Hz ±15 dB
Music EQ: 4-band
Hi: 2.5 kHz +6 dB to -∞ (12 dB/Oct)
Hi-Mid: 2.0 kHz +6 to -30 dB
Lo-Mid: 350 Hz +6 to -30 dB
Lo: 250 Hz +6 dB to -∞ (12 dB/Oct) | | Faders | Channel: 2.4" / 60.0 mm VCA
Mix 1 & 2: Rotary
Crossfader: 1.8" / 45.0 mm VCA (replaceable) | | Filters | Dual stereo analog voltage-controlled filters (HPF, BPF, LPF) with resonance | | Enclosure | Steel | | Power | PSU: Internal switch mode
AC Mains: 100 to 240 VAC @ 50/60 Hz
Consumption 30 W max
Mains Fuse Rating: 100 to 240 VAC T500 mAL | | Dimensions (WxHxD) | 12.6 x 3.4 x 14.1" / 320.0 x 87.6 x 358.0 mm | | Weight | 13.0 lb / 5.9 kg | | | | Package Weight | 21.0 lb | | Box Dimensions (LxWxH) | 18.8 x 18.4 x 7.9" |
