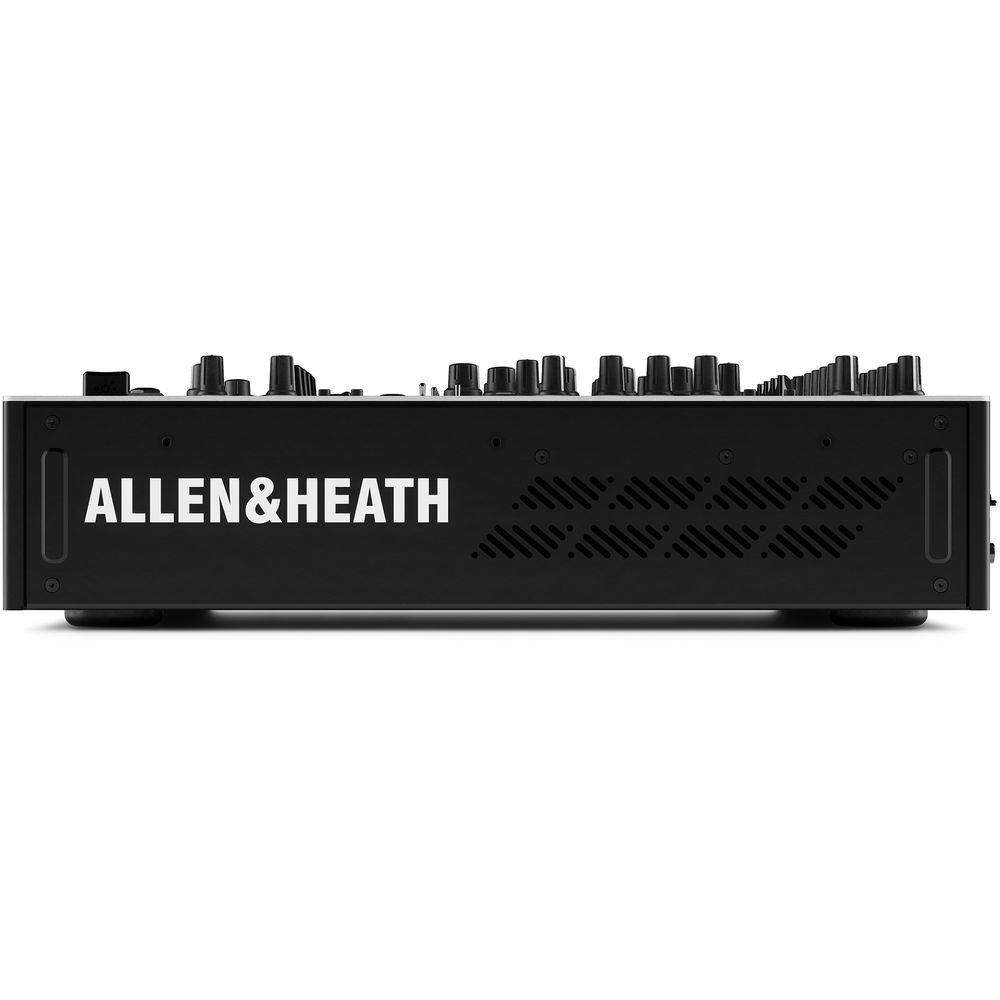

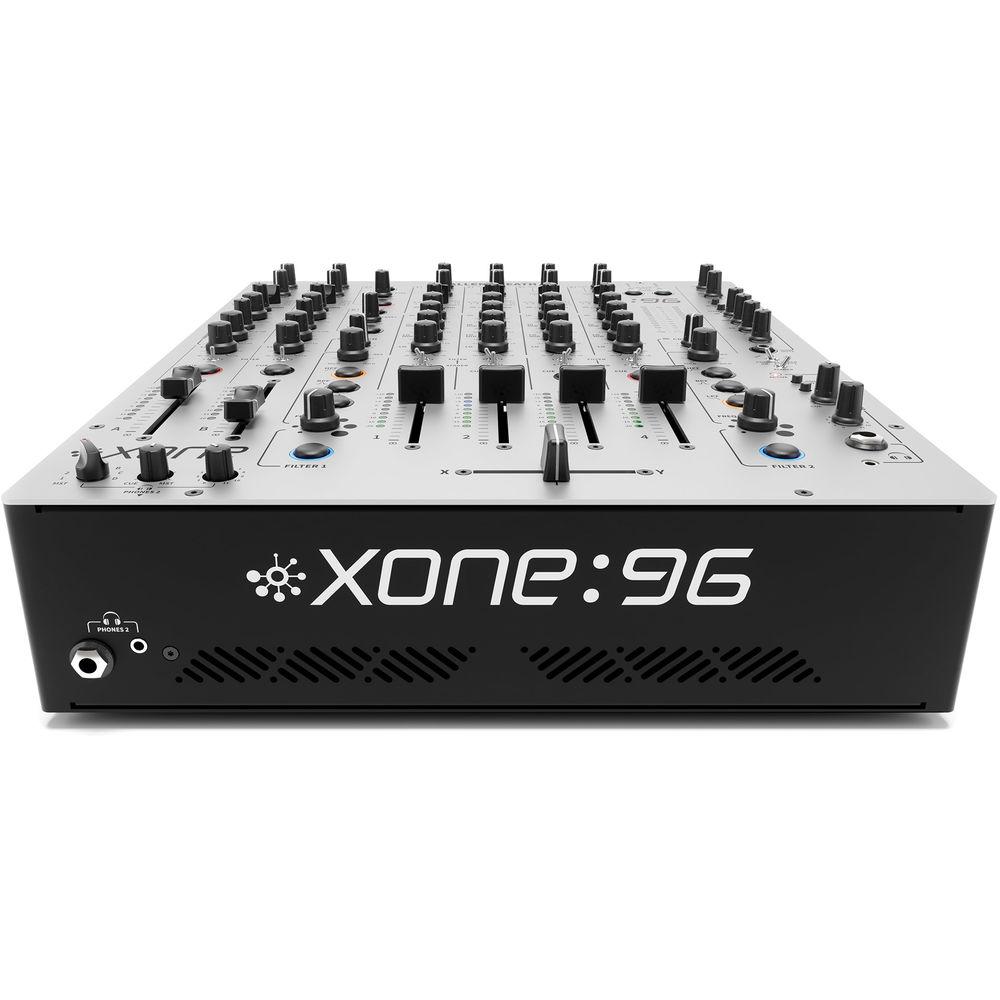

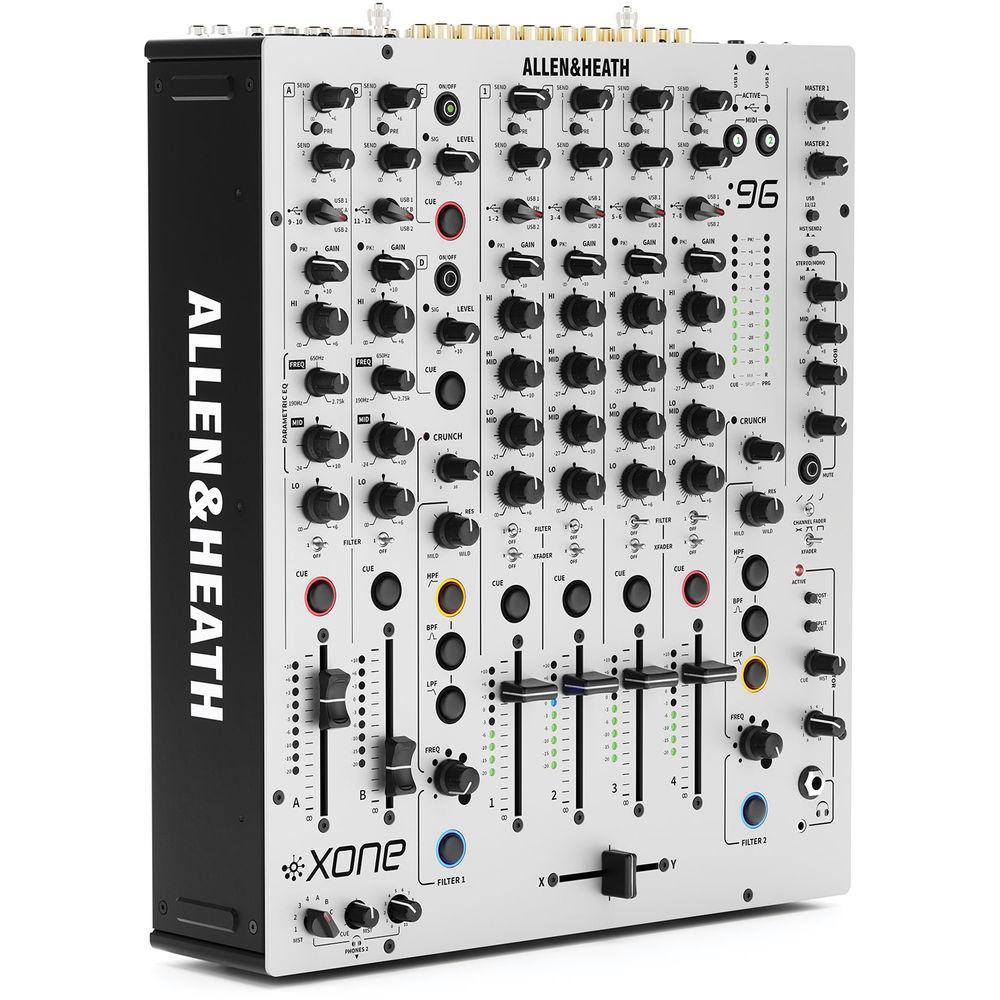

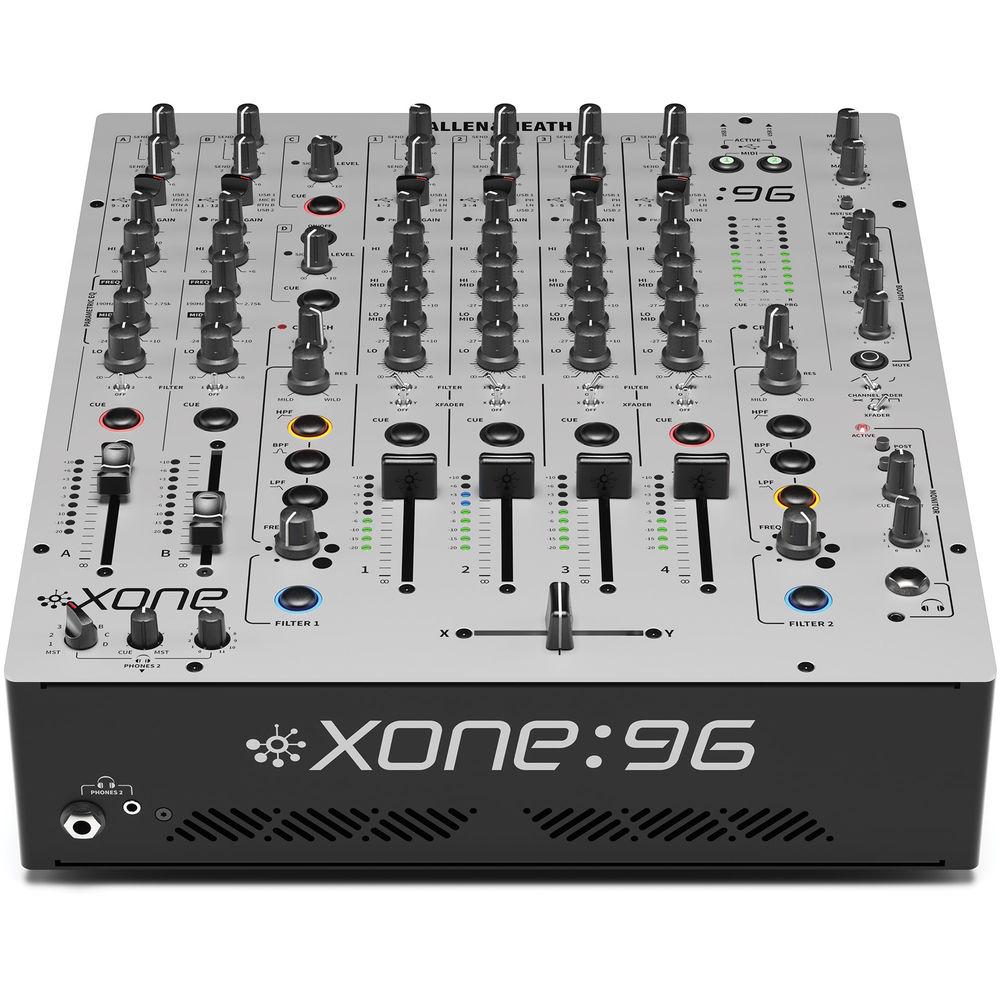

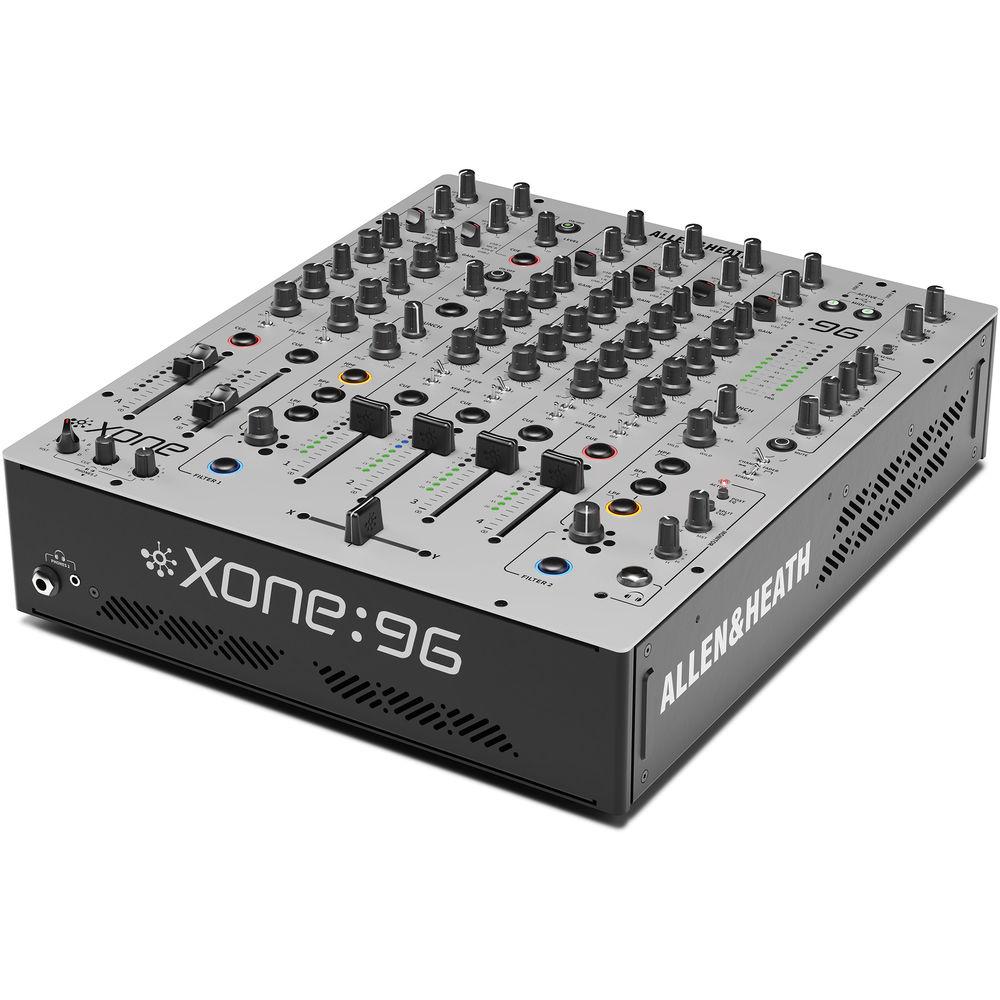

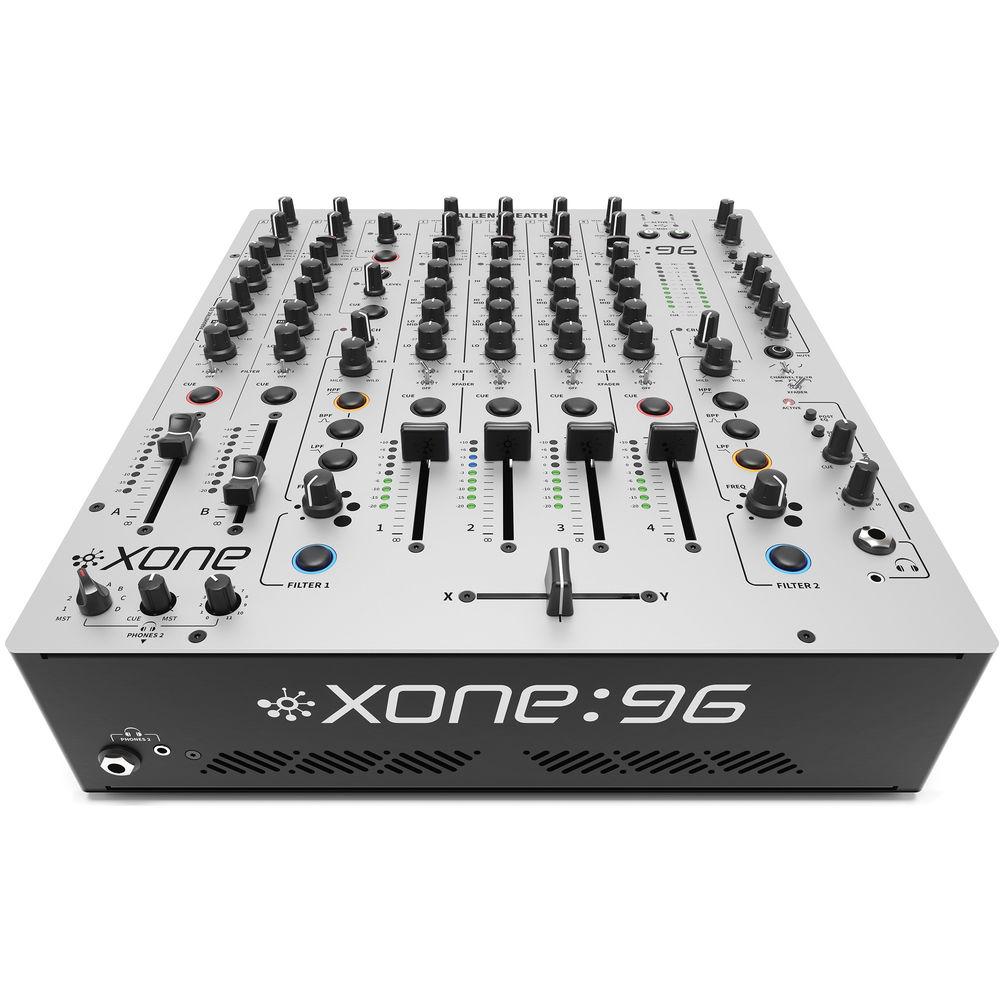

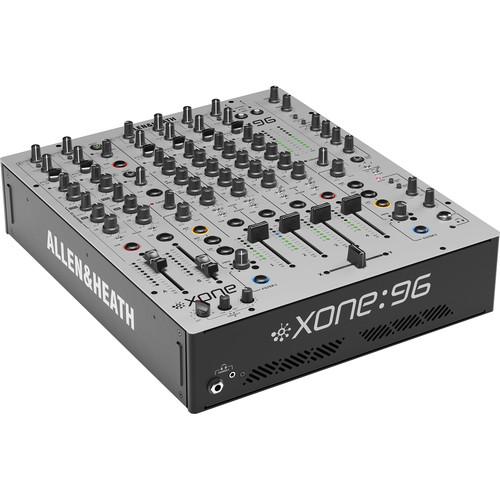

Product description Building upon the success of the XONE:92, the Allen & Heath XONE:96 is a flexible, professional six-channel DJ mixer designed for nightclub and venue installation. The XONE:96 is updated with a dual 32-bit/96kHz soundcard with two USB connections for up to 24 channels of I/O. There are two independent headphone amplifier circuits with 1/4" and 1/8" connections that, when combined with the two separate soundcards, allow for some serious back-to-back sessions and seamless DJ transitions. The classic dual VFC filters (LP, BP, HP) offer frequency cutoff and resonance controls and have been updated with a "Crunch" circuit, which offers controlled harmonic distortion (pre-filter).
Channels 1-4 offer four turntable (phono) and four line inputs on RCA connections, while channels A and B feature balanced XLR microphone inputs and stereo 1/4" line inputs. The XONE:96 is packed with sonic and performance enhancing features that include a powerful four-band EQ on channels 1-4 and a 3-band parametric EQ on channels A & B. Additional features include user replaceable 60mm VCA channel faders, and a replaceable innoFADER Mini crossfader.
Two mix outputs feature balanced XLR and unbalanced RCA connections, while the booth output features stereo 1/4" connections. A stereo pair of RCA outs is available for recording the mixer's outputs. Two stereo auxiliary sends and four stereo returns route signal to external effects and signal processors. The Allen & Heath XONE:96 is a professional DJ mixer and designed to surpass the expectations of the most demanding professional DJs. - Analog Remastered
-
- Xone:96 draws upon A&H's rich heritage to create an advanced analog mixer
- Engineered from the ground up to deliver the highly-regarded analog sound in a flexible, powerful format
- Xone:92 users will feel at home with the Xone:96’s layout

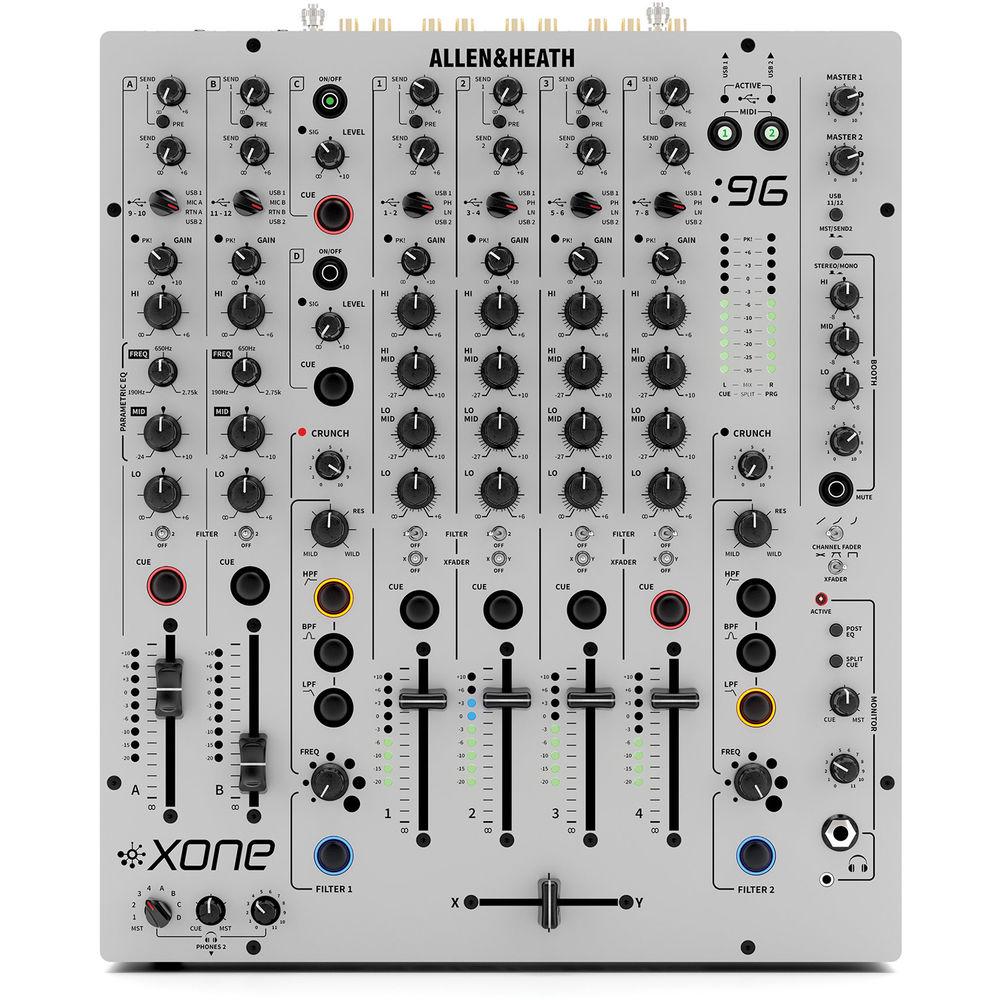

- All four main stereo input channels feature the latest incarnation of XONE 4-band EQ
- Stereo return channels A and B are fully-featured, and incorporate a 3-band parametric EQ design, giving you even more control over how you style your sound
- Dual 32-bit, 24-Channel Soundcard
-
- Two independent USB connections, each with 6 stereo inputs and outputs, offering a myriad of routing options
- Professional-quality 96 kHz/32-bit processing ensures the highest audio quality is passed between your laptops and the analog engine
- Additionally, the Xone:96 soundcard supports DVS control of Native Instruments’ Traktor Scratch Pro 2 DJ software right out of the box
- Dual XONE VCF Filters with Crunch
-
- Refined classic design, preserves its sonic signature while adding performance features
- Classic HPF, BPF, and LPF with resonance control and frequency sweep layout
- Crunch: Controlled harmonic distortion that sits pre-filter in the circuit, giving you a powerful new effect
- Route all six main channels to either filter
- Tuned for the Club
-
- Two independent headphone cue systems
- Dual soundcard allows for back-to-back performances and smooth set transitions
- Dedicated booth outputs with 3-band booth EQ for monitor tuning
- Complex, hybrid, multi-channel software setups will benefit from the simplicity of using a single USB computer connection
- Total Connectivity
-

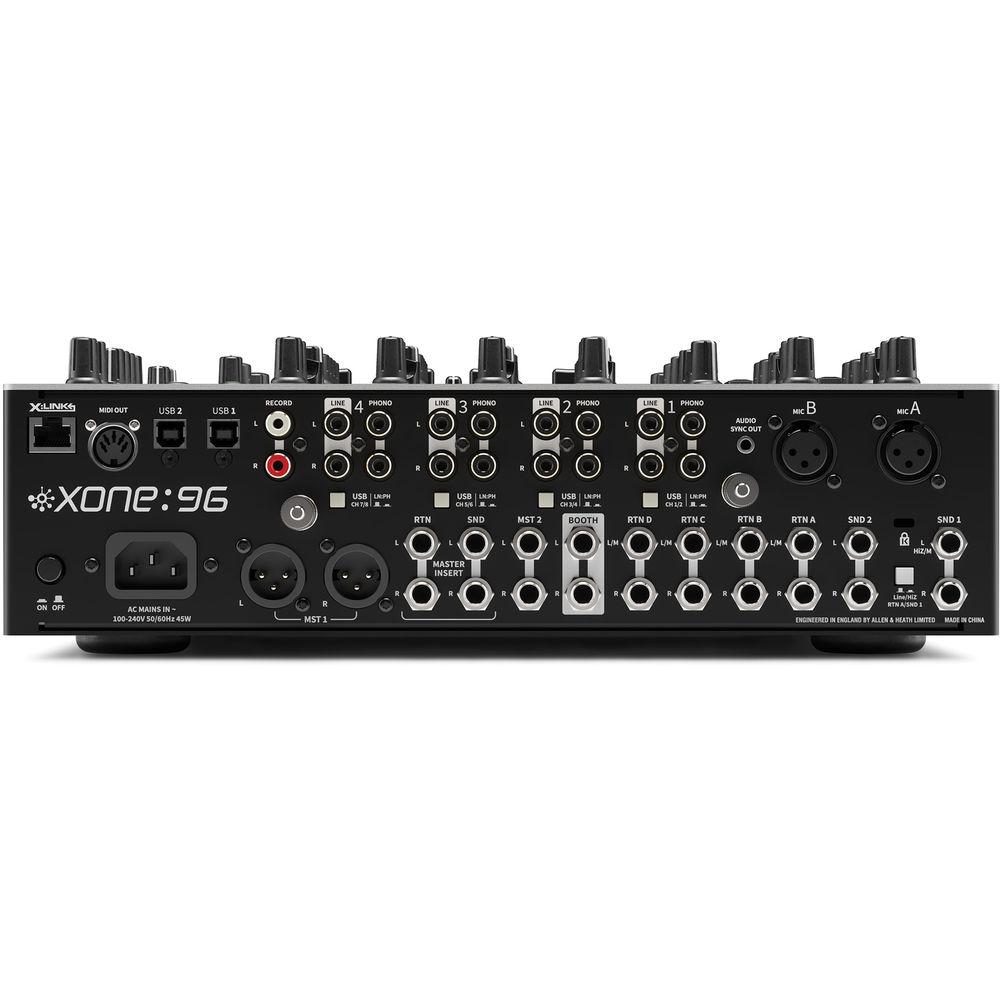

- Loaded rear panel with four channels of RCA line inputs and RCA phono inputs
- 2 stereo sends, 4 stereo returns, and a dedicated master insert.
- Send 1 is switchable from Line to Hi-Z level, making it ideal for incorporating instrument level effects, like classic guitar pedals
- X-Link allows you to hook up XONE:K series controllers to the XONE:96 for hands-on control over software, saving USB ports on your laptop
- MIDI I/O via USB 1 & 2 + additional MIDI output from 5-pin DIN connector
- Premium Faders
-
- Features custom-designed 60mm linear VCA channel faders
- Balanced for smooth performance and precise control
- Innofader Mini crossfader with complete fader cut adjustment for the sharpest cuts
In the Box Allen & Heath XONE:96 Professional 6-Channel Analog DJ Mixer Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Allen & Heath XONE:96 Professional 6-Channel Analog DJ Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAllen & Heath Xone:96 Specs | Type | Analog | | Channels | 6 + 2 | | Equalizer Options | Channel 1-4: 4-band EQ
Channel A-B: 3-band parametric EQ | | Sound Card | USB Soundcards:
Dual 24 channel (12 in / 12 out)
2 x hi-speed USB 2.0 / Mac class compliant
32-bit / 96 kHz
MIDI over USB | | Line Inputs | Channels 1-4: 4 x RCA
Channels A-D: 4 x 1/4" / 6.3 mm TRS mono/stereo | | Phono Inputs | Phono Input (1-4): 4 x RCA
LN/PH switch for DVS | | USB Input | USB Inputs: 6 x USB (CH 1-4 + CH A - CH B) | | Mic Input | 2 x XLR | | Outputs | Master Output: 2 x XLR (Balanced)
Master 2 Output: 2 x 1/4″ / 6.3 mm TRS (Balanced)
Booth Output: 2 x 1/4″ / 6.3 mm TRS (Balanced)
Record Output: 2 x RCA (Unbalanced) | | Inserts | Master Inserts:
Send: 2 x 1/4"/ 6.3 mm TRS
Return: 2 x 1/4"/ 6.3 mm TRS | | MIDI Out | 1 x 5-pin DIN | | Sends/Returns | Send: 2 x 1/4" / 6.3 mm TRS
Return: 4 x 1/4" / 6.3 mm TRS
1 x LN/Hi-Z Switch (SND1/RTNA) | | Filter | 2 x VCF filter
HPF / BPF / LPF
Adjustable frequency and resonance
Assignable CH 1-4 + CH A-B
Controlled harmonic signal distortion (Crunch) | | Link | X-Link: 1 x RJ45 | | Headphones | 2 x 1/4" / 6.3 mm
2 x 1/8" / 3.5 mm
Split cue monitoring | | Faders | Channel Faders: 2.4" / 60 mm VCA (replaceable)
Channel Fader Curve: 3 types
X-Fader: InnoFADER 1.8" / 45.0 mm VCA (replaceable)
X-Fader Curve: 3 types | | Meters | Channel Meters: 9-segment LED | | Ground Lug | 2 x earth ground terminals | | Headroom | 20 dB | | Power | 100 to 240 VAC, 50/60 Hz
Consumption: 45 W max
Mains Adapter: 3-pin IEC socket | | Dimensions (H x W x D) | 4.3 x 13.3 x 16.2" / 109 x 336 x 410 mm | | Weight | 15.4 lb / 7.0 kg | | | | Package Weight | 19.05 lb | | Box Dimensions (LxWxH) | 21.0 x 18.5 x 8.0" |
