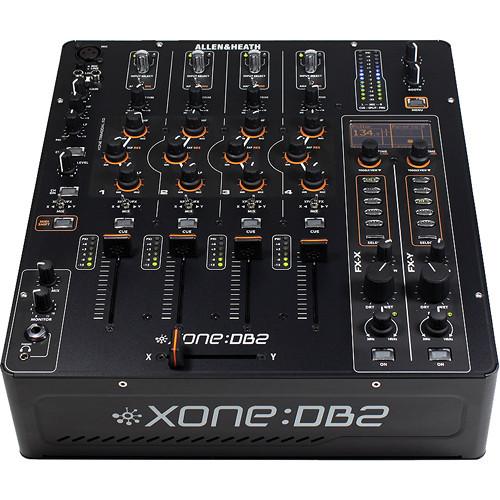

User Manual for Allen & Heath Xone:DB2 Professional DJ FX Mixer Click to enlarge the picture
Contents of the user manual for the Allen & Heath Xone:DB2 Professional DJ
- Product category: DJ Mixers Allen & Heath
- Brand: Allen & Heath
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Allen & Heath DJ Mixers
 |
User manual for the Allen & Heath Xone:DB2 Professional DJ contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Allen & Heath product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Allen & Heath user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Allen & Heath product will considerably shorten its lifespan!
|

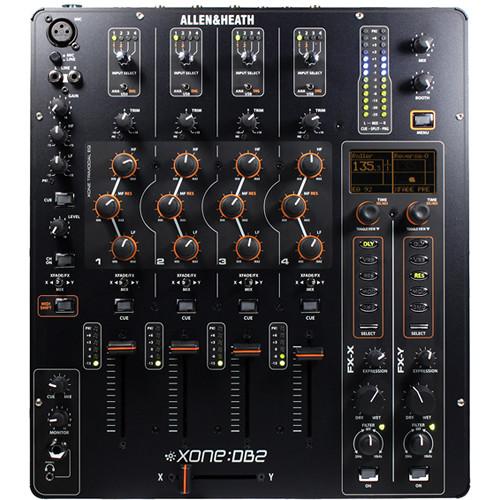

Product description The Allen & Heath Xone:DB2 Professional DJ FX Mixer delivers a wealth of professional features designed for discerning DJs, busy nightclub booths, mobile applications, broadcast studios, recording and more. Xone:DB2 borrows a pair of the powerful effects engines originally designed for the iLive pro touring system and originally and featured on the Xone:DB4 DJ mixer. The dual effects engine features more than 50 FX presets divided into 5 FX types. The effects types are divided as Delays & Loopers, Reverbs, Resonance, Modulation and Damage categories.The Xone:DB2 features a flexible input matrix for full routing control over analog and digital input sources to virtually any (or all) of the mixer's channels. The 4-channel layout delivers plenty of inputs for turntables and digital decks, and the Xone:DB2's USB soundcard supports 4 stereo sends and 4 stereo returns to computer-based audio software. In addition, the Xone:DB2 USB port supports MIDI control over DJ software such as Traktor Pro, Ableton Live and more. Twin DSP FX Engines - Massive FX Library
- Xone:DB2 has more than 50 FX presets divided into 5 FX types: Delays/loopers, Reverbs, Resonance, Modulation and Damage. These are studio grade FX
- Expression + Wet / Dry
- The Expression and Wet / Dry controls give intuitive, hands-on control for everything from subtle FX washes to total transformation.
- Editable FX Parameters
- For those who want to drill down further, individual FX variations can be further modified via the rotary controls under the screen.
Features - Input Matrix
- Each of DB2's four input channels has a full input matrix that can select from four analogue (Line or RIAA), four USB, or two digital sources, allowing for a wide variety of audio sources to be connected simultaneously. The same source can also be selected on multiple channels.
- Trimodal EQ
- Xone:DB2 adopts the fresh approach to creative equalization introduced on DB4. The EQs can be used in three different modes - standard asymmetric EQ (+6/-26dB), total Kill (+6dB/OFF with a 24dB/octave slope), or High-Pass/Low-Pass filter with adjustable resonance.
- Mic / Line Input
- With 2 band EQ, gain, cue and mix level and with full access to FX.
- High Visibility OLED Display
- Tested for maximum clarity whether playing on a sundrenched Balearic beach or in a Berlin basement, the high contrast display shows FX selection, BPM and menu setup functions.
- Lightweight Chassis
- Made for life on the road, Xone:DB2 is robust enough for touring, and its lightweight aluminum chassis helps ease the arm-ache.
- Integral Soundcard
- The built-in, multi-channel USB2 soundcard allows replay and recording from computer-based audio software for 4 stereo sends and 4 stereo returns.
- MIDI Control
- All controls (except Mic and Phone levels) send MIDI data. The mixer can double up as a MIDI controller for DJ software such as Traktor Pro and Ableton via the MIDI shift button, which allows the FX selection controls to send MIDI data without changing the mixer settings.
- X:LINK
- Xone:DB2 can integrate smoothly with the new Xone:K2 software controller via Allen & Heath's proprietary X:LINK protocol.
In the Box Allen & Heath Xone:DB2 Professional DJ FX Mixer Power Cord USB Cable Spare Knob Set Xone:DB2 Resource CD Rom Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Allen & Heath Xone:DB2 Professional DJ FX Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

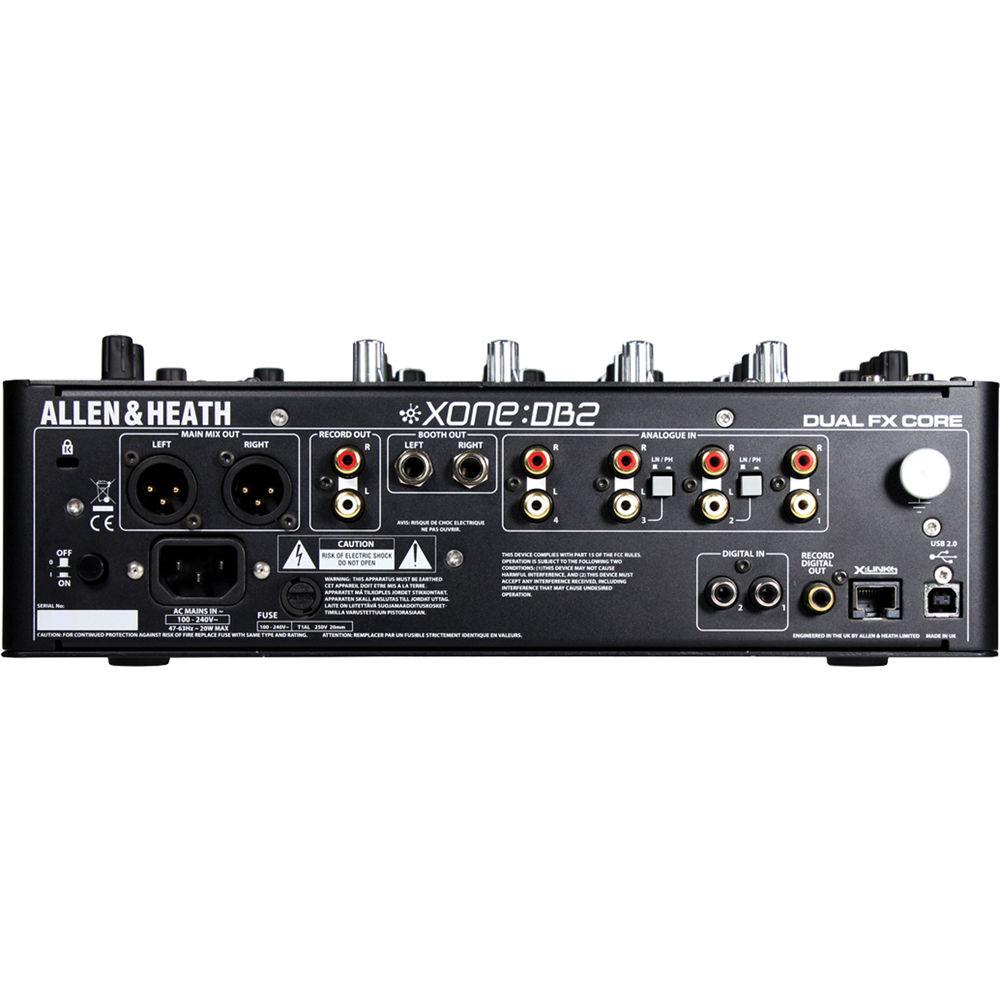

Technical parametersAllen & Heath Xone:DB2 Specs | Input Connectors | Channels: 4 x stereo RCA
Channels 2/3: Switchable between line and phono
Digital (Channel 1 & 2): 2 x S/PDIF coaxial | | Output Connectors | Main Mix (L/R): Stereo XLR
Booth (L/R): Stereo 1/4" / 6.35 mm
Record (L/R): Stereo RCA
Digital Record: 1 x S/PDIF coaxial | | Main Output | 0 VU = +4 dBu | | Monitor | 0 VU = +4 dBu | | Record Level | 0 VU = +4 dBu | | Max. Output Level | +16 dBu balanced | | Microphone Sensitivity | -20 dB to -50 dB | | Input Sensitivity | RIAA input sensitivity 1 kHz: 70 mV = 0 VU (200 mV max) | | Frequency Response | Line In to Mix Out: 10 Hz to 20 kHz (+0 / -0.5 dB) | | THD + N | Distortion at +0 VU Out: 0.003% (-90 dB) unweighted at 1 kHz line in | | Noise | 22 Hz to 22 kHz unweighted
Main Mix: -82 dBu (106 dB dynamic range)
Residual Mix: -94 dBu | | EQ Section | 3-Band EQ with 3 Modes (Trimodal): +6 / -26 dB or total kill | | A/D Conversion | 24-Bit
Analog/Digital Line-Up: +12 dBu = 0 dBFS | | DSP | Processing: 24-bit I/O, +48-bit EQ
Mix Bus: 56-bit fixed point | | Sampling Frequency | DSP Core Sampling Frequency: 48 kHz
USB Soundcard Sampling Frequency: 48 kHz
S/PDIF Input Sampling Frequency Range: 32 Hz to 192 kHz
S/PDIF Output Sampling Frequency: 48 kHz | | Dimensions (WxHxD) | Mixer: 12.6 x 3.5 x 14.0" / 320.0 x 88.0 x 358.0 mm
Mixer with Rack Ears: 19.0 x 3.5 x 14.0" / 483.0 x 88.0 x 358.0 mm | | Weight | Mixer: 11 lb / 5.1 kg | | | | Package Weight | 17.5 lb | | Box Dimensions (LxWxH) | 20.0 x 18.3 x 8.4" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 66 owners. Add your rating and experience with the product.
