Product description - Using the ZED-10 and ZED-10FX with AmpliTube X-GEAR Plug-in
- Allen & Heath Zed 10fx - NAMM 2010

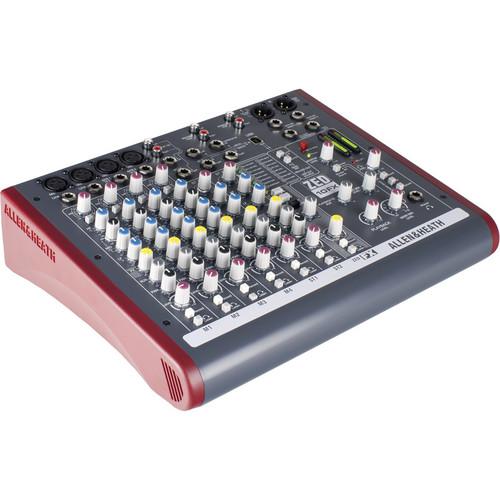

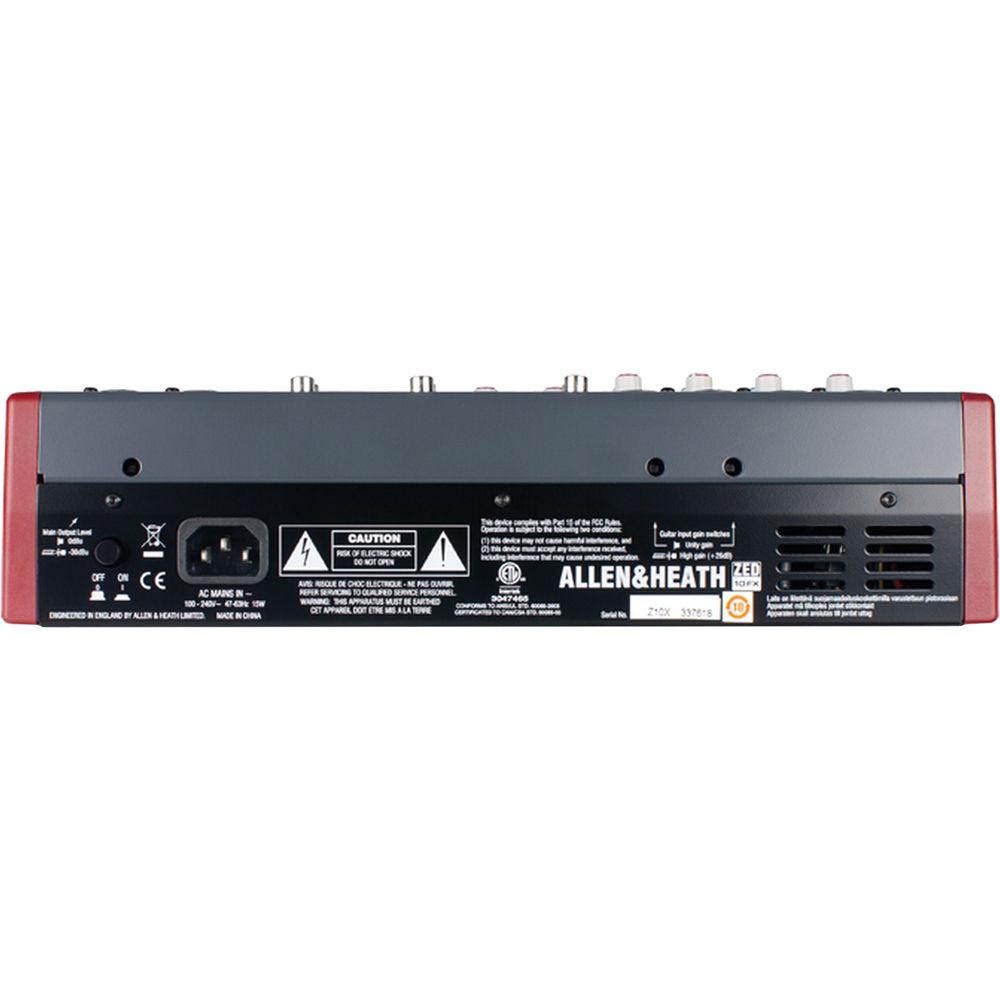

The multipurpose Allen & Heath ZED-10FX mixer combines four mic/line inputs, two Hi-Z guitar inputs, two stereo inputs for effect returns and portable music players or keyboards, a 24-bit effects processor, and a USB digital audio interface compatible with Mac and Windows computers—in a compact and portable package small enough for carrying to your gig, whether recording live or in the studio. It is also an excellent choice for small PA and AV rentals, and for installation in hotels, small churches, and schools.Channels 1 through 4 feature XLR mic inputs and low-noise preamps with 60 dB of gain. Channels 1 & 2 also offer balanced/unbalanced line inputs while 3 & 4 feature Hi-Z inputs with Class-A FET circuits and 26 dB boost switches, designed to add tube-like warmth to your guitar and other instruments. All four mono channels are equipped with responsive, 3-band swept-mid EQs, which utilize MusiQ technology to optimize the Q factor proportional to the amount of boost or attenuation.The built-in DSP engine offers sixteen effects to choose from, ranging from classic reverbs and delays to cascaded delays with reverbs and shimmering flanger and chorus effects. Delay tempo can be set on the fly using the convenient TAP button. The ZED-10FX offers a set of FX and aux sends, 48V microphone phantom power, XLR main stereo outputs with inserts, a comprehensive monitoring section with a headphone output, and a separate monitor speaker output. - Key Features
-
- Portable mixer for small band mixing live or in the studio
- 24-bit effects processor with 16 time-delay effects—reverbs, delays, flanger, chorus, and more
- Four mic/line inputs, two with Class-A FET high-impedance preamps
- Two Hi-Z guitar/instrument inputs with boost switch and tube-like warmth
- XLR L/R main stereo outputs with inserts
- USB digital audio interface for recording to Mac or Windows computer
- Use USB with FX loop to access effect plug-ins running on a computer
- Flexible monitoring section with headphone and speaker feed outputs
- Neutrik XLR and 1/4" connectors
- Responsive 3-band, swept-mid EQ with MusiQ technology
- Aux and FX sends
- Separately switched stereo bus
- Sound image pans
- Illuminated PFL indicator
- Stereo returns & playback
- All inputs with level control knob
- Headphones output
- 12-bar meters
- Two stereo inputs with MP3-player compatibility
- Separate 2-track record outputs
- Stereo playback input for 2-track replay
- Stereo monitor outs
- 48V microphone phantom power
- DI level switching for sub mixing
- Output & Send Options
-
- Main mix (L/R)—post-master Level
- Aux + FX bus—aux is a pre-fade send, FX is a post-fade send
- Record Bus (L/R)—separate stereo bus from main mix
- Return Options
-
- Stereo Input 1 (RCA & 1/4")
- Stereo Input 2 / Playback Input (USB & 1/4")
In the Box Allen & Heath ZED-10FX Multipurpose Mini Mixer with Effects Power Cord 1 Year Warranty User Manual PDF 5.2mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Allen & Heath ZED-10FX Multipurpose Mini Mixer with Effects in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAllen & Heath ZED-10FX Specs | | | Mic Input | 4 x XLR, balanced | | Line In | Channels 1 & 2: 2 x 1/4" / 6.3 mm, balanced or unbalanced (mono)
Stereo Input 1: 2 x 1/4" / 6.3 mm (balanced) or RCA (unbalanced) (L/R)
Stereo Input 2: 2 x 1/4" / 6.3 mm, balanced or unbalanced (L/R) | | Instrument Input | 2 x 1/4" / 6.3 mm, Hi-Z | | Inserts | Stereo Bus, Send/Return: 2 x 1/4" / 6.3 mm | | Main Output | 2 x XLR, balanced (L/R) | | Effect Sends | 1 x 1/4" / 6.3 mm FX output (post-fade send)
1 x 1/4" / 6.3 mm Aux output (pre-fade send) | | Headphone | 1 x 1/4" / 6.3 mm, stereo | | Record Output | 2 x RCA | | Monitor Output | 2 x RCA | | USB | USB stereo I/O | | | | DSP | 48 kHZ / 24-bit | | Controls | Tap button
Up/down button | | | | Input | Mono Channel (XLR) Input: -10 to -60 dBu (nominal), +11 dBu (maximum)
Mono Channel Line Input (1/4" Jack): +10 to -40 dBu, +31 dBu (maximum)
Stereo Input (1/4" Jack or RCA): 0 dBu (nominal), control = Off to +15 dB | | Output | L/R XLR Outputs, Normal/DI Output: 0 dBu / -30 dBu, +21 dBu / -9 dBu (maximum)
Aux and FX Outputs (1/4" Jacks): 0 dBu (nominal), +21 dBu (maximum)
Record and Monitor Outputs (RCA Jacks): 0 dBu (nominal), +21 dBu (maximum) | | | | Mic Input | Mic In to Mix L/R Out, 30 dB Gain: +0.5/-1 dB, 10 Hz to 30 kHz | | Line Input | Line In to Mix L/R Out, 0 dB Gain: +0.5/-1 dB, 10 Hz to 25 kHz | | Stereo Input | Stereo In to Mix L/R Out: +0.5/-1 dB, 10 Hz to 30 kHz | | | | Mic Input | Mic In to Mix L/R Out, 10 dB Gain, 1 kHz, +10 dBu Out: 0.002%
Mic In to Mix L/R Out, 30 dB Gain, 1 kHz: 0.01% | | Line Input | Line In to Mix L/R Out, 0 dB Gain, 0 dBu, 1 kHz: 0.003% | | Stereo Input | Stereo In to Mix L/R Out, 0 dB Gain, +10 dBu, 1 kHz: 0.002% | | Guitar Input | Guitar In to Mix L/R Out, 0 dBu, Boost Out: 0.015%
Guitar In to Mix L/R Out, 0 dBu, Boost In: 2% second harmonic | | | | Analog | Analog Headroom from Nominal (0 Vu): 21 dB | | USB | USB I/O Headroom from Nominal (0 Vu): 14 dB | | | | Microphone | Mic Pre EIN at Maximum Gain, 150 Ohm Source Impedance, 22 Hz to 22 kHz: -127 dBu | | Mix L/R | Mix L/R Out, L/R Faders = 0, Levels Minimum, 22 Hz to 22 kHz: -96 dBu
Mix L/R Out, L/R Faders = 0, Levels Minimum, 22 Hz to 22 kHz: -96 dBu | | | | USB Compliance | USB Audio In/Out: USB 1.1-compliant, 16-bit | | Sample Rate | 32, 44.1, 48 kHz | | | | Phantom Power | 48 V | | Dimensions (W × H × D) | 13.2 x 3.7 x 10.8" / 336 x 95 x 275 mm | | Weight | 7.3 lb / 3.3 kg | | | | Package Weight | 10.4 lb | | Box Dimensions (LxWxH) | 15.8 x 13.0 x 6.9" |
