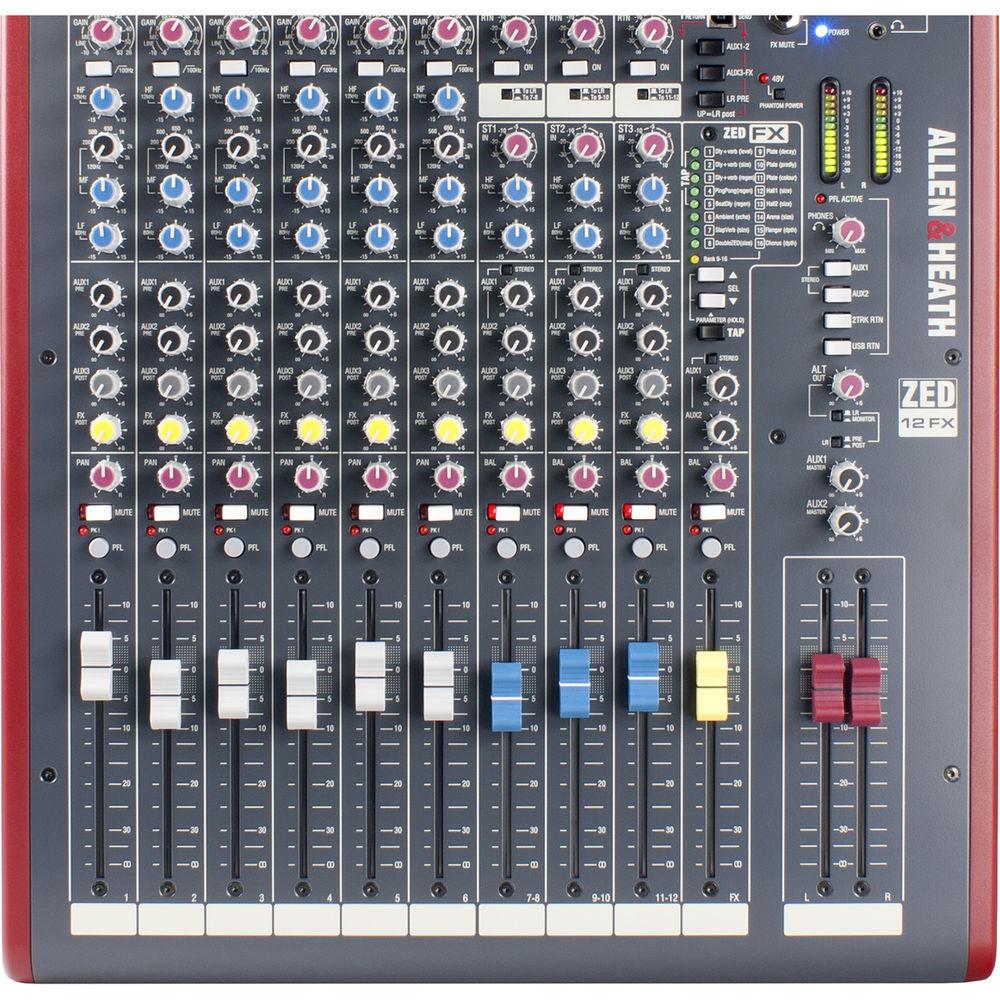

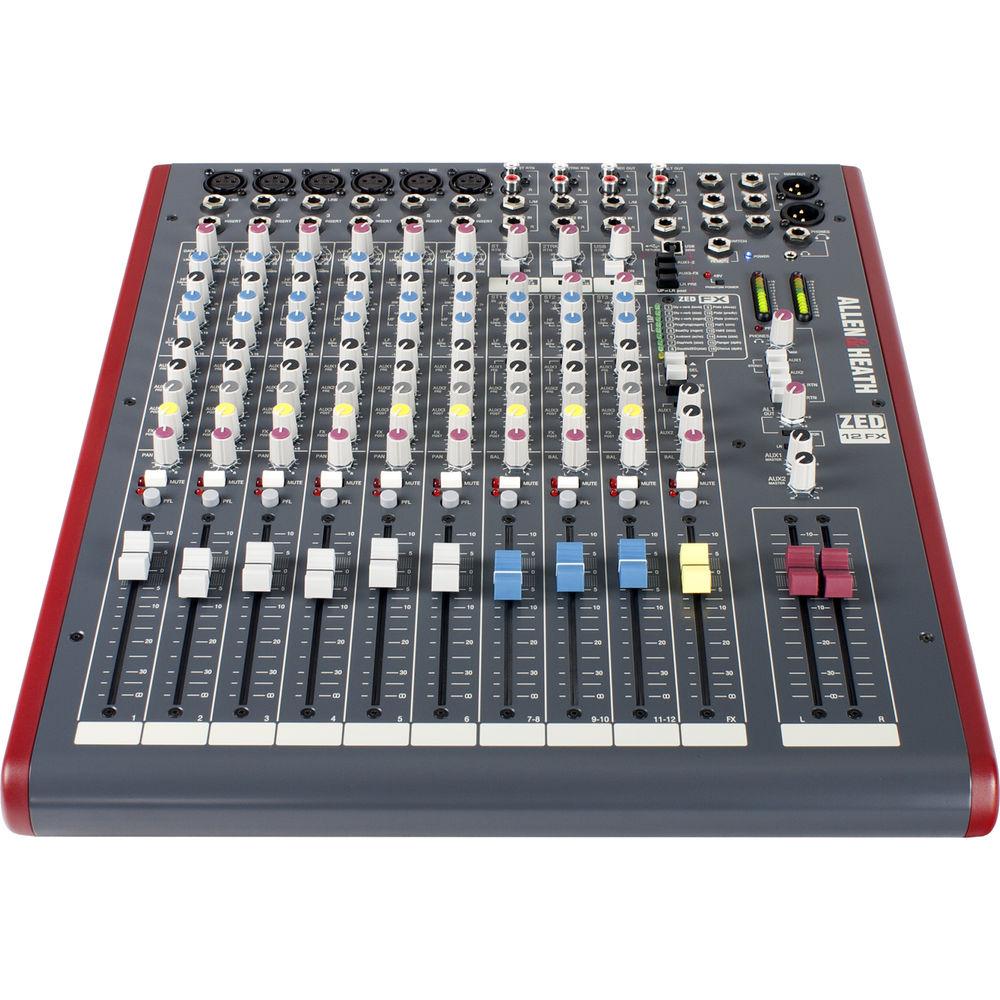

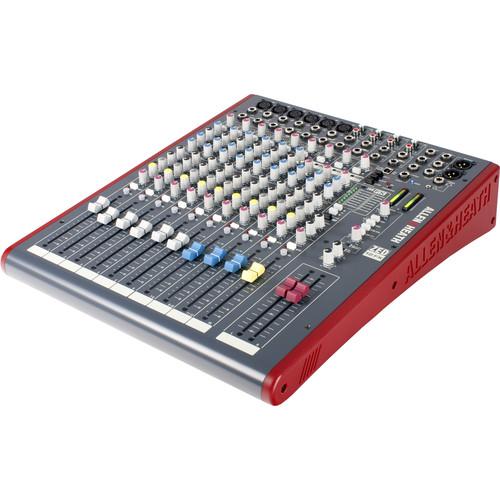

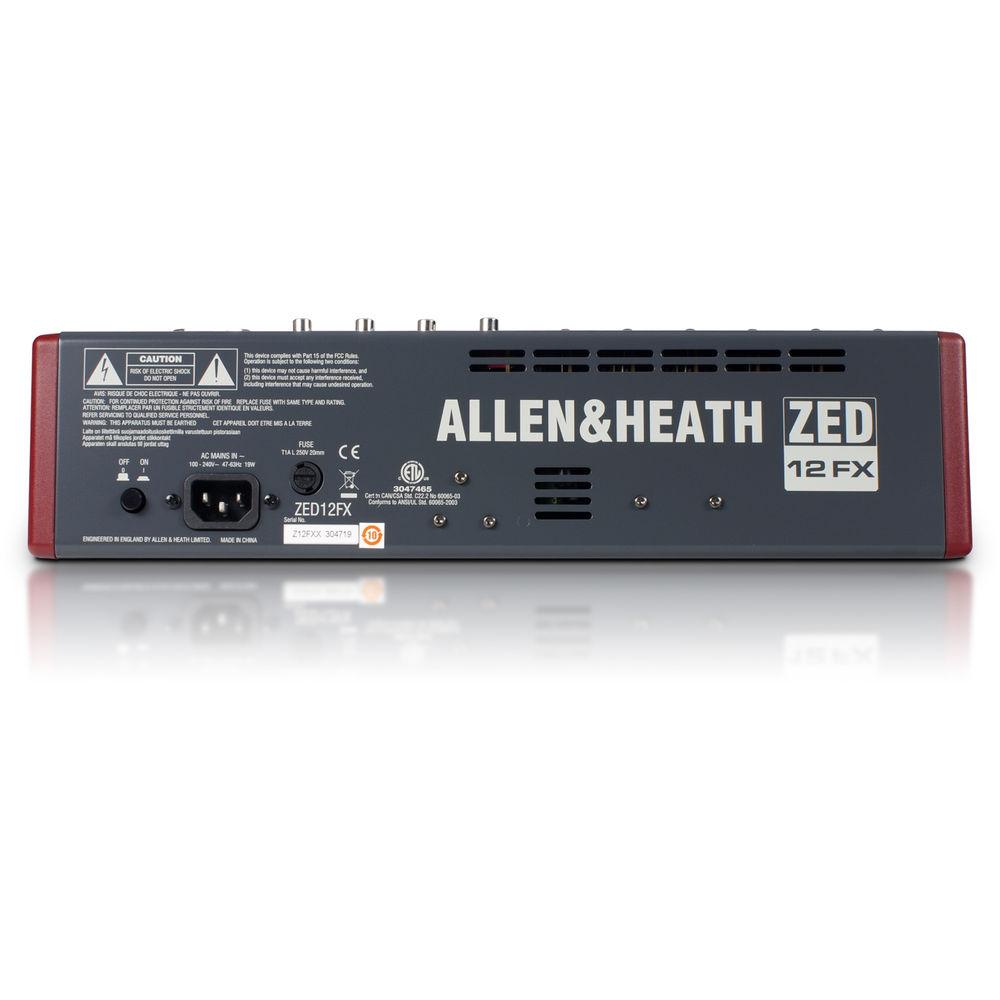

User Manual for Allen & Heath ZED-12FX 12-Channel Multipurpose USB Mixer with Effects Click to enlarge the picture
Contents of the user manual for the Allen & Heath ZED-12FX 12-Channel Multipurpose
- Product category: Analog Recording Mixers Allen & Heath
- Brand: Allen & Heath
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Allen & Heath Analog Recording Mixers
 |
User manual for the Allen & Heath ZED-12FX 12-Channel Multipurpose contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Allen & Heath product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Allen & Heath user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Allen & Heath product will considerably shorten its lifespan!
|
Product description The multipurpose Allen & Heath ZED-12FX mixer combines six mic/line inputs, three stereo inputs for effect returns and portable music players or keyboards, a 24-bit effects processor, and a USB digital audio interface compatible with Mac and Windows computers-in a compact and portable package small enough for carrying to your gig, whether recording live or in the studio.Channels 1 through 6 can be accessed through balanced XLR or 1/4" mic/line inputs and feature low-noise DuoPre preamps with 69 dB of gain. They are also equipped with responsive, 3-band swept-mid EQs, which utilize MusiQ technology to optimize the Q factor proportional to the amount of boost or attenuation.The built-in DSP engine offers sixteen effects to choose from, ranging from classic reverbs and delays to cascaded delays with reverbs and shimmering flanger and chorus effects. Delay tempo can be set on the fly using the convenient TAP button.The ZED-12FX offers a set of four Aux/FX sends, 48V microphone phantom power, XLR main stereo outputs with inserts, a comprehensive monitoring section with two headphone outputs, and a separate monitor speaker output. - Key Features
-
- Portable, multipurpose mixer for groups who need to travel light
- 6 x mono channels with channel inserts
- 3 x stereo channels with 2-band EQ and inputs for line-level audio signals
- USB digital audio interface for stereo recording to Mac or Windows computer
- Wide-gain DuoPre mic/line preamps
- 24-bit effects processor with 16 time-delay effects—reverbs, delays, flanger, chorus, and more
- Responsive 3-band, swept-mid EQ with MusiQ technology
- Flexible monitoring section with 1/4" and 3.5mm headphone outputs
- XLR L/R main stereo outputs with inserts
- Mono output jack with mono sum of the main L/R post-fade signals
- Neutrik XLR and 1/4" connectors
- 2 x pre-fade Aux sends
- 1 x post-fade Aux send
- 1 x FX send for built-in effects
- Illuminated mute buttons
- Sound image pans
- Illuminated PFL and peak-warning indicator
- ALPS 100mm faders
- Stereo returns & playback
- All inputs feature gain control
- 48V microphone phantom power
- 12-bar meters
- Mono/stereo function on auxes 1 & 2
- Stereo monitor outs
- Alt stereo output level control for connecting a pair of monitors separate from the main output speakers
- Rack ears available separately
In the Box Allen & Heath ZED-12FX 12-Channel Multipurpose USB Mixer with Effects USB Cable Power Cable Limited 1-Year Warranty User Manual PDF 15.9mbcsaffsdwevffassesdtrfydeutua Table of Contents
|
Upload User Manual
Have you got an user manual for the Allen & Heath ZED-12FX 12-Channel Multipurpose USB Mixer with Effects in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAllen & Heath ZED-12FX Specs | | | Mic Inputs | 6 x XLR, balanced | | Line In | Channels 1 to 6: 6 x 1/4" / 6.3 mm, balanced or unbalanced (mono)
Stereo Input 1 (CH 7/8): 2 x 1/4" / 6.3 mm, balanced or unbalanced (L/R)
Stereo Input 2 (CH 9/10) 2 x 1/4" / 6.3 mm, balanced or unbalanced (L/R)
Stereo Input 3 (CH 11/12) 2 x 1/4" / 6.3 mm, balanced or unbalanced (L/R)Stereo RTN: 2 x RCA
2-Track RTN: 2 x RCA | | Inserts | Channels 1 to 6, Send/Return: 6 x 1/4" / 6.3 mm
Stereo Bus, Send/Return: 2 x 1/4" / 6.3 mm | | Main Output | 2 x XLR, balanced (L/R)
1 x 1/4" / 6.3 mm mono sum of main L/R (post-fade signals) | | Effect Sends | 2 x 1/4" / 6.3 mm Aux outputs (pre-fade send)
1 x 1/4" / 6.3 mm Aux output (post-fade send)
1 x Internal FX send to onboard effects, post-fade send | | Headphone | 1 x 1/4" / 6.3 mm, stereo
1 x 1/8" / 3.5 mm, stereo | | Record Output | Record Output: 2 x RCA
Alt Output: 2 x RCA | | USB | USB stereo I/O | | | | DSP | 48 kHz / 24-bit | | Controls | Tap button
Up/down button | | | | Input | Mono Channel (XLR) Input: +6 to -63 dBu (nominal), +17 dBu (maximum)
Mono Channel Line Input (1/4" Jack): +10 to -26 dBu, +30 dBu (maximum)
Stereo Input (1/4" Jack or RCA): 0 dBu (nominal), control = Off to +10 dB | | Output | L/R and Mono XLR Outputs: 0 dBu (nominal), +21 dBu (maximum)
Aux Outputs (1/4" Jacks): 0 dBu (nominal), +21 dBu (maximum)
Alt Outputs (RCA Jacks): 0 dBu (nominal), +21 dBu (maximum)
Rec Outputs (RCA Jacks): 0 dBu (nominal), +21 dBu (maximum) | | | | Mic Input | Mic In to Mix L/R Out, 30 dB Gain: +0.5/-1 dB, 20 Hz to 20 kHz | | Line Input | Line In to Mix L/R Out, 0 dB Gain: +0.5/-1 dB, 10 Hz to 30 kHz | | Stereo Input | Stereo In to Mix L/R Out: +0.5/-1 dB, 10 Hz to 30 kHz | | | | Mic Input | Mic In to Mix L/R Out, 0 dB Gain, 1 kHz, +10 dBu Out: 0.004%
Mic In to Mix L/R Out, 30 dB Gain, 1 kHz: 0.014% | | Line Input | Line In to Mix L/R Out, 0 dB Gain, 0 dBu, 1 kHz: 0.005% | | Stereo Input | Stereo In to Mix L/R Out, 0 dB Gain, +10 dBu, 1 kHz: 0.003% | | | | Analog | Analog Headroom from Nominal (0 Vu): 21 dB | | USB | USB I/O Headroom from Nominal (0 Vu): 14 dB | | | | Microphone | Mic Pre EIN at Maximum Gain, 150 Ohm Source Impedance, 22 Hz to 22 kHz: -127 dBu | | Mix L/R | Mix L/R Out, L/R Faders = 0, Levels Minimum, 22 Hz to 22 kHz: -88 dBu | | | | USB Compliance | USB Audio In/Out: USB 1.1-compliant, 16-bit
Mac, Windows | | Sample Rate | 32, 44.1, 48 kHz | | | | Phantom Power | 48 V, switchable | | Power | 100-240 V, 47/63 Hz, 40 W (maximum) | | Dimensions (L x D x H) | 15.2 x 18.3 x 3.9" / 38.6 x 46.5 x 9.9 cm | | Weight | 14.3 lb / 6.5 kg | | | | Package Weight | 20.0 lb | | Box Dimensions (LxWxH) | 25.0 x 21.0 x 10.0" |
