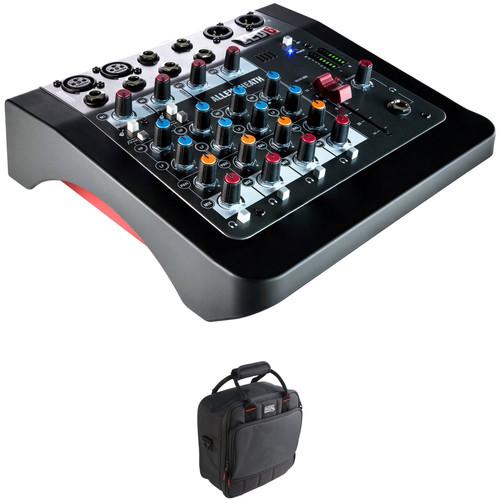

Product description This B&H Kit combines the Allen & Heath ZED-6 Compact Analog Mixer with a Gator Cases Padded Mixer Bag to create a flexible mixer setup with protection from on-the-road wear and tear. - Allen & Heath Allen & Heath ZED-6 Compact Analog Mixer Designed to bring the signature Allen & Heath sensibility to a compact and portable frame, the ZED-6 is a six-input analog mixer. Solo musicians, lectures, and small bands alike can find this unit suitable for modest venues, hotels, churches, and schools.
The ZED-6 is crafted with preamps modeled on the Allen & Heath GS2-R24, and, as such, aims to provide low noise, warmth, and a vast expanse of headroom. On-board two-band MusiQ EQs also come standard with the unit, as well as 48V phantom power for the two mic inputs. Guitar players using the ZED-6 need not lug an extra DI box around, as the unit features two high-impedance guitar inputs. Channels three and four host dual 1/4" stereo line-level inputs.
You can monitor the outputs of the mixer either through headphones or through two XLR outputs, utilizing an eight-LED meter all the while. If you'd like to hear a sound source before placing it within the audible mix, simply press the PFL button located at the bottom of each channel strip. - Key Features
-
- 2x Mic/Line inputs with separate XLR and TRS jack sockets
- 2x Stereo inputs with TRS jack sockets
- 2x Guitar DI high-impedance inputs, eliminating the need for DI boxes
- High-pass filter for cleaning up unwanted low-frequency noise
- 2-band EQ for tonal shaping
- 60mm smooth travel fader on main mix
- XLR main outputs
- 8x LED signal metering
- 48V Phantom Power for condenser mics
- Internal power supply
- Gator Cases G-MIXERBAG-1212 Padded Nylon Mixer/Equipment Bag (12.0 x 12.0 x 5.5") The Gator Cases G-MIXERBAG-1212 is a padded nylon mixer/equipment bag designed to safely house a mixer or other equipment for musicians, audio engineers, DJs, and A/V techs in live stage applications, clubs, and mobile-recording rigs. The durable nylon exterior guards against moisture and dust while the 10mm dual-layer padding and tricot interior lining keep your gear snug and safe. External storage pockets with integrated cord management straps are ideal for accessories such as cables, adapters, and tools. The webbed carry handles and removable shoulder strap enable versatile and comfortable transport. Zipper closure ensures easy access when packing and unpacking your valuables.
- 10mm dual-layer padded protection
- Protective tricot-lined interior
- Removable shoulder strap and comfortable webbed handles
- External storage pockets with cord management
UPC: 716408536965 In the Box - Allen & Heath ZED-6 Compact Analog Mixer
- Limited 1-Year Warranty
- Gator Cases - G-MIXERBAG-1212 Padded Nylon Mixer/Equipment Bag (12.0 x 12.0 x 5.5")
Table of Contents
|
Upload User Manual
Have you got an user manual for the Allen & Heath ZED-6 Mixer Kit with Padded Gig Bag in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Allen & Heath Allen & Heath ZED-6 Compact Analog Mixer
| Total # Of Inputs | 6x | | Mic/Line Inputs | 2x XLR (Channels 1 and 2)
2x 1/4" TRS (Channels 1 and 2) | | Stereo Line Inputs | 4x 1/4" TRS (Channels 3 and 4, Stereo) | | Outputs | 2x XLR Main Outs
1x 1/4" Headphone Out | | EQ Section | 4x LF EQ at 80 Hz
4x HF at 12 kHz
2x HPF at 100 Hz | | Trim/Gain Control | 4x | | Channel Level Controls | 4x | | Phantom Power | Yes | | Metering | Stereo Left and Right | | Power Supply | 100 - 240 VAC, 50/60 Hz @ 12 W | | Dimensions (H x W x D) | 3.5 x 9.8 x 9.3" / 88.9 x 246.4 x 236.2 mm | | Weight | 2.8 lb / 1.3 kg | | | | Box Dimensions (LxWxH) | 14.7 x 11.7 x 5.3" | - Gator Cases G-MIXERBAG-1212 Padded Nylon Mixer/Equipment Bag (12.0 x 12.0 x 5.5")
| Material | Nylon exterior
Tricot-lined interior | | Type of Closure | Zipper | | Interior Dimensions | 12.0 x 12.0 x 5.5" / 30.5 x 30.5 x 14.0 cm | | Exterior Dimensions | 13.0 x 13.0 x 5.5" / 33 x 33 x 14 cm | | Weight | 1.8 lb / 0.8 kg | | | | Box Dimensions (LxWxH) | 17.45 x 15.55 x 4.75" |
