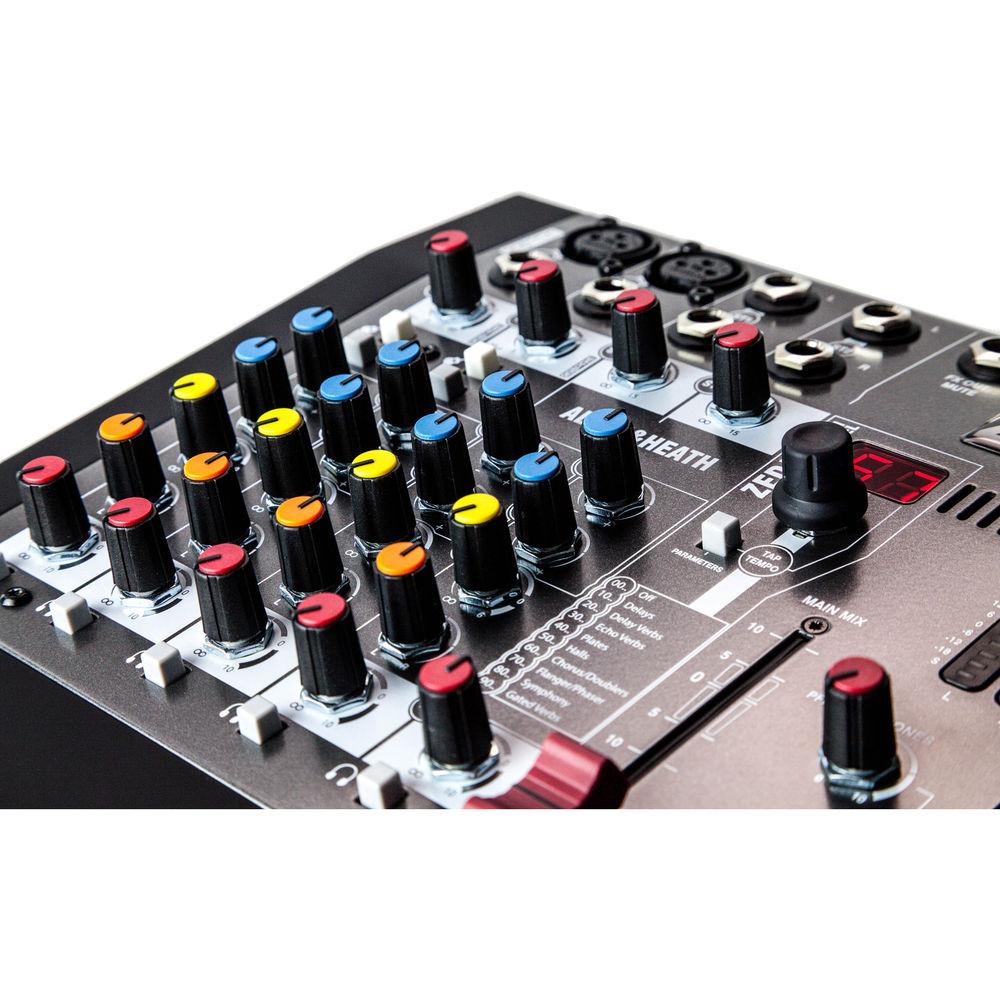

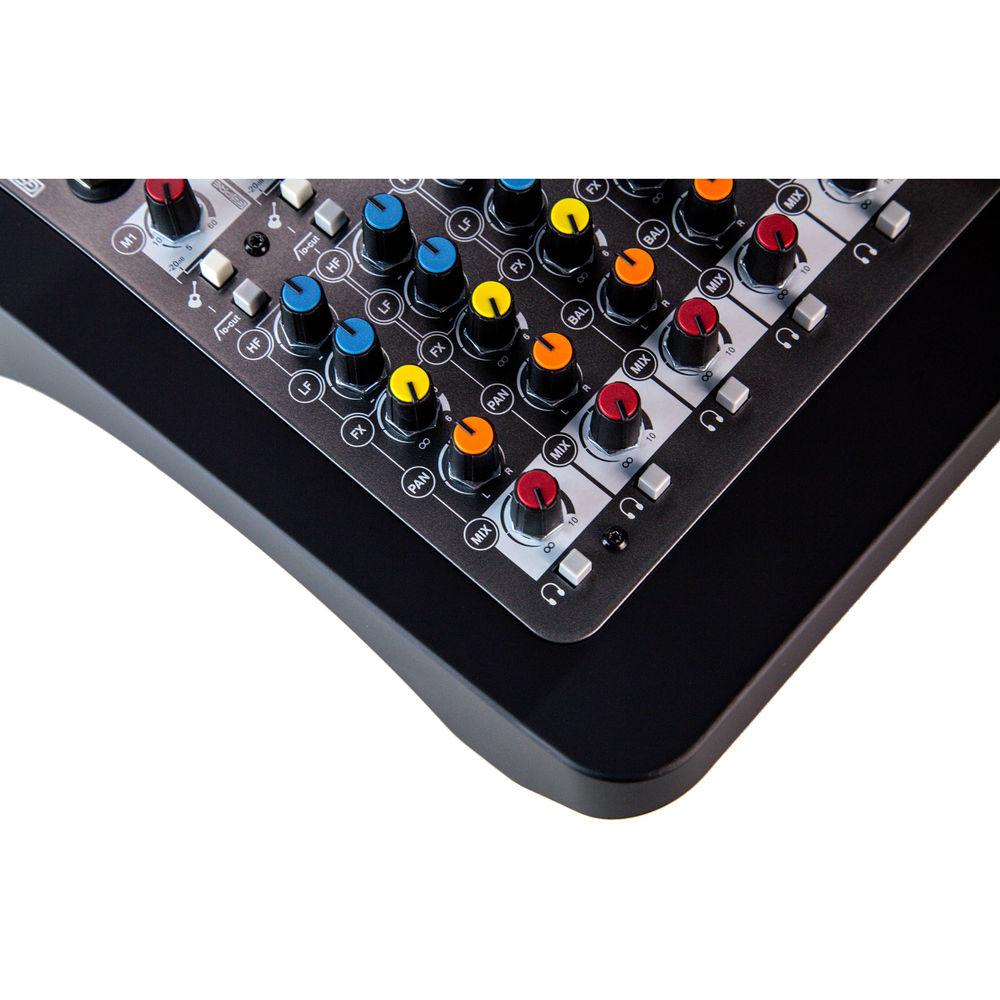

Product description Allen & Heath Releases New ZED Series Mixers Read More Designed to bring the signature Allen & Heath sensibility to a compact and portable frame, the ZED-6FX is a six-input analog mixer with an internal effects engine that sports reverb, delay, chorusing, and tap-tempo functionality. Solo musicians, lectures, and small bands alike can find this unit suitable for modest venues, hotels, churches, and schools.
The ZED-6FX is crafted with preamps modeled on the Allen & Heath GS2-R24, and, as such, aims to provide low noise, warmth, and a vast expanse of headroom. On-board two-band MusiQ EQs also come standard with the unit, as well as 48V phantom power for the two mic inputs. Guitar players using the ZED-6FX need not lug an extra DI box around, as the unit features two high-impedance guitar inputs. Channels three and four host dual 1/4" stereo line-level inputs.
You can monitor the outputs of the mixer either through headphones or through two XLR outputs, utilizing an eight-LED meter all the while. If you'd like to hear a sound source before placing it within the audible mix, simply press the PFL button located at the bottom of each channel strip. - Key Features
-
- 2x Mic/Line inputs with separate XLR and TRS jack sockets
- 2x Stereo inputs with TRS jack sockets
- 2x Guitar DI high-impedance inputs, eliminating the need for DI boxes
- Internal FX engine with tap tempo
- High-pass filter for cleaning up unwanted low-frequency noise
- 2-band EQ for tonal shaping
- 60mm smooth travel fader on main mix
- XLR main outputs
- 8x LED signal metering
- 48V Phantom Power for condenser mics
- Internal power supply
In the Box Allen & Heath ZED-6FX Compact Analog Mixer (with On-Board Effects Engine) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Allen & Heath ZED-6FX Compact Analog Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAllen & Heath ZED6FX Specs | Total # Of Inputs | 6x | | Mic/Line Inputs | 2x XLR (Channels 1 and 2)
2x 1/4" TRS (Channels 1 and 2) | | Stereo Line Inputs | 4x 1/4" TRS (Channels 3 and 4, Stereo) | | Outputs | 2x XLR Main Outs
1x 1/4" Headphone Out
1x 1/4" FX Out/Mute | | EQ Section | 4x LF EQ at 80 Hz
4x HF at 12 kHz
2x HPF at 100 Hz | | Trim/Gain Control | 4x | | Channel Level Controls | 4x | | Phantom Power | Yes | | Metering | Stereo Left and Right | | Power Supply | 100 - 240 VAC, 50/60 Hz @ 12 W | | Dimensions (H x W x D) | 3.5 x 9.8 x 9.3" / 88.9 x 246.4 x 236.2 mm | | Weight | 3 lb / 1.4 kg | | | | Package Weight | 4.95 lb | | Box Dimensions (LxWxH) | 14.9 x 12.0 x 5.6" |
