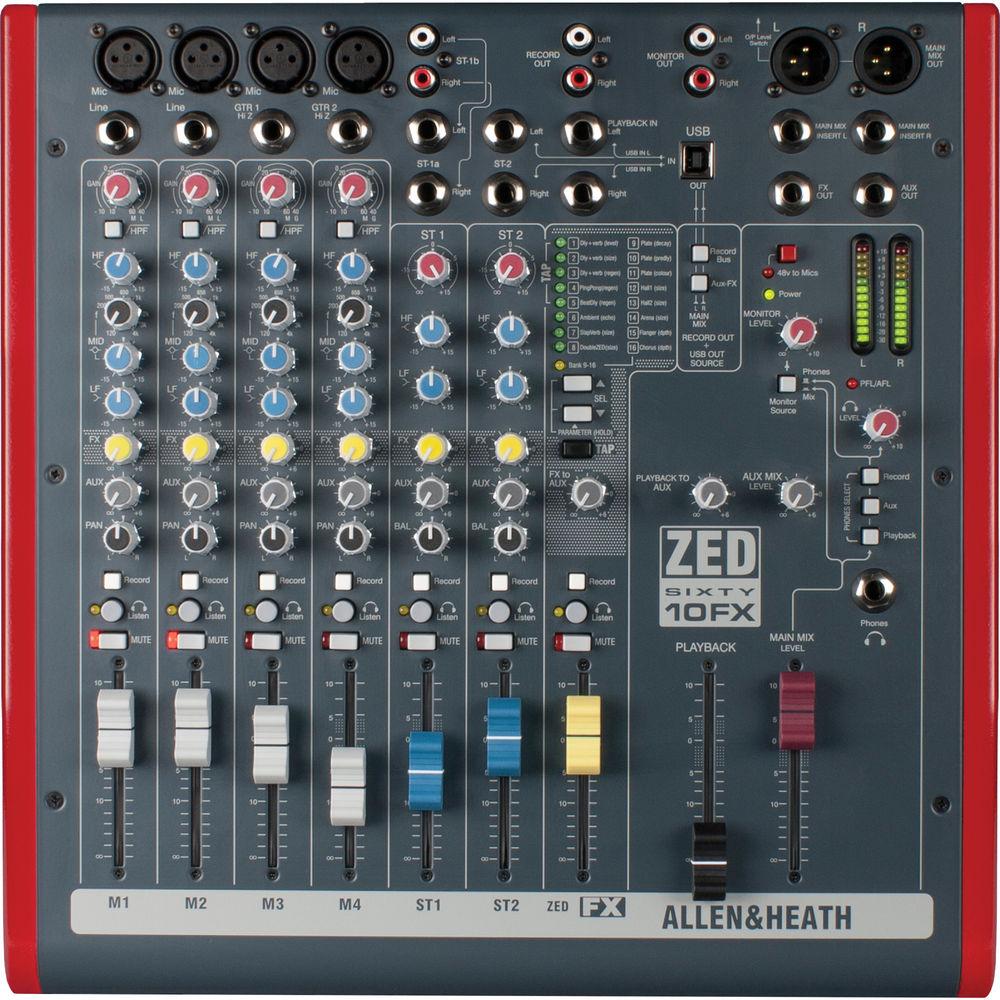

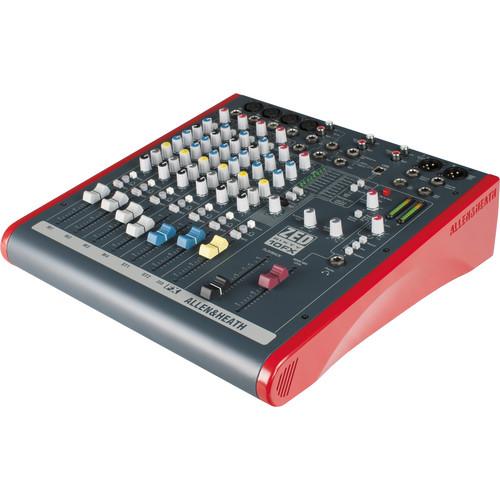

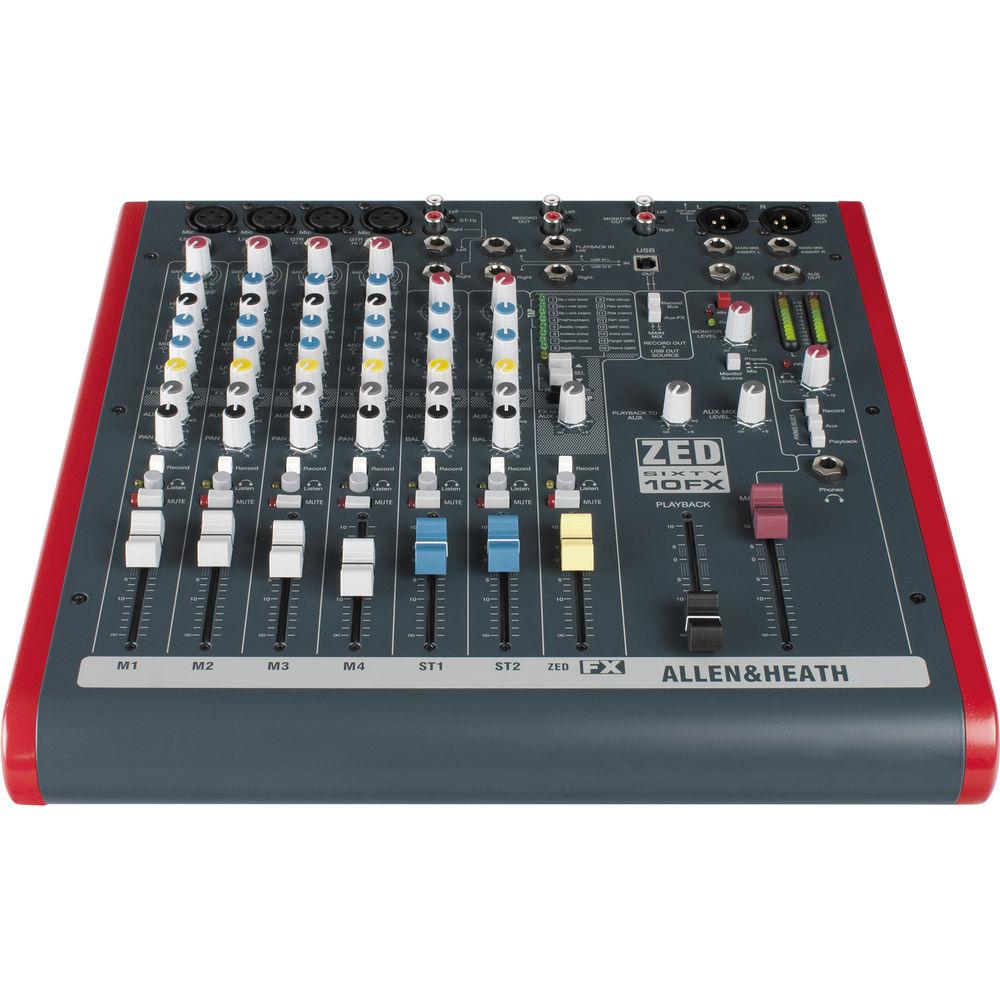

Product description The Allen & Heath ZED60-10FX is a small, 6-channel mixer that packs an incredible amount of connectivity along with built-in digital effects. It's a great companion for live mixing, live recording, and multitracking over USB.
The ZED60-10FX features 4 mic/line inputs with 3-band EQ and Phantom Power. Channels 3 and 4 have 1/4" Hi-Z instrument-level inputs for connecting guitars, electric basses, etc. There are 2 additional stereo channels for connecting keyboards or other stereo sources, like a CD player or iPod.
The channel strips of the ZED60-10FX have big functionality for a small format mixer. Each channel features low and high frequency shelving EQ, while the mono channels add a 100Hz high pass filter and an extra band of sweepable midrange. An FX send on each channel controls how much signal is sent to the onboard effects buss, while an Aux send can feed an independent monitor mix. After the panning controls, each channel can be sent or bypassed from the recording buss, post-EQ solo'd with the "Listen" button, or muted. The final stage of each channel strip is a 60mm level fader, providing a tactile mixing experience.
There are 16 digital effects built into the ZED60-10FX, including delays, reverbs, doubler, flanger, and chorus. These same effects algorithms are used on the Allen & Heath flagship digital consoles. Each preset has a parameter adjust control to morph the overall intensity of the effect.
The output section of the ZED60-10FX is perhaps its most versatile element. In addition to the balanced XLR main outputs, there are recording outputs and switchable-source monitor outputs both with stereo RCA connectors. Additionally, a USB output allows you to route the recording buss directly into a computer.
The Allen & Heath ZED60-10FX offers flexibility and functionality that you'd never expect from a 6-channel mixer. With built-in effects, extensive routing options, and high quality components, the ZED60-10FX will always have an extra feature that comes in handy. - Vertically-Mounted Channel Circuit Boards
- The ZED60-10FX is built of individual vertically-mounted channel circuit boards, with each rotary control fixed to the front panel by a metal nut.
- Microphone Preamplifiers Based on the MixWizard Series Design
- The ZED preamps utilize low-noise discrete transistor circuitry to achieve high gain, low noise, and good linearity.
- Hi-Z Guitar Inputs
- Channels 3 and 4 include high impedance, discrete, class A, FET inputs for plugging a guitar or other instrument straight in. A 26dB gain boost switch allows instruments with very low output pickups to be used, and the FET does a great job of approximating the sound of tube input circuitry.
- Equalization per Channel
- Each of the mono inputs feature a switchable high pass filter and a 3-band equalizer with sweepable mids. The stereo channels have low and high frequency shelving EQ.
- Onboard Digital Effects
- The ZED60-10FX has 16 built-in digital effects, including delays, reverbs, doubler, flanger, and chorus. These same effects algorithms are used on Allen & Heath's flagship digital consoles.
- Recording Buss
- Each channel has a switchable send to a separate stereo buss specifically for recording to an external source through dual RCA jacks or over USB.
- USB Connectivity
- CD-quality audio can be sent or received from your Mac or PC via the ZED60-10FX's USB port.
In the Box Allen & Heath ZED60-10FX - 6 Channel Mixer with Digital Effects and USB Connectivity 1-Year Limited Warranty User Manual PDF 11.7mbvcuqurzreqdrfuwvtcdvctrevabdat Table of Contents
|
Upload User Manual
Have you got an user manual for the Allen & Heath ZED60-10FX - 6 Channel Mixer with Digital Effects and USB Connectivity in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAllen & Heath ZED-10FX Specs | | | Input Connections | XLR x4
Line Level x2
Hi-Z Instrument x2
1/4" Stereo Pair x2
RCA Stereo Pair x1
Dual 1/4" Playback In x1 | | Phantom Power | +48V; on/off | | Operating Level Range | Mono channel (XLR) Input:
-10 to -60 dBu for nominal (+11 dBu in max)
Mono channel Line Input (Jack socket):
+10 to -40 dBu (+31 dBu maximum)
Stereo Input (Jack or phono sockets):
0 dBu nominal (control = Off to +15 dB) | | Equalization | All Channels:
- Low Shelf @ 80 Hz, +/- 15 dB
- High Shelf @ 12 kHz, +/- 15 dB
Mic/Line Channels, additional controls:
- HPF @ 100 Hz, 6dB/octave; on/off
- Sweeapable Mid: 120 Hz - 4 kHz, +/- 15 dB
| | Faders | 60mm | | | | Output Connections | XLR Main Outputs x2
RCA Stereo Pair, Recording Outs x1
RCA Stereo Pair, Monitor Outs x1
1/4" FX Out x1
1/4" Aux Out x1
1/4" Stereo Headphone Out x1
USB Output | | Operating Level Range | L/R Outputs (XLR) Normal/DI out:
0 dBu /-30 dBu; +21 dBu /-9 dBu maximum
Aux & FX Outputs (Jack sockets):
0 dBu nominal; +21 dBu maximum
Record & Monitor Outputs (phono sockets):
0 dBu nominal; +21 dBu maximum | | | | Frequency Response | Mic in to Mix L/R Out, 30dB gain:
10 Hz to 30 kHz, +0.5 /-1 dB
Line in to Mix L/R out, 0dB gain:
10 Hz to 25 kHz, +0.5 /-1 dB
Stereo in to Mix L/R out:
10 Hz to 30 kHz, +0.5 /-1 dB | | THD + N | Mic in to Mix L/R Out
10 dB gain, 1 kHz, +10 dBu out: 0.002%
Mic in to Mix L/R Out
30 dB gain, 1 kHz: 0.01%
Line in to Mix L/R out
0 dB gain, 1 kHz, 0 dBu: 0.003%
Stereo in to Mix L/R out
0dB gain, 1 kHz, +10 dBu: 0.002%
Gtr Input to Mix L/R Out
0dBu, Boost OUT: 0.015%
Gtr Input to Mix L/R Out
0dBu, Boost IN: 2% Second Harmonic | | Headroom | Analog Headroom from nominal (0Vu):
21dB
USB in & out headroom from nominal (0Vu):
14dB | | Noise | Mic Pre EIN @ max gain, 150R input Z, 22-22kHz:
-127dBu
Mix L/R out, L/R faders = 0, Levels min, 22-22kHz:
-96dBu
Mix L/R out, L/R faders = 0, Levels min, 22-22kHz:
-96dBu | | USB | Audio In/Out:
USB 1.1 compliant 16-bit
Sample Rate:
32, 44.1, or 48 kHz | | | | Dimensions (W x D x H) | 13.2 x 13.6 x 3.7" (336 x 346 x 95 mm) | | Weight | 8.4 lbs (3.8 kg) | | | | Package Weight | 12.6 lb | | Box Dimensions (LxWxH) | 16.25 x 15.35 x 6.75" |
