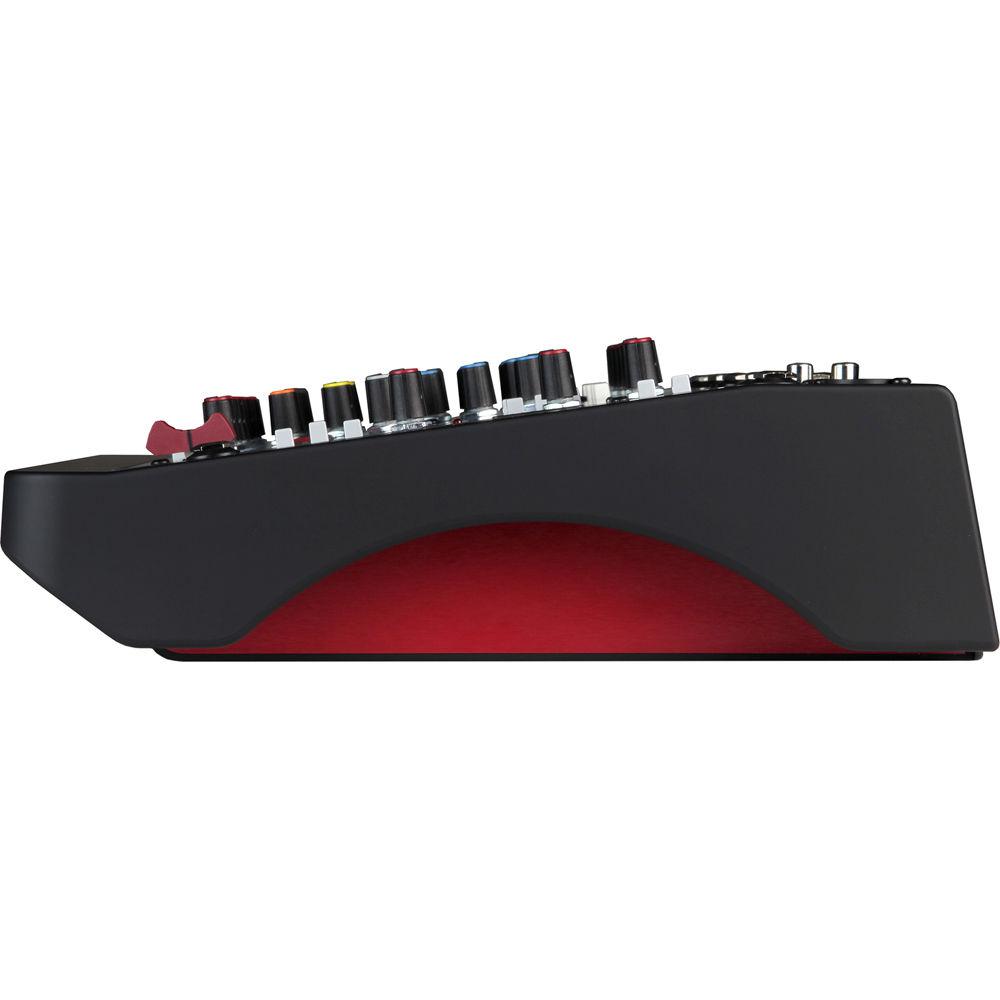

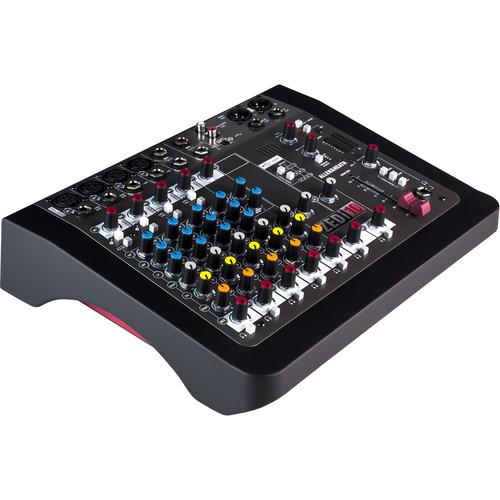

Product description Allen & Heath Releases New ZED Series Mixers Read More Designed to bring the signature Allen & Heath sensibility to a compact and portable frame, the ZEDi-10 is a ten-channel compact mixer that doubles as a USB interface. On the mixer side, you get four XLR inputs, four line inputs, two instrument ports, and two pairs of stereo line inputs. Utilize this unit's digital capabilities and you'll find yourself with four channels of conversion—analog-to-digital or vice-versa. Thus, you'll find the ZEDi-10 equally suited for live-mixing in small venues and for tracking instruments on the fly.
Should you choose use the unit as an interface, you'll find that it comes with Cubase LE, a digital audio workstation which enables you to record, sequence, and edit music, be it audio or MIDI.
In the analog realm, the ZEDi-10 is crafted with preamps modeled on the Allen & Heath GS2-R24. These channel strips aim to provide warmth, low noise, and a vast expanse of headroom. On-board EQs also come standard with the unit. Two channels feature a button that converts line-level signal into high-impedance jacks, meaning guitar players need not lug an extra DI box around should they wish to go direct into the board.
Turning your attention back to the digital side of things, you'll notice that a USB switch controls the routing of your USB output, enabling you to select how you route and separate the incoming analog signals into your DAW. - Key Features
-
- USB audio interface (24-bit/96 kHz)
- Cubase LE software included
- Cubasis LE App included
- 4 x mic/line Inputs with separate XLR and TRS jack sockets
- 2x stereo inputs with TRS jack sockets
- 2x guitar DI high-impedance inputs, eliminating the need for DI boxes
- 4 x high-pass filters (channels 1 through 4) for cleaning up unwanted low-frequency noise
- 3-band EQ on channels 1 through 4 enable tonal shaping
- 60mm smooth-travel fader on main mix
- 2 x XLR main outputs
- 2 x RCA monitor outputs
- 8x LED signal metering
- 48V Phantom Power for condenser mics
- Internal power supply
In the Box Allen & Heath ZEDi-10 Compact Hybrid Mixer/USB Interface Bundle of Cubase LE Software & Cubasis LE App Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Allen & Heath ZEDi-10 Compact Hybrid Mixer USB Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAllen & Heath ZEDI-10 Specs | | | Total # Of Inputs | 12 | | XLR Audio Input | 4 x XLR Inputs | | Line In / Microphone In | 4 x, Channels 1 through 4
4 x, Channels 5 and 6 (2 x Stereo Pair) | | Instrument Input | 2 X High Impedance | | Main Output | 2 x XLR | | Monitor Output | 2 x RCA | | Line Output | 1 x 1/4" (Headphones)
1 x 1/4" (Aux Out)
1 x 1/4" (FX Out) | | | | Computer Connectivity | USB (Type B) | | Digital I/O | 4 x Input
4 x Output | | Sample Rate and Resolution | Up to 24-bit/96 kHz | | | | EQ Section | 3-Band (Channels 1 through 4)
2-Band (Channel 5, Stereo)
4 x High-Pass Filters (Channels 1 through 4) | | Trim/Gain Control | 5 x | | Channel Level Controls | 7 x | | Phantom Power for Mic Inputs | 4 x | | | | Dimensions (H x W x D) | 3.8 x 13.1 x 10.8" / 96.5 x 332.7 x 274.3 mm | | Weight | 4.85 lb / 2.2 kg | | | | Package Weight | 9.5 lb | | Box Dimensions (LxWxH) | 18.0 x 13.0 x 5.5" |
