User Manual for Alphatron Jib and Electronic Pan Tilt Head Kit Click to enlarge the picture
Contents of the user manual for the Alphatron Jib and Electronic Pan Tilt
- Product category: Cranes & Jibs Alphatron
- Brand: Alphatron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Alphatron Cranes & Jibs
 |
User manual for the Alphatron Jib and Electronic Pan Tilt contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Alphatron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Alphatron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Alphatron product will considerably shorten its lifespan!
|

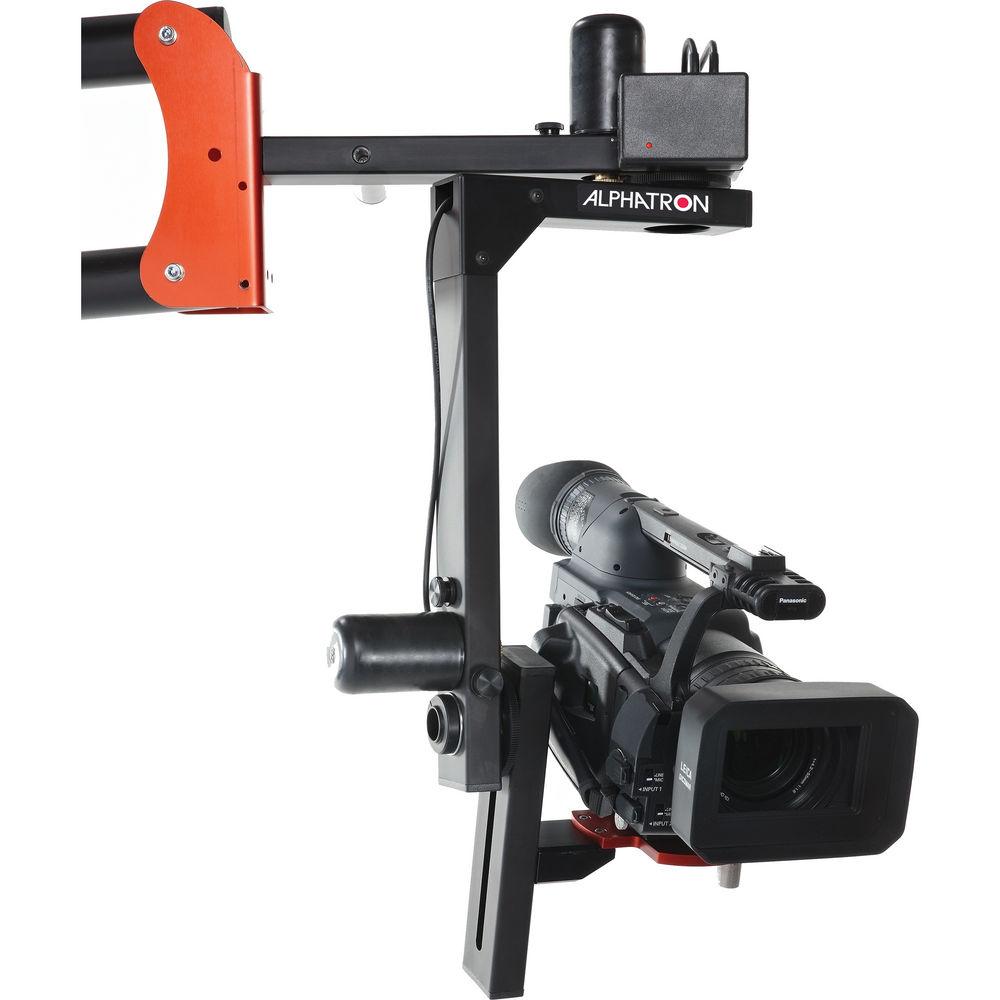

Product description The Jib and Electronic Pan/Tilt Head Kit from Alphatron Broadcast Electronics includes a dolly, tripod, boom, UTP cable, EPT (Electronic Pan and Tilt head), and remote control. This kit comes partly assembled and is modular, so it can be extended. This makes it usable in 4 different set-ups, with a maximum range of up to 82.7” (210cm) measured from the jib’s supporting point.
This lightweight crane provides the professional videographer a steady camera platform with optimum ease in use and setting up. A short assembling time makes it suitable for sports, corporate video, festivals, and other live entertainment events.
The remote controlled EPT (Electronic Pan and Tilt head) has been developed for cameras weighing up to 17.5 lb (8kg). The head is connected with a standard 16.4’ (5m) UTP cable and can also be used with an external battery pack (sold separately). Its motor-driven controls allow for over 360° unobstructed pan and tilt with 2 speed possibilities. Its durable motors assure a long and reliable life.
The central unit has 4 locking knobs for applying friction to the vertical boom movement and for making disassembling easy. The central rotation platform has a low-friction bearing system with a rotation brake. The boom fits onto all 75 and 100mm bowl mounts. The weight system is based on a set of standard fitness weights (sold separately) with an included small sliding fine-tuning weight. - Head unit with camera platform

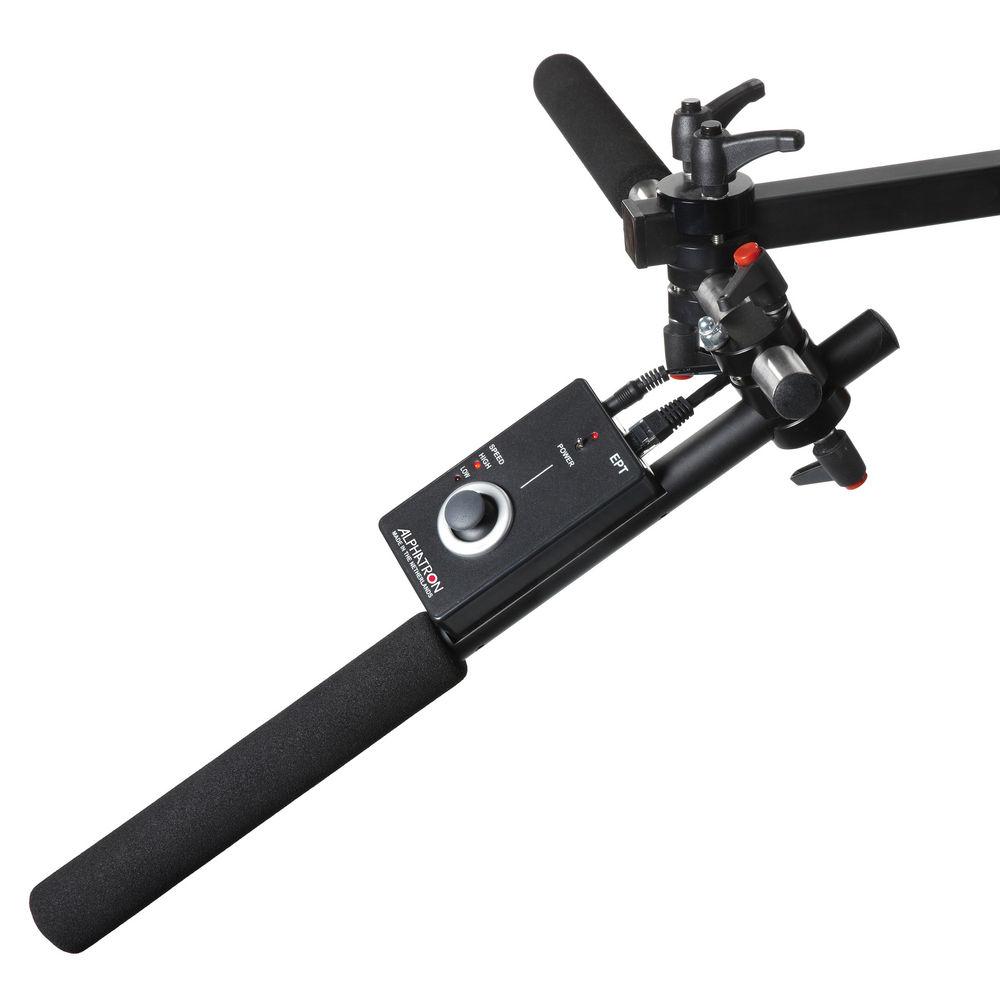

- Remote control including handle and clamp
- 110 to 240VAC/DC power adapter
- Signal/Power: 16.4' (5m) UTP cable
- Modular design with 4 possible set-ups
- Black anodized aluminum construction
In the Box Alphatron Jib and Electronic Pan/Tilt Head Kit Dolly Tripod Electronic Pan and Tilt Head (EPT) Boom UTP Cable Remote Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Alphatron Jib and Electronic Pan Tilt Head Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAlphatron ALP-JIB-EPT Specs | Power Requirement | 12 to 14.8 VDC | | Assembly | Time: Approximately 10 minutes | | Arm Length | 62.60 x 92.13" (159.00 to 234.00 cm) | | Range | Arm:
Minimum: 36.02" (91.50 cm)
Maximum: 82.68" (210.00 cm) | | Load Capacity | EPT: 17.5 lb (8.0 kg) | | Setup | Dolly: 10.76 ft2 (1.00 m²) | | Dimensions (L x W x H) | EPT : 17 x 12 x 5" (44 x 31 x 13 cm) | | Weight | EPT: 6.5 lb (3.5 kg)
Boom: 22 lb (10 kg)
Head Unit: 6.5 lb (3.0 kg) | | | | Package Weight | 81.75 lb | | Box Dimensions (LxWxH) | 40.4 x 20.4 x 12.9" |
