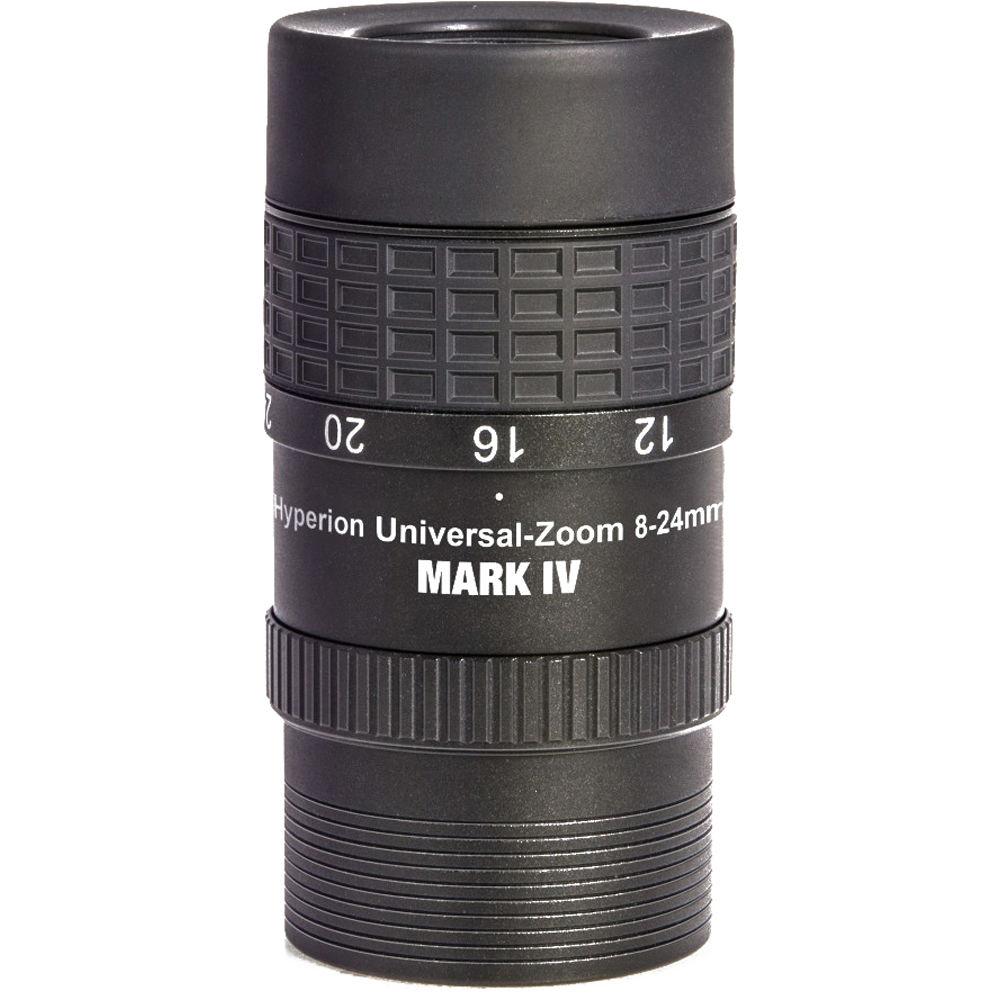

User Manual for Alpine Astronomical Baader Hyperion 8-24 mm Mark IV Zoom Eyepiece Click to enlarge the picture
Contents of the user manual for the Alpine Astronomical Baader Hyperion 8-24 mm
- Product category: Eyepieces Alpine Astronomical
- Brand: Alpine Astronomical
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Alpine Astronomical Eyepieces
 |
User manual for the Alpine Astronomical Baader Hyperion 8-24 mm contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Alpine Astronomical product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Alpine Astronomical user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Alpine Astronomical product will considerably shorten its lifespan!
|

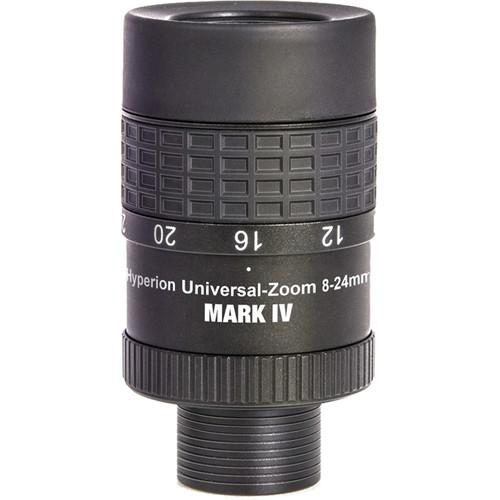

Product description Outfitted with a wide and useful focal length range that is ideal for all kinds of astronomical observation and astrophotography, the Alpine Astronomical Baader Hyperion 8-24 mm Mark IV Zoom Eyepiece will be an invaluable addition to your telescope kit.Its performance starts with a 7-element/4-group flat-field lens design that is treated with Phantom Coating Group multi-coatings. These features work together to deliver clear and bright high-contrast views with edge-to-edge sharpness without distortion or astigmatism. A simple rotating selection system allows users to run through the focal length range with positive click-stops at each setting, and for ease-of-use the eyepiece is parfocal so there will be little to no need to refocus when moving from one focal length to the next.The Mark IV has been engineered for use on a wide variety of gear and comes with nosepieces to fit standard 1.25" drawtubes and accessories with the option to swap it for a 2" nosepiece or an adapter to thread onto standard 2" Schmidt-Cassegrain telescope (SCT) visual backs. Removing the eyecup reveals M43 T-mount threads that accept optional camera-specific T-rings for projection astrophotography techniques. For comfortable viewing, the eyepiece comes with three interchangeable eyecups: a fold-down rubber version, a winged model, and a large twist-up adjustable option.From the moon to the planets to deep sky objects, the Mark IV zoom eyepiece provides versatility that is easy to use. - Optical Performance
-
- 7-element/4-group flat-field lens design maintains edge-to-edge sharpness
- Phantom Coating Group multi-coated optics maximize light transmission for improved contrast and clarity
- All focal length options are parfocal, requiring little to no refocusing when moving through the entire zoom range
- Variable Focal Length
-
- Change magnification by selecting a longer (low power) or shorter (high power) focal length
- Selectable focal length for 8mm, 12mm, 16mm, 20mm, and 24mm
- Field of view, eye relief, and field stop distance change based on focal length setting
- Positive click-stops provide tactile feedback for each focal length selection
- Telescope Adapters
-
- 1.25" nosepiece fits the most common-size drawtubes and accessories, threaded for standard 1.25" filters

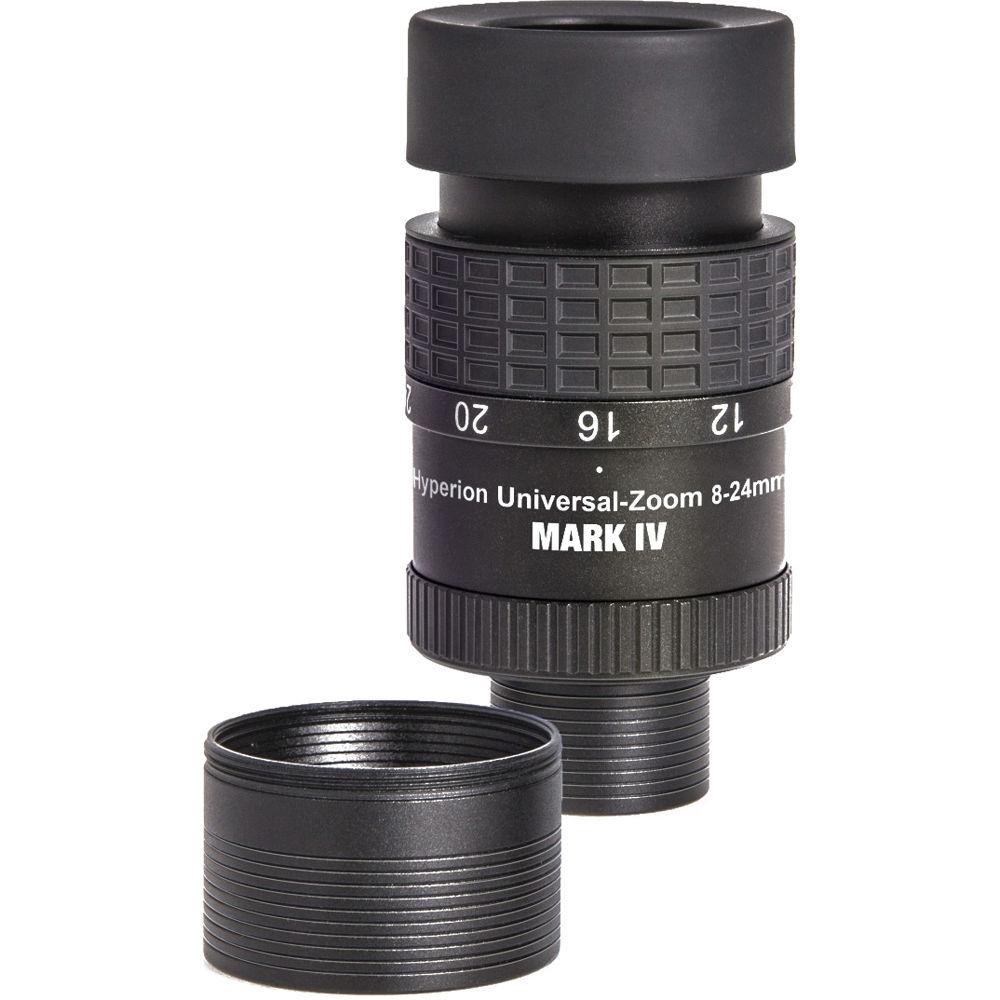

- 2" nosepiece allows it to fit larger drawtubes and focusers, threaded for standard 2" filters

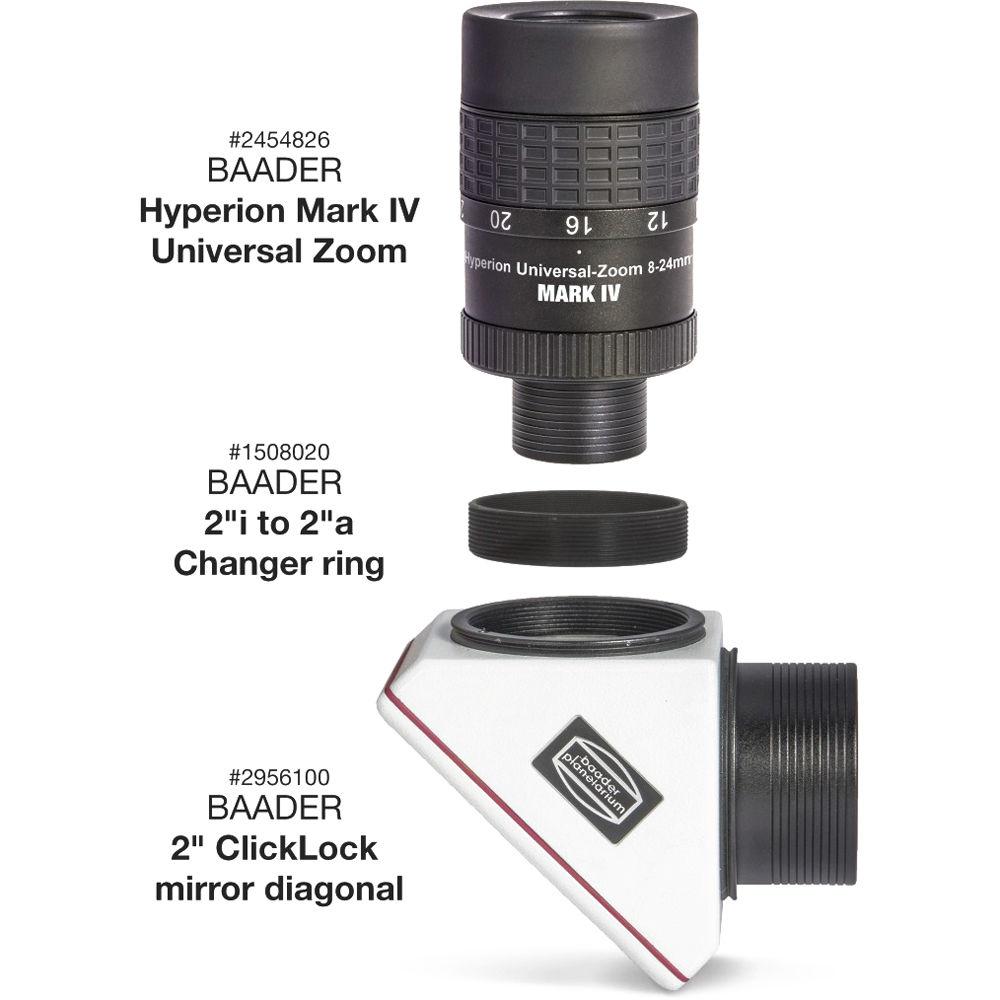

- Standard 2" SCT visual back female threads for direct connection to optical tube assembly

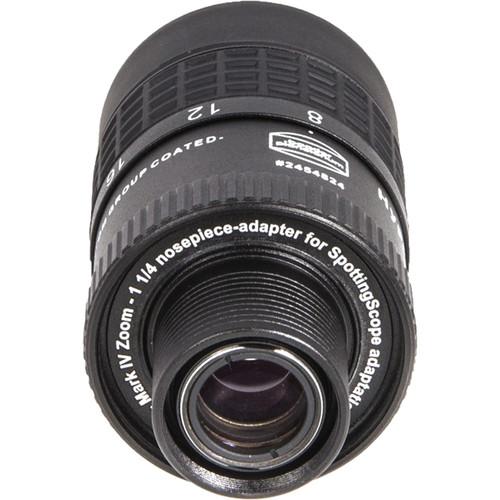

- Spotting scope adapter: For use on those spotters that accept astronomical eyepieces, it provides 4mm additional back focus to allow it to achieve the proper focus at infinity
- Camera Connections
-

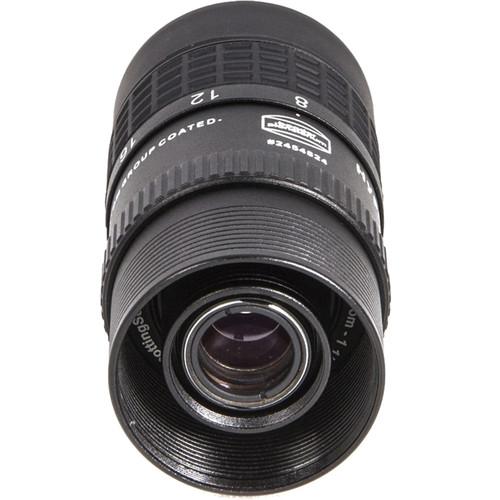

- M43 photo/video thread on top of the eyepiece to directly attach most video cameras
- Allows attachment of any desired DSLR or T-2 accessory by means of the optional T-rings and camera-specific T-mounts
- Remove eyecup to reveal adapter threads
- Optional extension tubes may be required for full-frame and APS-C cameras

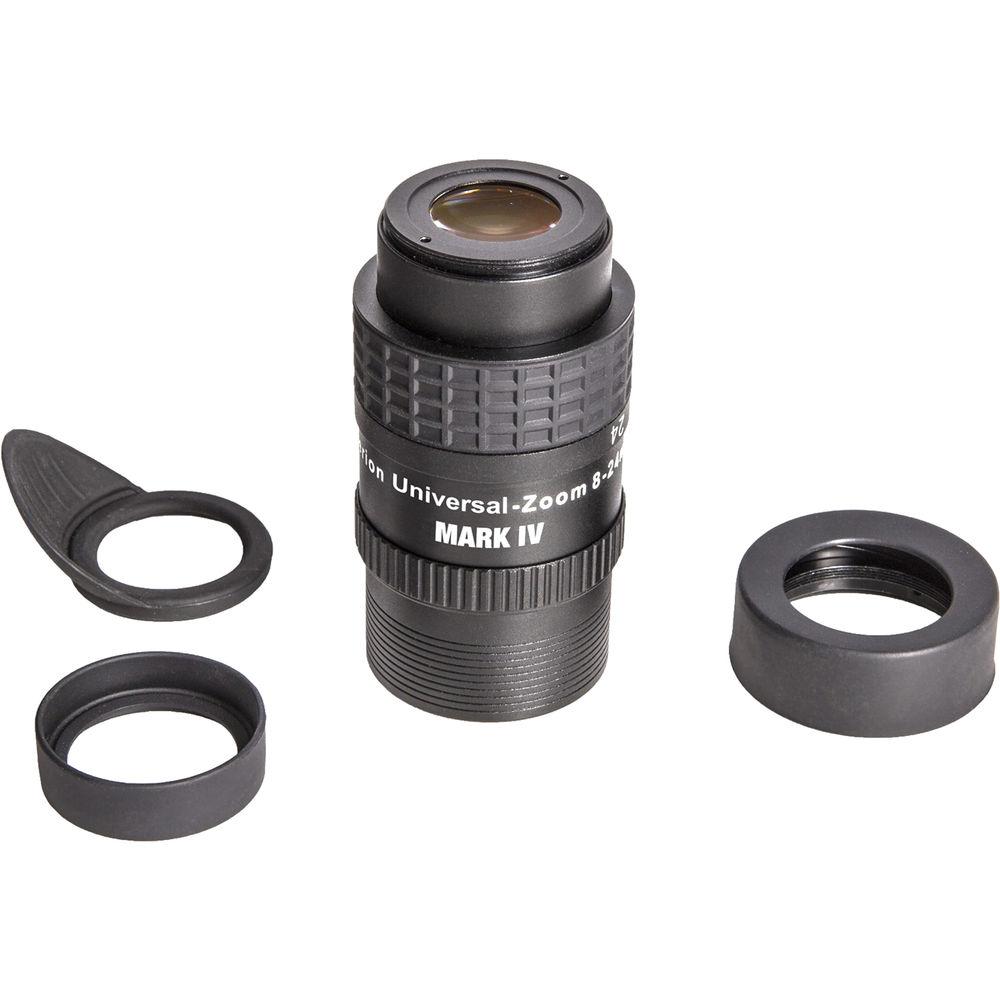

- Eyecup Options
-
- Winged rubber eyecup blocks peripheral terrestrial light to improve contrast and eliminate distractions
- Fixed folding rubber eyecup allows easy use with or without eyewear
- Large adjustable twist-up eyecup provides precise eye relief setting

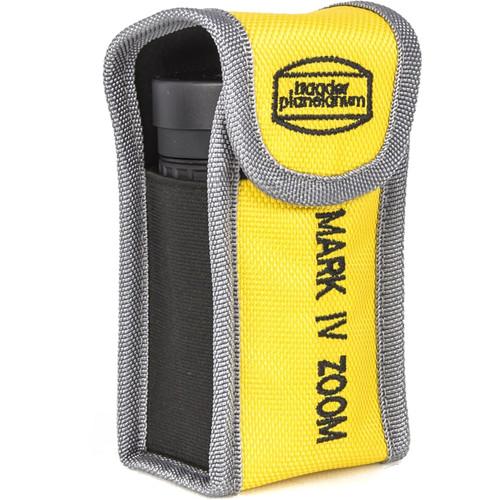

In the Box Alpine Astronomical Baader Hyperion 8-24 mm Mark IV Zoom Eyepiece (1.25"/2") Soft Pouch Winged Eyecup Fold-Down Eyecup Adjustable Eyecup Telescope Adapter Spotting Scope Adapter 1.25" Nosepiece 2" Schmidt-Cassegrain Adapter 3 x Dust Cap Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Alpine Astronomical Baader Hyperion 8-24 mm Mark IV Zoom Eyepiece in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAlpine Astronomical HYP-ZOOM Specs | Focal Length | 8 to 24mm | | Apparent Field of View | 68 to 48
