User Manual for Alpine Astronomical Baader OPFA Eyepiece Projection Adapter Click to enlarge the picture
Contents of the user manual for the Alpine Astronomical Baader OPFA Eyepiece Projection
- Product category: Astrophotography Alpine Astronomical
- Brand: Alpine Astronomical
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Alpine Astronomical Astrophotography
|
User manual for the Alpine Astronomical Baader OPFA Eyepiece Projection contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Alpine Astronomical product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Alpine Astronomical user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Alpine Astronomical product will considerably shorten its lifespan!
|

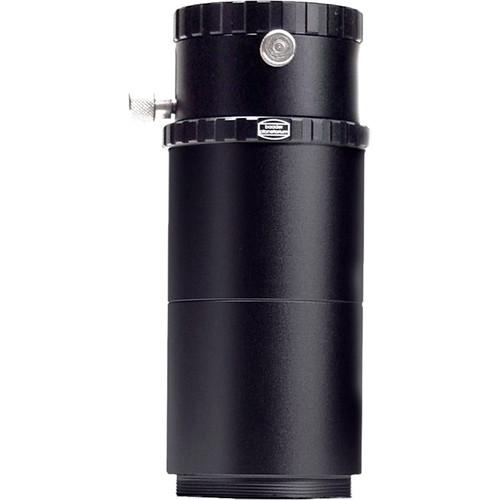

Product description The base platform for their "Ocular Projection and Focal Adapter" system, the Baader OPFA Eyepiece Projection Adapter from Alpine Astronomical has standard male T-2 threads on the end so it is compatible with their entire T-2 Astro modular accessory line of products—allowing you to easily adapt DSLR bodies or body/lens combinations for projection astrophotography and digiscoping. The adapter consists of the #24 focuser/eyepiece holder and two #25B 40mm extension tubes from their T-2 Astro modular accessory system. - Baader Sliding T-2 Focuser An optional part of the modular Astro T-2 system, the Alpine Astronomical Baader Sliding T-2 Focuser is ideal for use with 1.25" eyepieces and off-axis guiders and provides up to 10mm of additional focus travel with locking thumbscrews to set the perfect focus position. It is placed between eyepieces, diagonals, bino-viewers, or other accessories and the telescope focuser drawtube or visual back to provide additional focusing room for sharper images. As with all of the Astro T-2 family of accessories, the focuser has male T-2 threads on one side and female T-2 threads and an eyepiece insertion sleeve on the other for complete compatibility.
- Baader T-2 40mm Extension Tube An optional part of their modular Astro T-2 system, the Alpine Astronomical Baader T-2 40mm Extension Tube can be used throughout the system to add the proper spacing between different components. The extension has internal T-2 threads on one end with external T-2 threads on the other for easy use. You can use the extension tubes anywhere you need to precisely space and couple any of the T-2 components, in configurations of your own design.
- Example of Uses
-
- Stack this 40mm tube with another of the same size or the two other sizes—15mm and 7.5mm—for precise spacing
- Use with the Alpine telecompressor to vary the spacing of the lens relative to a camera or eyepiece for precise placement
- Provide a secure way of varying an eyepiece-to-camera separation (projection ratio)
- Use with the afocal and ocular projection (OPFA) system
- Use with the Multi-Purpose Coma Corrector to accurately locate and couple the coma corrector to eyepieces
In the Box Bundle Items Baader Sliding T-2 Focuser ywasxsevyawrrqsbcezectsuzqaqvtuxw 2 x Baader T-2 40mm Extension Tube Table of Contents
|
