User Manual for Alpine Astronomical Diamond Steeldrive Motor Drive for Diamond Steeltrack Focusers Click to enlarge the picture
Contents of the user manual for the Alpine Astronomical Diamond Steeldrive Motor Drive
- Product category: Focusers Alpine Astronomical
- Brand: Alpine Astronomical
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Alpine Astronomical Focusers
 |
User manual for the Alpine Astronomical Diamond Steeldrive Motor Drive contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Alpine Astronomical product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Alpine Astronomical user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Alpine Astronomical product will considerably shorten its lifespan!
|

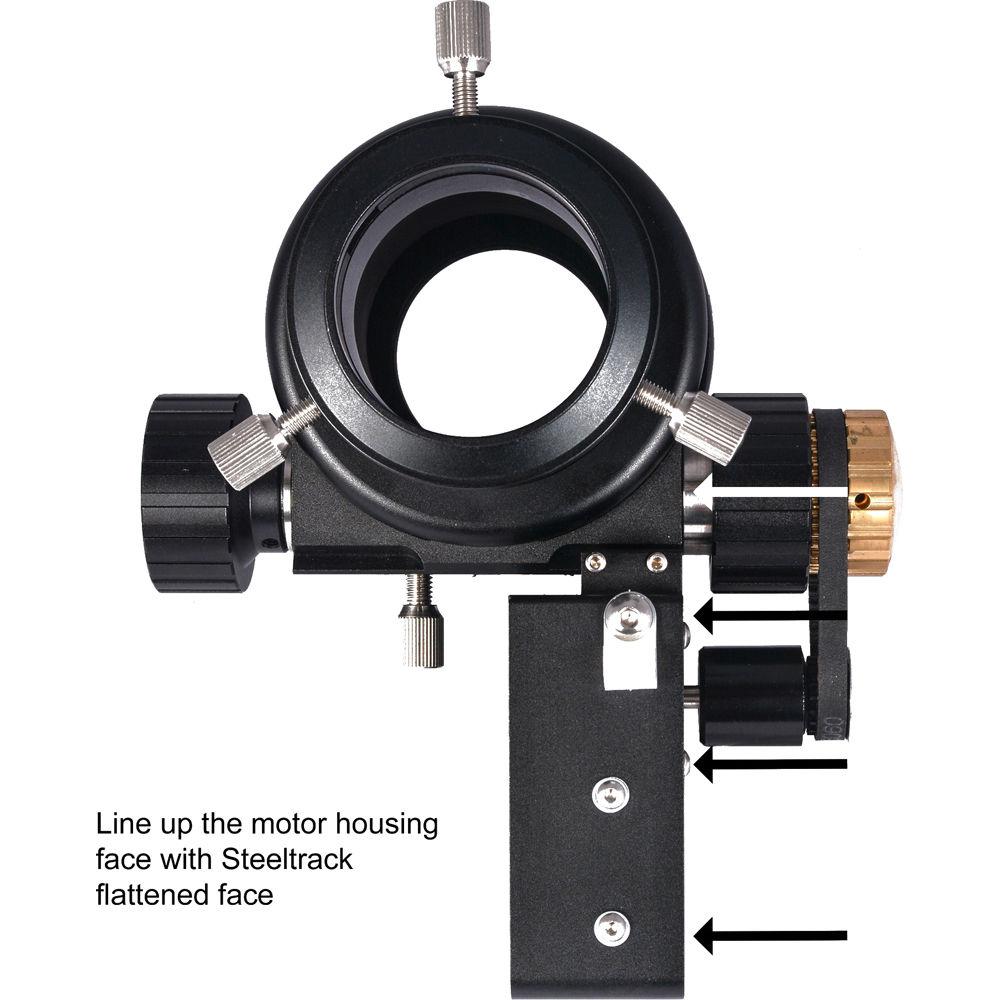

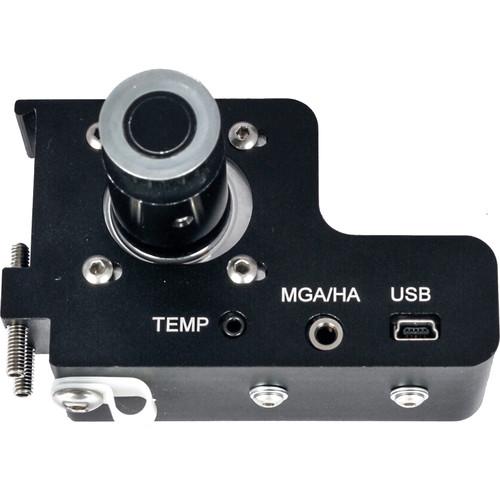

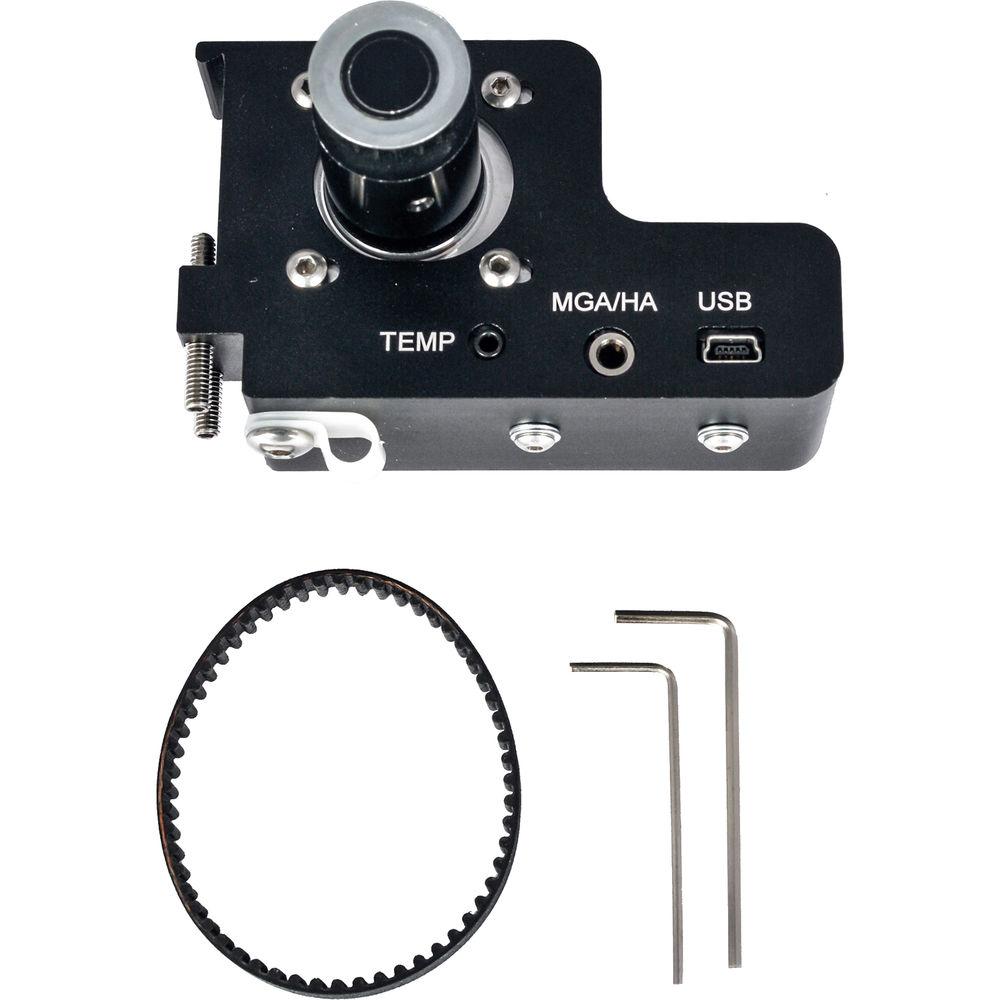

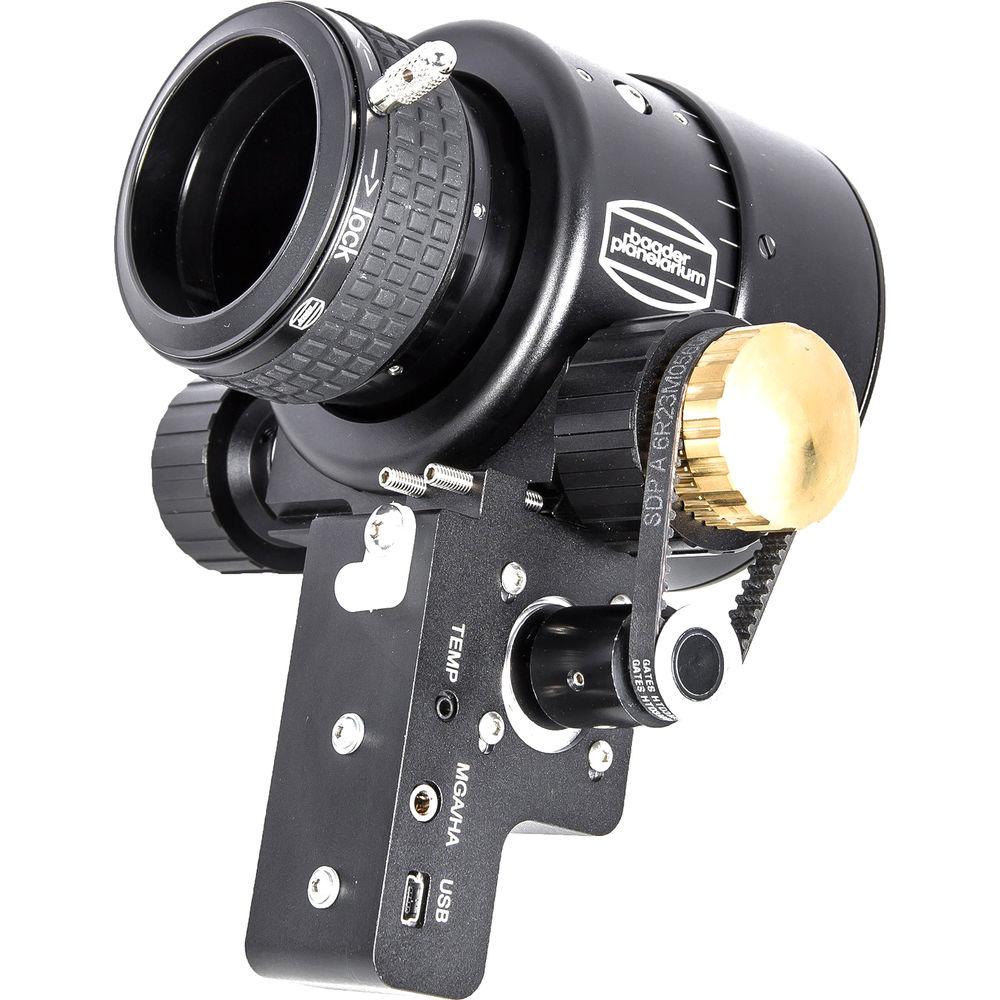

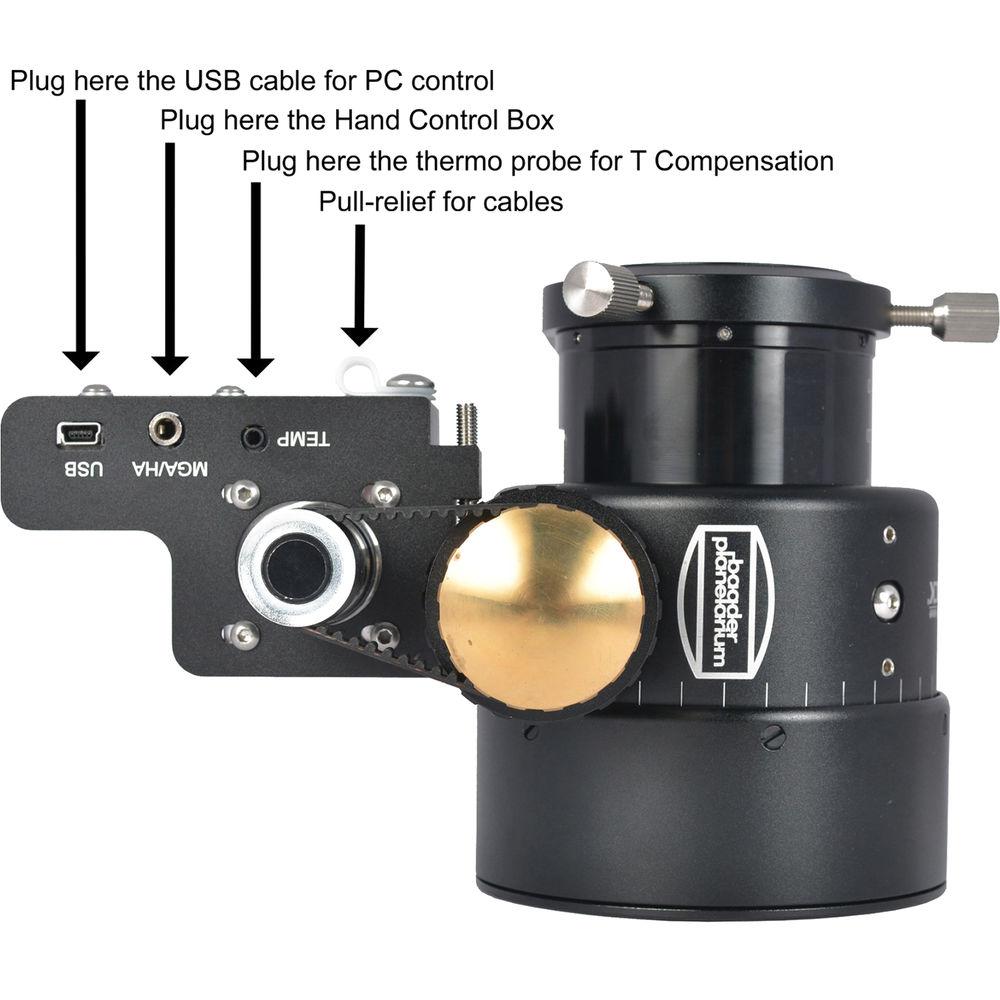

Product description Use the Alpine Astronomical Diamond Steeldrive Motor Drive to add precision to your Diamond Steeltrack focuser while eliminating unwanted vibration.This device utilizes a stepper motor to drive a timing belt looped over the focuser's fine-tuning knob. The motor has a high torque with low power consumption, capable of lifting up to 6.6 pounds (3kg) running from either three user-supplied AA batteries or from a standard 5V USB port. Installation of the motor on the focuser is easy and does not require any disassembly or permanent modification. When installed, you retain complete access to the focuser's manual control knobs, so you can leave the motor mounted even when it's not in use. The motor can be controlled via an optional stand-alone hand control box or from a computer running the free SteelGo II software.The standout feature of the motor drive is its temperature-compensation system. Utilizing the included probe, the electronics monitor the ambient air temperature and automatically make micro-adjustments to the focuser to keep views tack-sharp as the temperature changes. For example, as the night air cools, the focuser will compensate for the change in the telescope's focal plane location by changing the focus to match. To ensure accuracy, you'll need to calibrate the temperature versus focus position for your rig. The probe measures temperature changes as little as 0.01°, with displays reading to 0.1°C. In the Box Alpine Astronomical Diamond Steeldrive Motor Drive for Diamond Steeltrack Focusers Timing Belt 6.6' (2m) USB Cable 3.3' (1m) Temperature Probe ASCOM Driver & SteelGo II Software Limited 2-Year Warranty Table of Contents
|
